DT SWISS

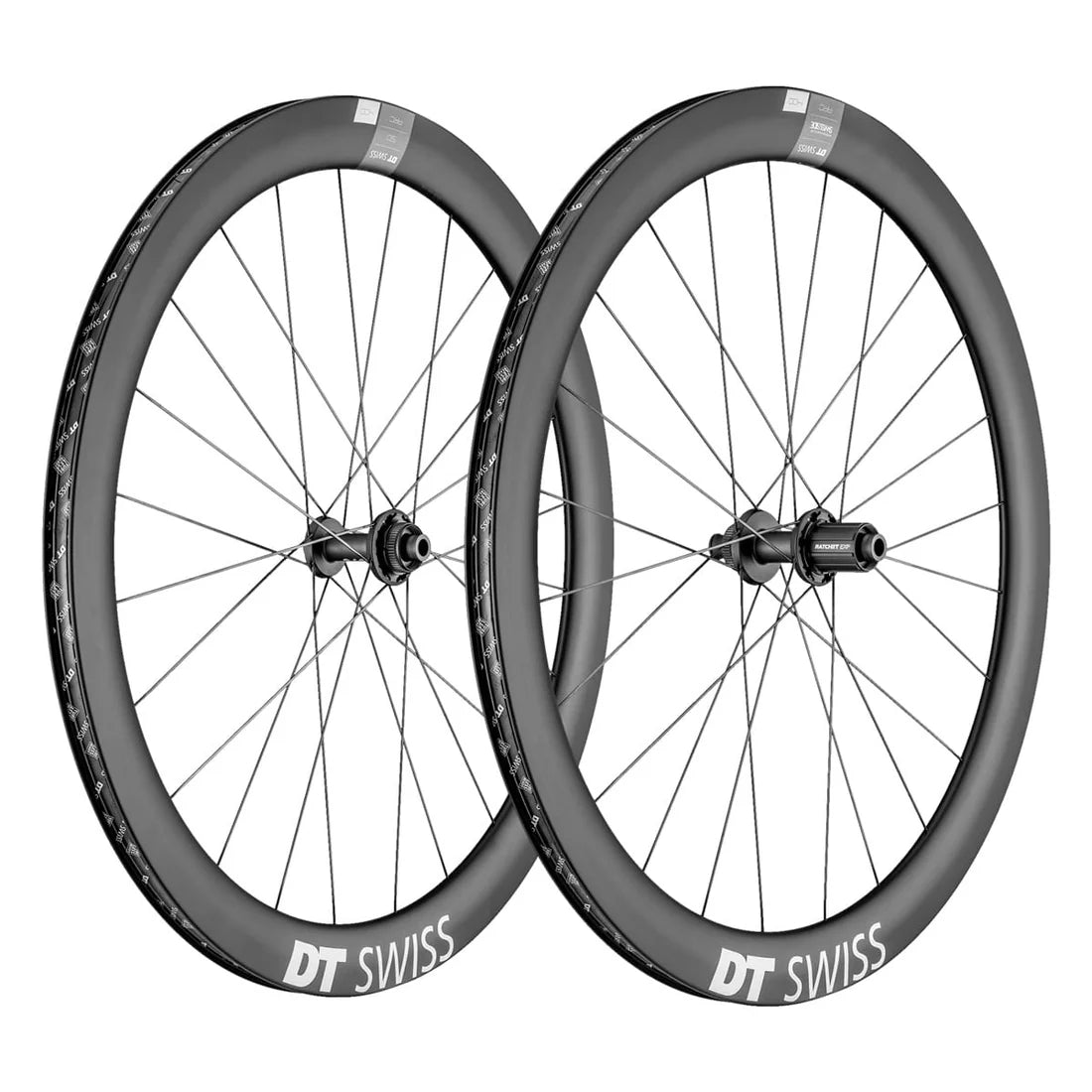

Pair of DT SWISS ARC 1400 DICUT 50 DISC Tubeless Ready Wheels (Center Lock)

Visit DT SWISS ARC 1400 DICUT 50 DISC wheelset are designed for maximum performance on the flat.  Developed with Swiss Side's aerodynamic expertise, this wheel... Read more
Regular price 1.649,90 €
Regular price 0,00 € Sale price 1.649,90 €
View full details

Description

Visit DT SWISS ARC 1400 DICUT 50 DISC wheelset are designed for maximum performance on the flat.

Developed with Swiss Side's aerodynamic expertise, this wheel reduces drag and ensures optimum stability, ideal for speed-seeking athletes. With a rim height of 50 mm, it combines aerodynamics and responsiveness, making it particularly high-performance.

This wheel features the Ratchet System EXP technology. This patented freewheel system with high-precision ring gears guarantees maximum stress resistance and reliability. Thanks to the "no tool" concept, it is quick and easy to maintain.

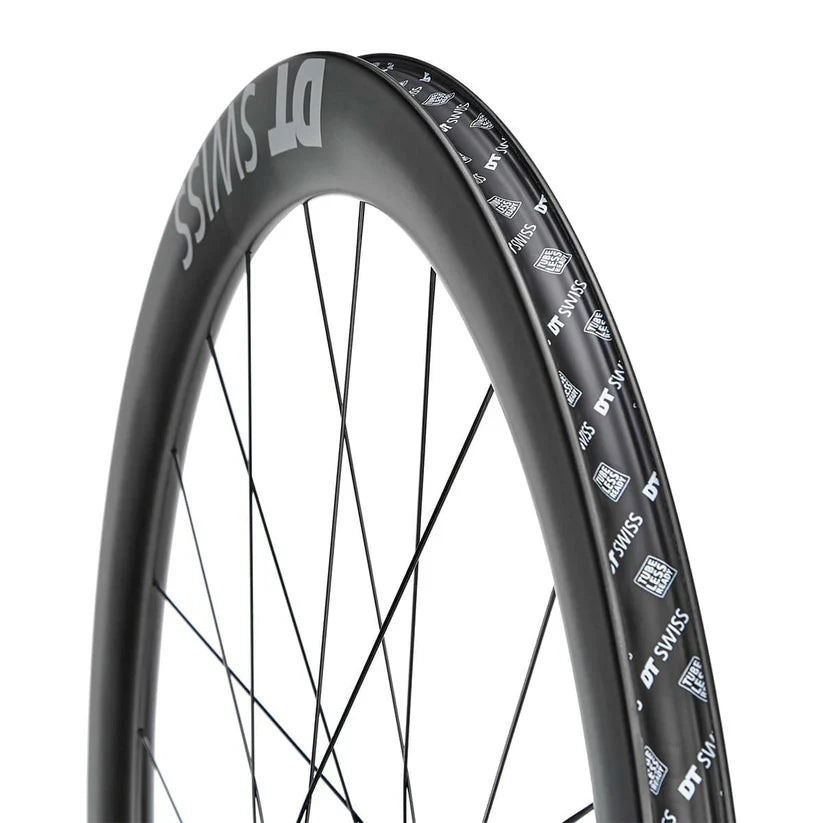

Its rim, faithful to the ARC DICUTThe ARC DICUT, guarantees low air resistance for maximum efficiency. Perfectly suited to racing conditions and time trials, it optimizes power and stability, even in crosswinds.

Top-of-the-range 240 hub hub offer low rolling resistance and extended durability. Compatibility Tubeless Ready compatibility provides comfort and grip while minimizing the risk of pinching.

The wheel is therefore perfectly designed to offer a competitive edge on fast, technical courses.

Manufacturer's manual + Rim/tire & pressure compatibility chart

Manual DICUT Models

Tubeless Mounting Manual

Ref: 9842676138333

Informations techniques

┘GENERAL
Category : Road
Weight Pair: 1552 g
Front weight: 716 g
Rear weight: 836 g
Max. load 110 kg
ASTM classification: 1
Recommended for E-Bikes: No
Part Number Front / Rear : WARC140AIDXCA12593 / WARC140NIDICA12594

┘JANTE
Material : Carbon
Tire interface: Hooked/Crochet tubeless TC
Wheel diameter: 622mm / 29" / 700c
Rim height: 50mm
Internal width: 20mm
External width: 27mm

┘MOYEUX
Axle system: 12mm Thru axle
Front axle center distance: 100mm
Rear axle center distance: 142mm
Disc mounting: Center Lock
Freewheel body: Shimano HG
Freewheel: Ratchet EXP 36

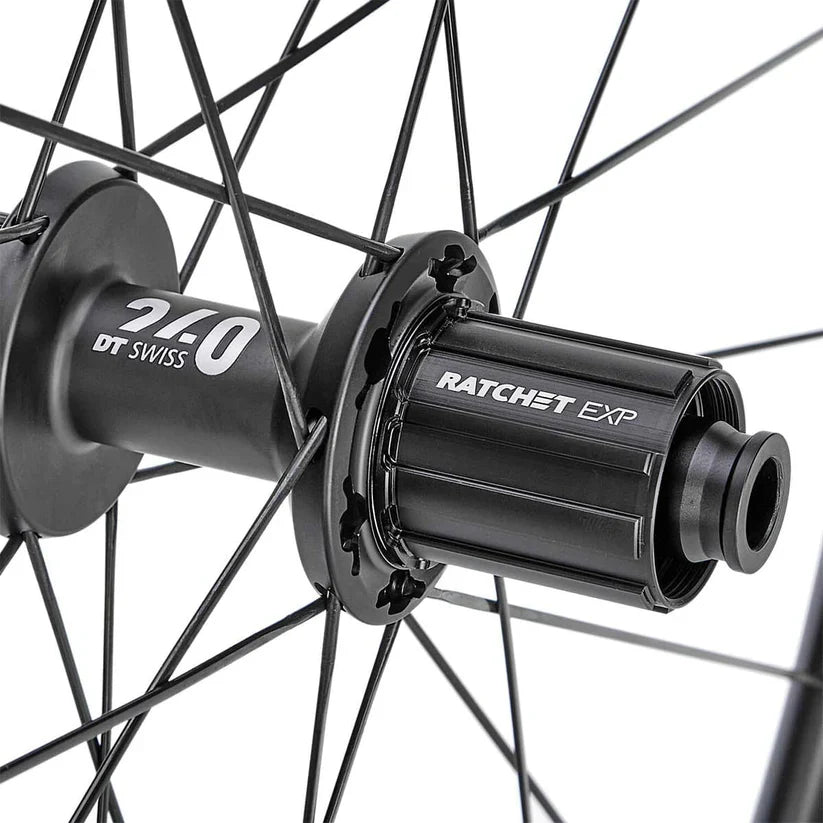

Hub type: 240

┘ NIPPLES AND NUTS
Left spokes: DT aero comp® t-head
Straight spokes: DT aero comp® t-head
Racking type: Two-cross (1:1)
Nipples : DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
► AERO RANGE: DT Swiss's Aero range maximizes aerodynamics with streamlined rims and innovative spokes, offering high performance and exceptional stability, ideal for reaching optimal speeds ;
► DICUT: DT Swiss's DICUT concept combines high-performance hubs, optimized spokes and advanced aerodynamics. Designed for speed and efficiency, it maximizes lateral stiffness and power transfer on road and track ;
► AERO+: DT Swiss's Aero+ technology optimizes aerodynamics and stability by reducing drag and improving handling. It perfectly balances air resistance, pedaling efficiency and crosswind control ;
► RATCHET EXP:DT Swiss's Ratchet EXP freewheel body technology optimizes hub engagement by integrating a single tapered spring, reducing weight and increasing durability. It ensures efficient power transfer and simplified maintenance. ;
► CRAFT KNOW-HOW: Handcrafted, guaranteed to benefit from all DT Swiss know-how;

┘INCLUSIVE
Rim base: 23mm tubeless roll
Valve: Black TL alu valve 49-65 mm / Valve protection sticker

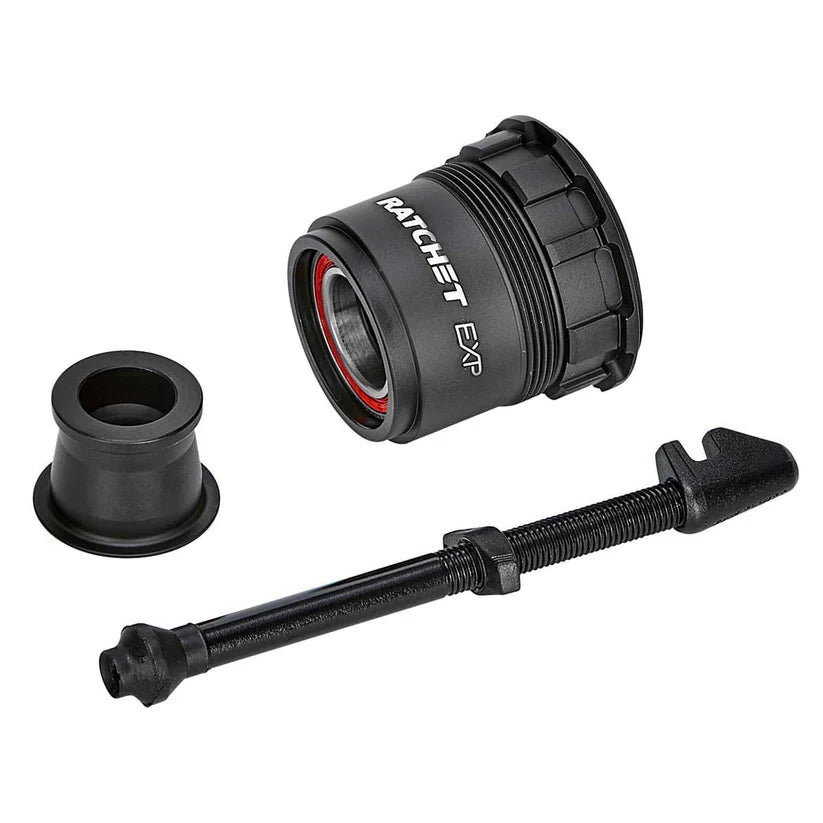

Freewheel body kit: SRAM XDR

┘CONVERSION REFERENCES
- Front wheel
► Adapters for QR: HWGXXX0000051S ;
- Rear wheel
► Adapters for Shimano HG / QR: HWGXXX00S7446S ;
► XDR kit / QR: HWYABL00S5382S ;
► Kit XDR / 12x142 : HWYABL00S5401S ;
► Adapters for XDR / QR: HWGXXX00S2760S ;
► Microspline kit / 12x142: HWYABL00S1960S ;
► Adapters for Microspline / QR: HWGXXX00S5623S ;
► Campagnolo N3W kit / 12x142: HWYABL00S2993S ;
► Campagnolo Kit / QR: HWYABL00S7073S ;
► Kit Campagnolo / 12x142 : HWYABL00S7074S ;
► Adapters for Campagnolo / QR: HWGXXX00S2766S ;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S ;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S ;
