FOX RACING SHOX

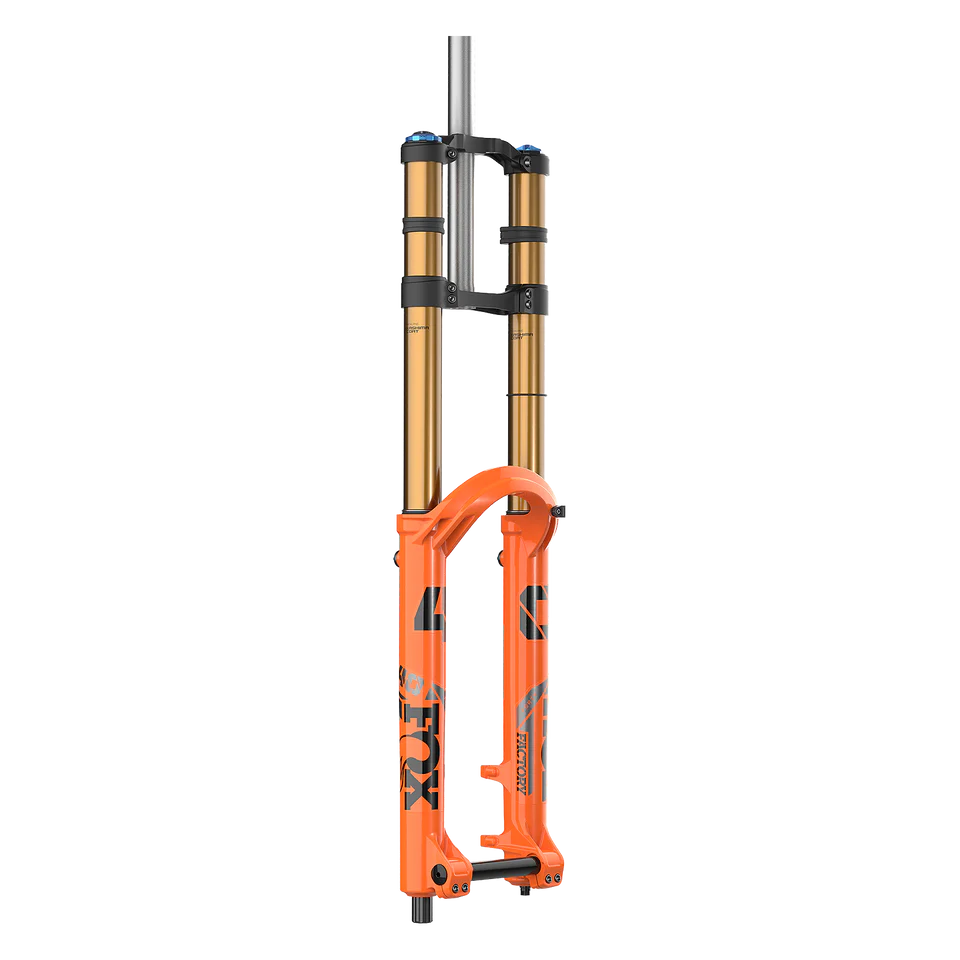

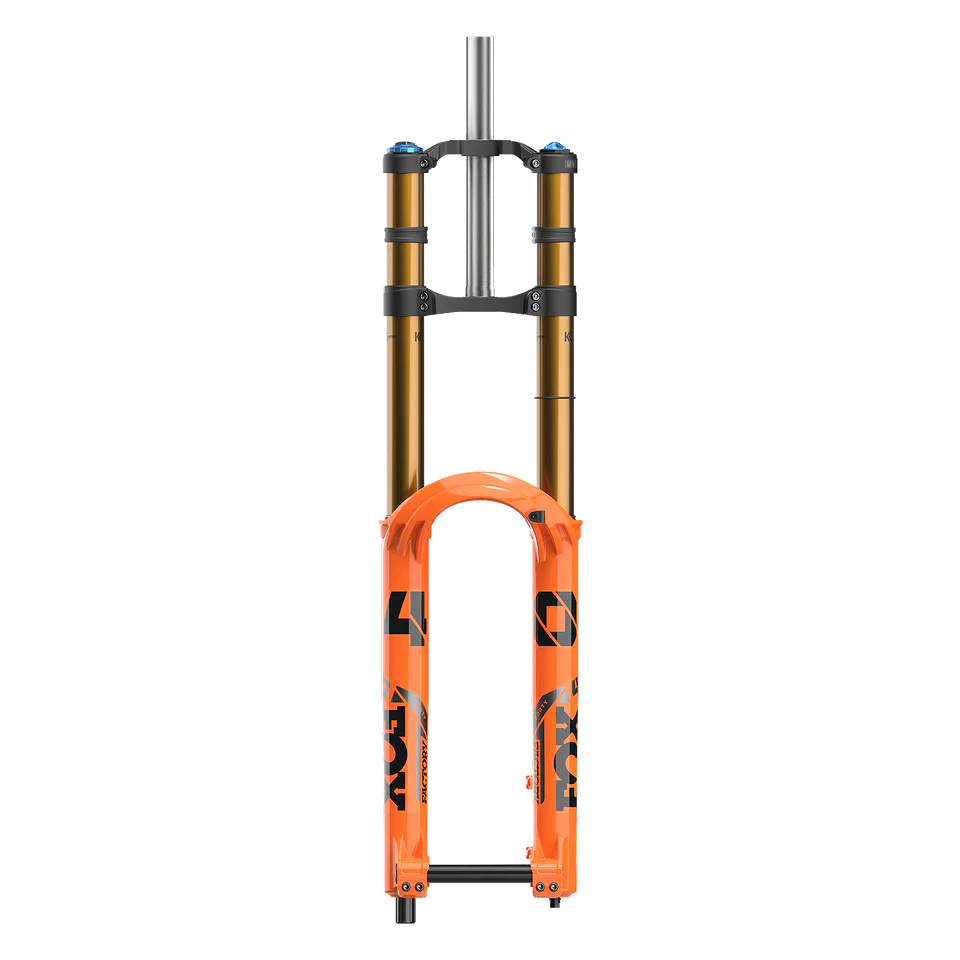

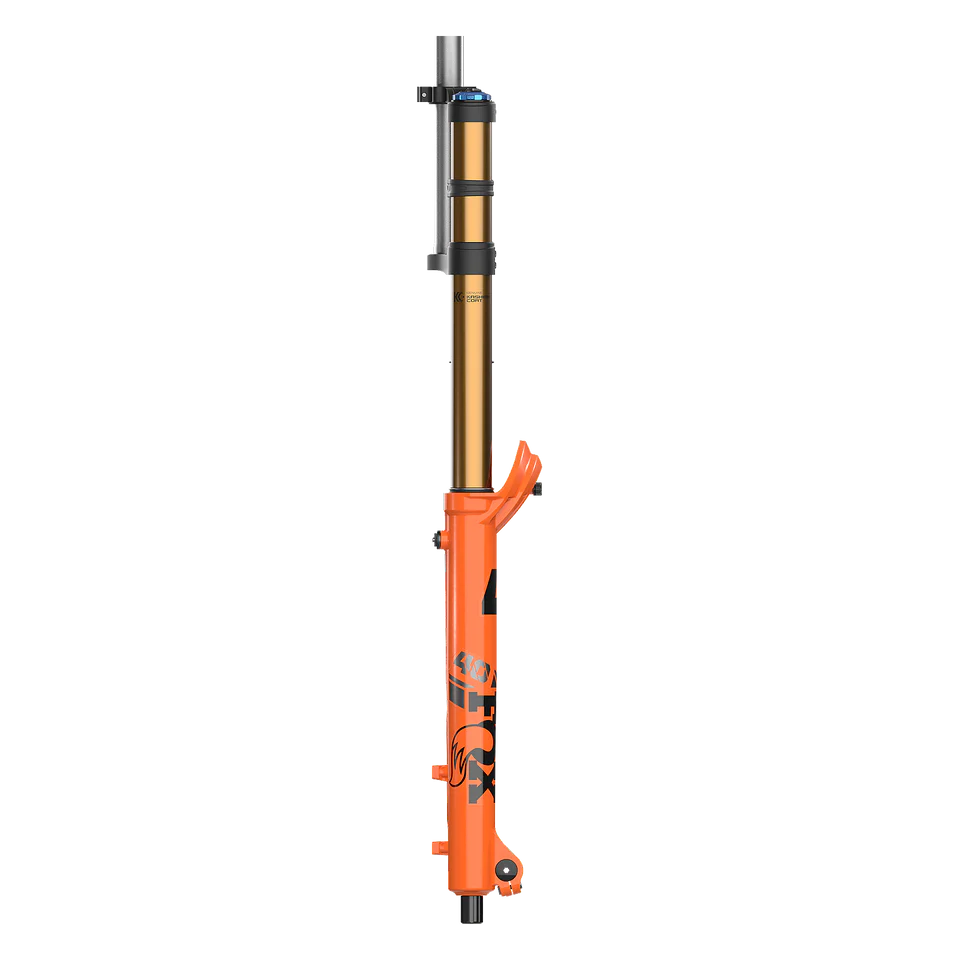

FOX RACING SHOX 40 FLOAT 29" FACTORY Grip X2 Axle 20x110mm 2025 Orange

The Fork FOX RACING SHOX 40 FLOAT FACTORY is designed for the most demanding DH competitions. Developed for World Cup racing, this fork is... Read more

Recommanded price: 2.859,00 €

Regular price 2.119,90 €
Regular price Sale price 2.119,90 €
View full details

Description

The Fork FOX RACING SHOX 40 FLOAT FACTORY is designed for the most demanding DH competitions. Developed for World Cup racing, this fork is the ultimate choice for riders aiming for the top step of the podium. With 203 mm of travel, it offers ultra-high-performance suspension for the most technical terrain and steepest slopes.

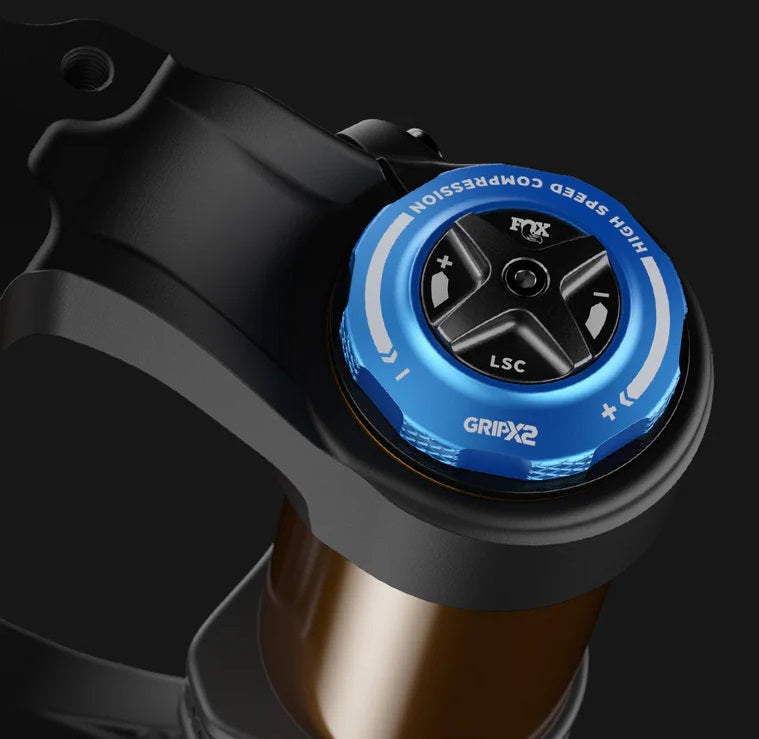

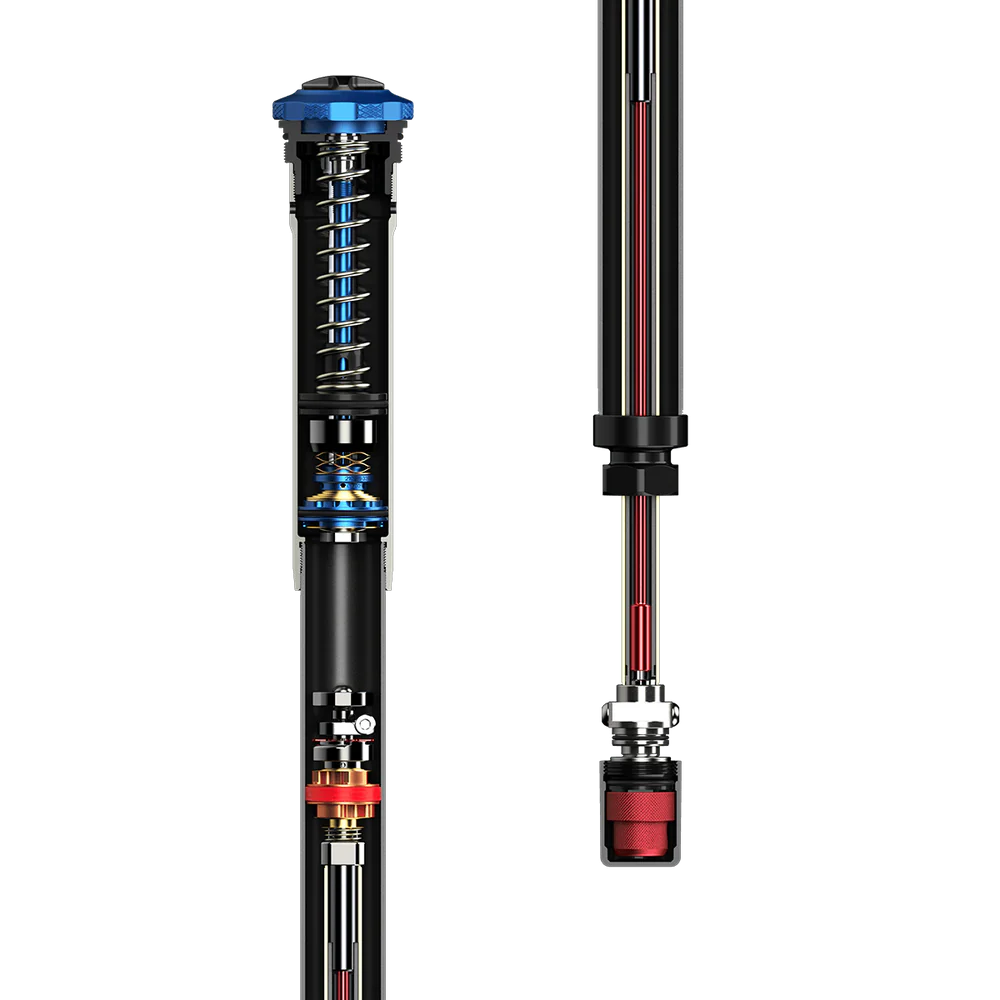

The cartridge GRIP X2 cartridge (replaces Grip 2) features multiple, ultra-precise 4-way adjustments of rebound and compression at low and high speeds, offering the best support and sensitivity (base valve diameter increased to 24 mm) ever created by the brand for downhill riding. Riders ride higher in the travel, while the tires stay glued to the ground, offering better grip in corners. Push the limits of downhill and enduro racing, while reducing overall fatigue. Finally, the many possibilities for custom compression and rebound settings will delight technicians, fastidious endurists and competitors alike. Bypass channels Air Channels increase the volume of the fork arms, reducing pressure build-up and improving absorption of small shocks. Bleeders Bleeders, accessible without tools, make it easy to equalize pressure for optimum suspension performance at all times.

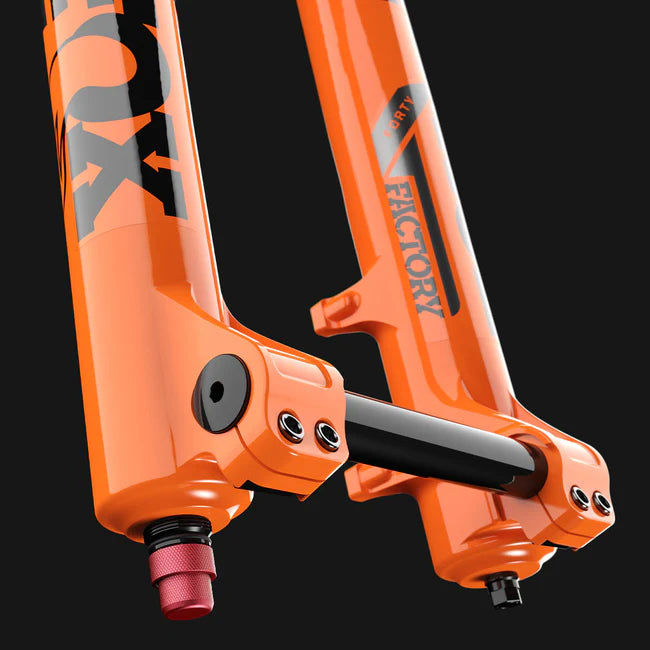

The 20 mm floating axle system ensures perfect frame alignment, reducing friction between the fork's upper and lower legs In this version Factory version, the Kashima treatment of the plungers reduces friction and ensures ultra-smooth fork operation.

Ref: 9813284815197

Informations techniques

Spring: Air Float Evol / Hydraulic: Cartouche Grip X2 - Adjustments HSC, LSC, HSR, LSR :
High-speed trigger: 8 clicks ;
Low-speed trigger: 16 clicks;
High-speed compression: 8 clicks;
Low-speed compression: 18 clicks;
23 internal valves (instead of 7 on Grip2);
Base valve diameter increased to 24mm (20mm on Grip2);
20x110 mm axle (black);
Plungers: 40 mm with Kashima treatment;
Bleeders and Air Channels;
1''1/8-1.5'' tapered swivel;
Pivot length: 272mm ;
Axle/tee height: 586mm (203mm) ;
Postmount brake mounting 203mm (max 230mm) ;
Includes: star, 2 tokens, hose guide;
Manufacturer's code: 910-21-280 ;
Weight (manufacturer): 2745g.

Informations prix

Supplier suggested retail price in May 2024
