SHIMANO

Groupesets SHIMANO 105 Di2 R7170 2x12V

The Groupesets SHIMANO 105 Di2 R7170 2x12V revolutionizes gear shifting for mountain bikers. Road, smooth, effortless performance. Thanks to Di2 technology, every gear change... Read more

Recommanded price: 1.549,90 €

Regular price 999,90 €
Regular price Sale price 999,90 €
View full details

Description

The Groupesets SHIMANO 105 Di2 R7170 2x12V revolutionizes gear shifting for mountain bikers. Road, smooth, effortless performance. Thanks to Di2 technology, every gear change is instantaneous and precise, even in the most demanding conditions. The compact, ergonomic shifter provides optimal control in all circumstances, offering enhanced comfort and perfect control, whatever the riding position.

The system offers a considerable advantage by conserving the rider's energy, allowing him or her to concentrate on the pleasure of the ride and the effort required, without worrying about transmission failures. Gear changes are made automatically by means of a switch, eliminating the shifter travel required for mechanical systems. This feature is particularly useful for adjusting gears to changing road conditions. Road.

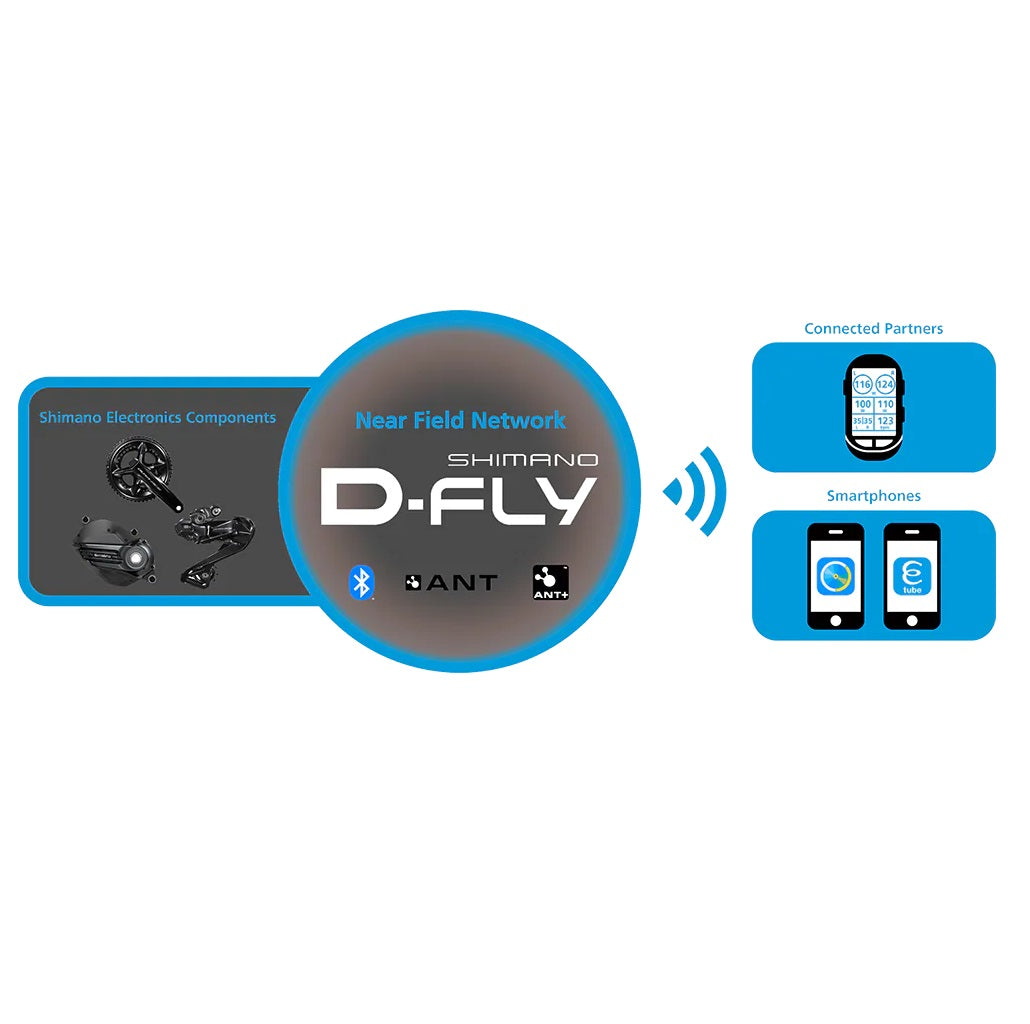

Shimano D-FLY bridges the gap between component technology and Di2 software. D-Fly enables connectivity between Di2 systems and ANT+/Bluetooth®LE-compatible accessories such as computers/GPS and lighting. It also offers a wireless connection to Shimano's E-TUBE PROJECT Cyclist for smartphones, enabling you to customize shifter configuration, check for firmware updates and troubleshoot component failures.

The less-than-1:1 ratio of the SHIMANO 105 12-speed drivetrain allows you to take on more ambitious uphill challenges with greater effort control. The synchronized front derailleur ensures constant pedaling and smooth gear changes, while the E-TUBE PROJECT application enables customized tuning. The new SHIMANO 105 braking system, inspired by the pros, makes high-performance braking accessible to all cyclists.

Instructions for use.

Ref: 9751119429981

Informations techniques

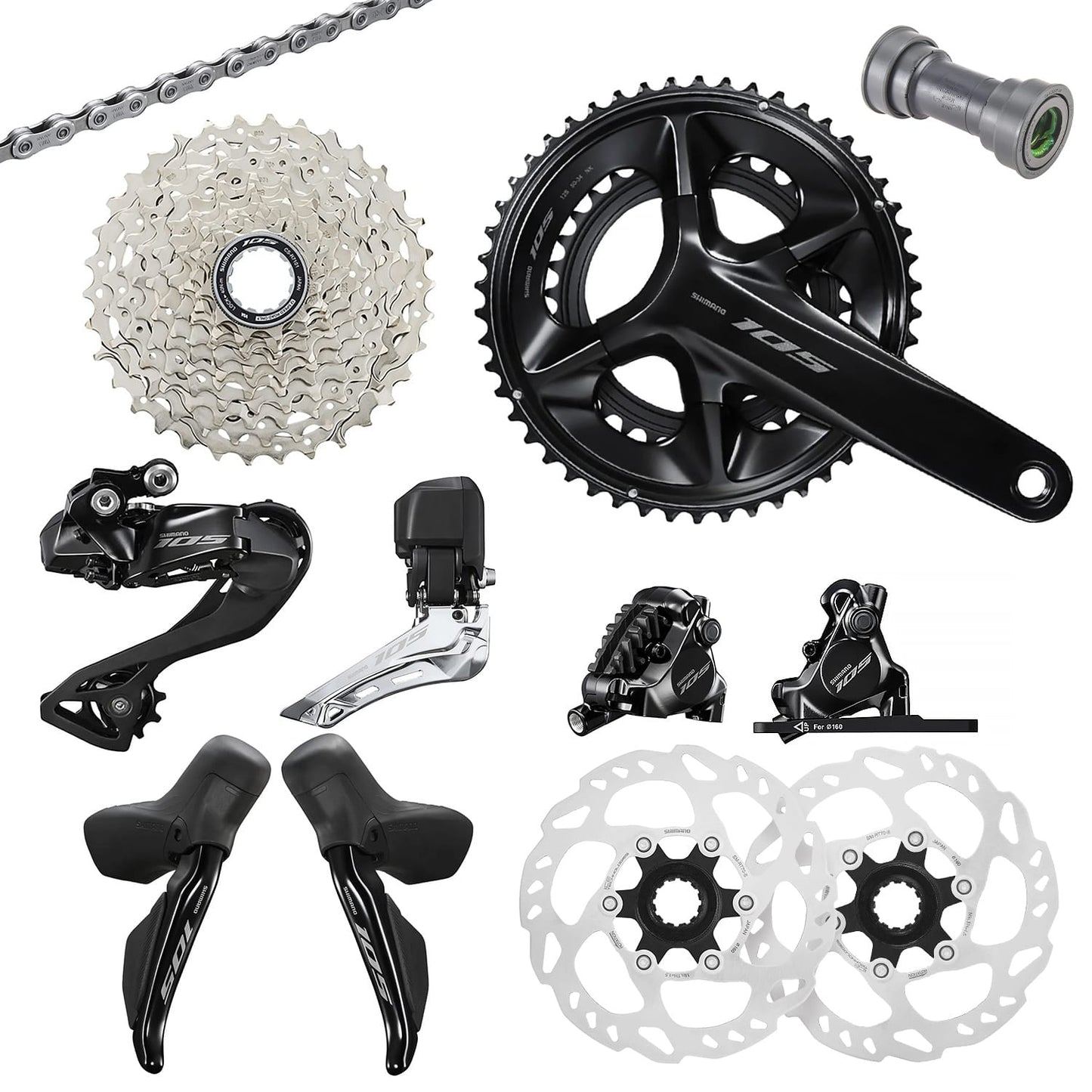

This complete group includes :

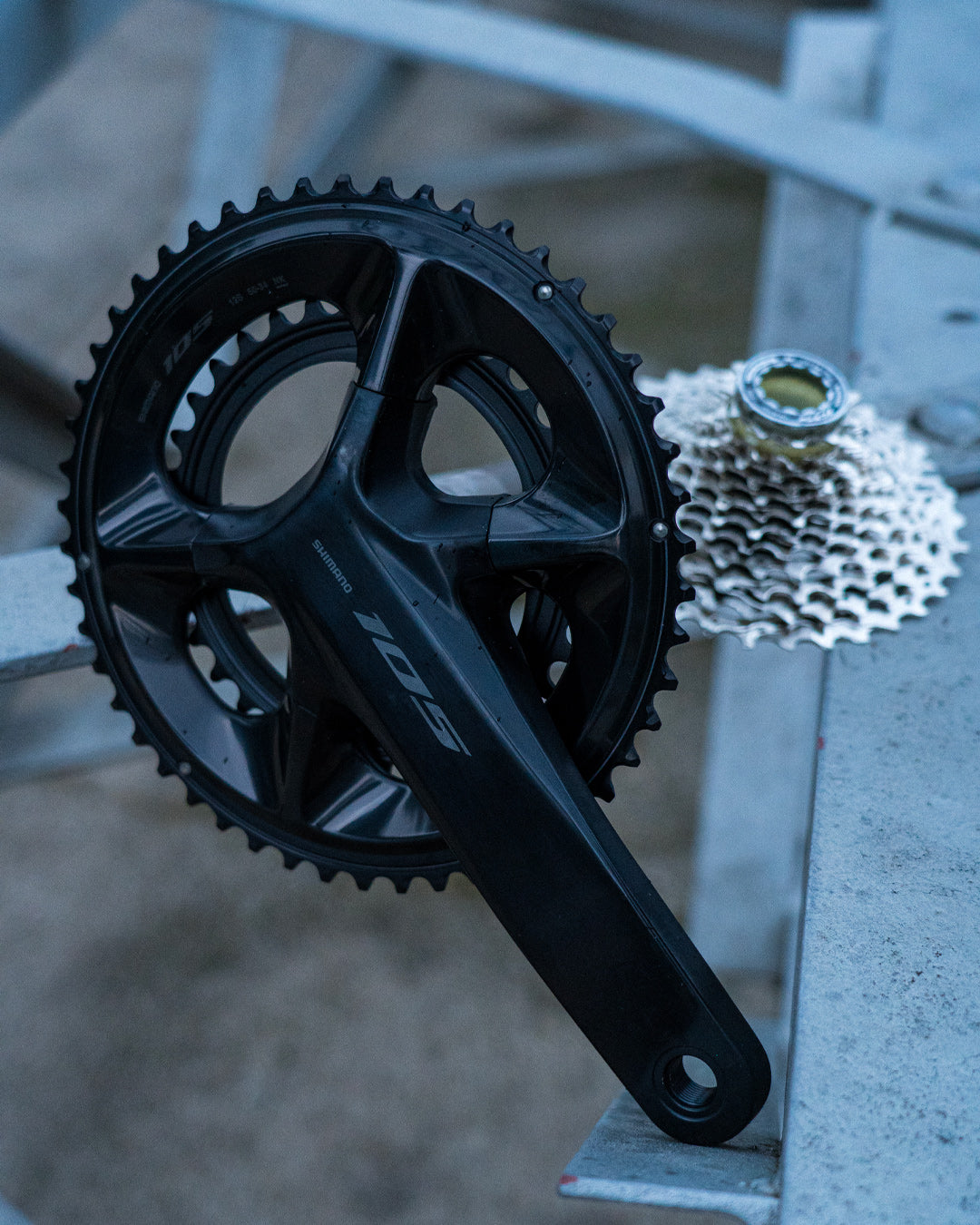

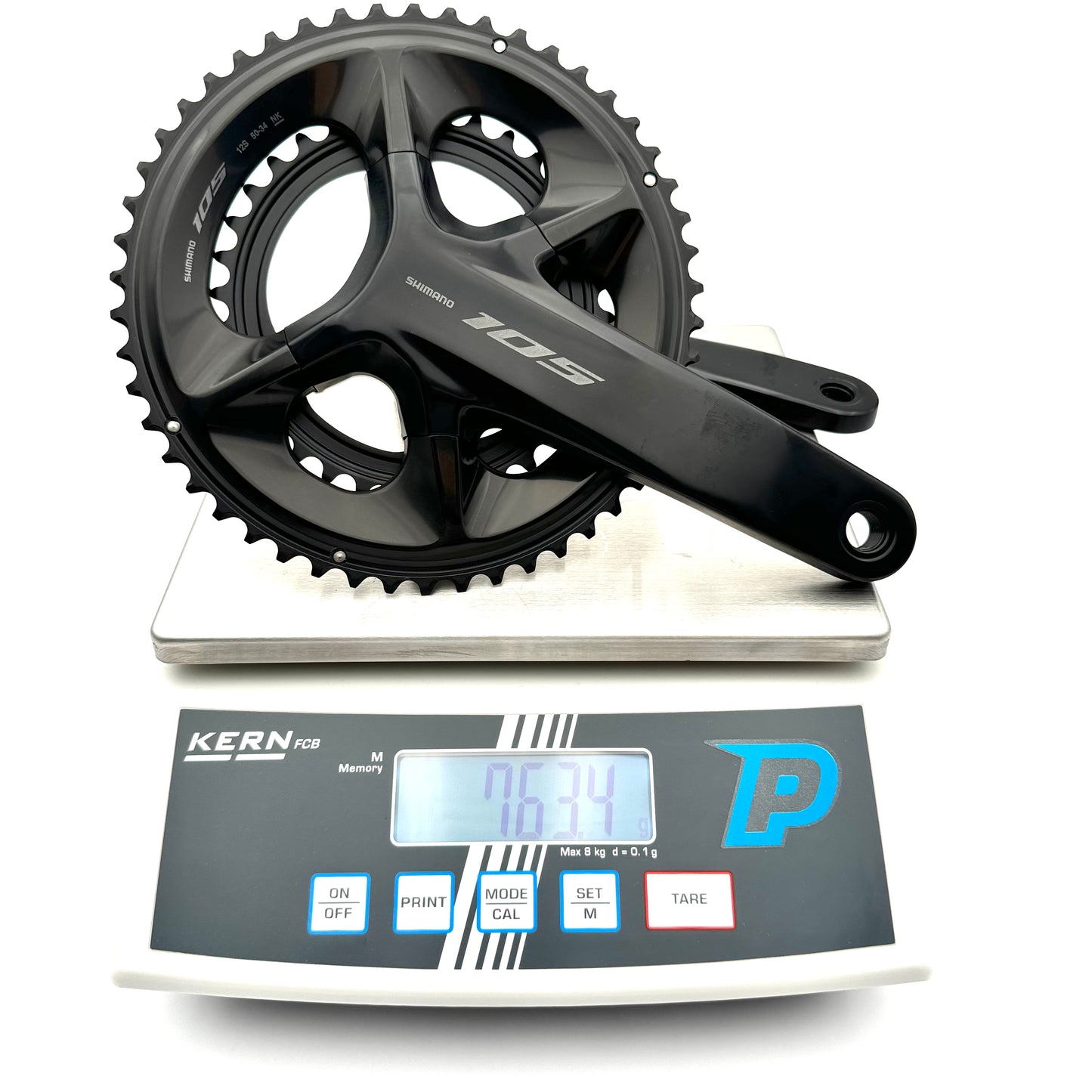

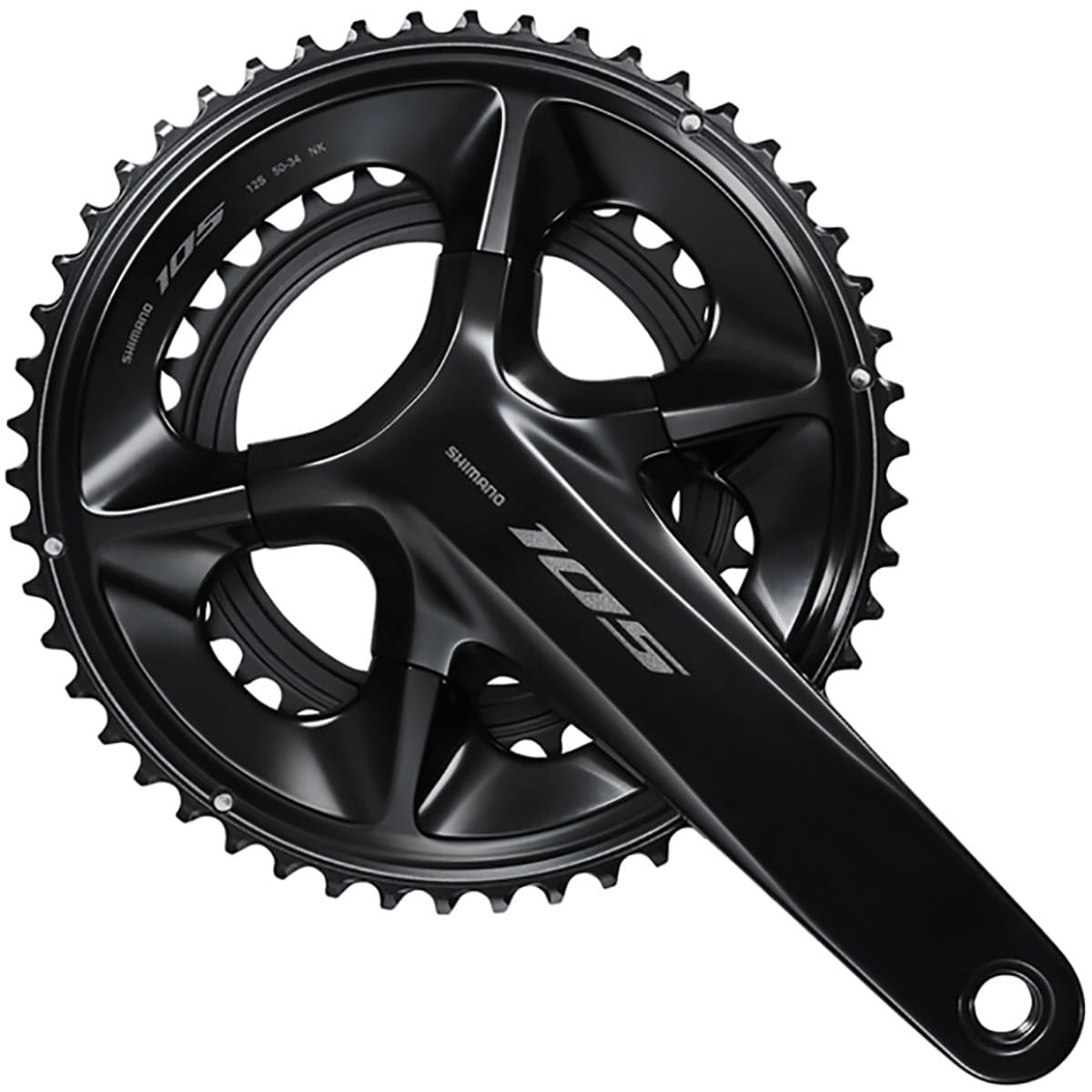

- SHIMANO 105 R7100 12V crankset
Material: aluminum ;
Hollowglide crank structure ;
Toothing: 34/50
Length: 172.5mm
Shaft diameter: 24 mm
Weight (manufacturer): 765g
Weight (probikeshop) : 763.4g

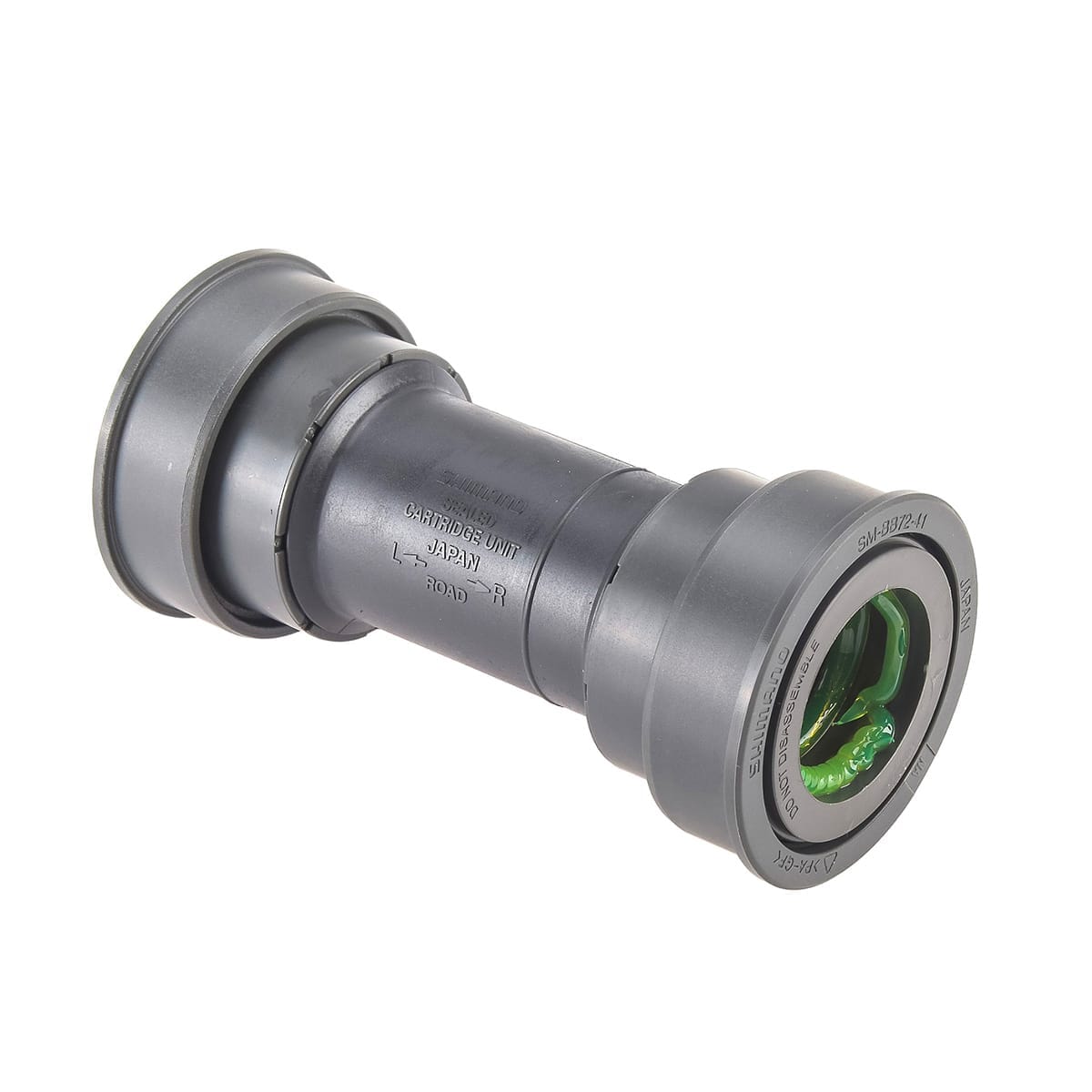

- Pressfit Road SM-BB72-41 86.5x41 mm crankset
Weight (manufacturer): 63 g.

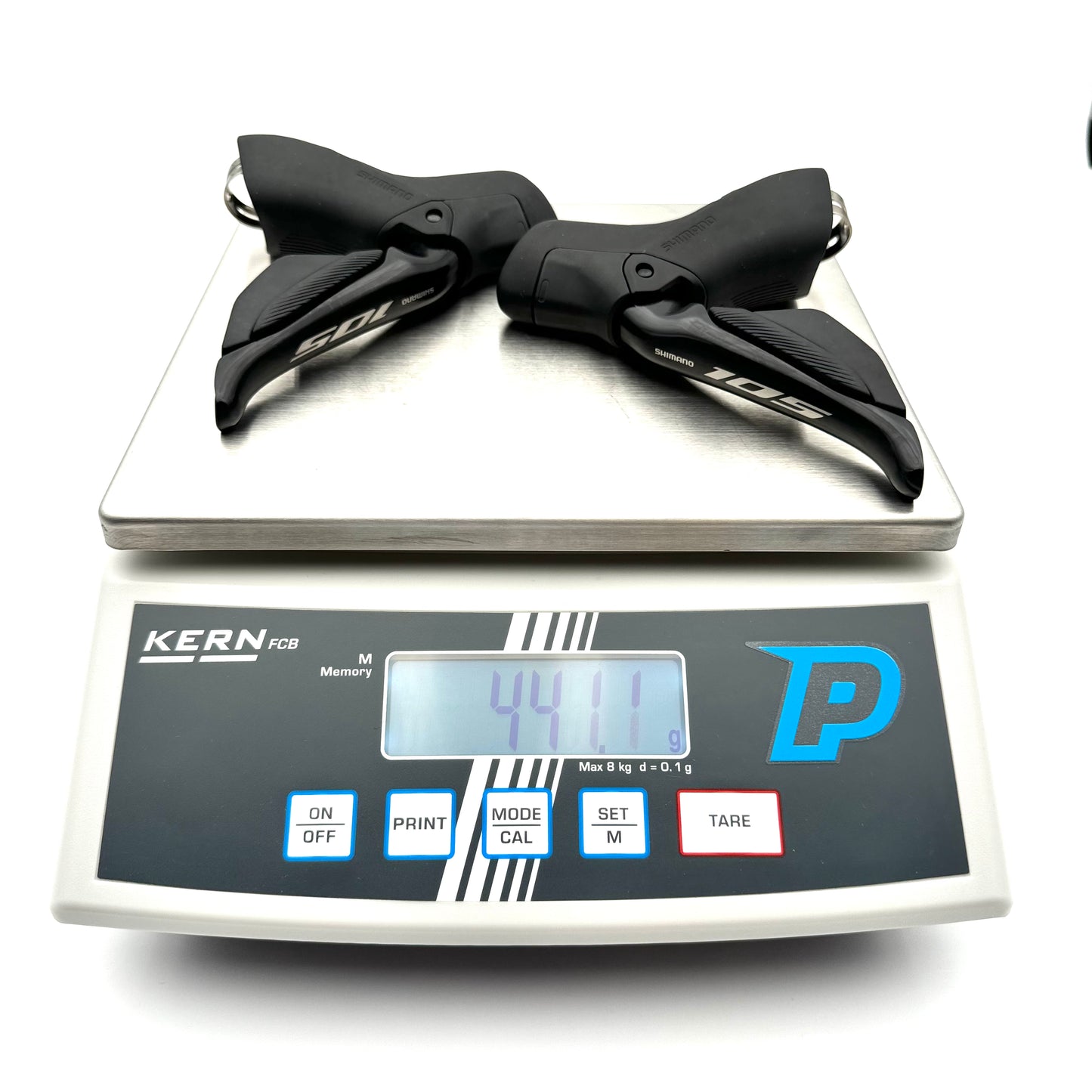

- Pair of SHIMANO 105 Di2 R7170 2x12 levers
Di2 wireless system
Compatible front derailleur: FD-R9250 / FD-R8150 / FD-R7150
Compatible rear derailleur: RD-R9250 / RD-R8150 / RD-R7150
Connectivity: Bluetooth (group connection + application) / SD300 port for EW-SD300 (for professional diagnostics)
Battery: 2x CR1632 batteries
Compatible application: SHIMANO E-TUBE PROJECT
Weight (manufacturer): 423g per pair
Weight (probikeshop): 441.1g per pair

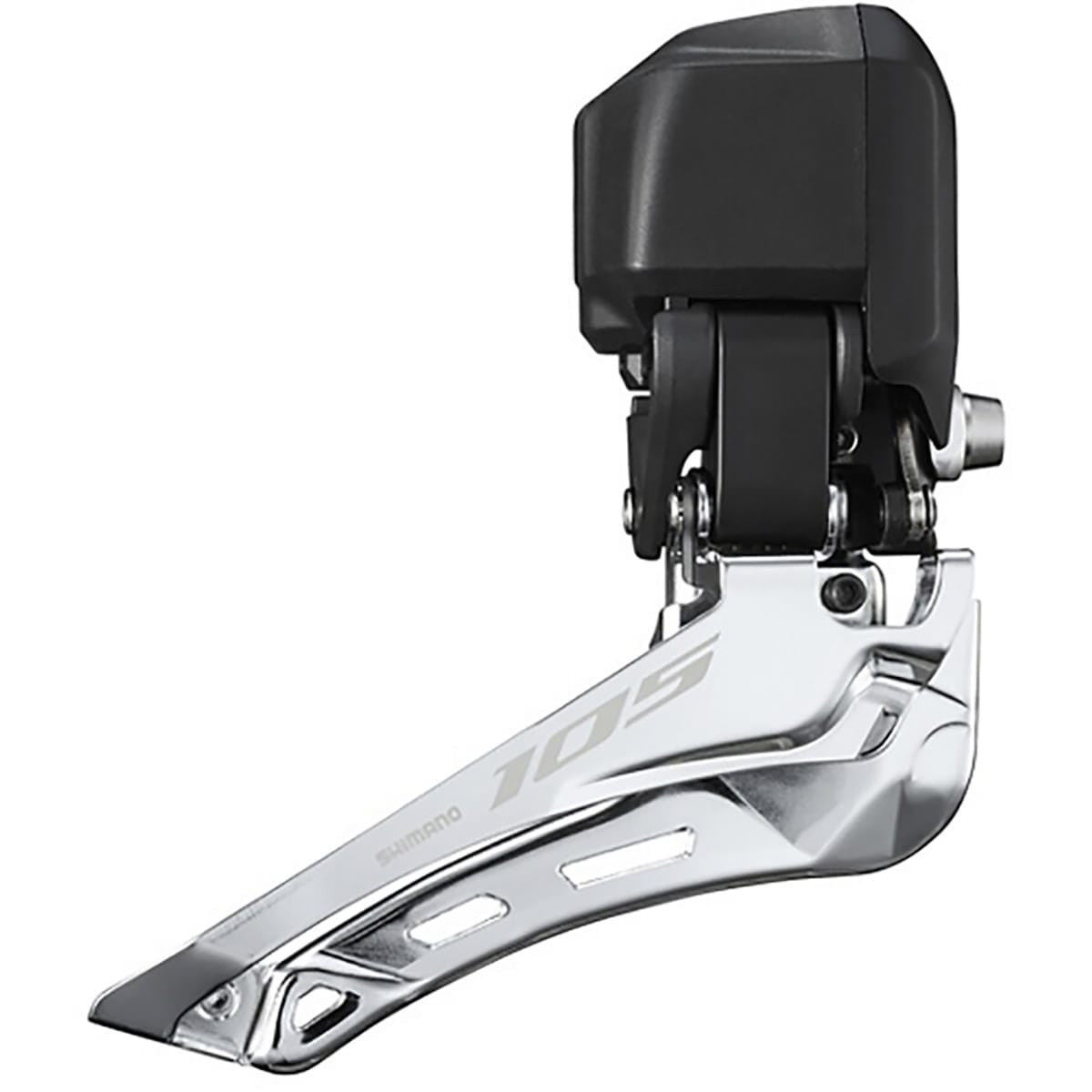

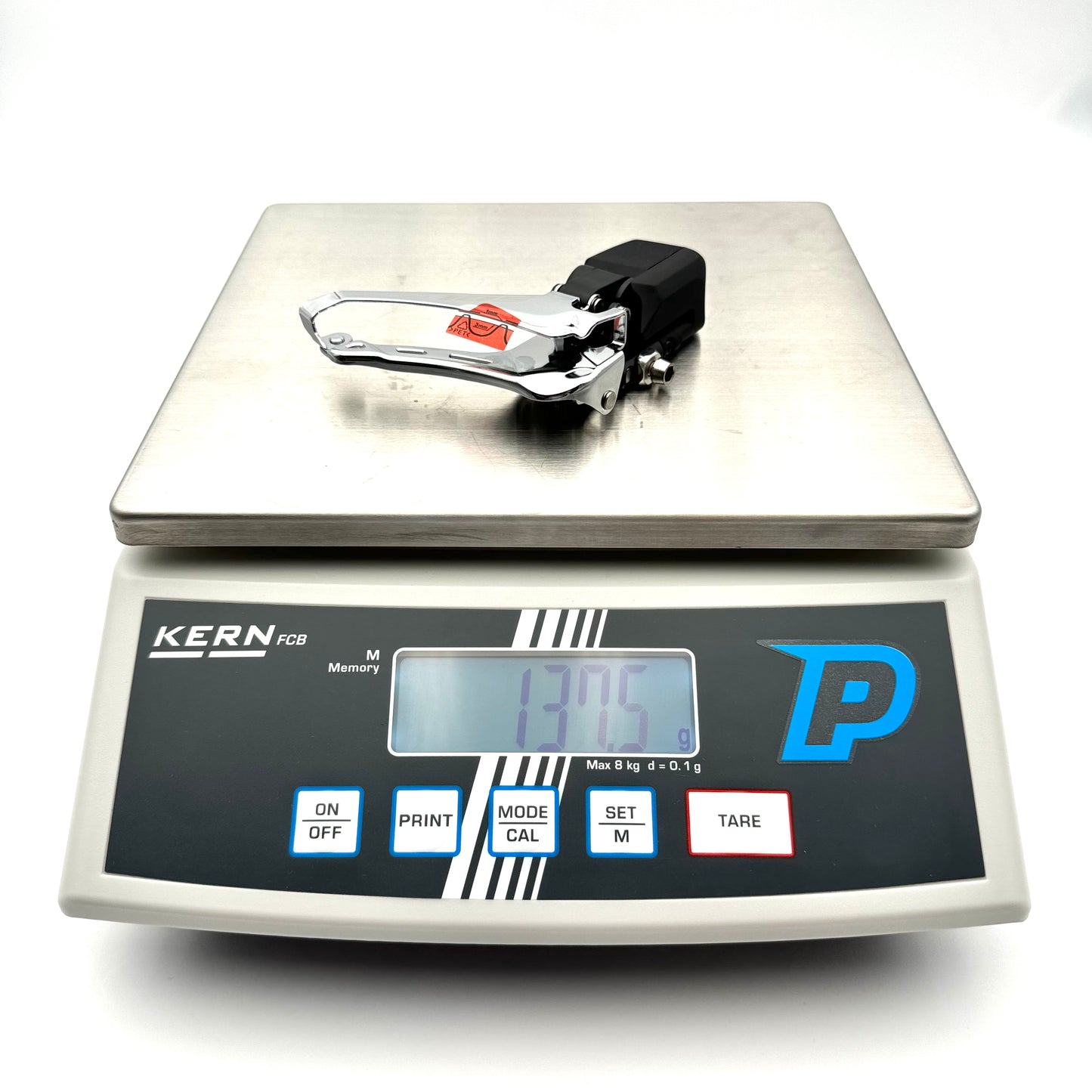

- SHIMANO 105 DI2 R7150 2X12V Braze-on Front Derailleur
Chain length: 44.5 mm ;
Angle: 61-66° ;
Weight (manufacturer): 142g
Weight (probikeshop): 137.5g

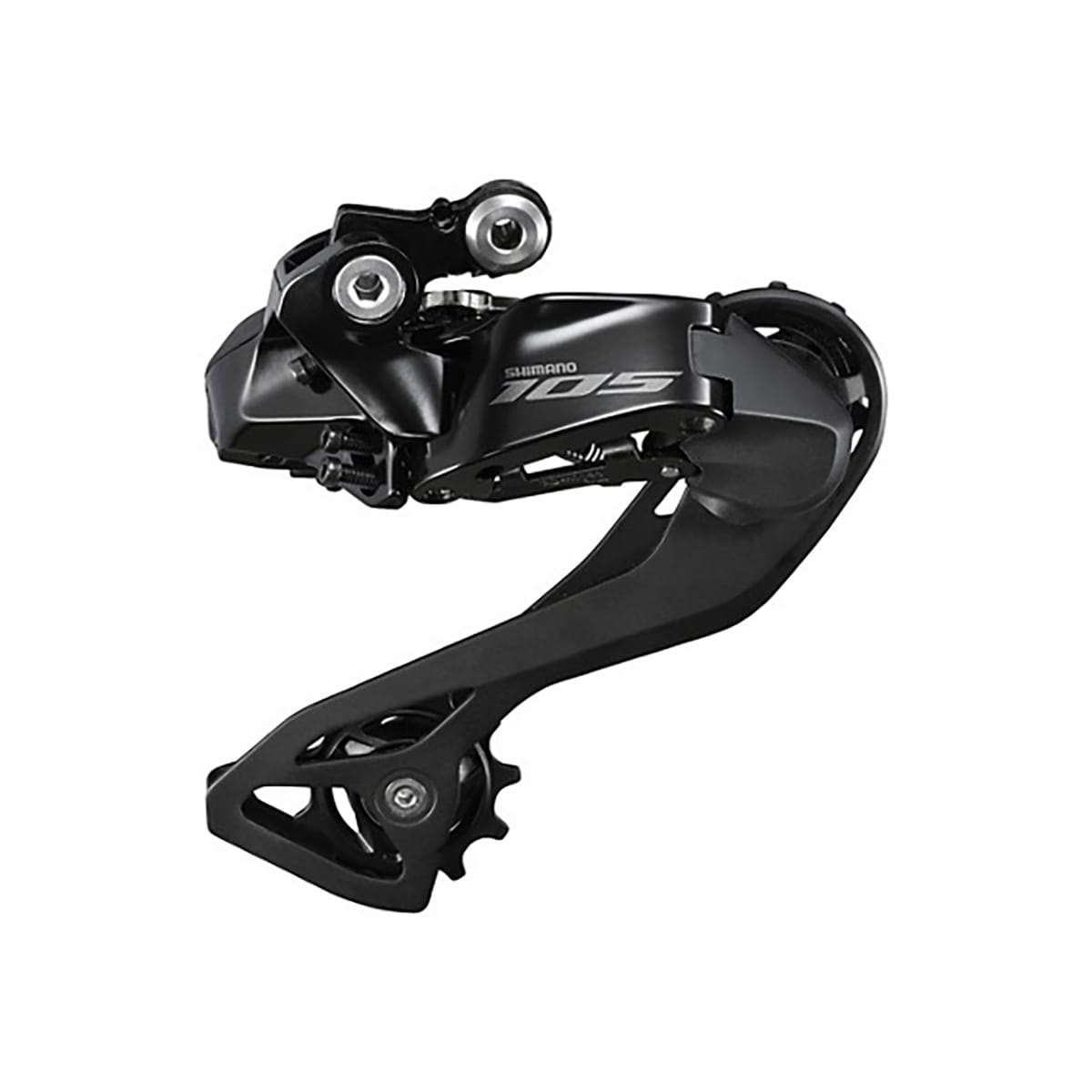

- SHIMANO 105 DI2 R7150 2x12V rear derailleur
Max. front diff. 16 teeth.
Total capacity: 41 teeth.
Max. large sprocket 36 teeth.
Min. large sprocket 34 teeth.
Max. small sprocket 11 teeth.
Min. small sprocket 11 teeth.
Roller teeth: 11 teeth
Weight (manufacturer): 302g.

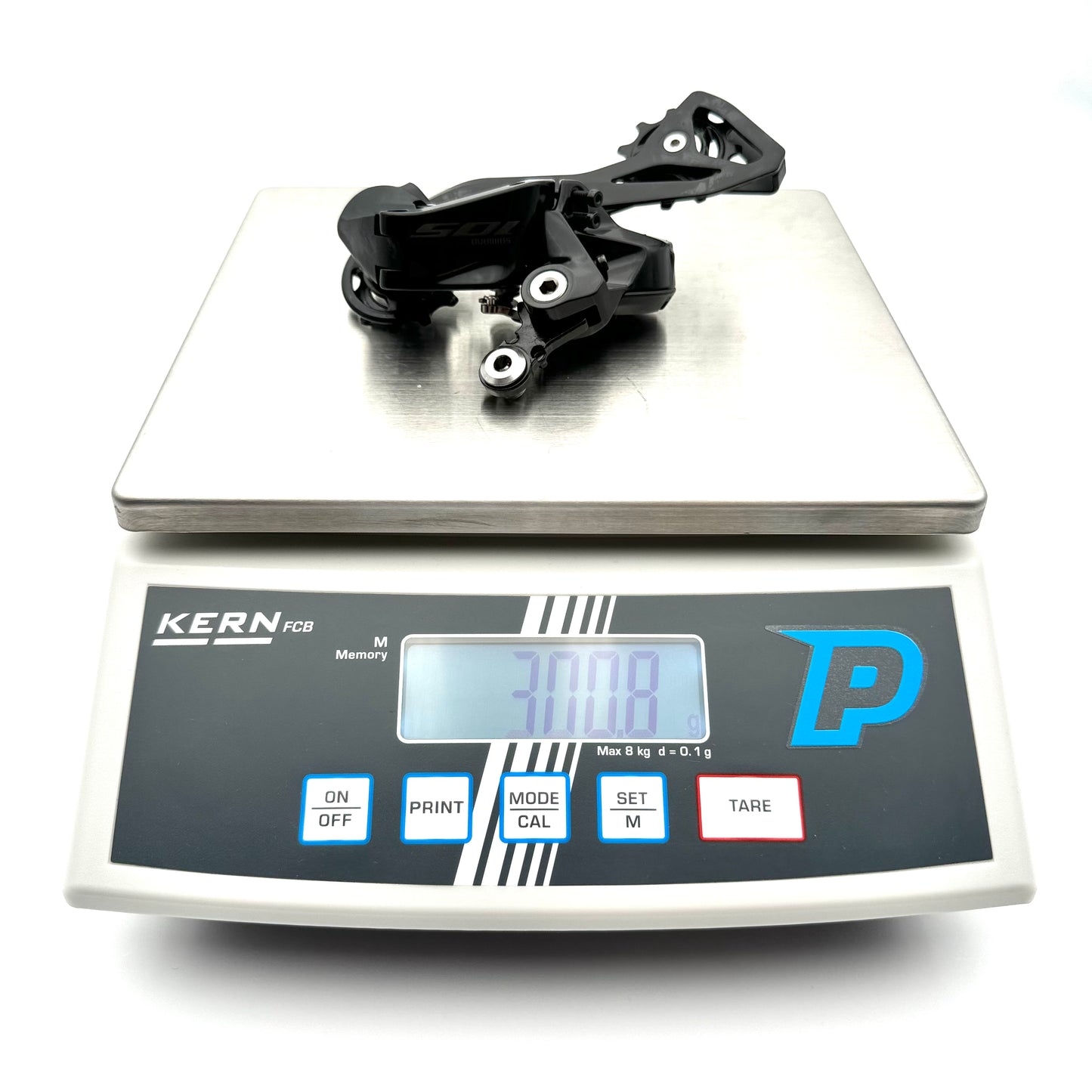

Weight (probikeshop): 300.8g

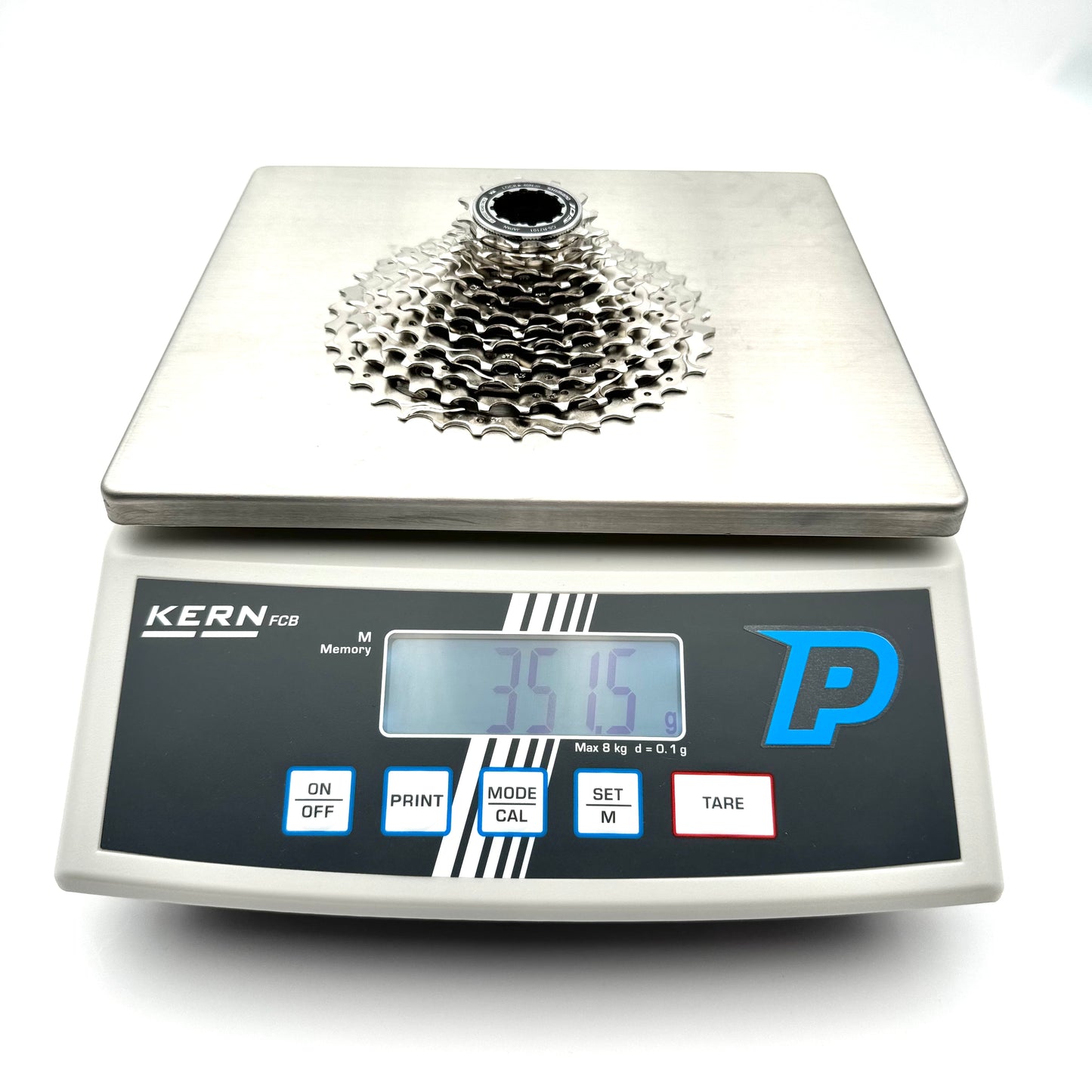

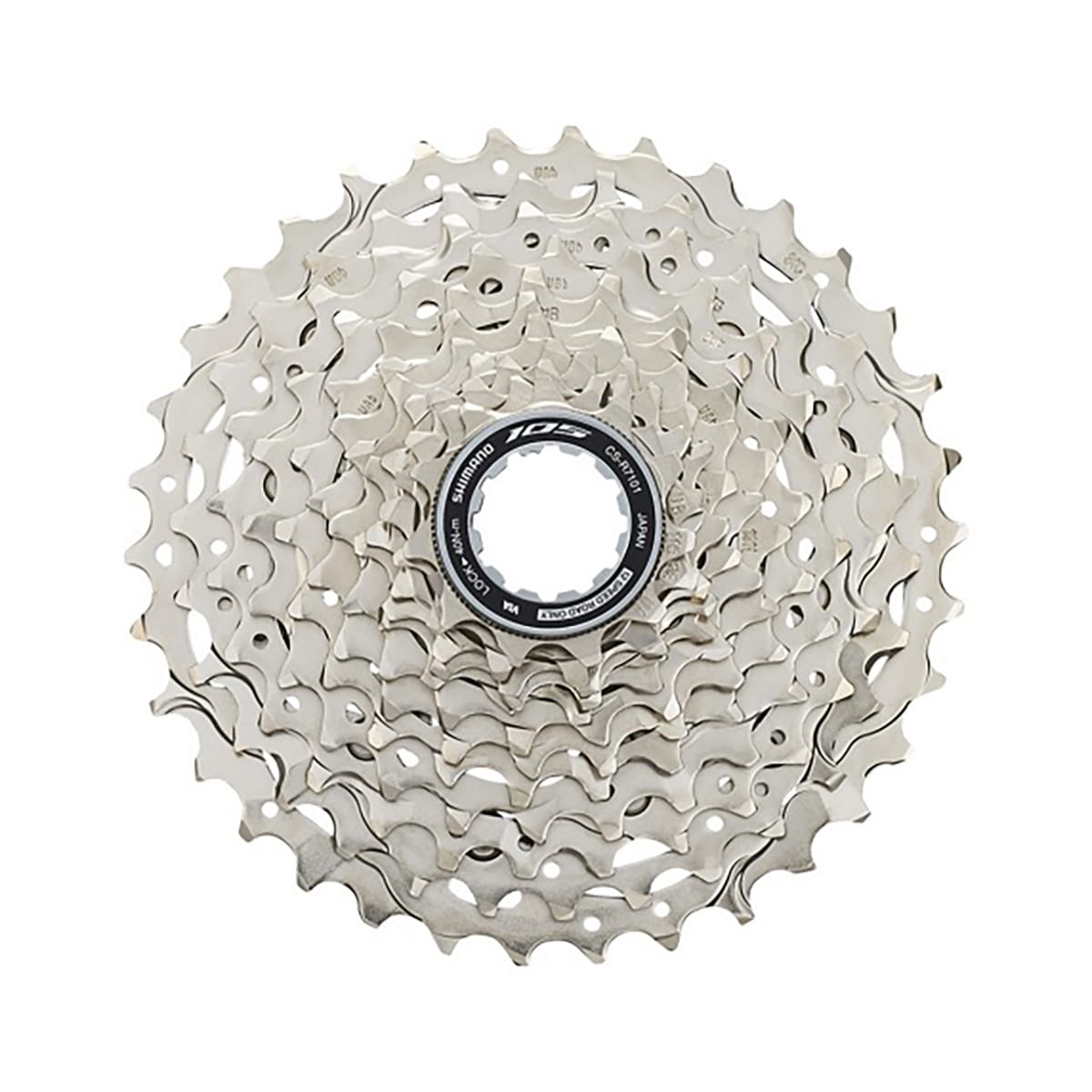

- SHIMANO 105 R7101 12V cassette
11-34 teeth
11/34T (11-12-13-14-15-17-19-21-24-27-30-34 teeth).
Weight (manufacturer): 361g.
Weight (probikeshop): 351.5g

- SHIMANO CN-M7100 12V chain (without Quick Link)
Sil-Tec treatment ;
Type HG ;
Weight (manufacturer): 275g

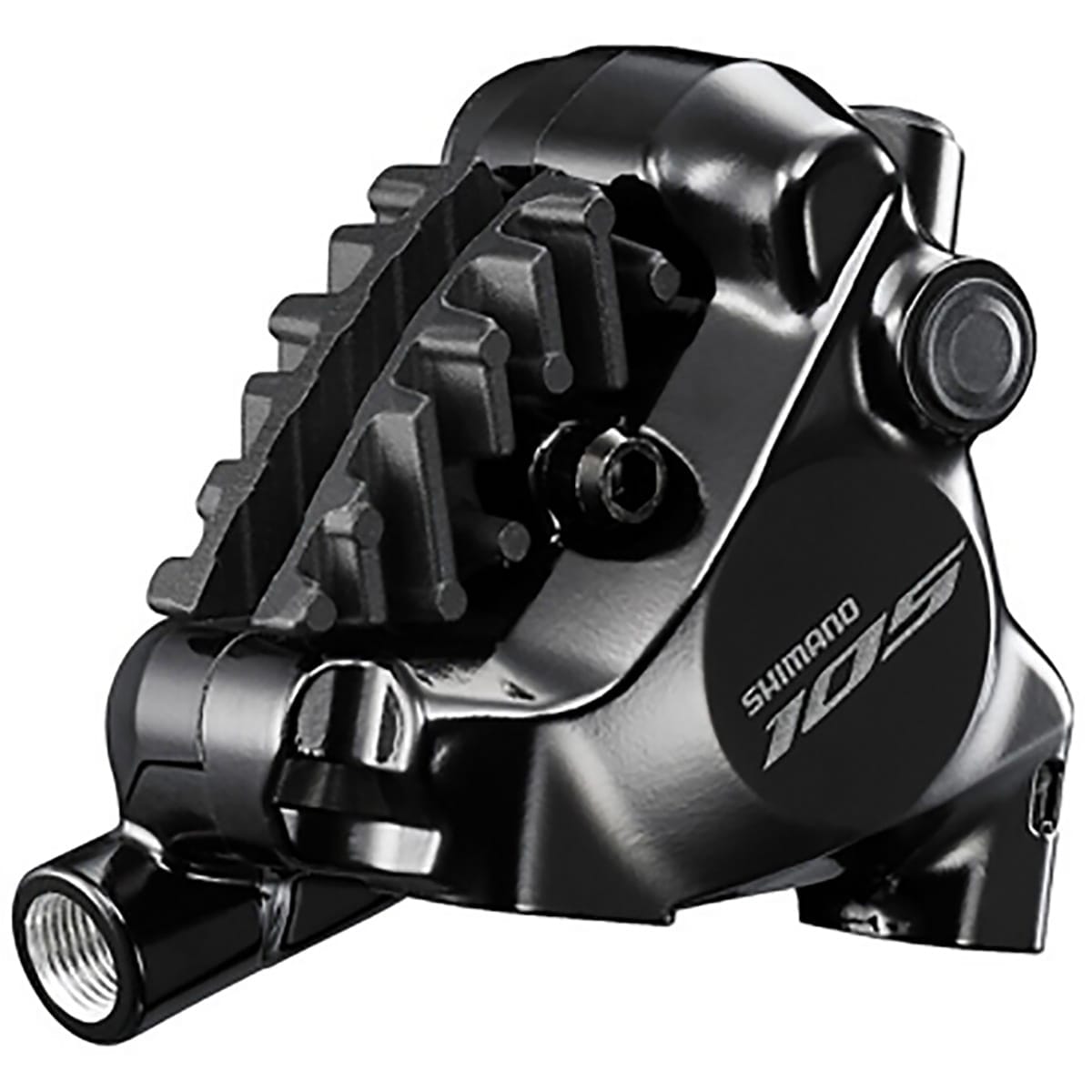

- SHIMANO 105 R7170 Hydraulic Rear Brake Caliper with non-ventilated resin pads and hose
Hydraulic caliper ;
FlatMount mounting;
Ceramic pistons ;
Mineral oil ;
Weight (manufacturer): 150 g rear

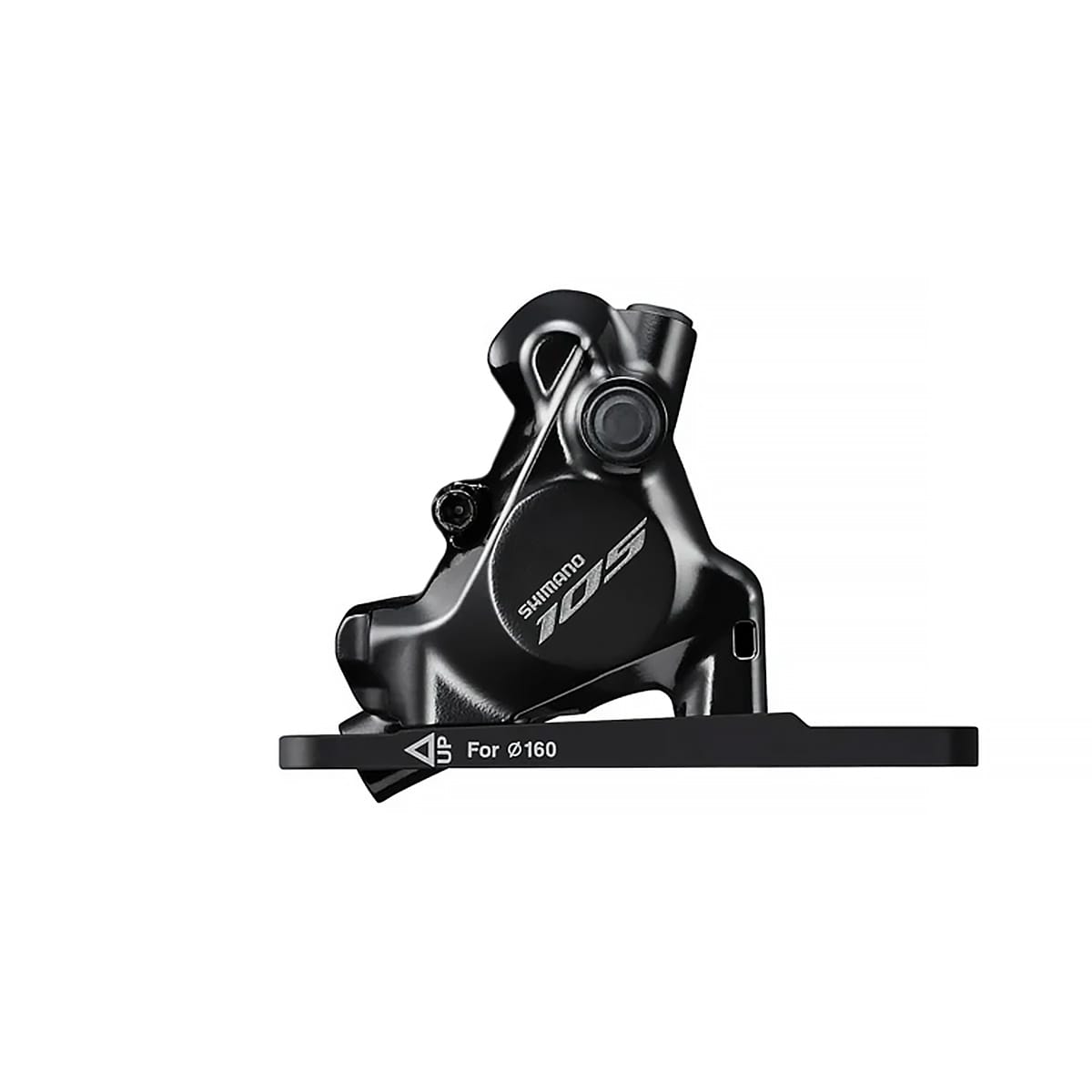

- SHIMANO 105 R7170 Hydraulic Front Brake Caliper with Ventilated Resin Pads, Fin and Hose
Hydraulic caliper ;
FlatMount mounting;
Ceramic pistons ;
Mineral oil ;
Weight (manufacturer): 150 g front

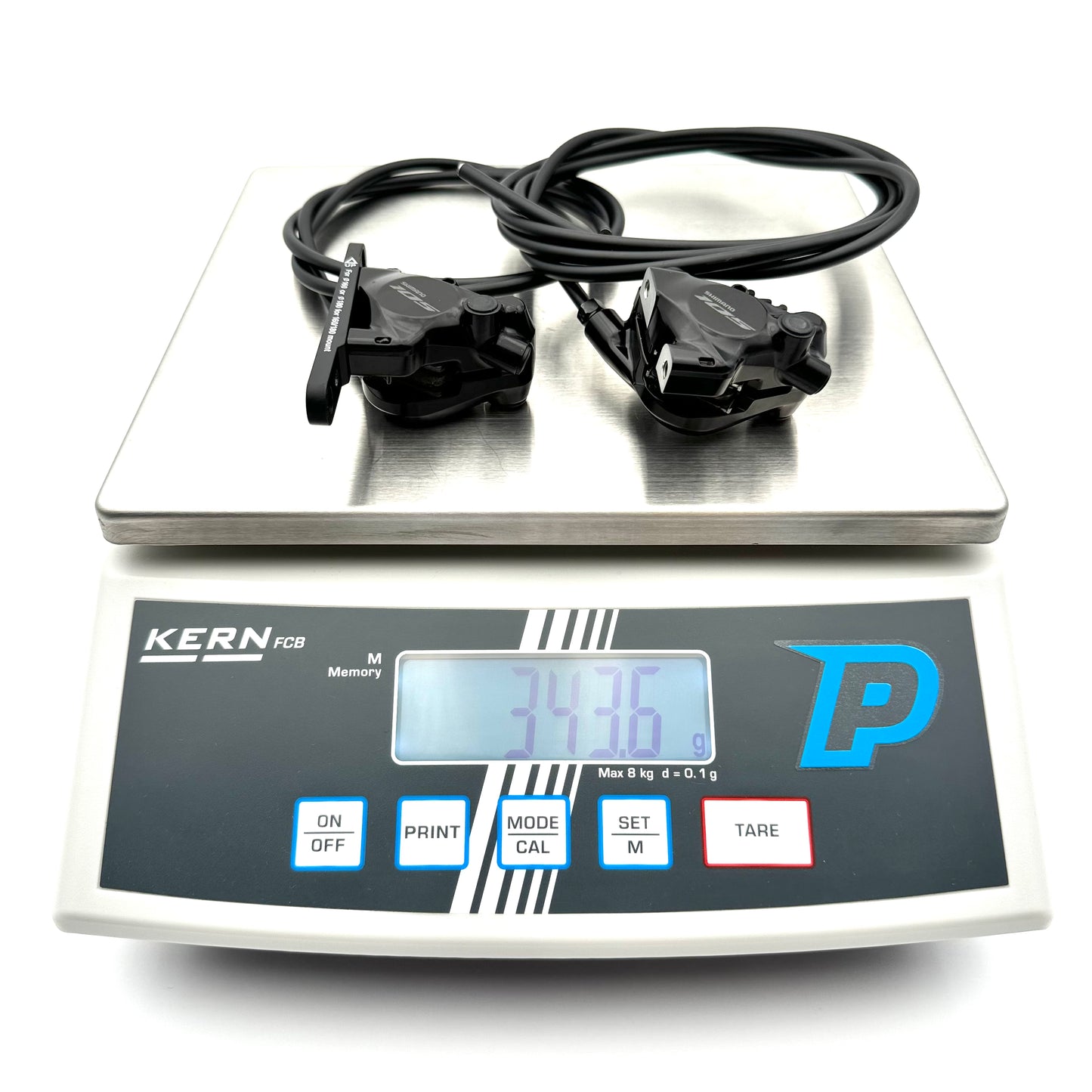

Weight (probikeshop): 343.6g per pair

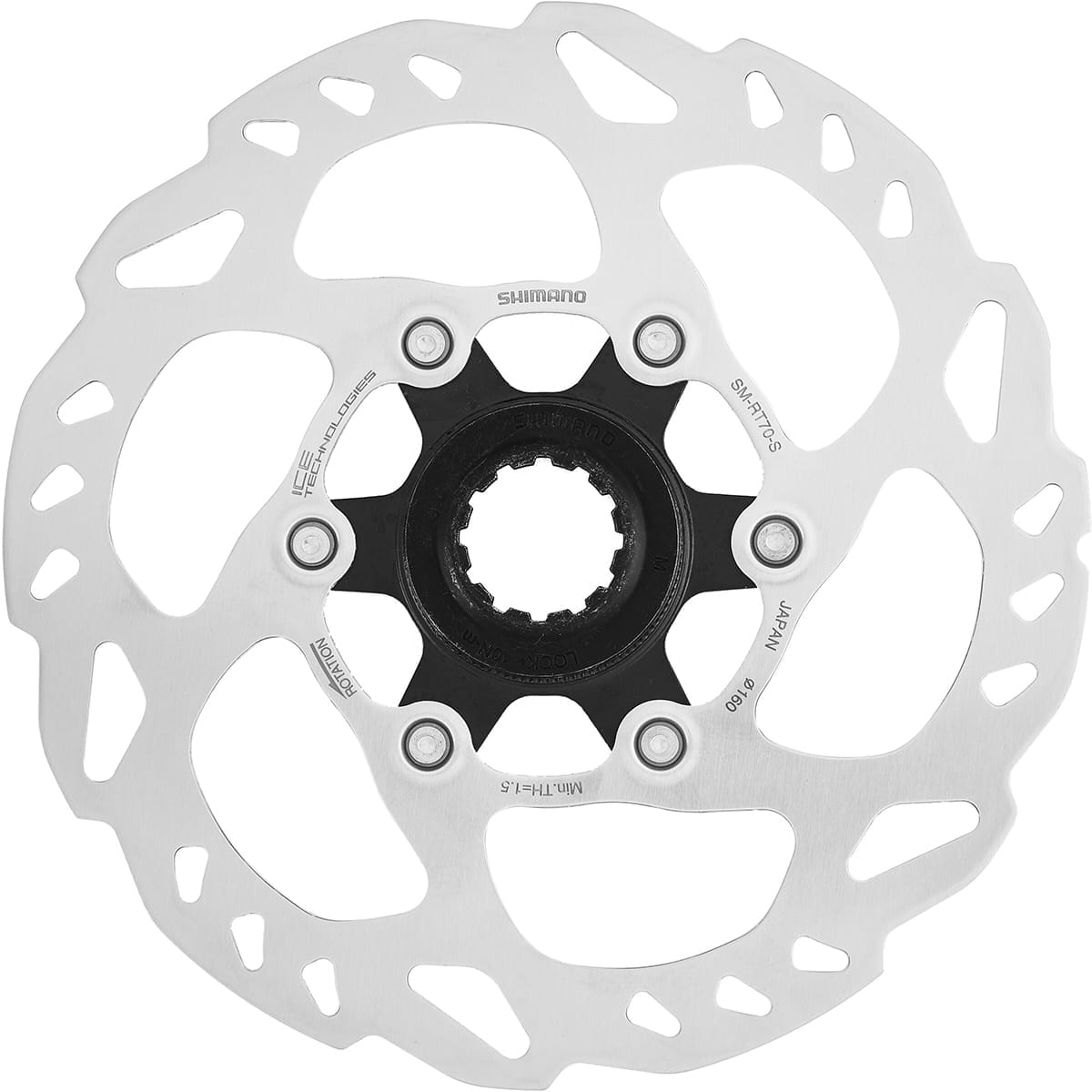

- 2x 160mm SHIMANO SM-RT70 Ice-Tech CENTER LOCK discs with nuts
Weight (manufacturer): 160 g (single 160mm)

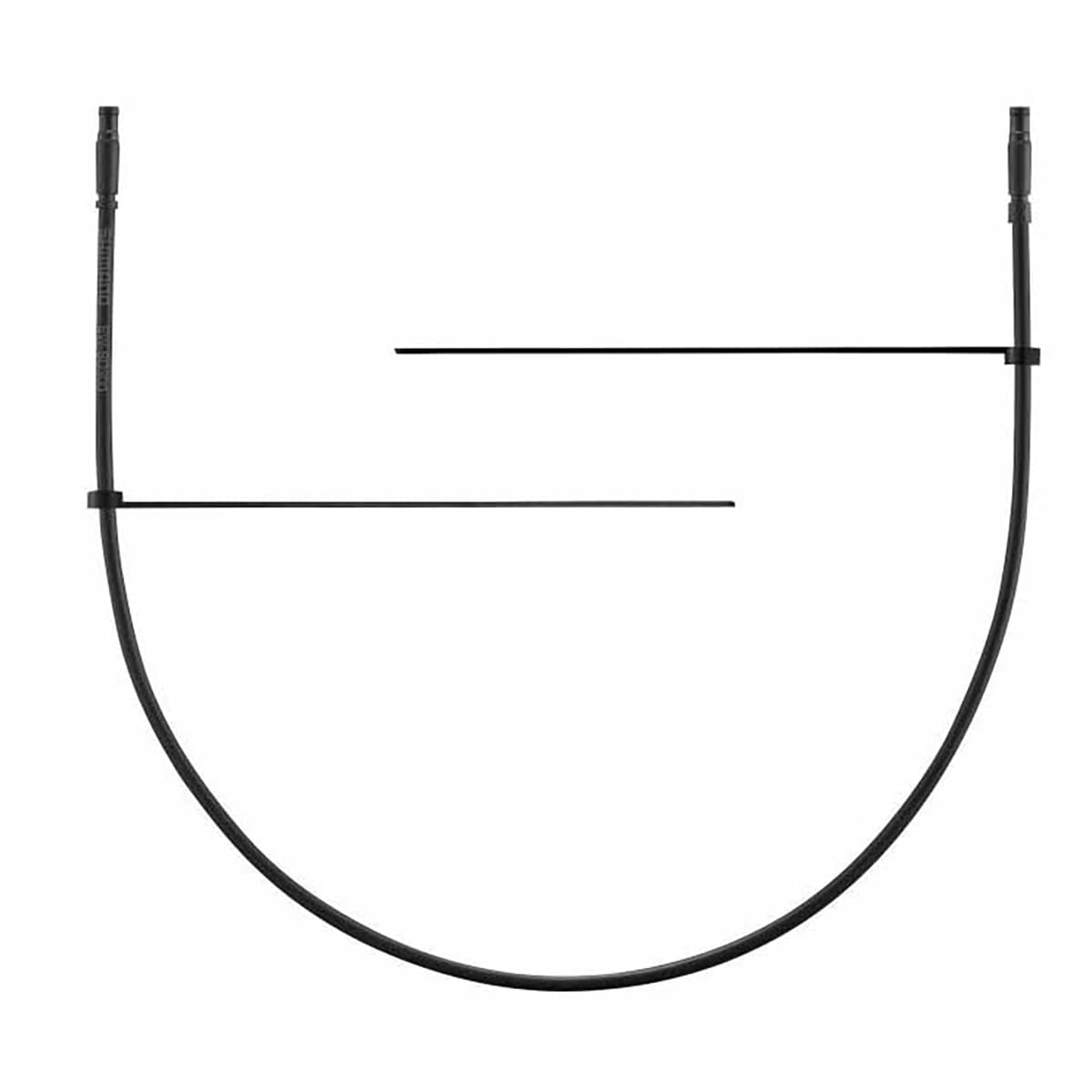

- SHIMANO SD300 connectors: 500mm and 1200mm
Weight (manufacturer): 19g

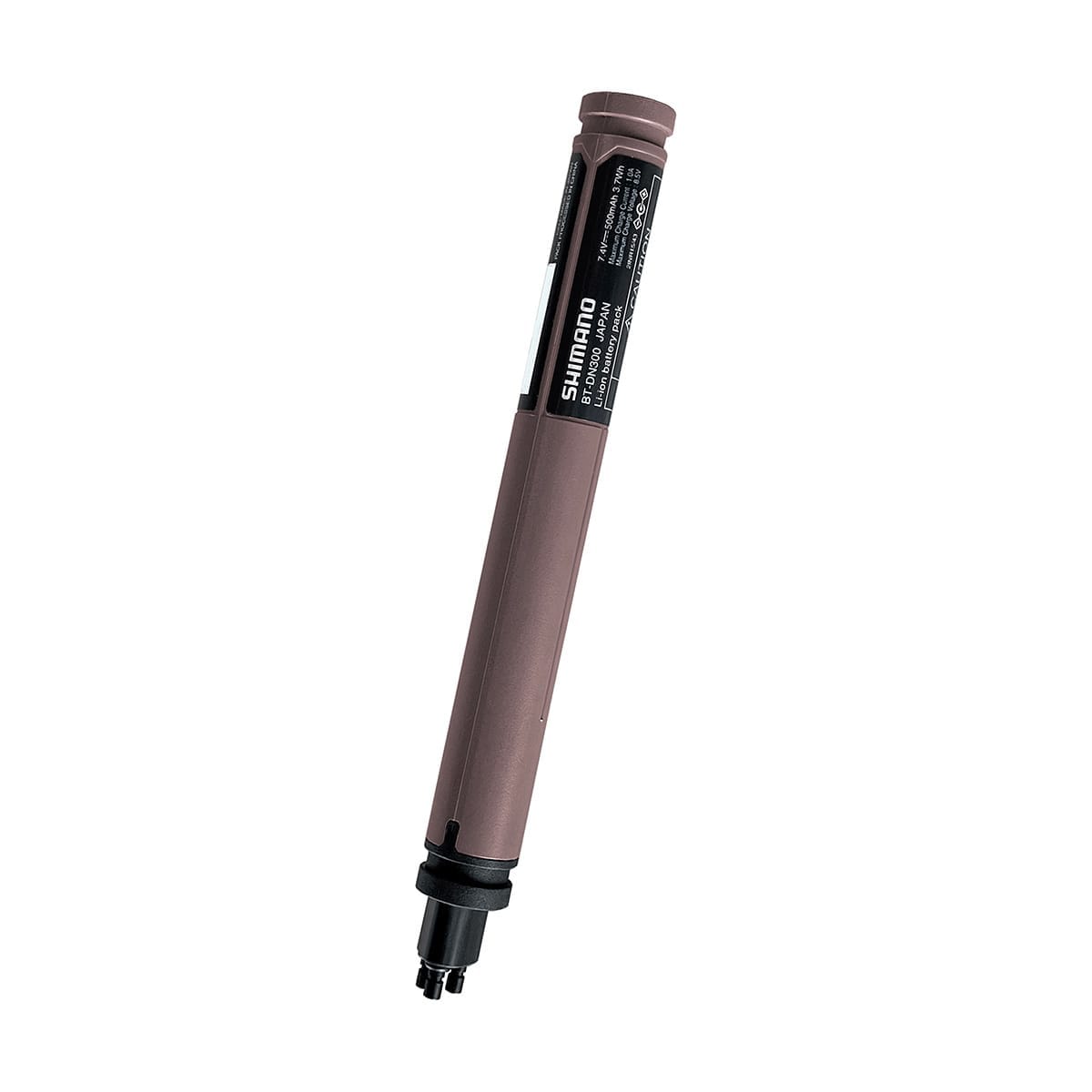

- SHIMANO BT-DN110 internal battery :
Weight (manufacturer): 53g

Weight (manufacturer): 3023g complete set.

Informations prix

Supplier suggested retail price in May 2024
