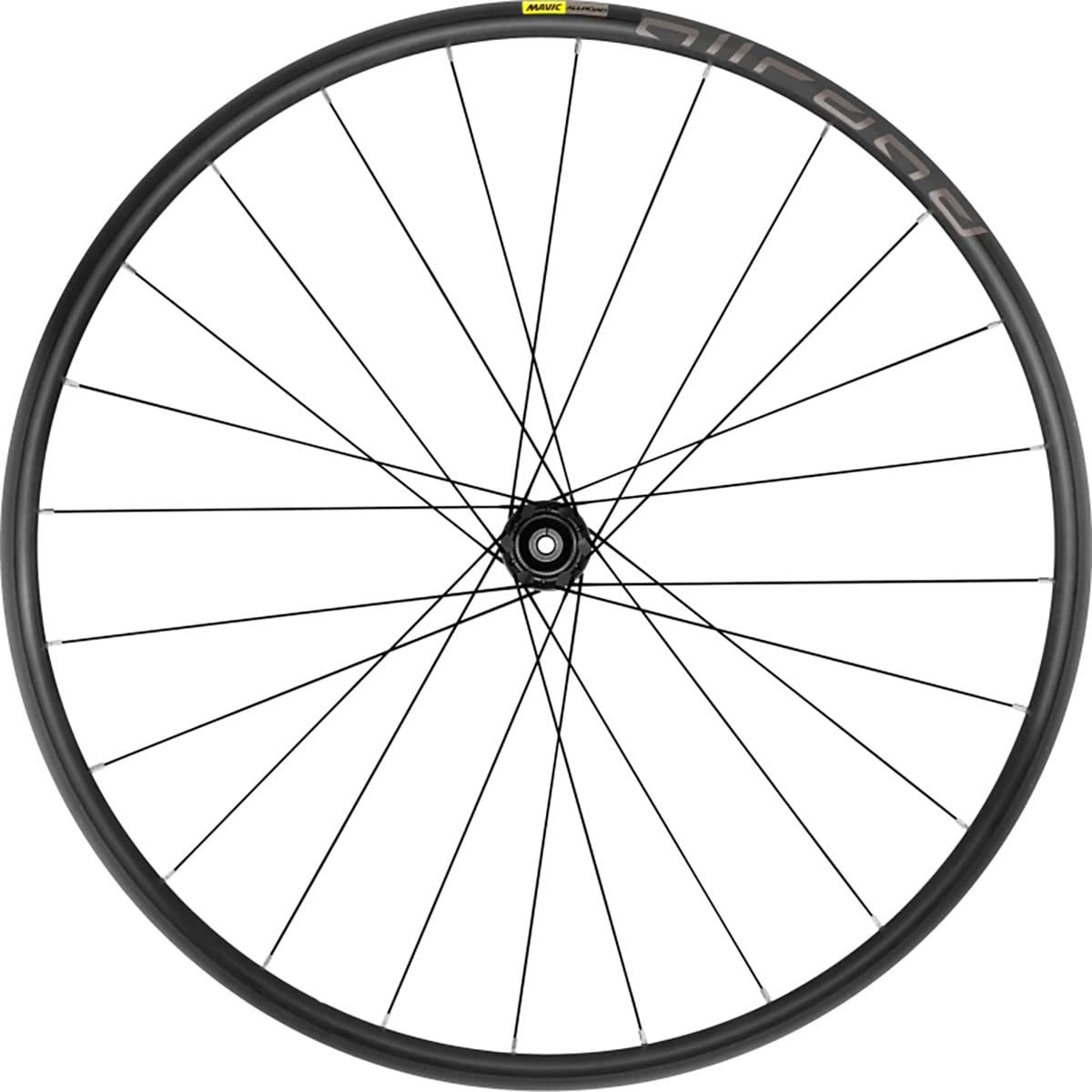

MAVIC ALLROAD S DISC rear wheel clincher (Center Lock)

The Rear Wheel MAVIC ALLROAD S DISC clincher (Center Lock) is sufficiently versatile to show itself comfortable on any terrain ! Compatible with fixed disc brakes Center Lockdisc brakes, it... Read more

Recommanded price: 295,00 €

Regular price 240,90 €
Regular price Sale price 240,90 €
View full details

Description

The Rear Wheel MAVIC ALLROAD S DISC clincher (Center Lock) is sufficiently versatile to show itself comfortable on any terrain ! Compatible with fixed disc brakes Center Lockdisc brakes, it also benefits from Tubeless USTtechnology, which adds to its comfort and minimizes the risk of punctures.

Made of S6000 aluminumaluminum, the Allroad rim features a internal width of 23 mminternal width, allowing the use of large-section tires. The strength is ensured by the reinforced 24-shelf racking which contribute to effectively contain and redistribute the superior forces of disc braking.

Ref: 7967903613094

Informations techniques

GENERAL
Part Number : R00020703
Weight : 950 g
ASTM : category 2 (Road and paths with jumps less than 15 cm high)
Maximum load: 135 kg (including bike weight)

RIM
Material: Maxtal (Aluminum)
Height: 22 mm
Joint: SUP welding technique
Internal width: 25 mm
Drilling: Fore tubeless technology without rim tape (24 holes)
Braking: disc
Profile: hookless
ETRTO size: 622x25
Tire compatibility: UST Tubeless Ready / Tubetype
Minimum tire size: width 30mm - max. pressure 4.05Bar/59PSI
Maximum tire size: width 64mm - max. pressure 2.45Bar/36PSI

MEDIUM
Body material: aluminum
Body design: INFINITY
Disc standard : Center Lock® only
Spindle material: aluminum
Axle size: 12x142 / Convertible to 9x135 quick release with adapters (not supplied)
Freewheel technology: Instant Drive 360
Freewheel: Shimano HG Road
Bearing technology : QRM self-adjusting - sealed cartridge

RAYONS
Material: steel
Shape: straight, extra-flat, swaged, anti-rotation
Nuts: brass, black
Screws: M7
Shelving: crossed by 2

INCLUDED
User's guide
UST valve not mounted on wheel
2 Multifunction adjustment key with rear wheel

COMPATIBLE REFERENCES
Freewheel body: SRAM XD convertible Road (kit V2580101 sold separately)
Freewheel body: convertible SHIMANO HG light Road (kit V3850101 sold separately
Freewheel body: convertible SHIMANO MS (kit V3990101 sold separately)
Freewheel body: convertible CAMPAGNOLO ED (kit V3440101 sold separately)
Freewheel body: convertible CAMPAGNOLO N3W (kit V4270101 sold separately)
Rear axle adapters: 12x142 convertible to 12x135 (kit V2510901 sold separately)
Rear axle adapters: 12x142 convertible to 9x135 (kit V2510801 sold separately) and by changing the axle (V2373401 also sold separately)
