SHIMANO

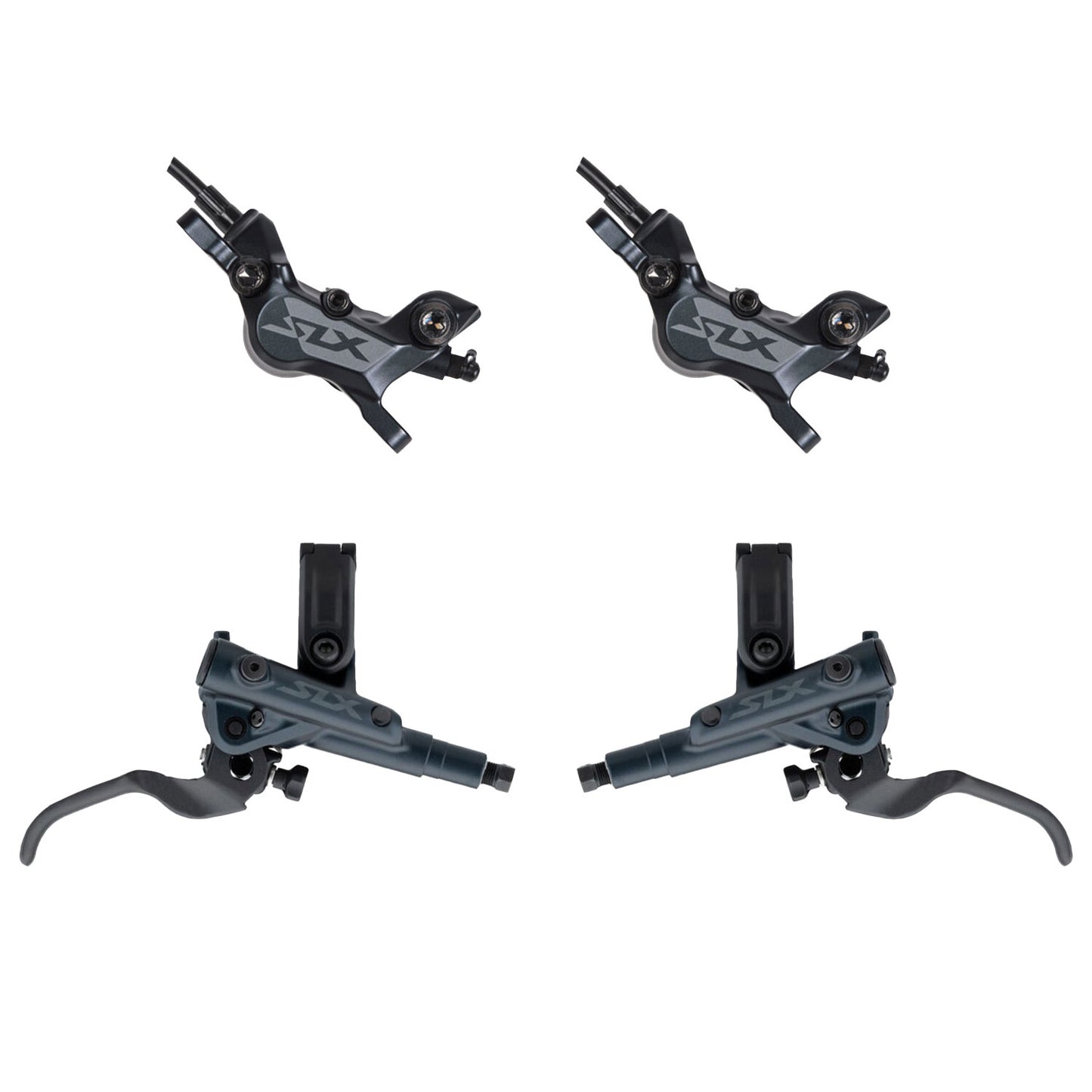

Pair of SHIMANO SLX M7120 4 Piston J-Kit brakes

La Pair of SLX rear brakes M7120 from SHIMANO offers an exceptional price/performance ratio. It guarantees powerful, stable and efficient braking in all weather conditions for all types... Read more
209,90 €
209,90 €
View full details

Description

La Pair of SLX rear brakes M7120 from SHIMANO offers an exceptional price/performance ratio. It guarantees powerful, stable and efficient braking in all weather conditions for all types of cycling. All-mountain, Enduro or for VAE.

The caliper benefits from a solid, well-ventilated design that prevents overheating, accompanied by 4 pistons that increase braking power by 10% compared to the 2-piston SLX caliper. The master cylinder features an ergonomic aluminum lever with adjustable stroke and 2 points of support on the handlebars, for a sharper braking feel. What's more, Servo-Wave technology ensures a short stroke for close contact and excellent responsiveness.

An excellent choice for committed riding!

ATTENTION This pair of brakes is supplied in the J-KIT for Junction-Kit (simplified assembly): The principle of the J-Kit system is to facilitate the passage of the brake hose inside the frame (for frames with internal hose/cable passage). The hose is connected to the caliper, but not to the lever, to facilitate installation, and the hose insert with olive is pre-mounted. Installation of these brakes is nonetheless very simple.

Brand new without original packaging.

Instructions for use

Ref: 9368042504541

Points forts

Short-stroke Servo Wave mechanism for faster brake engagement ;

Easy adjustment of the brake clearance;

Single-outlet One-Way bleed system for easy maintenance;

Compatible with I-Spec EV systems: a single clamp for brake lever and shifter;

More powerful 4-piston caliper.

Informations techniques

One Way Bleeding system;
4 ceramic pistons ;
SM-BH90-SBM hose;
I-Spec EV mounting ;
Brake delivered bled and ready to use (J-Kit).
Disc: Not supplied
Warranty : 2 ans
Brake fluid : Mineral
Hose length: rear 170 cm, front 100 cm
Lever material: Aluminum
Brake Pads Organic
Practice: All Mountain
Practice: Enduro
Hose type: Standard
Brake type: Front/Rear

J-Kit brake assembly:
- Position your brake lever on the handlebar of the bike
- Mount your brake caliper on the fork and/or frame
- Route the brake hose through the internal passage in your frame (if your bike is so equipped).
- Remove the black rubber plug from the end of the hose
- Remove the yellow end caps from the brake levers.
- Slide the black rubber nut cover over the hose
- Do not remove the small white cap from the end of the hose.
- Insert brake hose into lever nut
- Keeping the hose at the bottom of the lever nut, tighten the nut to compress the olive inside the lever. There's no need to overtighten, as the nut thread should remain visible, and is then masked by the nut cover you slid over the hose earlier.
- Now you can operate the brake to finalize its installation.

PM = Postmount
IS = International Standard Mounting
If the spacing between the two caliper mounting bolts (on frame or fork) is 74mm, this corresponds to a PM mounting. If the spacing is 51mm, it's an IS mounting.
