TUNE

Pair of TUNE TSR 35 wheels

La Pair of Wheels TUNE TSR 35 is a model for cyclists who want a lightweight aluminum wheelset with an aerodynamic profile.Fitted with 35-mm... Read more
Regular price 749,90 €
Regular price Sale price 749,90 €
View full details

Description

La Pair of Wheels TUNE TSR 35 is a model for cyclists who want a lightweight aluminum wheelset with an aerodynamic profile.

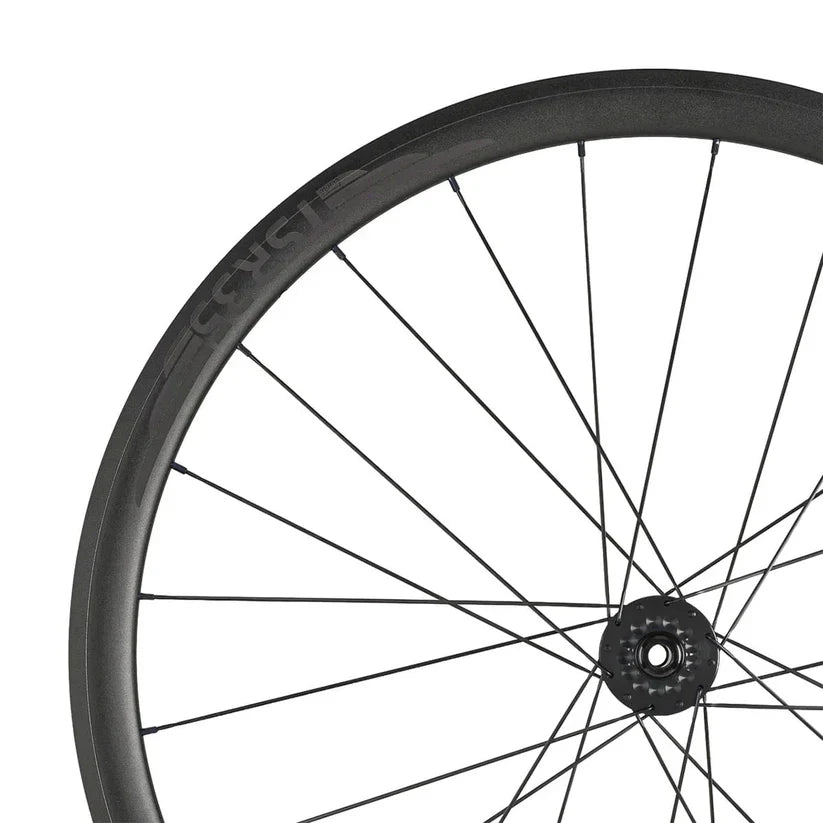

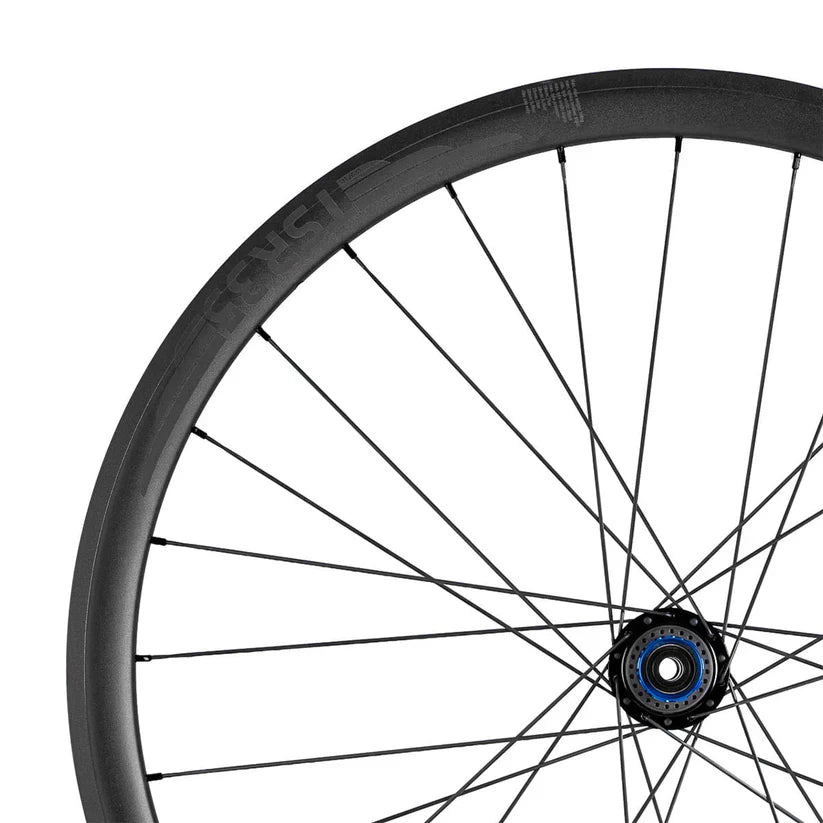

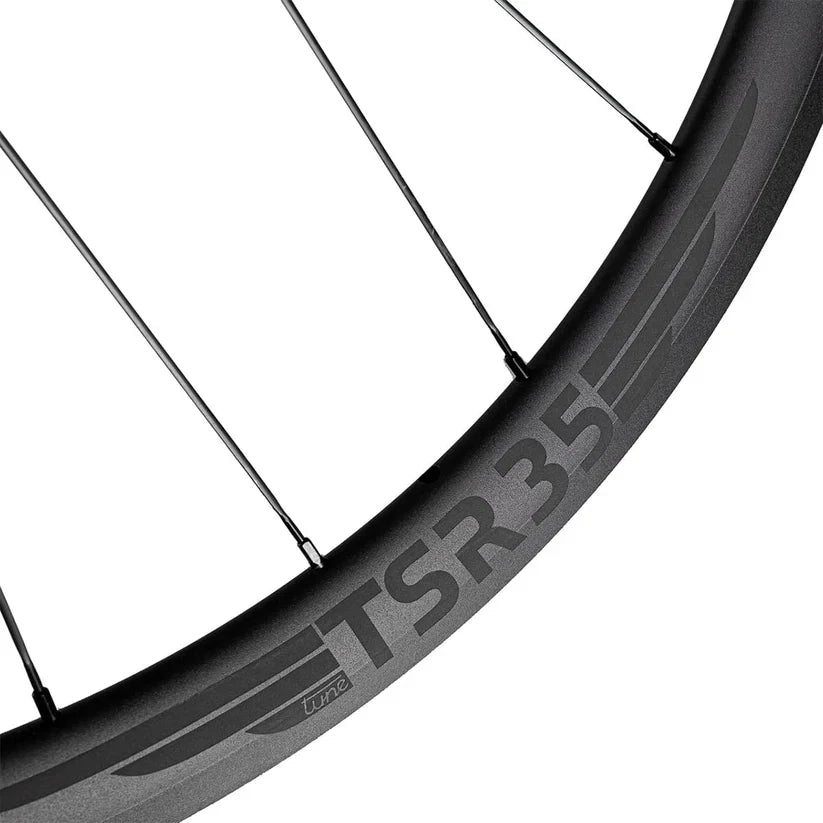

Fitted with 35-mm aluminum rims that are both light and stiff, the Tune TSR 35 will be a worthy ally on any course. They're equipped with Sapim CX-Ray flat spokes, which are both highly resistant and aerodynamic. There are 20 spokes at the front, with radial spoking, and 24 at the rear for added stiffness.

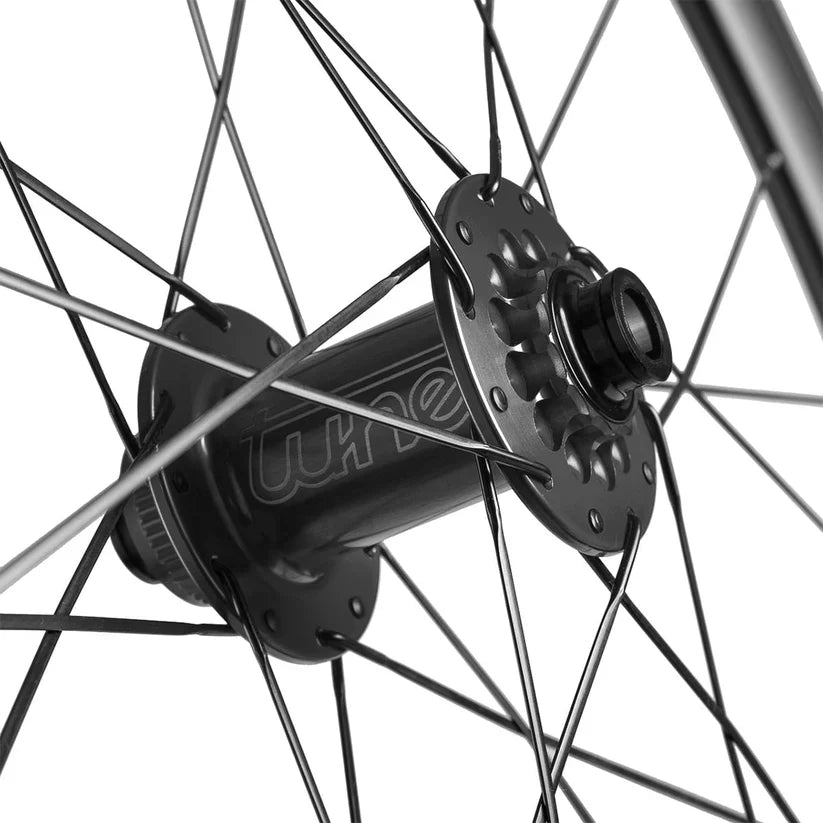

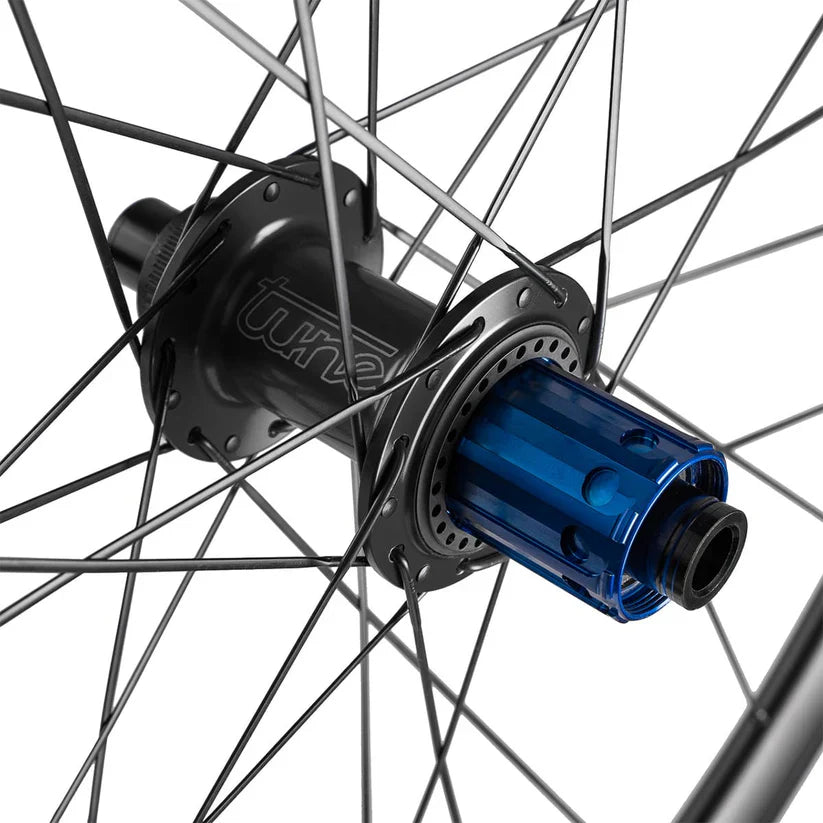

The German brand's Mag170 and Mig70 hubs are models of fluidity and sturdiness, for mile after mile of trouble-free use. The wheels accept tires from 25 to 44 millimeters. Finally, this version of the Tune TSR 35 wheelset comes with a Shimano 10/11-speed freewheel body.

Ref: 9842704482653

Informations techniques

GENERAL
Part Number Front / Rear : LKV.TSR35.Mig.20.05.BeaStd.CR.Nip.bck / LKH.TSR35.Mag.24.05.BeaStd.HG12.3t.CR.Nip.bck
Pair weight : 1530 g
Maximum load : 110 Kg

RIM
Material: Aluminium
Front / Rear height: 35mm
Internal width front/rear: 19.9mm
Drilling: Front - 20 holes / Rear - 24 holes
ETRTO size Front / Rear: 622x19.9
Tire compatibility : Tubeless Ready / Tubetype
Minimum tire size: width 23mm
Maximum tire size: width 40mm

MIDDLE FRONT
Model: Mig
Reference: BVN.Mig.20.05.BeaStd.bck
Body material: CNC aluminum
Weight: 71.9 g
Maximum spoke tension: 1050N - Radial only
Axle size: 5x100 mm
Bearings : Steel - 2x Kugellager ABEC5 17x26x7 - ref : BNZ0502

REAR HUB
Model : Mag
Reference: BHN.Mag.24.05.BeaStd.HG12.3t.bck
Body material: CNC aluminum
Weight: 175.9 g
Maximum spoke tension: 1100N
Axis size: 5x130 mm
Bearings : Steel - 3x ABEC5 17x26x7 bearing ; 1x ABEC5 17x30x7 bearing - ref : BNZ0501

RAYONS
Material: Stainless steel
Model: SAPIM CX-Ray Aero Black Inox
Number: 20 front / 24 rear

INCLUDED
User's guide
