Pedal axle Power Meter FAVERO ASSIOMA DUO SHIMANO

Visit FAVERO ASSIOMA DUO SHIMANO power sensor pedals revolutionize your training by by combining Shimano® SPD-SL® pedal bodies with precision technology technology. This Duo... Read more

Recommanded price: 594,00 €

569,90 €
569,90 €
View full details

Description

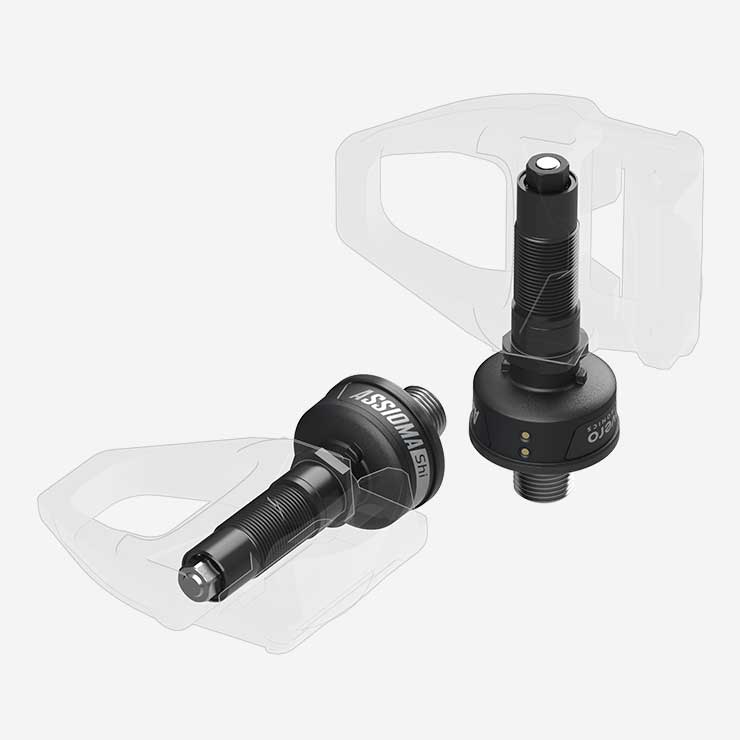

Visit FAVERO ASSIOMA DUO SHIMANO power sensor pedals revolutionize your training by by combining Shimano® SPD-SL® pedal bodies with precision technology technology. This Duo version version incorporates power transducers in each axis, enabling independent right/left-hand measurement for detailed analysis.

Positioned directly on the pedals, the sensors Assioma sensors provide precise information on wattage with an accuracy of ±1%, thanks to the exclusive IAV Power system and gyroscope gyroscope. This system guarantees consistent precision, regardless of pedaling style or the use of oval chainrings.

The sensors also provide advanced parameters such as cadence, torque efficiency, pedal smoothness, energy consumption, power-to-weight ratio and threshold power. Factory-calibrated, they ensure reliable measurements in a wide range of weather conditions, from -10°C to 60°C, thanks to automatic temperature compensation.

With the Assioma applicationapplication, you can easily update the software, make adjustments and check the battery level, optimizing every ride.

► Manufacturer's manual

► Technical details and exploded view

Ref: 7967868551334

Informations techniques

╝FEATURES
► Shimano compatibility: designed for Shimano® SPD-SL® pedal bodies - PD-R8000, PD-R7000, PD-6800, PD-R550 and PD-R540 - offering reliability and precision
► Simple installation: Quick installation in compatible Shimano® pedal bodies, without special tools
► Increased Q-factor: +64/65mm depending on model, validated by positive tests for a better fit
► Easy transfer: Quick assembly and transfer between bikes, just like conventional pedals
► IAV Cycling Dynamics: detailed analysis of pedaling technique and the influence of rider position
► IAV Power Accuracy: precise measurements to ±1% even with irregular pedaling or oval chainrings
► Connectivity: Bluetooth and ANT+ compatible with bike computers and smartphones
► Right/Left measurements: Precise analysis of power balance between the two legs
► Thermal stability: Constant accuracy thanks to automatic temperature compensation (ATC)
► Resistance and Waterproofing: Electronics protected in robust, shockproof resin
► 50 Hour Autonomy: Built-in rechargeable batteries for extended use.
► Tested and Guaranteed: Each sensor is individually tested to meet regulatory standards
► Made in Italy╔

┘GENERAL
- Part Number : 772-02-S
- Weight :
Sensor alone: 99g
With PD-R8000: 157g
_With PD-R7000: 161.3g
With PD-6800: 161.3g
With PD-R550: 176g
With PD-R540: 186g
- Water resistance: IP67
- Maximum rider weight: 120kg
- Cleats: original Look® Kéo Cleats or Favero cleats (red and black)┌

┘DIMENSIONS & FEATURES
- Q Factor:
_With PD-R8000: 64.8 mm
With PD-R7000: 64.2 mm
_With PD-6800: 64.6 mm
_With PD-R550: 63.8 mm
_With PD-R540: 64.0 mm
- Pedal axle thread: 9/16"-20 tpi
- Bearings: 3, sealed cartridge
- Adapter material: aeronautical aluminum
- Oval platter compatibility: yes┌

┘POWER SENSOR
- Left-side power sensor for racing bikes
- Cadence sensor: included, integrated
- Gyroscope: included, integrated
- Power calculation system: IAV (Instantaneous Angular Velocity-based)
- IAV Cycling Dynamics: yes
- Battery: lithium-ion, rechargeable
- Operating time: at least 50 hours
- Communication: Bluetooth v4.0, ANT+ profile PWR (CT + PO)
- Power measurement accuracy: ±1%.
- Temperature compensation: -10°C / + 60°C
- Minimum and maximum power: 0 - 3000 W
- Minimum and maximum speed: 30 - 190 rpm
- L/R balance: 0 - 100% (Assioma DUO only)┌

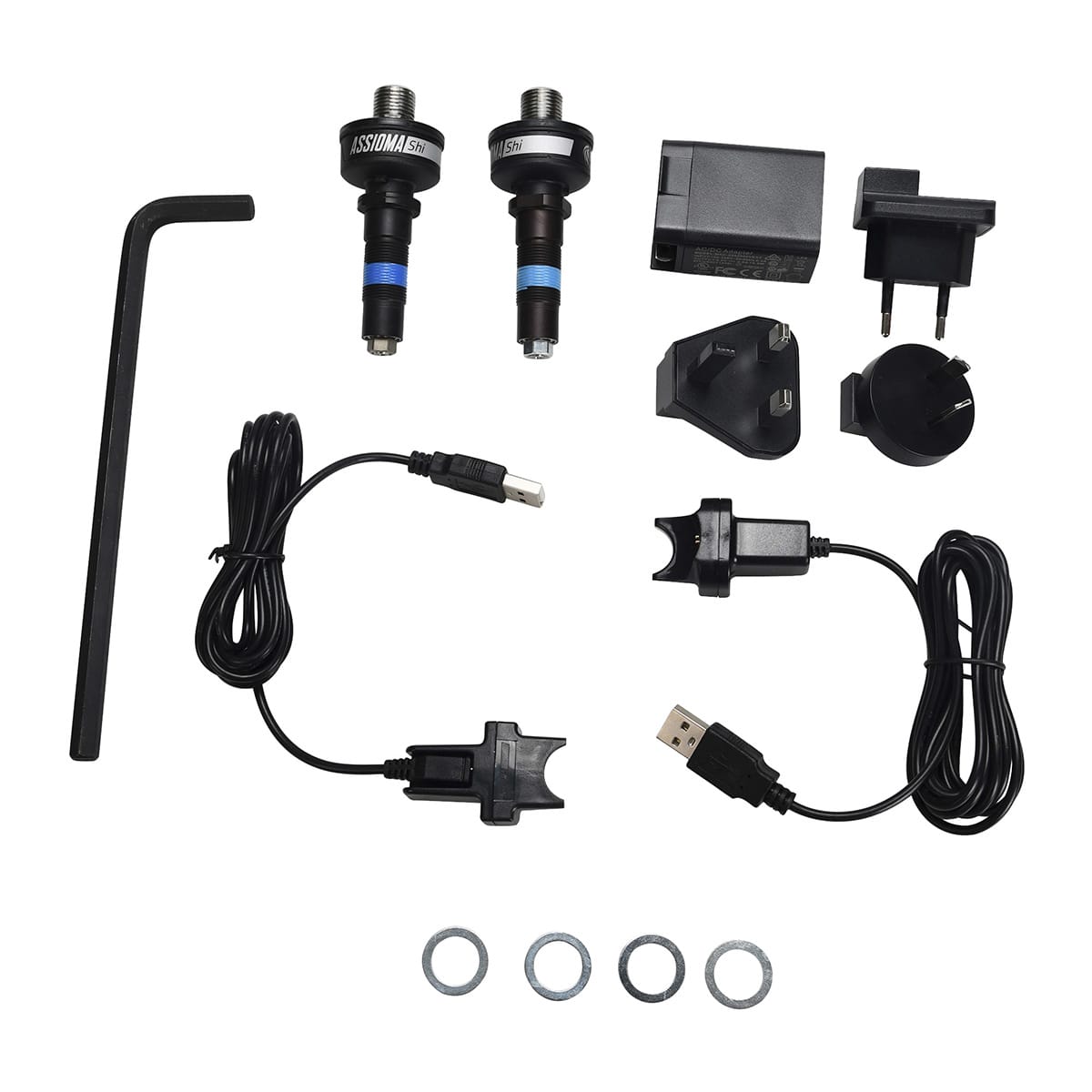

┘INCLUS

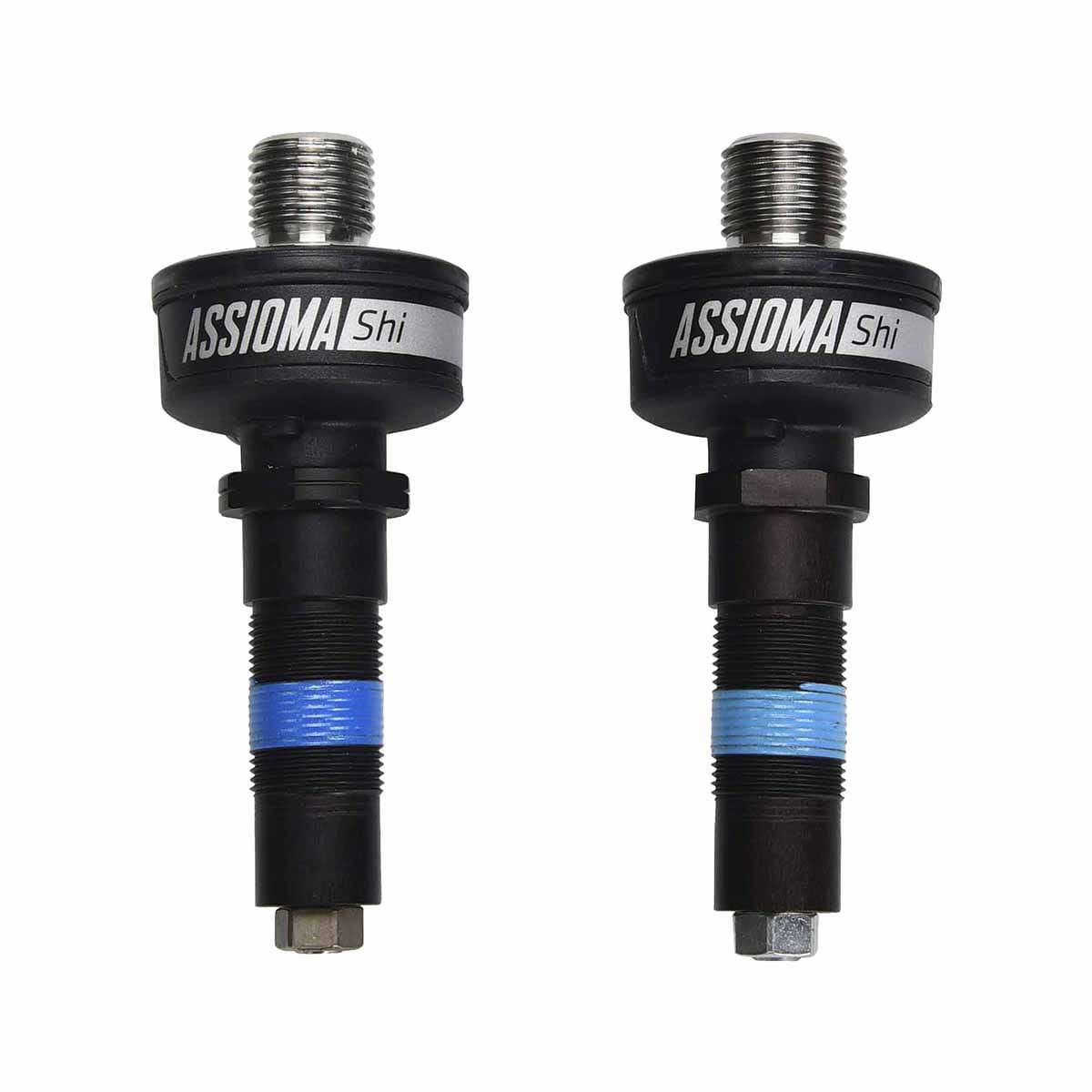

- Left power sensor with adapter for Shimano® pedal body*.
- Right power sensor with adapter for Shimano® pedal body*.
- Battery charger and adapters (EU, US, UK, AU)
- 2 two-meter micro-USB / USB cables with magnetic connectors
- 1 hex key and 4 washers for installation
- Assioma user manual
- User manual Assioma DUO-Shi┌

┘COMPATIBLE ACCESSORIES
- Assioma DUO-Shi Left sensor with adapter: 772-64-S
- Assioma DUO-Shi Right sensor with adapter: 772-65-S
- Assioma DUO-Shi Spare adapter set: 772-73
- Assioma Magnetic connector : 772-80
- Assioma USB/Micro-USB cable (2m) : 771-87
- Assioma Battery charger: 771-85┌
