FAVERO ELECTRONICS

Pedals Power Meter FAVERO ASSIOMA DUO

Visit FAVERO ASSIOMA DUO Power Sensor pedals pedals revolutionize your training by providing precise, reliable data. Easy to install like conventional pedals, they transfer... Read more
Regular price 449,90 €
Regular price Sale price 449,90 €
View full details

Description

Visit FAVERO ASSIOMA DUO Power Sensor pedals pedals revolutionize your training by providing precise, reliable data. Easy to install like conventional pedals, they transfer quickly from one bike to another. Connect them instantly to your computer or smartphone via Bluetooth and ANT+ to start recording your performance.

The Duo version version incorporates power sensors in each pedal, enabling independent right/left measurement for detailed analysis. Positioned directly on the pedals, Assioma sensors provide precise power information in watts to within ±1%, thanks to the exclusive IAV Power system and integrated gyroscope. This system guarantees consistent precision, regardless of pedaling style or the use of oval chainrings.

The sensors also provide advanced parameters such as cadence, torque efficiency, pedal smoothness, energy consumption, power-to-weight ratio and threshold power. Factory-calibrated, they ensure reliable measurements in a wide range of weather conditions, from -10°C to 60°C, thanks to automatic temperature compensation.

With the Assioma applicationapplication, you can easily update the software, make adjustments and check the battery level, optimizing every ride.

Manufacturer's manual

Technical details and exploded view

Ref: 7967868649638

Informations techniques

╝FEATURES
► Easy installation: Quick assembly and transfer between bikes, without special tools or mechanical assistance.
► IAV Cycling Dynamics: Detailed analysis of pedaling technique and the influence of rider position
► IAV Power accuracy: precise measurements to ±1% even with irregular pedaling or oval chainrings
► Connectivity: Bluetooth and ANT+ compatible for easy connection with meters and smartphones
► Right/Left measurements: Precise analysis of power balance between the two legs
► Thermal stability: constant precision thanks to automatic temperature compensation (ATC)
► Resistance and waterproofing: Electronics protected in robust, shockproof resin
► Autonomy: Rechargeable batteries provide 50 hours of use per charge
► Tested and Guaranteed: Each sensor is individually tested to meet regulatory standards
► Made in Italy╔

┘GENERAL
- Part Number : 772-02
- Total pedal weight with sensor: 151.5g
- Watertightness: IP67
- Maximum rider weight: 120kg
- Cleats: original Look® Kéo Cleats or Favero cleats (red and black)┌

┘DIMENSIONS & FEATURES
- Q Factor: 54 mm
- Pedal shaft thread: 9/16"-20 tpi
- Bearings: 3, sealed cartridge
- Pedal axle material: Stainless steel
- Oval tray compatibility: yes┌

┘CAPTEUR DE PUISSANCE
- Power sensor on left and right pedals for racing bikes
- Cadence sensor: included, integrated
- Gyroscope: included, integrated
- Power calculation system: IAV (Instantaneous Angular Velocity-based)
- IAV Cycling Dynamics: yes
- Battery: lithium-ion, rechargeable
- Autonomy: at least 50 hours
- Communication: Bluetooth v4.0, ANT+ profile PWR (CT + PO)
- Power measurement accuracy: ±1%.
- Temperature compensation: -10°C / + 60°C
- Minimum and maximum power: 0 - 3000 W
- Minimum and maximum speeds: 30 - 190 rpm
- L/R balance: 0 - 100% (Assioma DUO only)┌

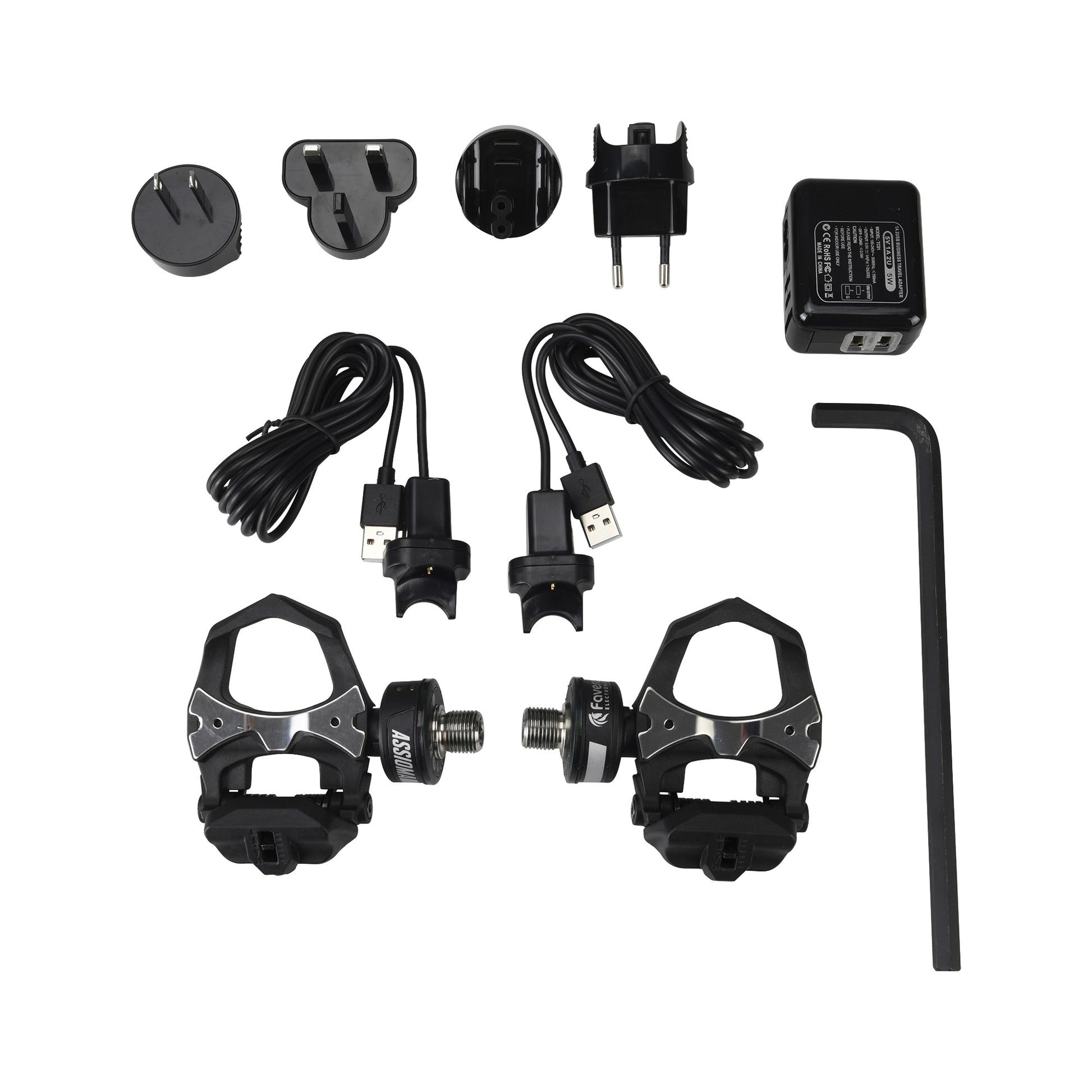

┘INCLUSIVE
- Left pedal with power sensor
- Right pedal with power sensor
- Battery charger and adapters (EU, US, UK, AU)
- Two-meter micro-USB / USB cables with magnetic connectors

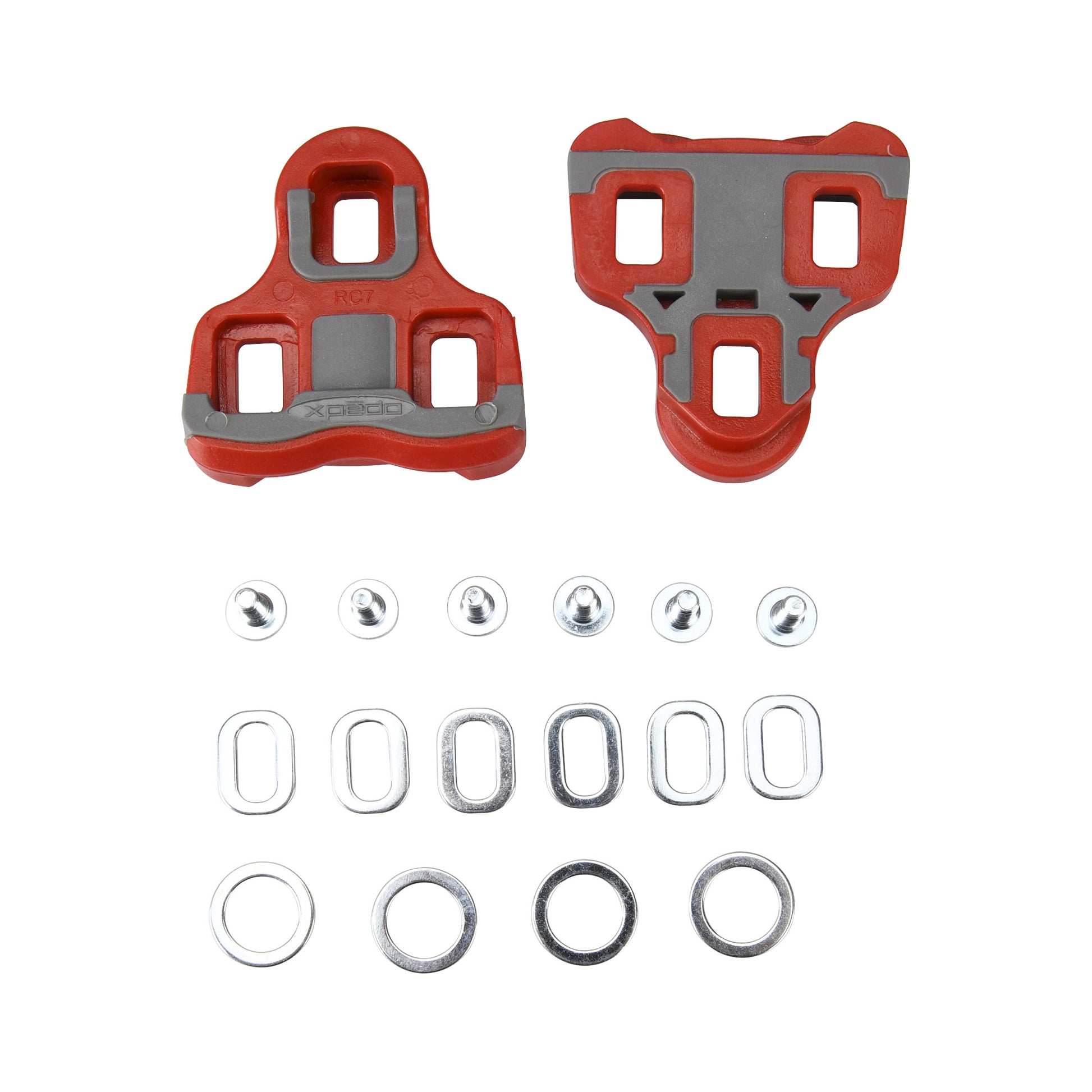

- Black wedges (compatible with Look® Kéo)
- Hexagonal key and 4 washers for installation
- Instruction manual┌

┘COMPATIBLE ACCESSORIES
- Assioma DUO/UNO Left pedal body: 772-60
- Assioma DUO/UNO Right pedal body: 772-61
- Assioma DUO/UNO Bearing set: 772-72
- Assioma DUO/UNO Left sensor: 772-64
- Assioma DUO Right sensor: 772-65
- Assioma DUO/UNO Adhesive label set: 772-94
- Assioma Magnetic connector: 772-80
- Assioma USB/Micro-USB cable (2m) : 771-87
- Assioma Battery charger : 771-85
- Assioma DUO/UNO Red wedges (Angular freedom 6°): 771-42
- Assioma DUO/UNO Black wedges (Angular freedom 0°): 771-40┌
