ROCKSHOX

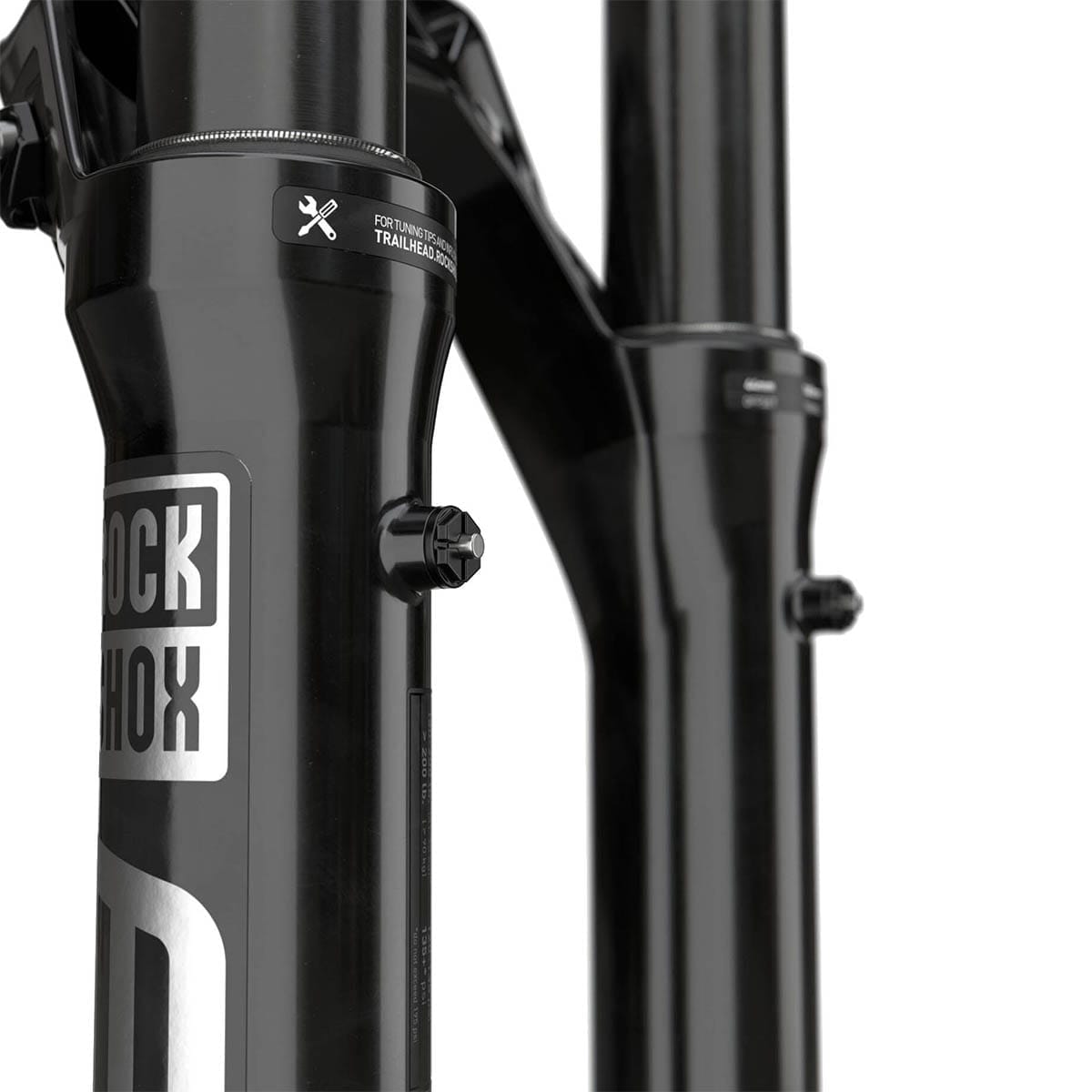

ROCKSHOX ZEB ULTIMATE CHARGER 3 RC2 27.5 Debonair+ Axle 15x110 mm Boost Conical Black Gloss fork

Named after the first man (Zebulon Pike) to challenge the famous Pikes Peak mountain, located just above the design center of ROCKSHOX DESIGN CENTERdesign... Read more

Recommanded price: 1.253,00 €

Regular price 669,90 €
Regular price Sale price 669,90 €
View full details

Description

Named after the first man (Zebulon Pike) to challenge the famous Pikes Peak mountain, located just above the design center of ROCKSHOX DESIGN CENTERdesign center, the Zeb Ultimate Charger 3 RC2 fork will delight die-hard fans Enduro riders who want a product capable of going further than the Lyrik.

Designed around 38 mm-diameter plungers, it features the Charger 2.1 RC2 cartridge, which adopts a revisited, higher-performance internal floating piston (IPF) design with redesigned rebound and independent low- and high-speed compression adjustment where every click is significant. Complemented by the high-volume DebonAir+ air spring, which offers full-travel support, smooth, linear action for greater control and a high operating height for greater confidence when the going gets tough.
It also benefits from Maxima Plush oil, which improves smoothness and attenuates operating noise.

The Zeb's unique aluminum hose clamp, thicker tee and ribbed, forward-mounted yoke, which clears the way at the end of the stroke for the most massive headset bushes, ensure a more linear and responsive behavior, but also less stiffness at the end of the stroke.

A perfect model for muscular, technical Enduro competitions!

Ref: 9357157269853

Points forts

Redefining expectations for Gravity forks

Charger 3 RC2 cartridge, precise at every notch, with independent adjustment of low-speed rebound and low- and high-speed compression

Linear and sensitive Debonair+ spring for small shocks, while firming up the whole Maxima Plush oil and SKF seals to reduce friction and parasitic noise

38 mm-diameter plungers enhance steering precision and smoothness

Informations techniques

Practice: Enduro/VTTAE
T: Simple
Wheel Size: 27.5"
Front wheel axle: 15x110 mm (Boost)
Locking: Fork
Color: Grey
Travel: 160/170 or 180 mm
Variable wheelbase: No
Offset : 44 mm
Max. disc diameter: 220 mm
Mini Disc Diameter: 200 mm
Pivot diameter: Tapered 1.5"-1"1/8
Plunger diameter: 38 mm
Brake mounting: Postmount
Fork height: 557 mm in 160
567 mm in 170
577 mm in 180
Pivot length: 265 mm (can be recut)
Pivot material: Aluminum
Plungers: Aluminium Fast Black treatment
Sheaths: Magnesium
Adjustable air volume: Yes

DebonAir air spring
Charger 3 RC2 cartridge
Air volume adjustment Bottomless Tokens
Maxle Stealth Axis
Maxima Plush Oil
SKF low-friction dust seals

Low Speed Compression Adjustment: Yes
High Speed Compression setting : Yes
Low speed rebound/relaxation setting : Yes
High speed rebound/relaxation setting : No
Preload setting : Yes
Spring : Air

VTTAE compatible
Bolt-On short mudguard compatible
Tire compatibility: up to 2.8" cross-section in 27.5" without mudguard

Manufacturer reference :
160mm/44 : 00.4020.819.011
170mm/44: 00.4020.819.010
180mm/44: 00.4020.819.009
