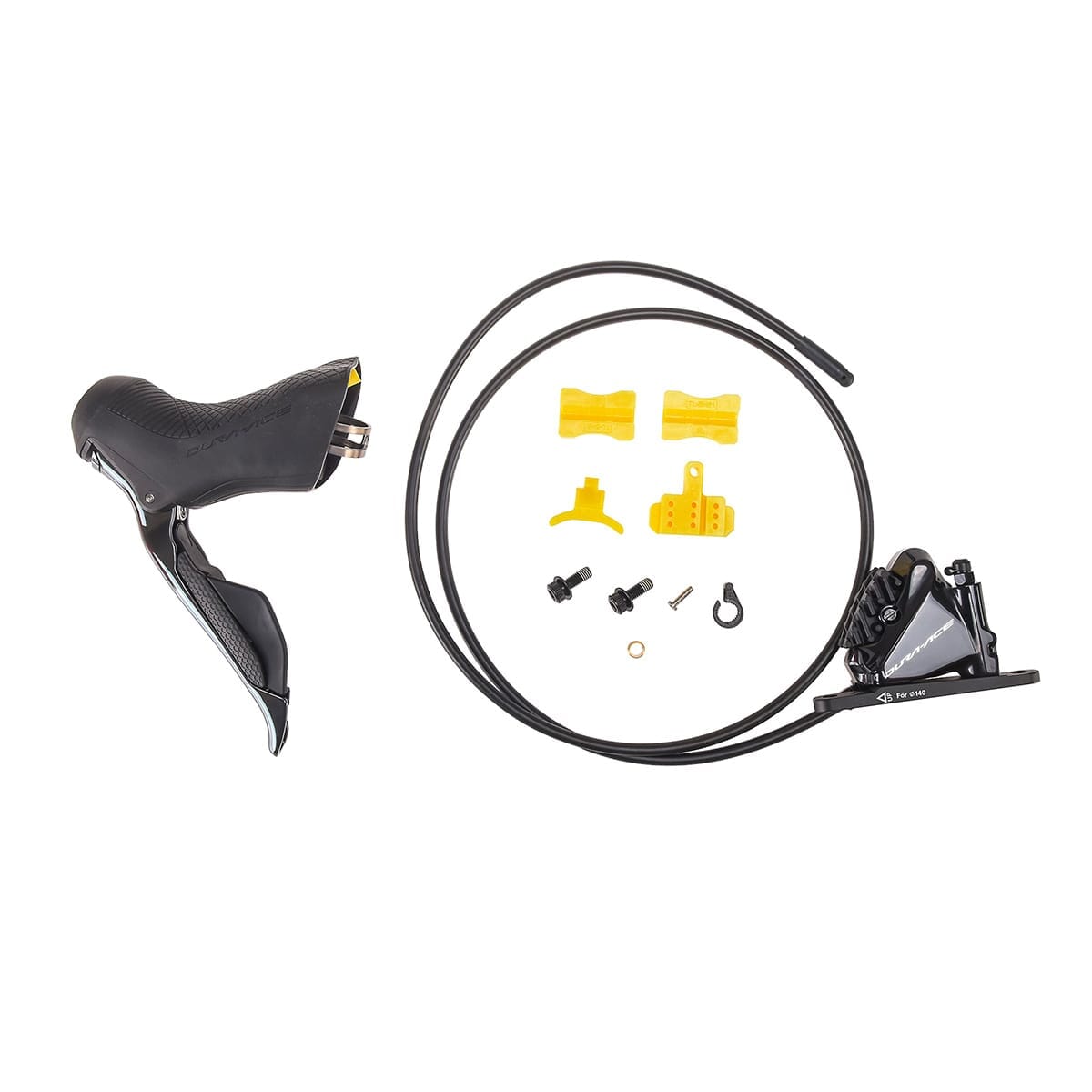

SHIMANO DURA-ACE DI2 R9170 Double Flat Mount Disc-less Left Lever and Front Caliper

Part of the Dura-Ace Di2 9170 groupset (electronic transmission), the SHIMANO DURA-ACE DI2 R9170 Double Flat Mount Disc-less Left Lever and Front Caliper set... Read more
622,90 €
622,90 €
View full details

Description

Part of the Dura-Ace Di2 9170 groupset (electronic transmission), the SHIMANO DURA-ACE DI2 R9170 Double Flat Mount Disc-less Left Lever and Front Caliper set has been designed to deliver high-level performance to the most demanding cyclists.

Lightweight, this brake offers them effective speed control, even on the steepest mountain descents! Its single-piece aluminium caliper integrates discreetly into the frame, using the Flat Mount fixing standard, while its lever features the ergonomics that made the mechanical brake models so successful.

Ref: 7970335490214

Points forts

Braking power and control;

Discreet 'Flat Mount' calliper integration on the frame;

Lightweight;

Easy maintenance;

Ergonomic lever.

Informations techniques

GENERAL
Series: SHIMANO Dura-Ace R9150 Series
Manufacturer Kit Reference: IR9170DLF4SA10A
Manufacturer Kit Weight: Approx. 271g
Type: Left - Front - Mechanical Gears - Hydraulic Braking

TRANSMISSION / LEVER

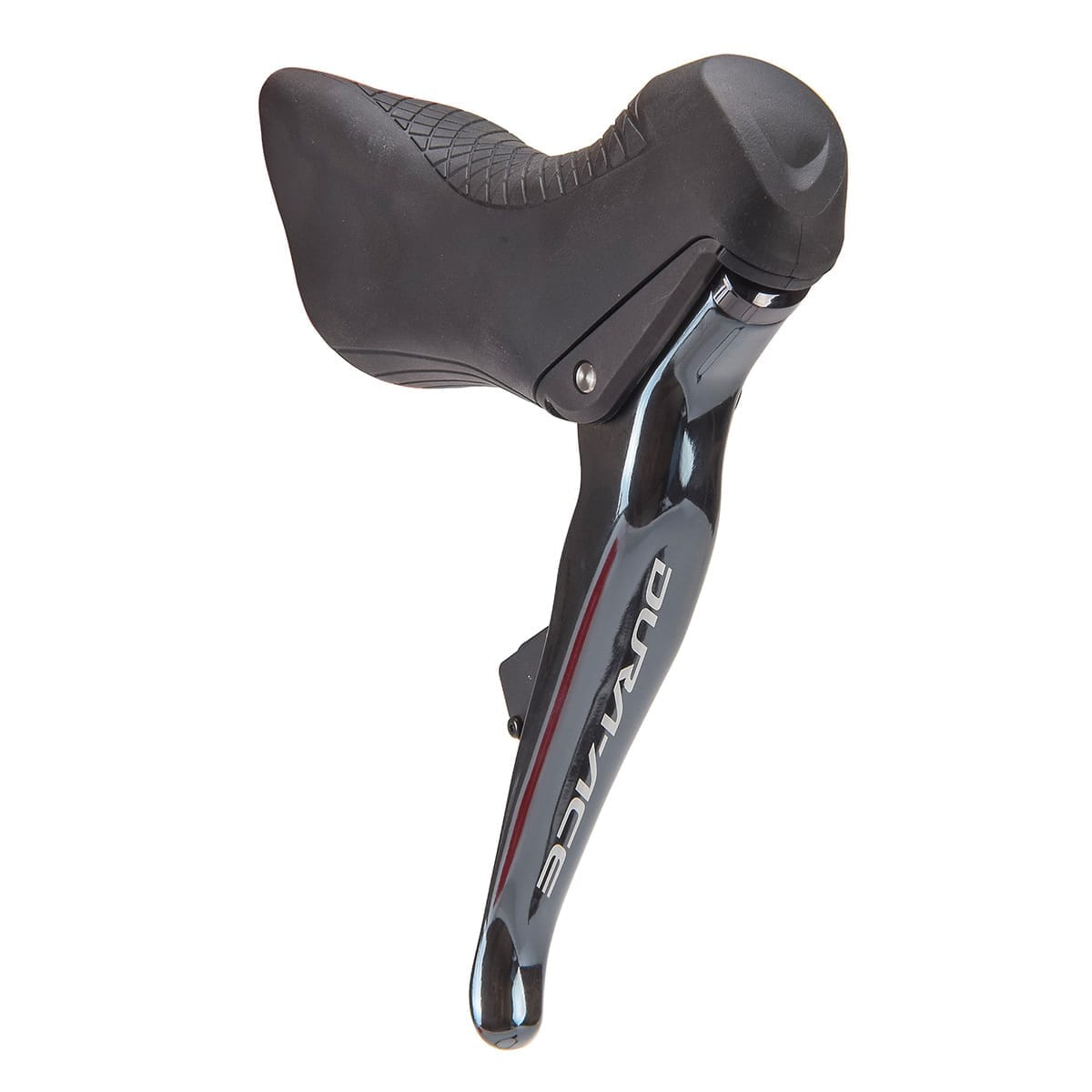

Manufacturer Reference: ST-R8020-L
Manufacturer Lever Weight: 160g
Materials: Resin and steel
Clamp: 23.8-24.2mm
Speeds: 2
Technology: DUAL CONTROL LEVER
Compatible derailleur: FD-R9150 / FD-R8050 / FD-9070 / FD-6870 / FD-RX815
Connectivity: SD50 port for EW-SD50
Battery: External battery BM-DN100 / Internal battery BM-DN100 (not included)
Compatible application: SHIMANO E-TUBE PROJECT

BRAKING / CALLIPER

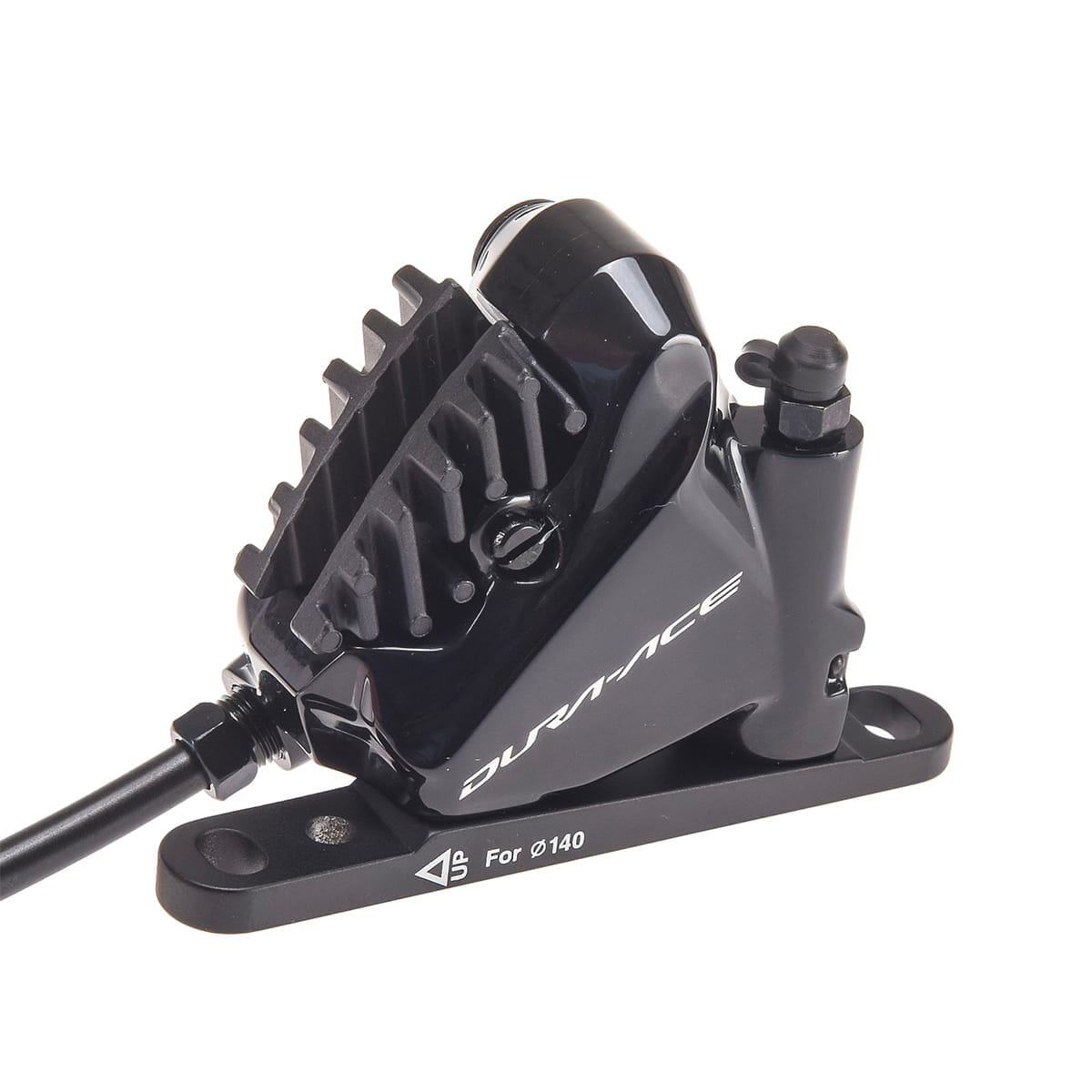

Calliper Reference: BR-R9170-R
Manufacturer Calliper Weight: 111g
Material: Aluminium
Mount: Flat Mount
Technology: J-Kit / ICE TECHNOLOGIES compatible
Pistons: x2, Ceramic
Brake Fluid: Mineral
Hose Fitting: Straight
Hose Length: 1700mm
Compatible brake hose: SM-BH90-JK-SSR, SM-BH90-J-SSR
Recommended pads: L05A-RF (included) / K05Ti-RX / K04Ti-MX / L04C-MF
Recommended disc: SM-RT900 (not included)
Recommended alternative brake calliper: BR-R9270 / BR-R9170 / BR-R8170 / BR-R7170 / BR-R7070 / BR-RS785 / BR-RX820 / BR-RX820-LE / BR-RX810 / BR-RX400 / BR-4770
;
