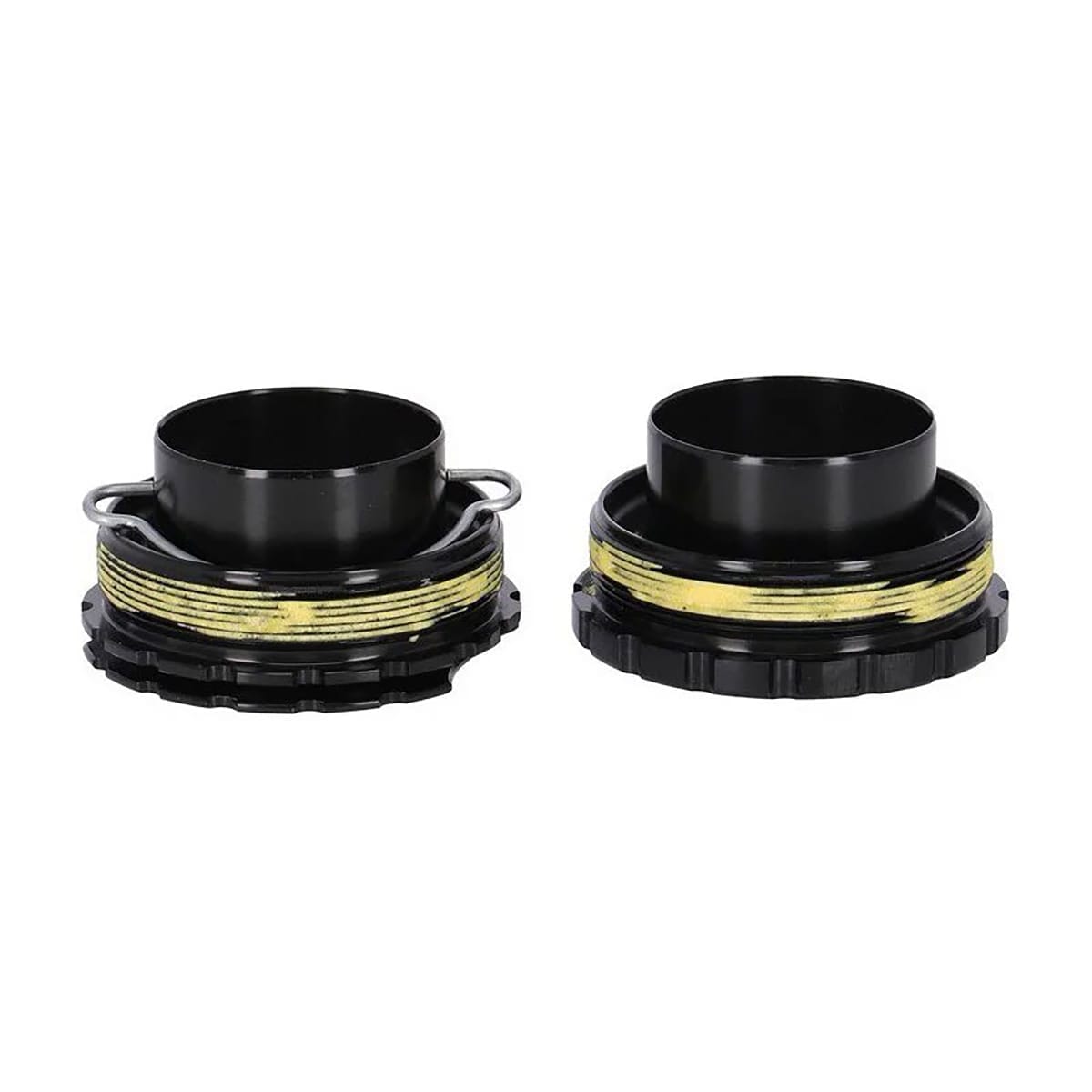

CAMPAGNOLO ULTRA TORQUE T47 86mm Bottom Bracket
Couldn't load pickup availability
Description
The CAMPAGNOLO PRO-TECH bottom bracket is designed specifically for the demanding conditions of off-road and gravel routes.
This bottom bracket benefits from ProTech™ technology: a patented external seal that protects the ball bearings against water, mud and sand ingress, and a reinforced fibreglass polyamide central watertight ring to prevent contamination from the inside.
The new cups mate with the oversized external stainless steel bearings mounted on the two Ultra-Torque™ half-axles firmly fixed to the cranks. Thanks to the ProTech™ sealing system, performance is always optimal, regardless of conditions and terrain.
| A - Diameter (mm) | B - Width (mm) | Assembly | Standard |
| 34,8 | 68 | to screw in | BSC / BSA |
| 34,8 | 73 | to screw in | BSC / BSA |
| 34,8 | 83 | to screw in | BSC / BSA |
| 34,8 | 100 | to screw in | BSC / BSA |
| 27 | 95,5 | to insert | BB 96 (Trek) |
| 41 | 92 | to insert | PF 92 |
| 42 | 68 | to insert | BB 30 |
| 42 | 73 | to insert | BB 30 |
| 46 | 68 | to insert | PF 30 |
| 46 | 73 | to insert | PF 30 |
 |
|||
Ref: 7967910658214
Points forts
Specifically designed for gravel, protected against water, mud and sand ingress ;
ProTech™: patented sealing system with outer seal and inner polyamide resin ring ;
Oversized outer stainless steel bearings are directly fixed to the cranks – for optimal performance and easy maintenance.
