ROTOR

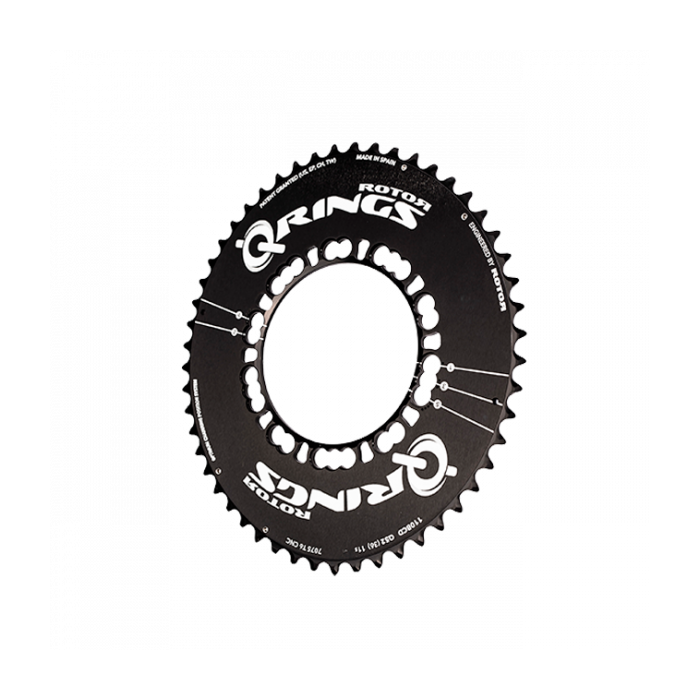

ROTOR Q-RINGS AERO Oval Outer Chainring 10V/11V 110mm 5 Bolt

The ROTOR Q-RINGS AERO Oval Outer Chainring 10V/11V 110mm 5 Bolt is designed to improve pedalling efficiency on the road. Its specific oval profile... Read more
Regular price 120,79 €
Regular price Sale price 120,79 €
View full details

Description

The ROTOR Q-RINGS AERO Oval Outer Chainring 10V/11V 110mm 5 Bolt is designed to improve pedalling efficiency on the road. Its specific oval profile optimises power transfer throughout the rotation, whilst maintaining broad compatibility with modern drivetrains.

With a controlled ovality of 10%, the smallest diameter is positioned at the weak point of the pedalling stroke, whilst the maximum diameter corresponds to the most powerful phase. This Q-RINGS design smooths out the effort, reduces dead spots and improves pedalling fluidity.

Equipped with OCP (Optimum Chainring Position) technology, this chainring offers five adjustment positions to adapt the orientation to the most productive zone of the pedalling stroke. This precision promotes increased efficiency and better exploitation of maximum power.

Ref: 15869417062780

Informations techniques

Weight: 173g for the 50
BCD: 110x5
Ovality: 10%
Material: 7075-T6 aluminium alloy, 100% CNC machined. Aero design: enhanced stiffness and aerodynamics
Shift pins: Steel
OCP: 5-point OCP (4-point in 50/34)

Compatible groupsets:
Shimano 2x10s, Shimano 2x11s, SRAM 2x11s, ROTOR 2x11s
Speeds:
10/11
Compatible crank brands:
ROTOR, Shimano, Sram
Compatible cranks:
3D, 3D+, 3D24, 3D30, 3DF, Flow

Informations prix

*Supplier recommended retail price in January 2025
