PRIDE

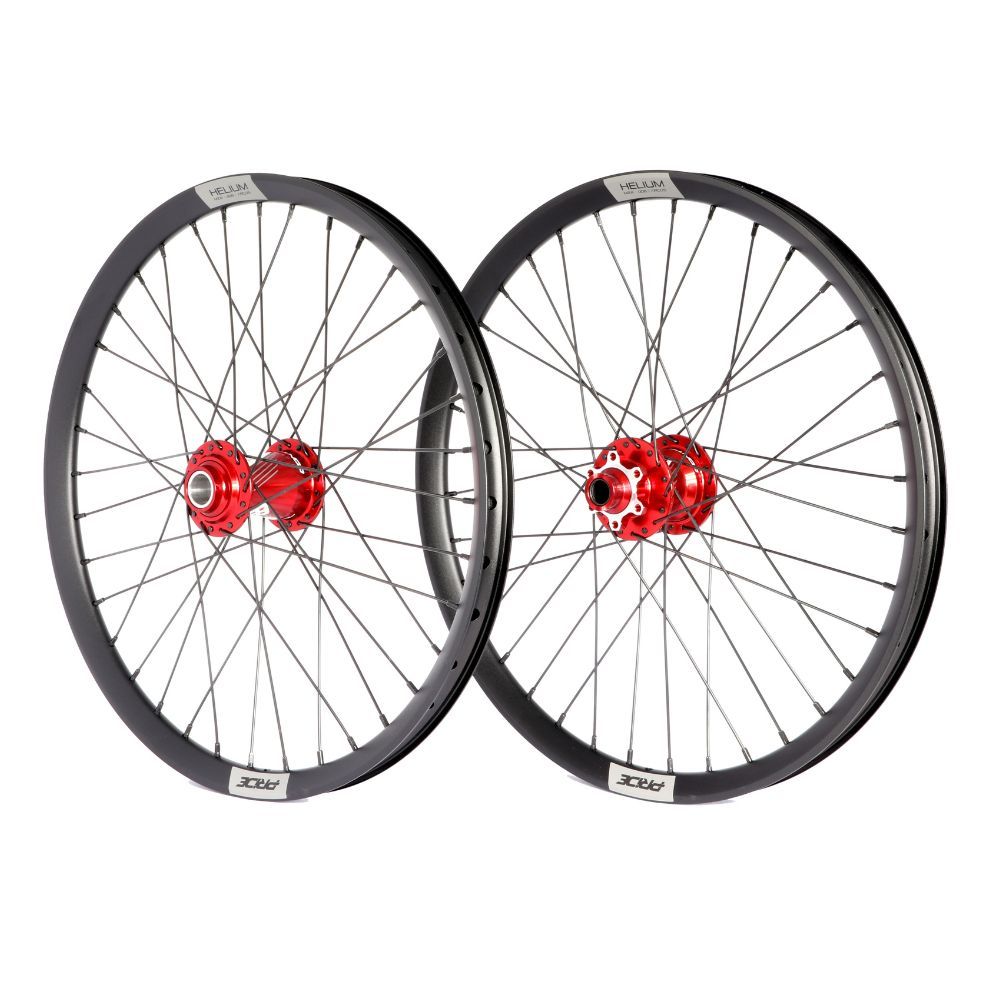

PRIDE 20" (406mm) Control V2 Disc Helium M24 Axes 20/15mm Wheel Set Red

The PRIDE Control V2 Helium M24 Wheel Set is developed for riders seeking a high-performance, lightweight and reliable BMX Race build. This 20-inch (406... Read more
549,90 €
549,90 €
View full details

Description

The PRIDE Control V2 Helium M24 Wheel Set is developed for riders seeking a high-performance, lightweight and reliable BMX Race build. This 20-inch (406 mm) configuration pairs Helium Pro M24 rims with Control V2 hubs to deliver a responsive wheel ideal for rapid accelerations and sprint phases in competition.

The double-wall 6069-T6 aluminium rims offer an excellent balance between stiffness, strength and low weight. Their low 19 mm profile promotes immediate responsiveness and excellent manoeuvrability, while their 28 mm width ensures good compatibility with suitable BMX tyres.

The 6061-T6 aluminium hubs incorporate a high-performance engagement system with 6 micro-toothed pawls and 180 engagement points. This design ensures fast pick-up during starts, corner exits and rhythm changes. The ISO6 disc mount also provides compatibility with disc brake systems.

Ref: 15986273026428

Technical information

Technical Specifications – Rims
Model: Pride Helium Pro M24
Diameter: 20 inches / 406 mm
ETRTO Standard: 24-406
Material: Aluminium 6069-T6
Construction: Double wall
Rim height: 19 mm
Rim width: 28 mm
Number of spokes: 36
Valve type: Presta
Tyre compatibility: 29 to 65 mm
20 x 1.40"
20 x 1.85"
Brake compatibility: Disc only
V-Brake compatibility: No

Technical Specifications – Hubs
Front hub
Model: Pride Control V2
Material: Aluminium 6061-T6
Axle spacing: 20 x 100 mm
Axle type: Through axle 20 mm (not included)
Number of holes: 36
Disc mount: ISO6
Bearing: 6805

Rear hub
Model: Pride Control V2
Material: Aluminium 6061-T6
Axle spacing: 15 x 110 mm
Axle type: Through axle 15 mm (not included)
Driver standard: Shimano
Number of holes: 36
Engagement: 180 points / 6 pawls
Bearing: MR18307

Weight
Complete pair weight: 1566 g
Front wheel: 722 g
Rear wheel: 844 g

Additional information
Colour: Red
Use: BMX Race competition
Brake disc: ISO6 mount
Lock ring and spacers included for rear chainline adjustment
Rim tape not included
15 mm through axle not included
;
