PRIDE

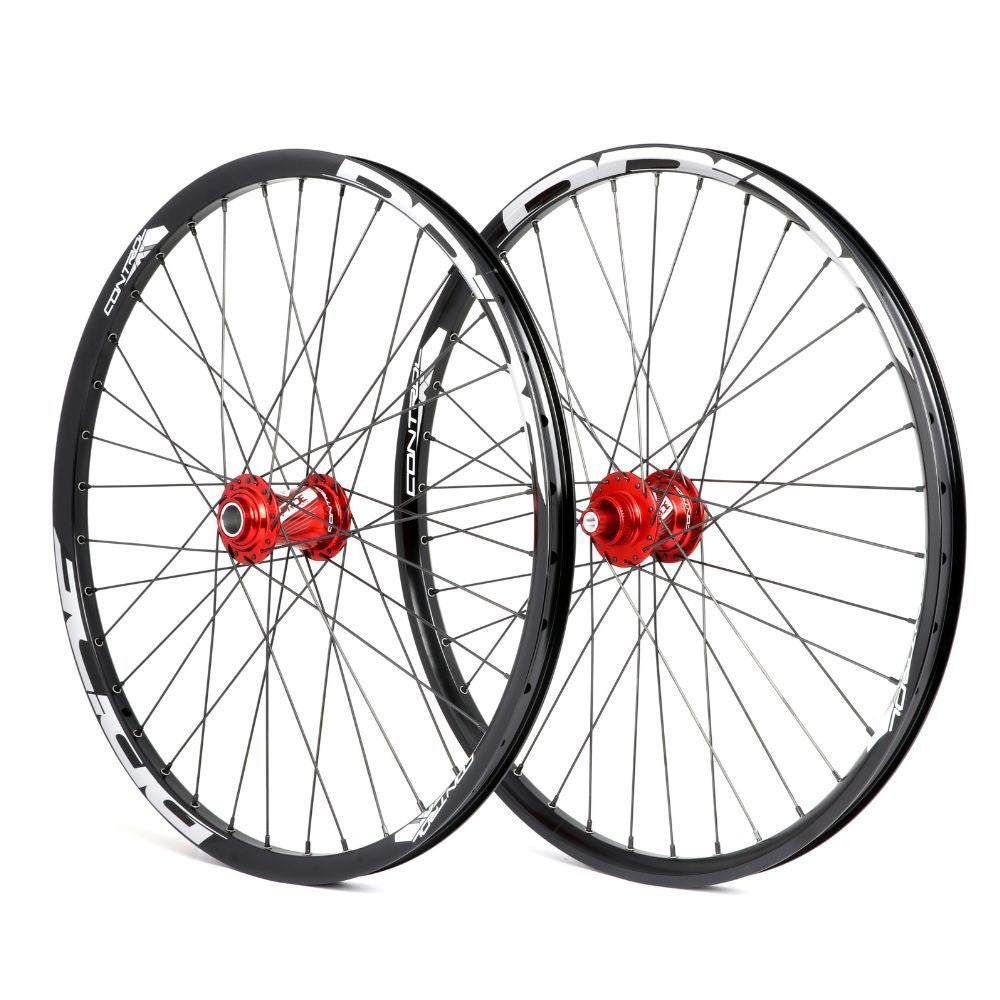

PRIDE 20" (451mm) Control V2 Disc Wheelset Axles 10/15mm Red

The PRIDE Control V2 20" (451) Wheelset is a set specially designed for BMX Race, combining efficiency, stiffness and reliability for riders seeking a... Read more
499,90 €
499,90 €
View full details

Description

The PRIDE Control V2 20" (451) Wheelset is a set specially designed for BMX Race, combining efficiency, stiffness and reliability for riders seeking a high-performance wheel on the track. This wheelset combines Control Expert 6061-T6 aluminium rims and PRIDE Control hubs to achieve a balanced build capable of withstanding the intense demands of explosive starts and repeated accelerations.

Thanks to their 6061-T6 aluminium construction with T6 heat treatment, the rims offer an excellent compromise between lightness, strength and efficiency. Their double-wall construction improves the overall stiffness of the wheel while ensuring good capacity to absorb the stresses encountered on BMX Race tracks.

The PRIDE Control hubs complete this build with a high-performance engagement system. The mechanism comprising 6 micro-toothed pawls delivering 180 engagement points allows rapid and efficient power pick-up, ideal when exiting corners or accelerating out of jumps. The Polish finish also adds a premium aesthetic integration to custom BMX builds

Ref: 15986273091964

Technical information

General information
Brand: PRIDE Racing
Model: Control V2
Type: Complete wheelset
Discipline: BMX Race
Diameter: 20 inches
Dimension: 451 mm
Use: Competition / intensive training
Brake compatibility: Disc only
Assembly: Front wheel + rear wheel
Total weight: 1776 g
Front wheel weight: 778 g
Rear wheel weight: 998 g

PRIDE Control Expert rims
Material: 6061-T6 aluminium
Treatment: T6 thermal
Construction: Double wall
Size / ETRTO: 20" / 16-451
Rim height: 20 mm
Rim width: 23 mm
Number of spokes: 28 holes
Valve type: Presta
Tyre compatibility:
20 x 1-1/8"
20 x 1-3/8"
Section between 20 and 34 mm
V-Brake compatibility: No

PRIDE Control front hub
Specifications
Material: 6061-T6 aluminium
Over locknut distance: 10 x 100 mm
Axle: 10 mm
Number of spokes: 28 holes
Bearing: 15267
Disc mount: ISO6
BMX Race-oriented design to optimise stiffness and efficiency

PRIDE Control rear hub
Specifications
Material: 6061-T6 aluminium
Over locknut distance: 15 x 110 mm
Rear axle: 15 mm
Driver standard: Shimano
Number of spokes: 28 holes
Bearing: 18307
Disc mount: ISO6
Engagement system: 180 points
Mechanism: 6 micro-toothed pawls
Fast engagement for immediate acceleration

Included equipment and additional information
Rear wheel supplied with:
Lock ring
Chain line adjustment spacers
Rim tape not included
Thru-axles not included
;
