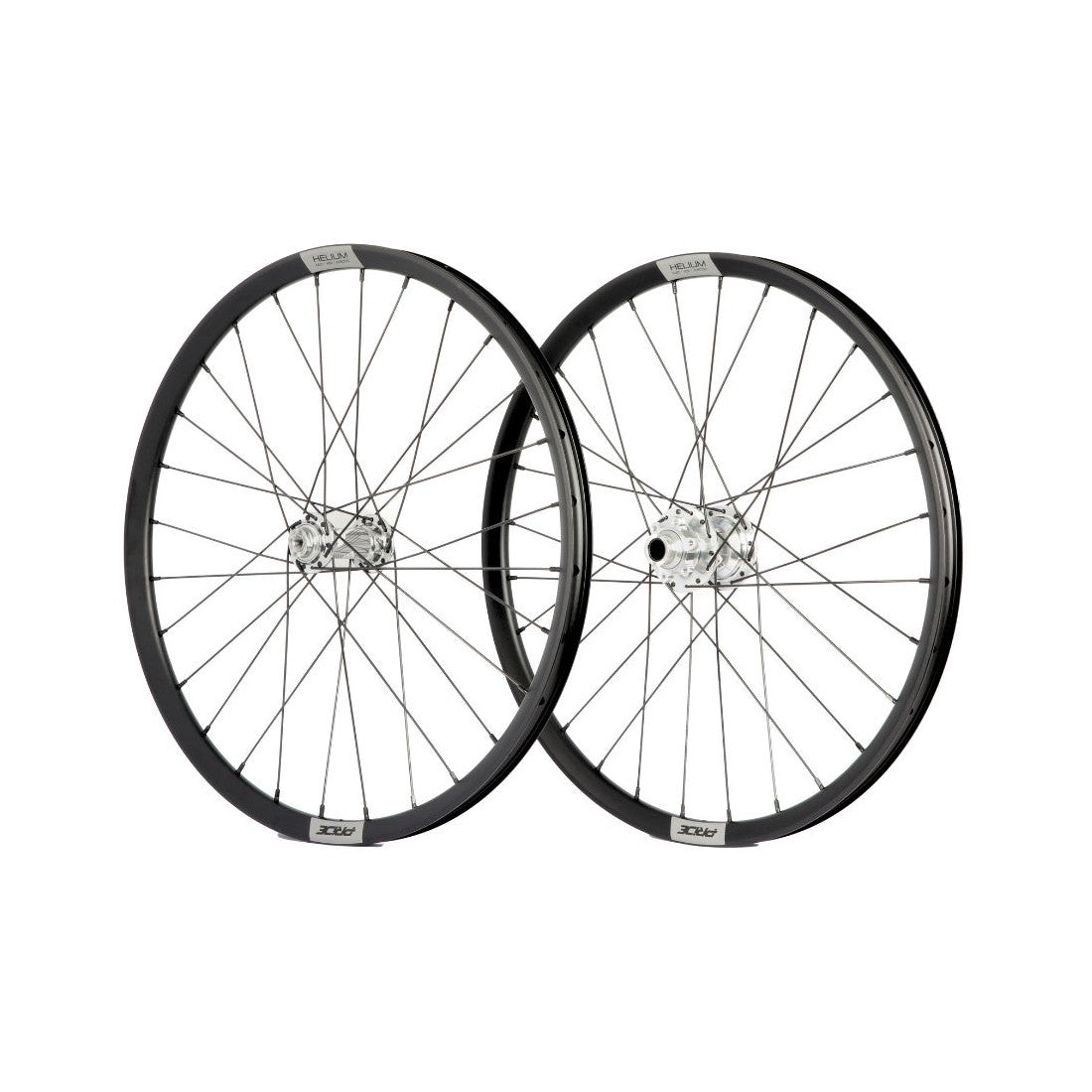

PRIDE 20" (451mm) Control V2 Disc Helium M21 Axes 10/15mm Wheel Set Polish

The PRIDE Control V2 Helium M21 Disc 20" (451mm) wheel set is developed for riders seeking a high-performance, lightweight and reliable assembly for competition.... Read more
Regular price 549,90 €
Regular price Sale price 549,90 €
View full details

Description

The PRIDE Control V2 Helium M21 Disc 20" (451mm) wheel set is developed for riders seeking a high-performance, lightweight and reliable assembly for competition. The Pride Helium Expert 6069-T6 aluminium rim benefits from a low profile promoting reactivity, rapid accelerations and excellent manoeuvrability on technical courses.

Thanks to the Arcos System® manufacturing process, the internal design of the rim is optimised to make the best use of the mechanical properties of 6069-T6 aluminium. This technology achieves an excellent balance between lightness, rigidity and resistance, with a rim suited to the demands of intensive sport use.

The Pride Control V2 CNC-machined 6061-T6 aluminium hubs deliver precision and reliability. The rear hub features a 15 mm through-axle and a high-performance engagement system with 180 points of engagement and 6 micro-toothed pawls, ensuring rapid power transfer during re-accelerations.

The ISO6 disc mounting ensures precise rotor fitting and optimal compatibility with frames equipped with disc brakes. The 28 spokes associated with each wheel provide a balanced structure between rigidity and durability, while the polished hub finish adds a refined aesthetic.

With an announced weight of 1,458 g the pair, this PRIDE Control V2 Helium M21 configuration represents a high-performance choice for BMX Race riders seeking a complete, dynamic and durable wheel capable of handling explosive accelerations and the demands of competition circuits.

Ref: 15986273583484

Technical information

Usage: BMX Race / Competition
Diameter: 20" – 451 mm
Model: PRIDE Control V2 Helium M21 Disc
Rim material: Aluminium 6069-T6
Rim model: Pride Helium Expert
Manufacturing process: Arcos System®
Rim type: Double wall
Rim height: 19 mm
Rim width: 25 mm
Number of spokes: 28 per wheel
Valve type: Presta
Tyre compatibility: 20 to 34 mm
20 x 1-1/8"
20 x 1-3/8"
Brake compatibility: Disc only
Disc mount: ISO6

Hub specifications
Model: Pride Control V2
Hub material: Aluminium 6061-T6
Machining: CNC
Front spacing: 100 x 10 mm
Rear spacing: 110 x 15 mm thru-axle
Number of holes: 28
Freehub body: Shimano
Engagement system: 180 points
Pawls: 6 micro-toothed pawls
Engagement: 3 simultaneously active pawls
Front bearing: 15267
Rear bearing: MR18307

Front wheel weight: 615 g
Rear wheel weight: 843 g
Pair weight: 1458 g

15 mm rear thru-axle not included (frame-specific)
Lock ring and spacers included for chainline adjustment
Rim tape not included
