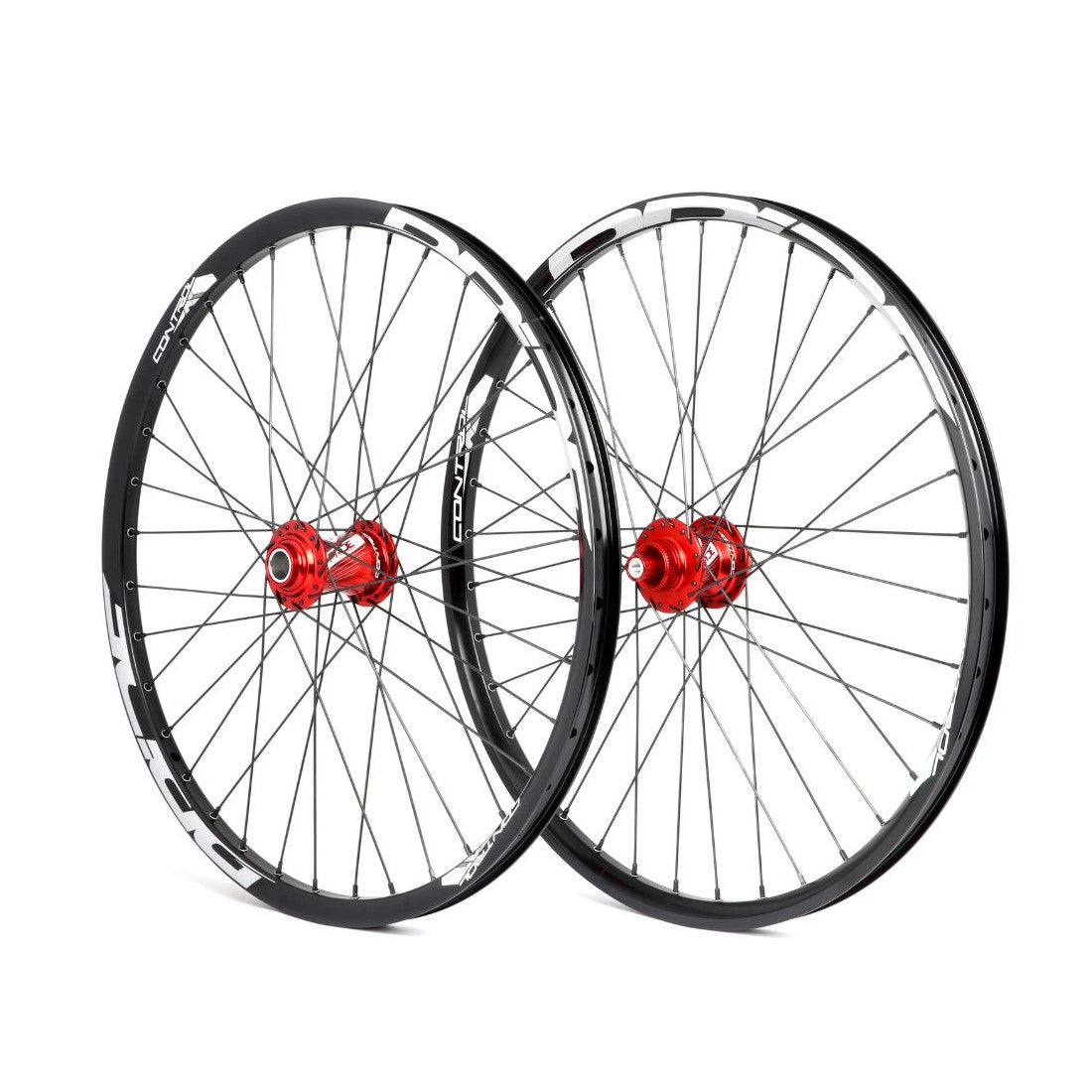

PRIDE 24" (507mm) Control V1 Disc Axes 20/10mm Red Wheel Set

The PRIDE Control V1 Disc 24" (507mm) wheel set is specially developed for 24-inch BMX Race Cruiser bikes seeking an excellent compromise between performance,... Read more
499,90 €
499,90 €
View full details

Description

The PRIDE Control V1 Disc 24" (507mm) wheel set is specially developed for 24-inch BMX Race Cruiser bikes seeking an excellent compromise between performance, reliability and responsiveness. Its 6061-T6 aluminium construction with T6 heat treatment produces lightweight and high-performing rims suited to the demands of competition.

The Pride Control Cruiser rims feature a double-wall construction offering an excellent level of stiffness and strength. Combined with the Control 6061-T6 aluminium hubs, they guarantee efficient power transfer. The engagement system with 6 micro-toothed pawls and 180 engagement points ensures fast sprints and an immediate response during starts or exits from corners.

This wheel set features a distinctive red finish and a configuration dedicated to disc-only braking. With its 36 spokes, 19 mm rim profile and compatibility with tyres from 28 to 65 mm, it offers a versatile and robust package for BMX Race riders seeking precision and efficiency on the track.

Ref: 15986273059196

Technical information

General information
Model: PRIDE Control V1 Disc
Type: BMX Race Cruiser wheelset
Diameter: 24" (507 mm)
Use: BMX Race
Brake compatibility: Disc only
Colour: Red

Rim specifications
Model: Pride Control Cruiser
Material: 6061-T6 aluminium
Treatment: T6 heat treatment
Construction: Double wall
Front size: 24" / 23-507
Rear size: 24" / 507
Rim height: 19 mm
Front width: 27 mm
Rear width: 28 mm
Number of spokes: 36
Valve type: Schrader
Compatible tyre section: 28 to 65 mm
V-Brake compatibility: No

Hub specifications
Material: 6061-T6 aluminium

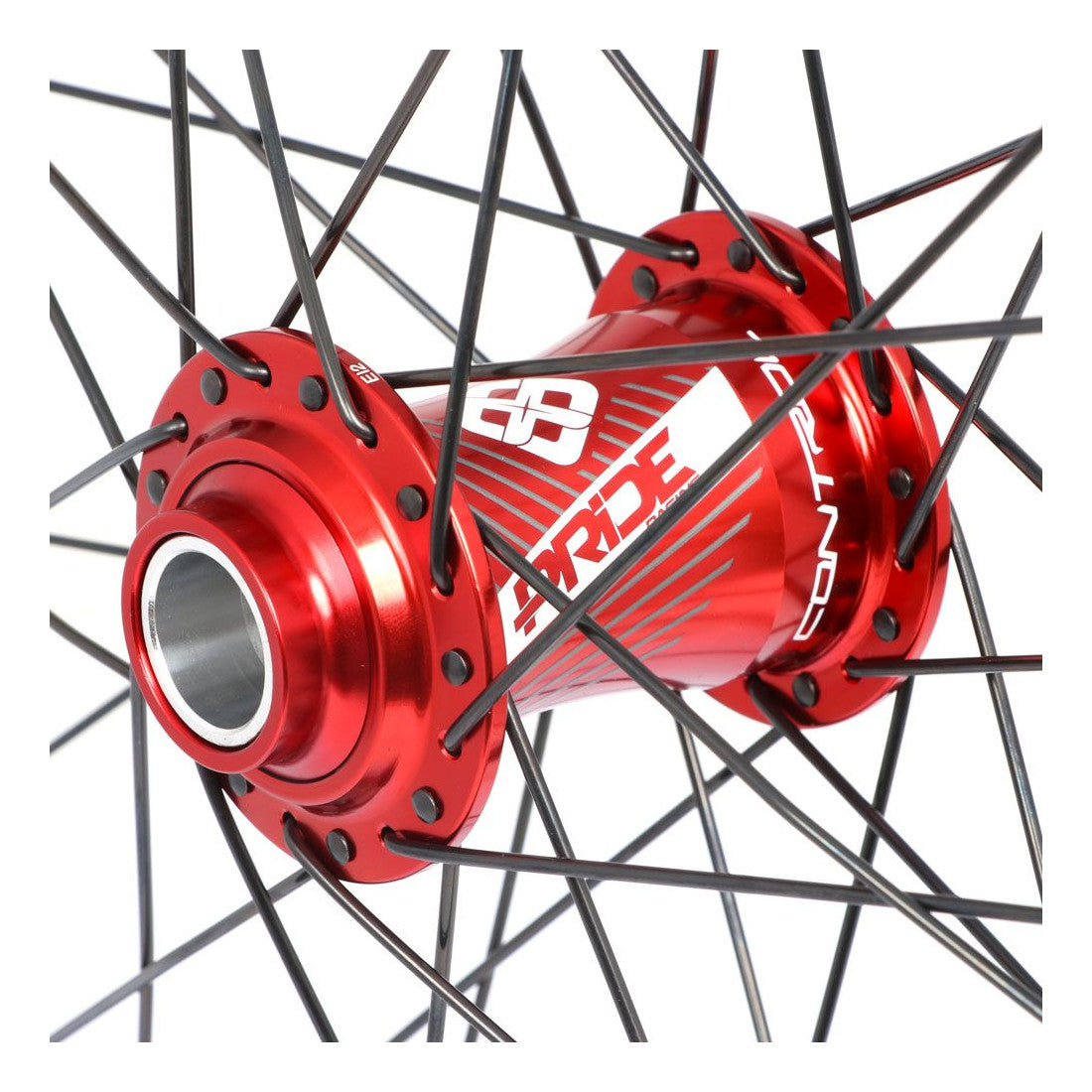

Front hub: 20 x 100 mm

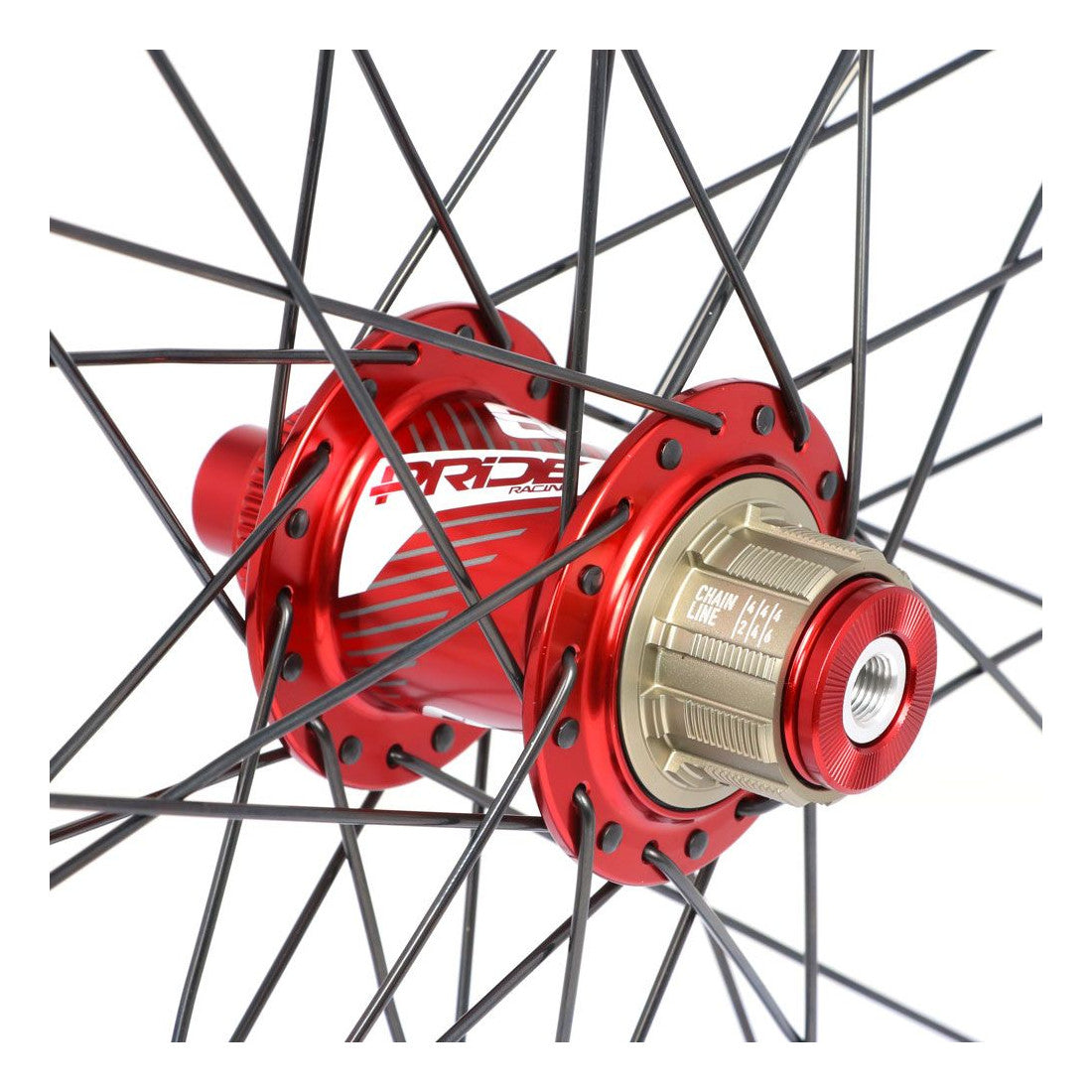

Rear hub: 10 x 110 mm
Front axle: 20 mm (not included)
Disc mount: Center Lock
Freehub body: Shimano
Engagement system: 180 points / 6 pawls
Front bearings: 6805
Rear bearings: 6902

Front wheel: 904 g
Rear wheel: 1085 g
Total pair weight: 1989 g

Additional information
20 mm front axle not included
Rear wheel supplied with lock ring and spacers for chainline adjustment
Rim tape not included
;
