ALUGEAR

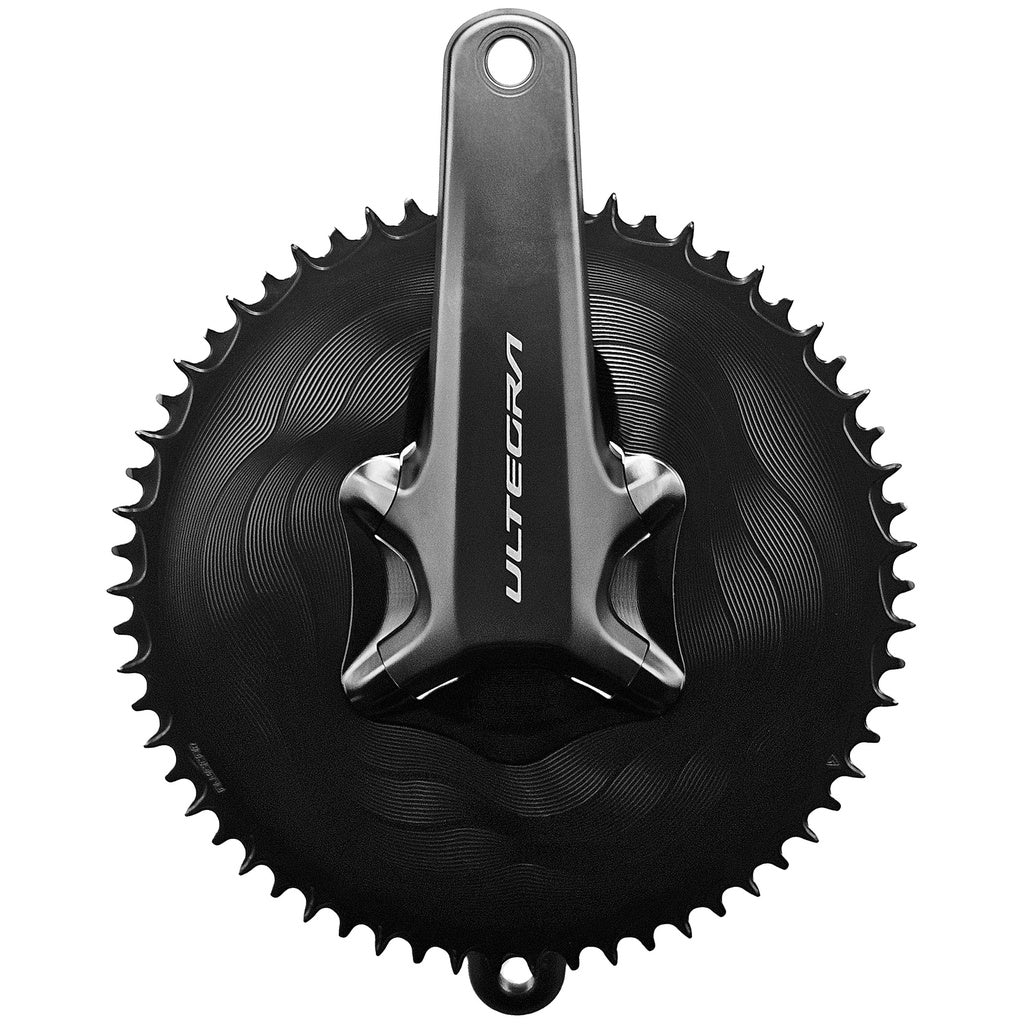

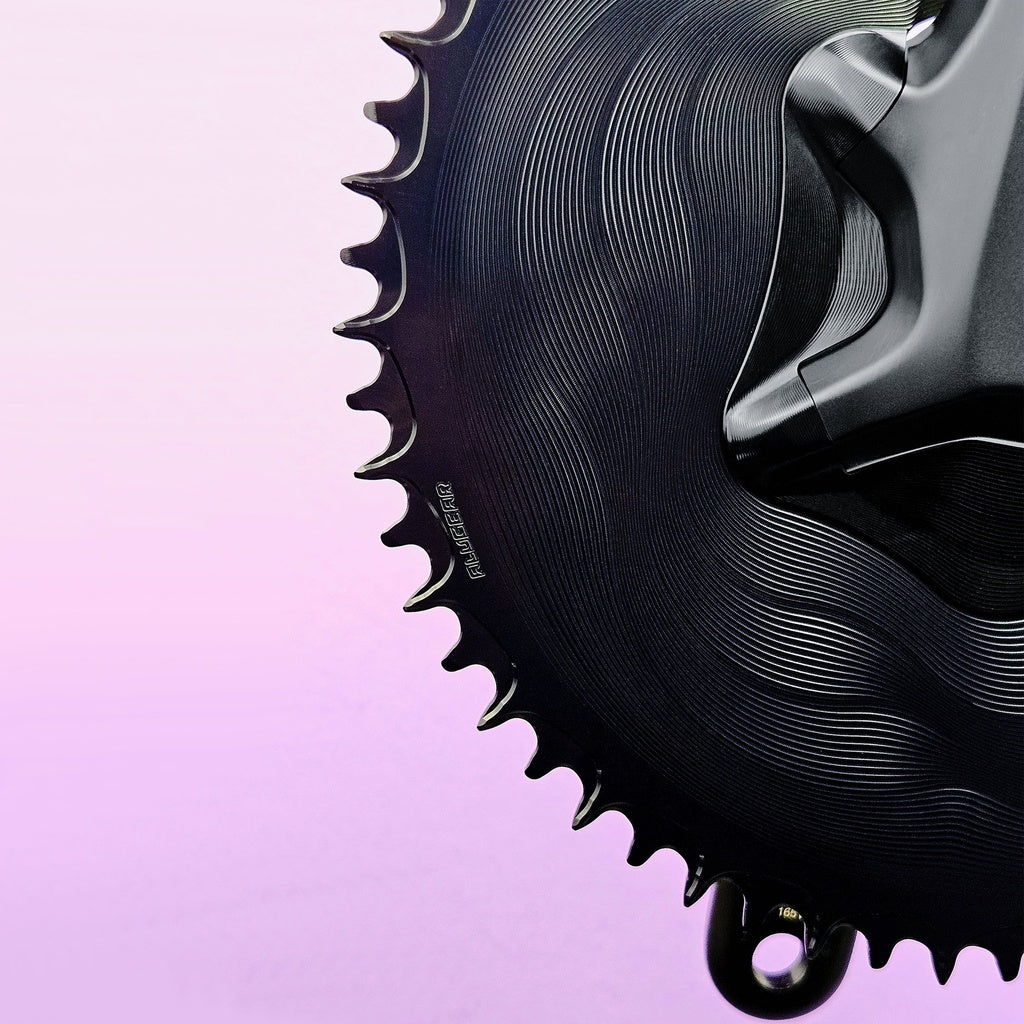

ALUGEAR Cover for Shimano R8100 Crankset

The ALUGEAR AERO Cover is designed for ALUGEAR 1X and 2X chainrings used with Shimano Ultegra R8100 12-speed cranksets. Its design conceals the junction... Read more
71,99 €
71,99 €
View full details

Description

The ALUGEAR AERO Cover is designed for ALUGEAR 1X and 2X chainrings used with Shimano Ultegra R8100 12-speed cranksets. Its design conceals the junction between the chainring and the crank arm to achieve a more uniform and refined finish.

Made from 7075-T6 aluminium, this cover benefits from CNC machining and an anodised finish. Weighing just 17 g for the cover, it offers a lightweight solution while maintaining a design specifically adapted for the Shimano Ultegra R8100 crankset.

The system uses a 110 mm asymmetric Shimano chainline and a 4-arm spider attachment. Available in several anodised colours, it can be easily removed and refitted. It comes with 4 ALUGEAR M8 11.5 mm bolts and their spacers.

Ref: 16068016243068

Technical information

Design: AERO
Type: Road / Gravel
Use: ALUGEAR 1X and 2X chainrings
Crankset compatibility: Shimano Ultegra R8100 12-speed
Bolt configuration: 4-arm
Bolt circle diameter (BCD): 110 mm Shimano asymmetric
Material: Aluminium 7075-T6
Manufacturing: CNC machining
Finish: Anodising
Cover weight: 17 g
Bolt weight: 8 g
Bolts included: 4 × M8, length 11.5 mm
Fitting tool: 5 mm hex key
Maximum tightening torque: 10 Nm
Available colours: Black, silver, red, blue, orange, green, gold, purple, steel and mocha
Compatibility: Shimano Ultegra R8100 cranksets with ALUGEAR 1X or 2X chainrings
Incompatibility: Shimano R8100 cranksets fitted with the original integrated power meter
Special feature: Conceals the junction between the chainring and the crank arm
Installation: Use exclusively original ALUGEAR bolts
Contents: 1 × AERO cover + 4 × M8 bolts 11.5 mm with spacers
;
