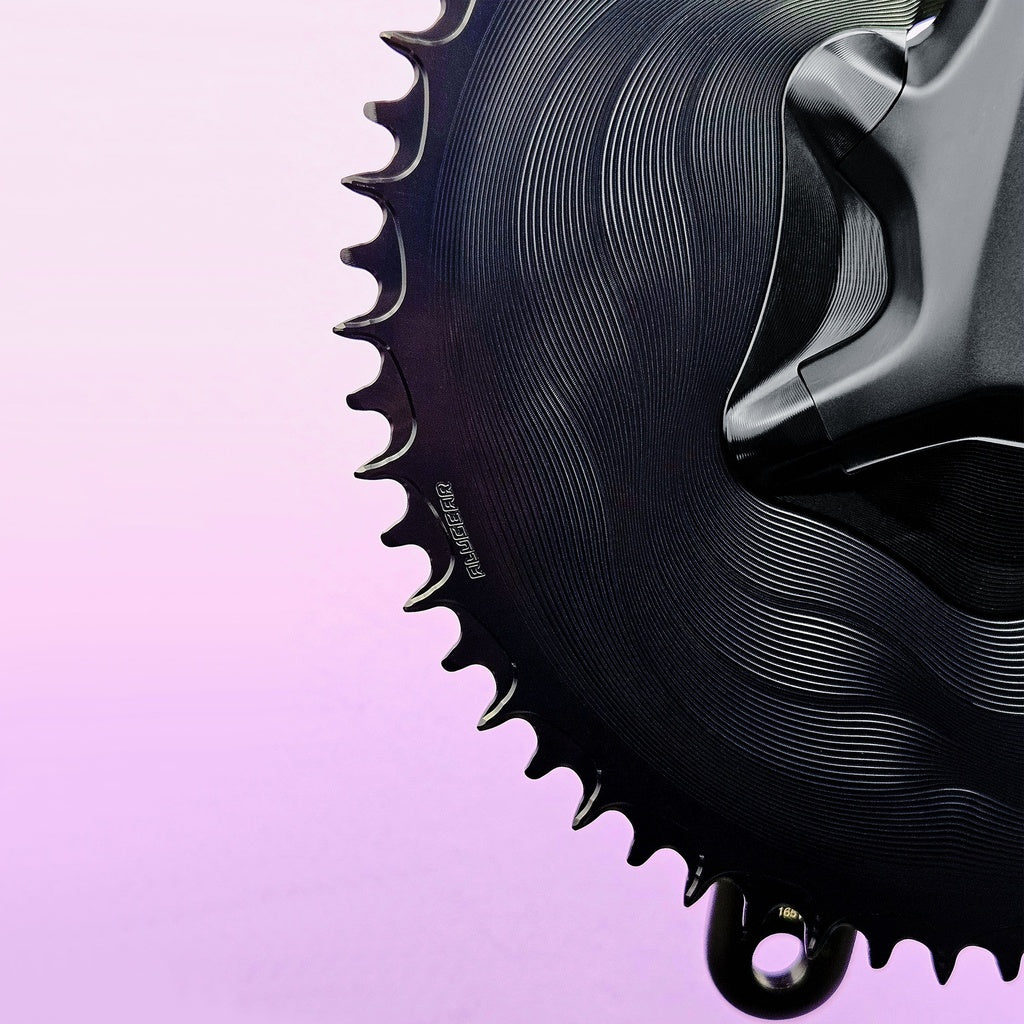

ALUGEAR Cover for Shimano R9200 Crankset

The ALUGEAR Cover is designed specifically for ALUGEAR 1X and 2X chainrings used with Shimano Dura-Ace R9200 12-speed cranks. Its AERO design conceals the... Read more
71,99 €
71,99 €
View full details

Description

The ALUGEAR Cover is designed specifically for ALUGEAR 1X and 2X chainrings used with Shimano Dura-Ace R9200 12-speed cranks. Its AERO design conceals the junction between the chainring and the crank arm for a more seamless and integrated finish.

Made from 7075-T6 aluminium, this cover benefits from precise CNC machining and an anodised finish. Weighing just 17 g, it adds minimal weight to the assembly while providing a refined aesthetic integration to the crankset.

Compatible with the 110 mm Shimano Asymmetric 4-bolt standard, it is fitted using the supplied ALUGEAR bolts. The cover is easily removable and refittable. However, it is not compatible with Shimano R9200 cranks equipped with an integrated power meter.

Ref: 16068016439676

Technical information

Product: Cache Cover R9200 for ALUGEAR chainrings
Design: AERO
Use: ALUGEAR 1X and 2X chainrings
Crankset compatibility: Shimano Dura-Ace R9200 12-speed
BCD standard: 110 mm Shimano Asymmetric
Attachment: Shimano 4-arm spider
Material: 7075-T6 aluminium
Manufacturing: CNC machining
Finish: Anodising
Cover weight: 17 g
Bolt weight: 8 g
Bolts included: 4 × M8 × 11.5 mm
Fitting tool: 5 mm hex key
Maximum tightening torque: 10 Nm
Function: Conceals the junction between the chainring and the crank
Fitting: Compatible with ALUGEAR 1X and 2X configurations
Removal: Cover easily removable and refittable
Power Meter compatibility: Not compatible with Shimano R9200 cranksets fitted with an integrated power meter
Available colours: Black, Silver, Red, Blue, Orange, Green, Gold, Purple, Steel, Mocha

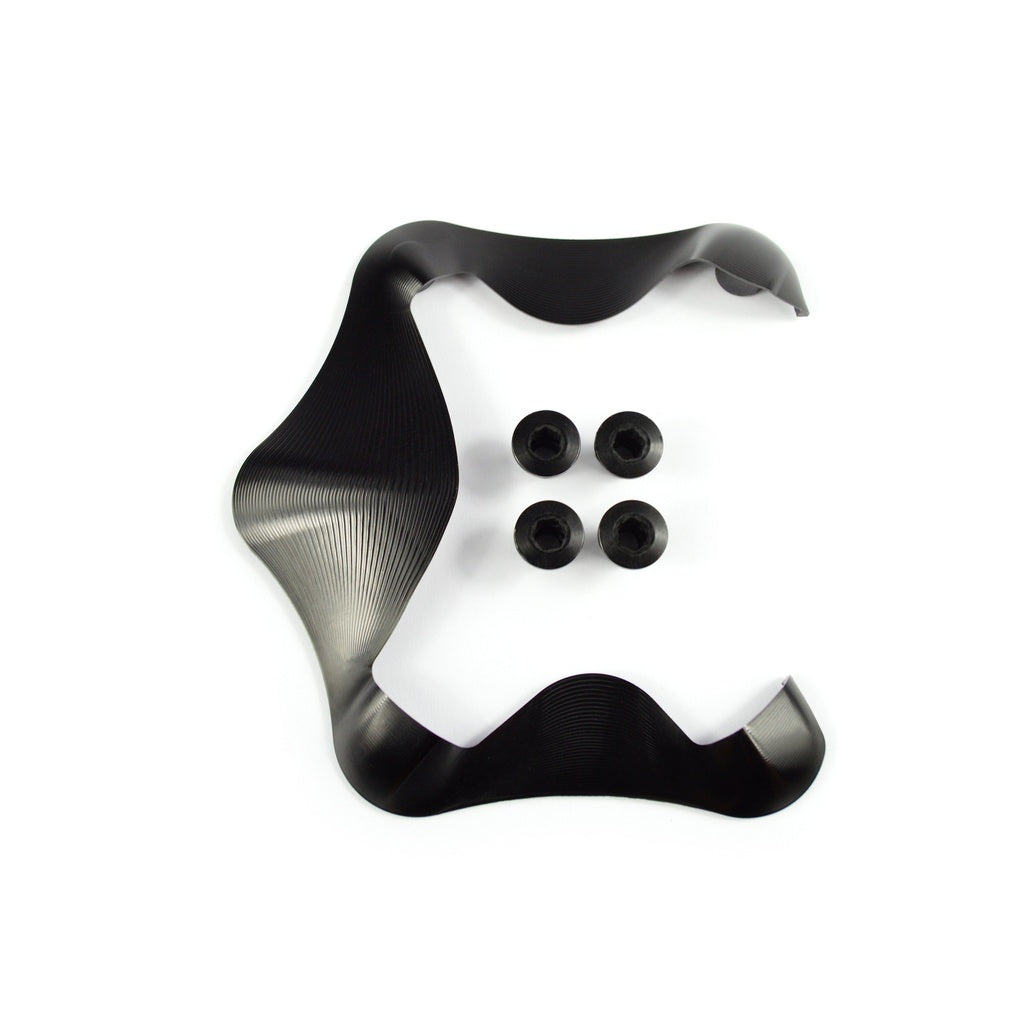

Contents: 1 × AERO Cache Cover + 4 × M8 bolts with spacers
;
