BMX INSPYRE Concorde V3 Pro XL

Manufacturer ref.: VEFR0092
The BMX INSPYRE Concorde V3 Pro XL is a high-end Race BMX designed for riders seeking a high-performance, lightweight and precise machine. Its design... Read more
3.599,90 €
3.599,90 €
View full details

Description

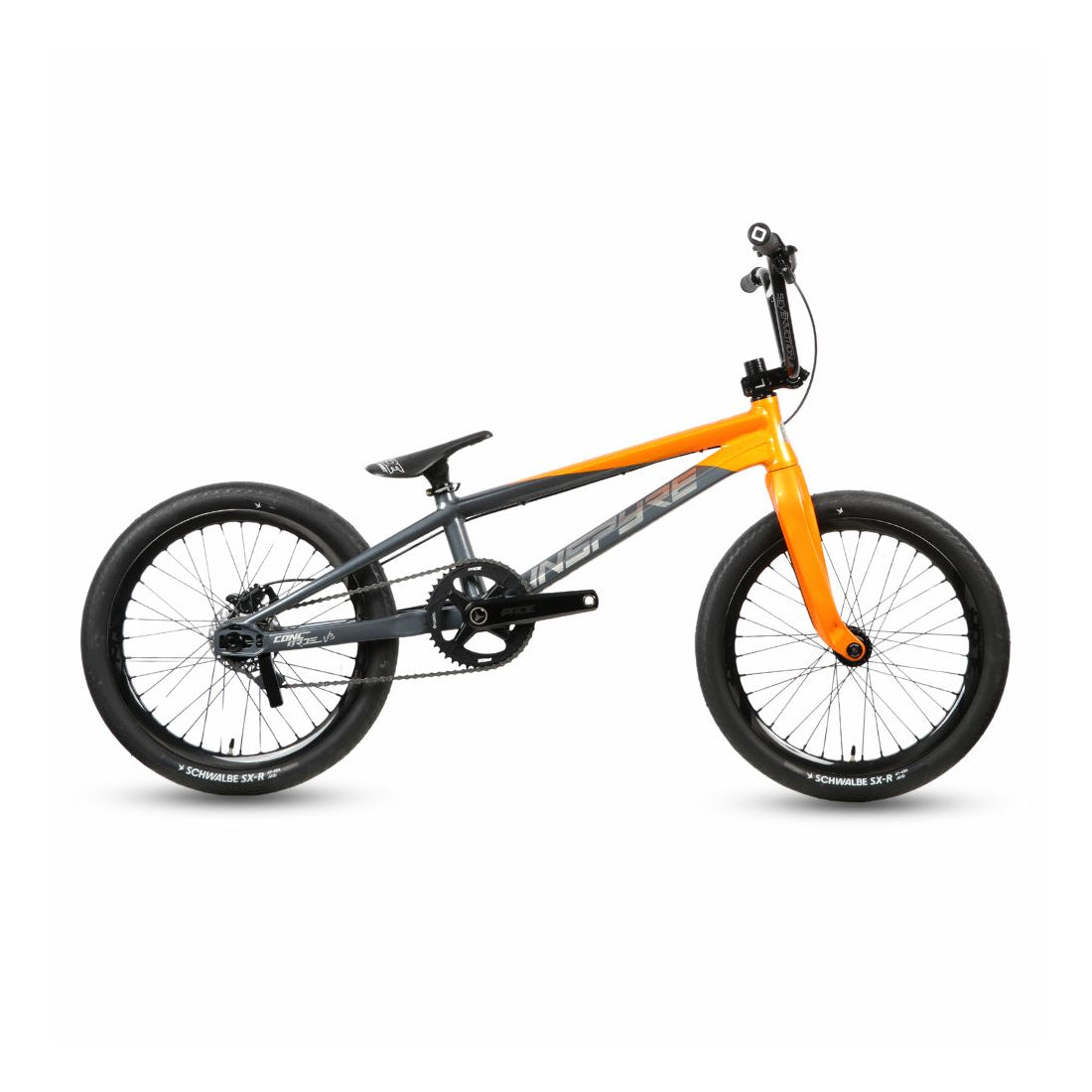

The BMX INSPYRE Concorde V3 Pro XL is a high-end Race BMX designed for riders seeking a high-performance, lightweight and precise machine. Its design combines a Concorde V3 Pro XL frame with carefully selected components to deliver dynamic track behaviour, with excellent efficiency during acceleration and sprint phases.

The setup is built around a Pride Apex Carbon Tapered 20 mm fork and a high-performance steering assembly featuring a Pride TI45 Titanium Tapered headset. The cockpit receives a Pride Sevemtion V2 7.5-inch handlebar paired with a 54 mm Pride FTL stem, ensuring precise control and a position suited to the demands of BMX Race.

Braking uses a Shimano MT-501 disc system paired with a 120 mm Forward Gen disc rotor for effective modulation in all conditions. The Pride Wave CFR Carbon Pro 20-inch carbon wheels provide stiffness and responsiveness, while the Schwalbe SX-R 20 x 1.85-inch tyres optimise grip and rolling efficiency on the track.

With an announced weight of 8.56 kg, the BMX INSPYRE Concorde V3 Pro XL combines lightness, stiffness and reliability to meet the expectations of competitive riders. Its complete specification means the BMX is ready to perform straight out of the box.

Ref: 15995236974972

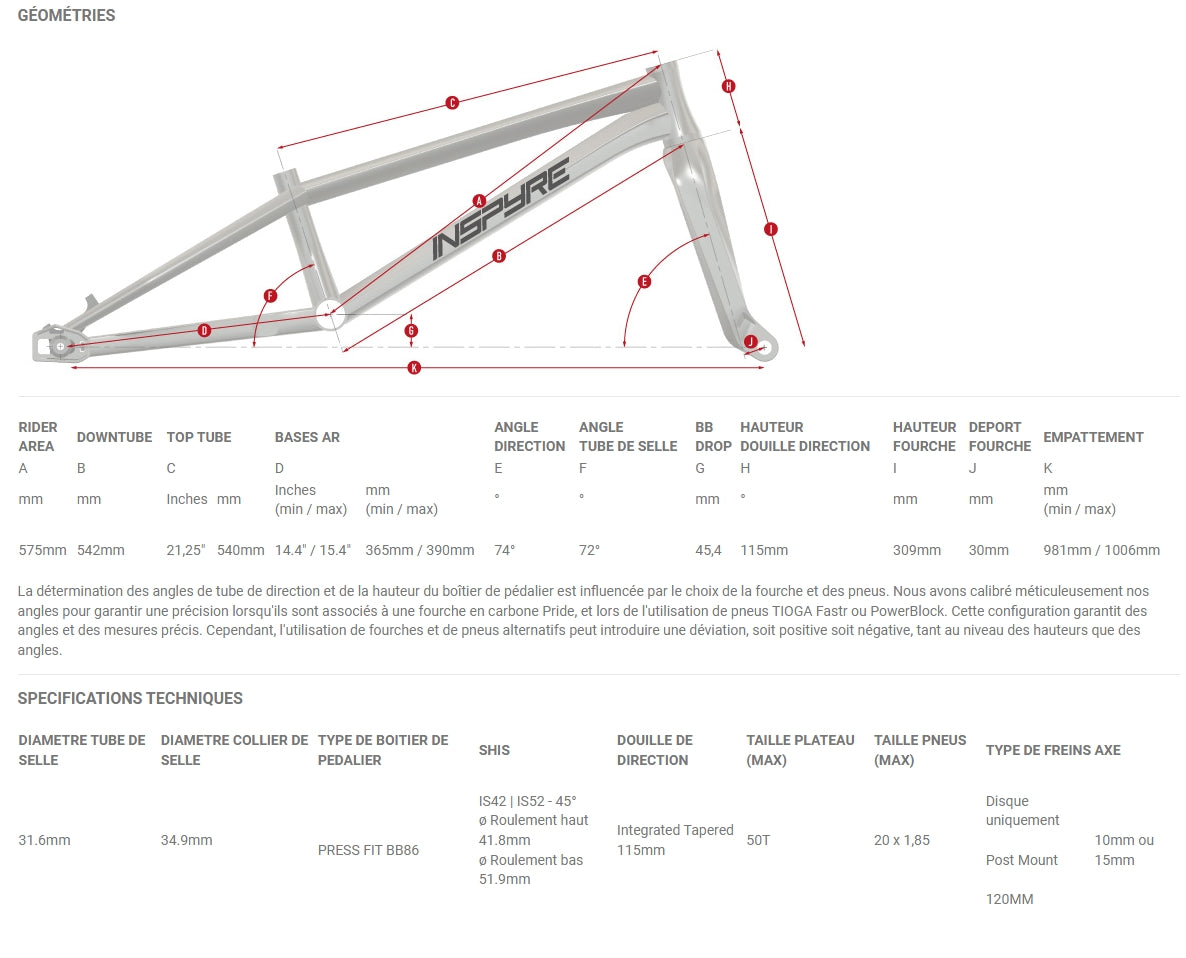

Technical information

Model: INSPYRE Concorde V3 Pro XL
Type: BMX Race
Size: Pro XL
Colour: Orange / Gun Metal
Total weight: 8.56 kg
Recommended rider height: approx. 1.70 m to 1.80 m
Top tube: 21.25 inches (542 mm)
Rear stays: 540 mm
Head tube angle: 74°
Seat tube angle: 72°
Bottom bracket: Press Fit BB86
Bottom bracket drop: 45.4 mm
Head tube height: 115 mm
Wheelbase: 981 to 1006 mm

Fork & headset
Fork: Pride Apex Carbon Tapered
Front axle: 20 mm
Head tube: Integrated Tapered
Headset: Pride TI45 Titanium Tapered
Headset standard: IS42 / IS52 - 45°

Cockpit
Handlebar: Pride Sevemtion V2
Handlebar height: 7.5 inches
Handlebar diameter: Ø22.2 mm
Grips: Pride Cobra
Grip length: 129 mm
Stem: Pride FTL
Stem length: 54 mm
Stem diameter: Ø22.2 mm

Drivetrain
Crankset: Pride Newton SX
Crank arm length: 175 mm
Chainring: Pride Newton
Chainring teeth: 42T
Rear sprocket: Pride Matrix Aluminium
Number of teeth: 16T
Chain: KMC X9
Chain tensioner: INSPYRE ADS 2.0
Rear axle: 15 mm

Wheels & tyres
Rims: Pride Wave CFR Carbon Pro 20 inches
Front hub: Pride Matrix
Front axle: 20 mm
Number of spokes: 36H
Rear hub: Pride Matrix
Rear axle: 15 mm
Number of spokes: 36H
Tyres: Schwalbe SX-R
Tyre size: 20 x 1.85 inches

Braking
Type: Disc brake only
Calliper: Shimano MT-501
Disc: Forward Gen
Disc diameter: 120 mm
Mount: Post Mount

Saddle: Pride Pivotal Control
Seat post: Pride Spline AL
Seat post diameter: 31.6 mm
Seat clamp: Forward Elite
Clamp diameter: 34.9 mm
;
