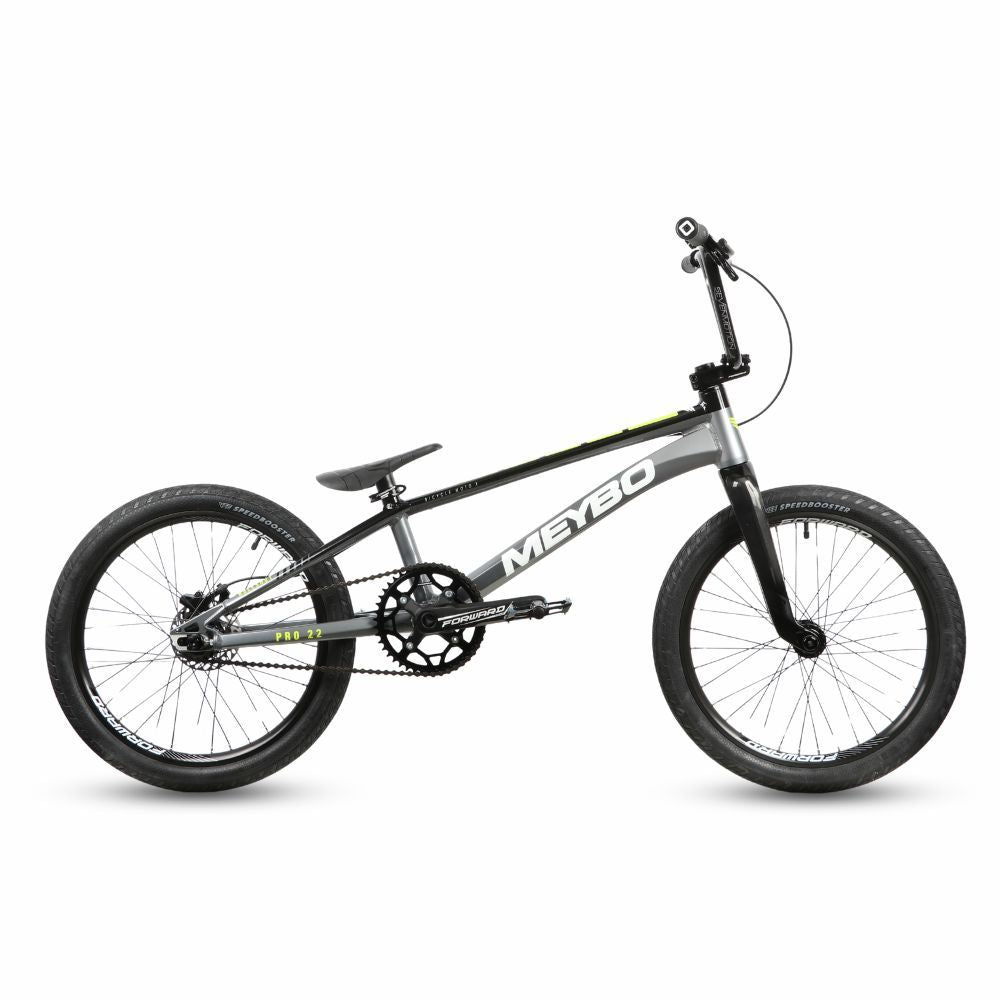

MEYBO Holeshot Custom Pro 22.5" BMX Black/Grey

Manufacturer ref.: VEFR0114
The MEYBO Holeshot Custom Pro 22.5" BMX is a high-end BMX Race developed around the Meybo Holeshot 6061-T6 aluminium frame. Its construction with hydroformed... Read more
2.099,90 €
2.099,90 €
View full details

Description

The MEYBO Holeshot Custom Pro 22.5" BMX is a high-end BMX Race developed around the Meybo Holeshot 6061-T6 aluminium frame. Its construction with hydroformed tubes of variable thickness achieves an excellent balance between stiffness, lightweight and responsiveness for riders seeking a high-performance build.

The frame geometry provides great stability at high speed while maintaining optimal precision in technical track sections. This Pro 22.5" version is equipped with a Pride Matrix Carbon fork and a Pride Sevenmotion handlebar, offering a competition-oriented package with components selected for their efficiency.

The build integrates Forward Joyride components to ensure dynamic and reliable handling. The aluminium wheels, the rear hub with 6 pawls and 150 points of engagement, along with the drivetrain featuring a 175 mm crankset, provide excellent acceleration capability during gate starts and sprint efforts.

With its contained weight of 8.98 kg without pedals, the MEYBO Holeshot Custom Pro 22.5" BMX is a machine suited to experienced riders looking for a complete, performance-ready bike. Its full specification combines BMX Race technologies, precise handling and reliability on demanding tracks.

Ref: 15995236942204

Technical information

Type: Complete BMX Race
Model: Meybo Holeshot Custom
Frame size: Pro 22.5"
Colour: Grey / Black / Lime
Rider level: Intermediate/Advanced
Weight: 8.98 kg without pedals

Frame: Meybo Holeshot
Material: 6061-T6 Aluminium
Construction: Hydroformed tubes with variable wall thickness
Top tube: 22.5"
Rider Area: 570 mm
Down tube: 566 mm
Rear stay length: 393 mm
Head angle: 74°
Seat tube angle: 71°

Front end
Fork: Pride Matrix Carbon 20" Tapered
Front axle: 20 mm
Handlebar: Pride Sevenmotion
Handlebar height: 8"
Bar diameter: Ø22.2 mm
Grips: Pride Cobra 129 mm
Stem: Forward Topload
Stem length: 50 mm
Diameter: Ø22.2 mm
Headset: Forward Swing integrated tapered 1-1/8" - 1.5"

Braking
Brake kit: Forward Joyride Pro V2
Mount: Postmount
Rotor: Forward GEN
Rotor diameter: 120 mm

Wheels
Rims: Forward Joyride Aluminium 20"
Front hub: Forward Joyride V3
Front axle: 20 mm
Rear hub: Forward Joyride V2
Rear axle: 10 mm
Rear engagement: 150 points
Pawls: 6 pawls

Drivetrain
Crankset: Forward Joyride Pro
Crank length: 175 mm
Bottom bracket: Pride Interlock BB30
Axle: 24 mm
Chainring: 44 teeth
Sprocket: 16 teeth
Chain: Forward 3/32"

Tyres and peripherals
Tyres: Vee Tire Speedbooster
Tyre size: 20 x 1.75"
Saddle: Combo Saddle
Seatpost diameter: Ø27.2 mm
Seatpost clamp: Forward AM Ø31.8 mm
Pedals: Forward Megatron
;
