1 5
MEYBO

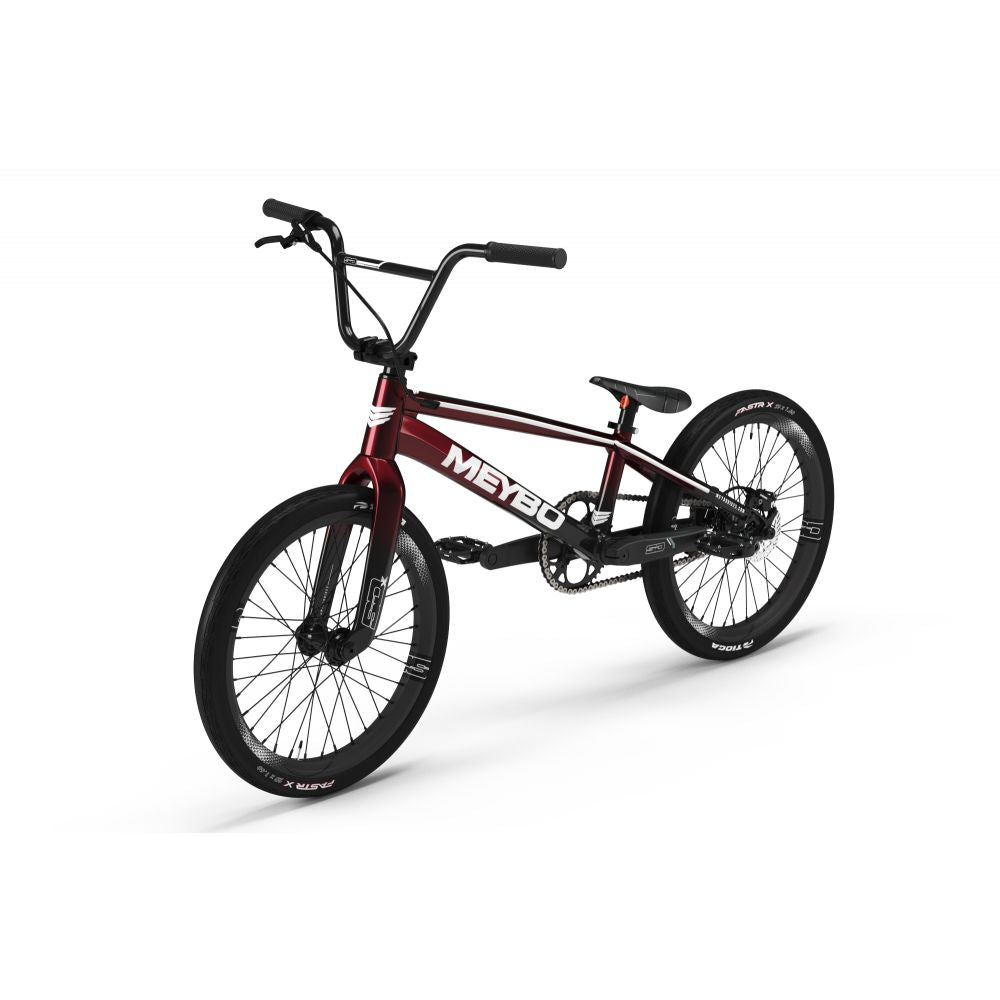

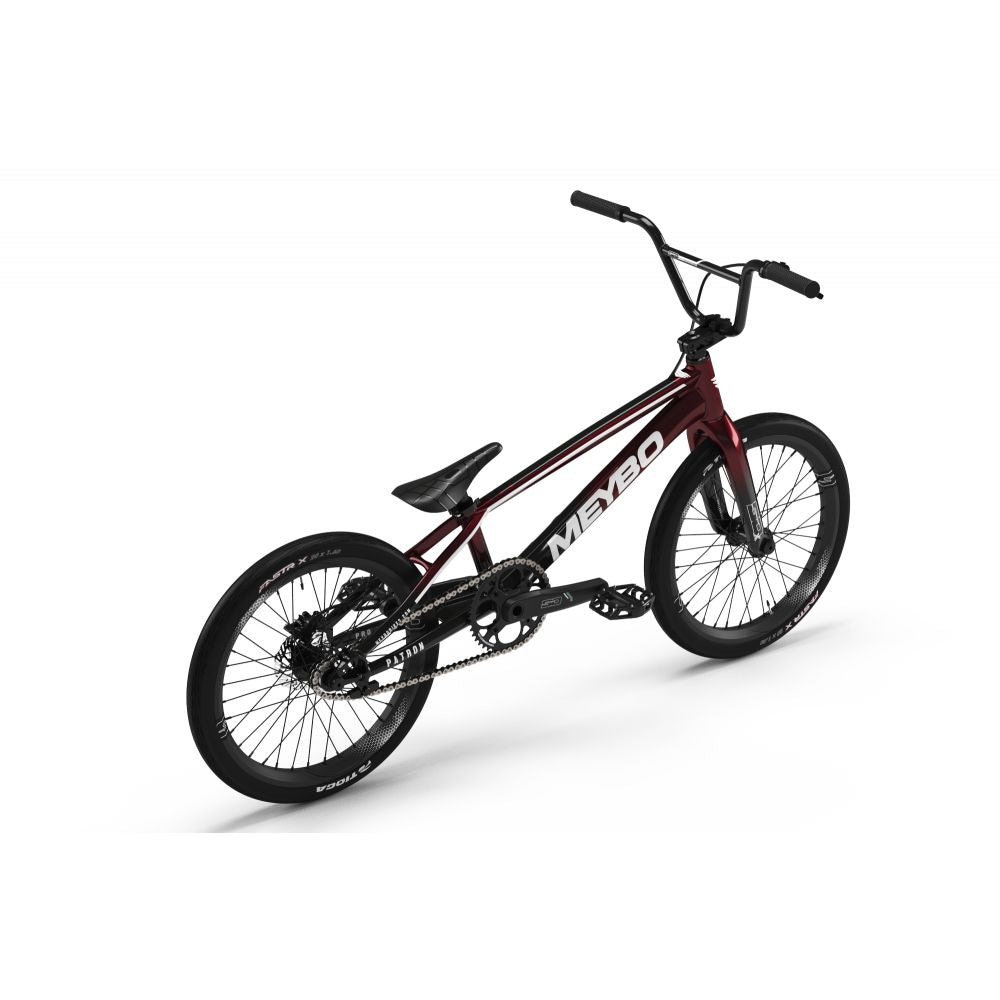

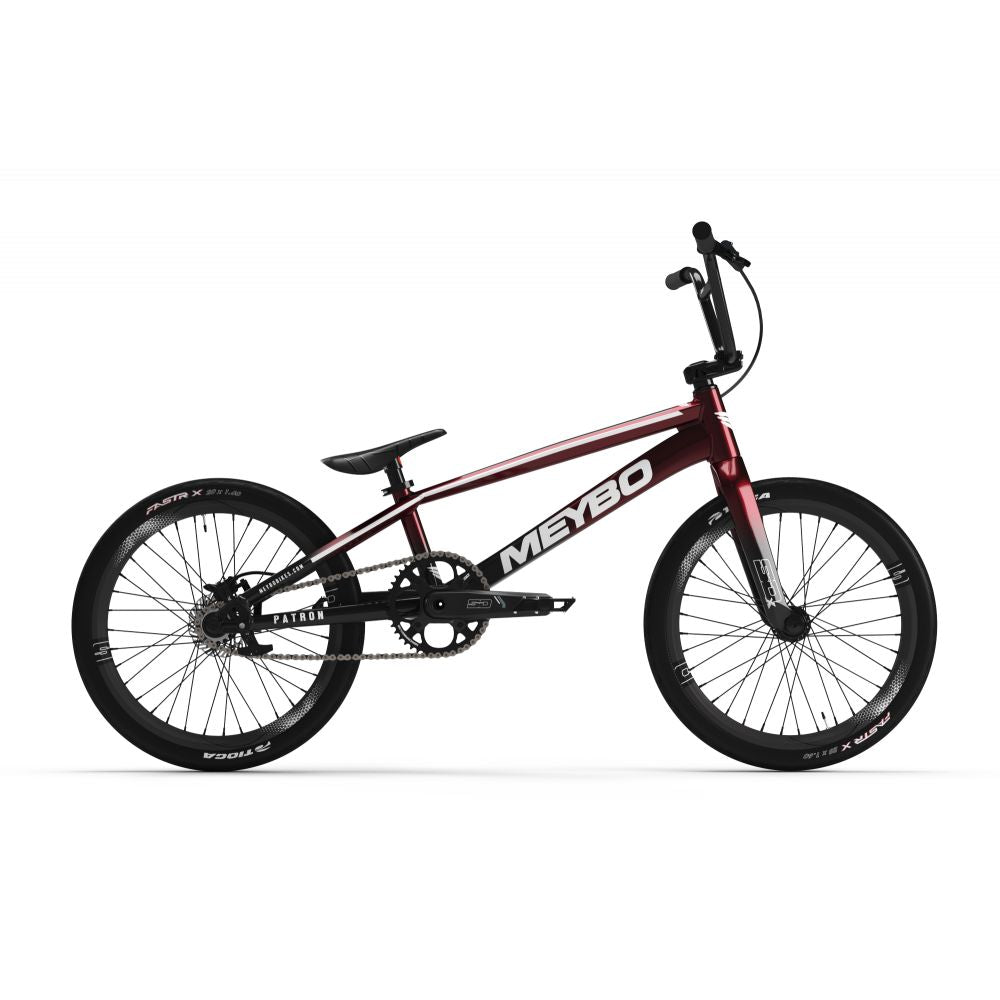

MEYBO Patron Expert Bordeaux 2025 BMX

Manufacturer ref.: VEME2540
The MEYBO Patron Expert 2025 BMX is a complete high-end Race BMX designed for riders looking for a high-performance, dynamic bike ready for competition.... Read more
2.199,90 €
2.199,90 €
View full details

Description

The MEYBO Patron Expert 2025 BMX is a complete high-end Race BMX designed for riders looking for a high-performance, dynamic bike ready for competition. This new generation features a Meybo HSX Alu Expert frame that replaces the Holeshot frame of the previous model, delivering an excellent balance between stiffness, lightness and efficiency on the track.

Equipped with an SD Carbon V2 1-1/8" 10 mm fork, this BMX offers precise steering and responsive handling during acceleration phases, jumps and technical sections. Components such as the Shimano MT501 hydraulic brake, SD carbon wheels and Tioga Fastr-X tyres ensure a reliable and high-performing package for intensive BMX Race use.

The Patron Expert 2025 setup is designed to deliver excellent power transfer. The assembly featuring an SD Ace HSX 15 mm rear hub, its 6 pawls and 180 engagement points, paired with the SD Expert 4-lite crankset, enables fast and efficient acceleration straight out of the gate.

With its contained weight of 7.48 kg, its geometry suited to Expert riders and its competition-oriented components, the MEYBO Patron Expert 2025 BMX is a complete machine aimed at riders looking to progress and perform on the most demanding BMX Race tracks.

Ref: 15995237106044

Technical information

Type: Complete BMX Race
Model: Patron 2025
Level: Experienced rider
Size: Expert
Recommended rider height: 4'7" to 5'1"

Frame:
Frame: Meybo HSX Alu Expert
Bottom bracket shell: EURO/BSA
Seat tube diameter: 25.4 mm
Rear dropout: 15 mm
Disc brake compatible only
Top tube: 19.69"
Down tube: 20.87"
Rear stays: 13.58"
Head angle: 73.5°
Seat tube angle: 71°

Cockpit:
Fork: SD Carbon V2 1-1/8" 10 mm
Headset: FSA sealed bearings Full Integrated 1-1/8"
Handlebar: SD Aluminium Expert 5.5"
Stem: SD CNC 1-1/8" – 50 mm
Grips: SD Lock-On 130 mm

Braking:
Brake kit: Shimano MT501 hydraulic
System: Hydraulic disc brake

Wheels:
Front hub: SD Ace Expert 36H – 8 mm axle
Rear hub: SD Ace HSX 15 mm
Rear engagement: 180 points
Number of pawls: 6
Rims: SD M83 Carbon 20 x 1-3/8 – 25 mm width
Tyres: Tioga Fastr-X 20 x 1-3/8"

Drivetrain:
Crankset: SD Expert 4-lite 4-bolt – 160 mm
Pedals: Wellgo B-219 sealed bearings CNC platform
Bottom bracket: SD Hollow EB24 – 24 mm Euro/BSA
Chainring: SD 6061 aluminium CNC 4-bolt – 39 teeth
Sprocket: 16 teeth
Chain: KMC K1 3/32 Silver/Black
Chain tensioners: Integrated

Saddle: Box Two Mini
Seatpost diameter: 25.4 mm
Seatpost clamp: SD QR 28.6 mm

Weight: 7.48 kg
;
