CAMPAGNOLO

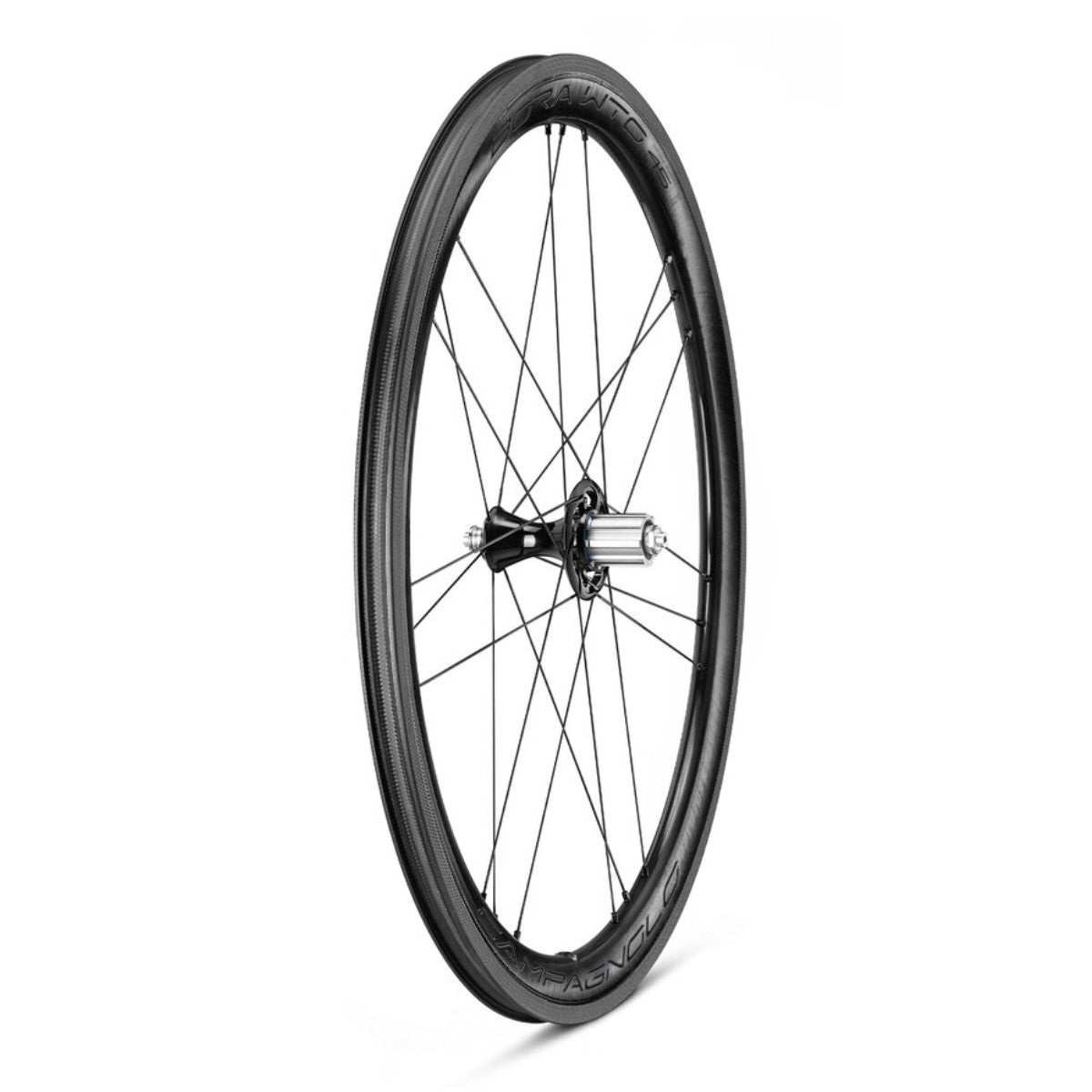

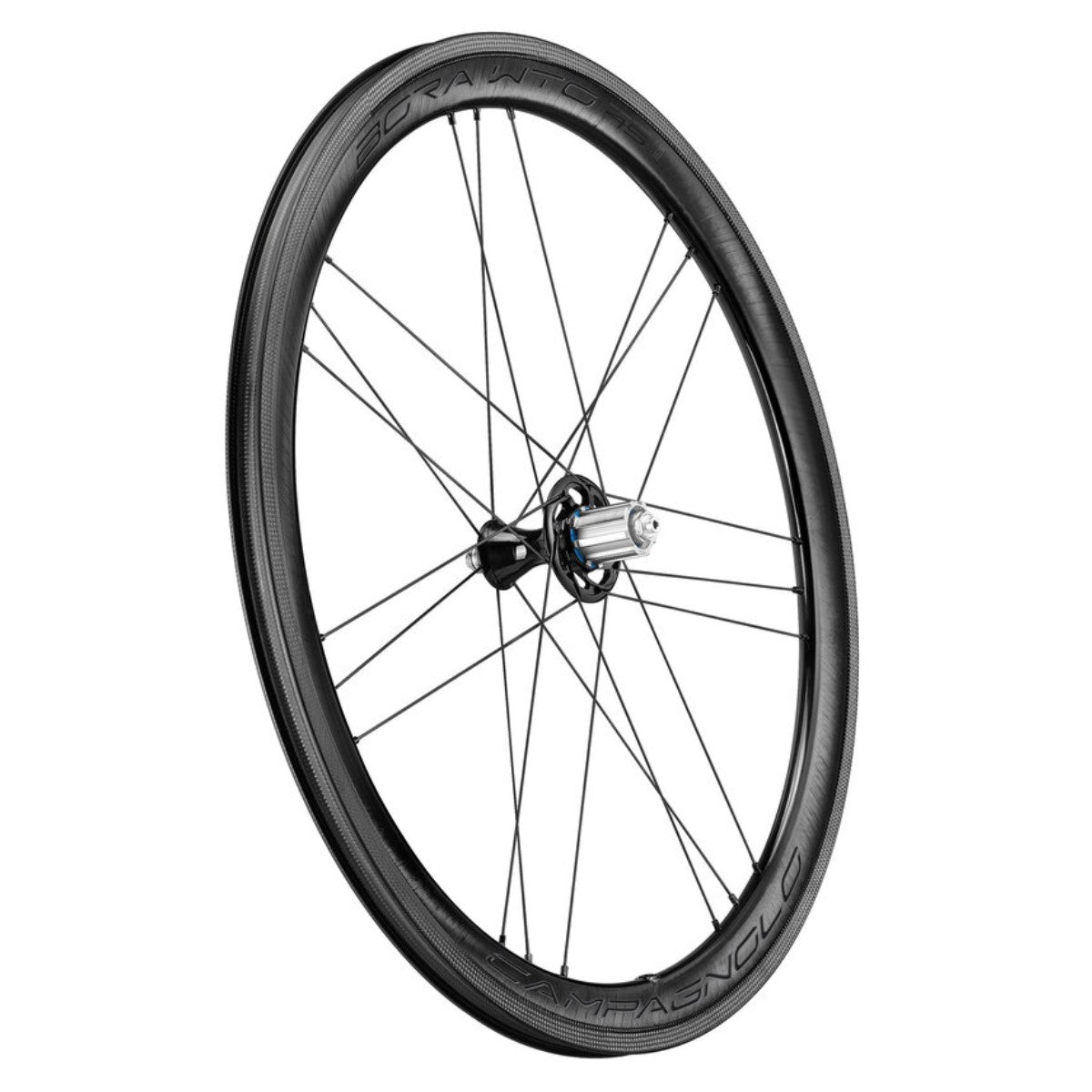

CAMPAGNOLO BORA WTO 45 DARK LABEL Rear Wheel

Réf. fabricant : WH20-BOWTOR45DK
The CAMPAGNOLO BORA WTO 45 DARK LABEL Rear Wheel was developed in a wind tunnel, the acronym WTO standing for Wind Tunnel Optimized. This... Read more
Regular price 999,90 €
Regular price Sale price 999,90 €
View full details

Description

The CAMPAGNOLO BORA WTO 45 DARK LABEL Rear Wheel was developed in a wind tunnel, the acronym WTO standing for Wind Tunnel Optimized. This extensive research made it possible to create a versatile wheelset with breathtaking manoeuvrability and aerodynamics! In this Dark Label version, the rim is dressed with black stickers, for a sleek and refined look.

On flat or hilly terrain, the Bora WTO 45 is the obvious choice. The carbon rim design allows an extremely manoeuvrable ride, while guaranteeing better air penetration. The 2-Way Fit profile allows fitting either clincher or tubeless tyres. Whether in 23, 25 or 28 mm, they integrate with the 19 mm internal width rim for an ultra-cohesive ensemble. The one-piece hub also features a tapered profile to optimise airflow and minimise drag.

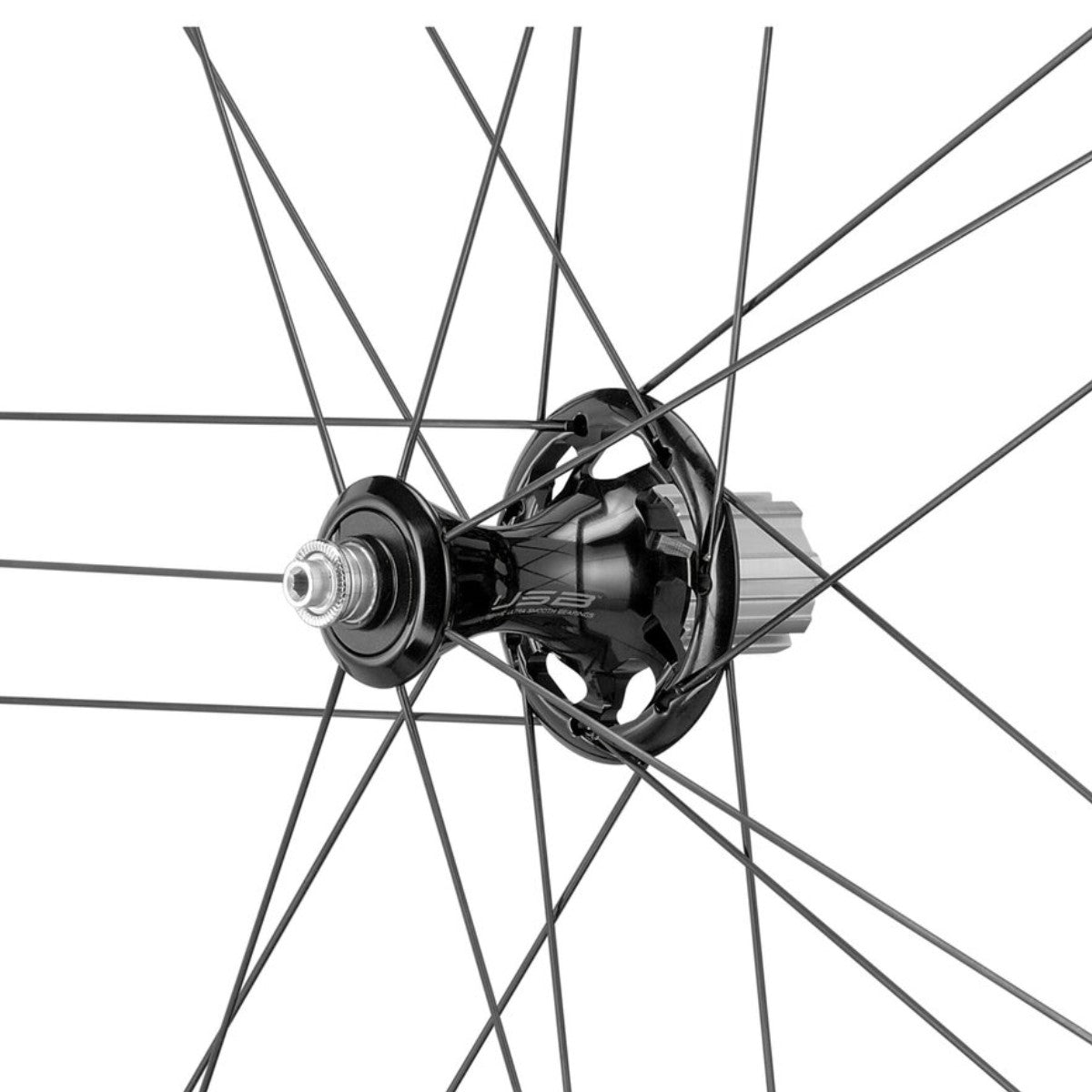

Inside the hub, USB™ ceramic bearings (Ultra Smooth Bearings) reduce friction and therefore energy loss. In addition to smoother rolling, these components further reduce the weight of the wheel.

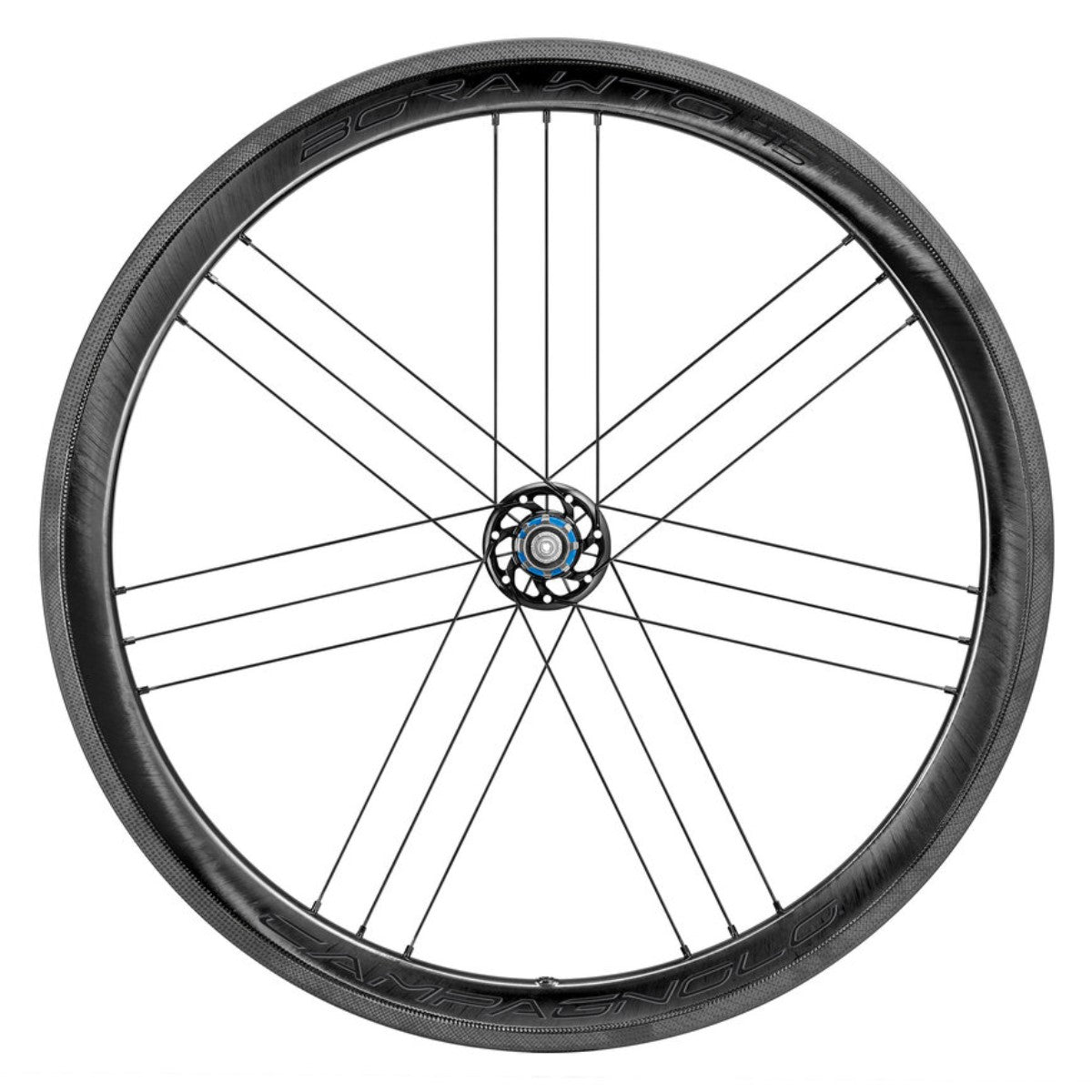

The rim is entirely made of carbon and boasts incredible lateral stiffness. It is also fitted with a new AC3 braking surface that improves brake pad effectiveness in wet conditions. Rigidity is further optimised through the use of a G3 rear spoke pattern that is more efficient and eliminates vibrations.

Manufacturer's Manual

Ref: 9307216609629

Points forts

The 45 mm rim height for good versatility;

The aerodynamics of the rim and tapered hub;

The 100% carbon rim, very lightweight;

The AC3 braking surface;

The lateral stiffness and power transmission thanks to G3 geometry;

The USB ceramic bearings for extreme smoothness;

The fully hand-built assembly;

The option to fit Tubeless tyres;

The design and finish.

Informations techniques

GENERAL
Axle dimension: 9x130mm
Internal width: 19mm
Height: 45mm
Freehub body: Campagnolo
Weight: 1496 g per pair
Manufacturer reference: WH20-BOWTOR45DK

RIM
Profile height: 45mm
Rim material: carbon
Rim section (height/width): 45/26.5 mm
Internal rim width: 19 mm
AC3 technology on the braking track
Water Transfer graphics
Tyres: 2-Way Fit technology - Inner tube and Tubeless/Tubeless ready

SPOKES
21 elliptical cross-section steel spokes, grouped with the G3 system
Anti-rotation technology on radial spokes

HUBS
Black aluminium monoblock hub
USB ceramic cup-and-cone
Hub end cap: 130 mm
Axle material: aluminium
USB cup/cone bearing system

ASSEMBLY
The Bora™ WTO 45 wheel is entirely hand-assembled by a specialist Campagnolo® operator and 100% checked using electronic control instruments. This procedure guarantees maximum precision and reliability for every Campagnolo® wheel.

INCLUDED
Special brake pad kit for carbon wheels (red compound): +40% braking performance on wet roads and +20% on dry roads.
Quick Release wheel skewers with aerodynamic profile, lightweight and with gloss finish.
35 mm tubeless valve
35 mm valve extender
Valve core reducer
2 composite tyre levers
User manual

Informations prix

*Supplier recommended retail price in February 2024
