CAMPAGNOLO

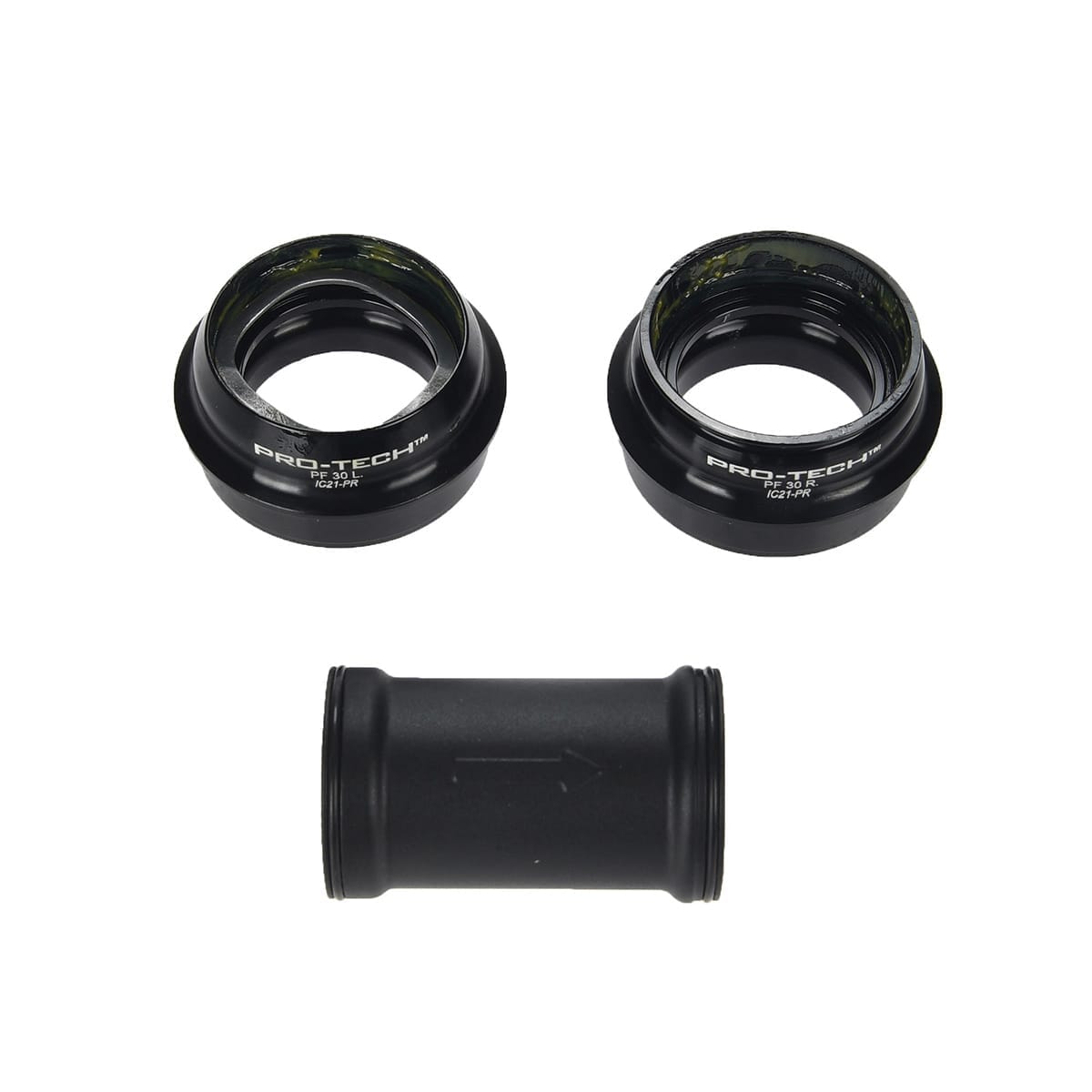

CAMPAGNOLO PRO-TECH Type PF30 crankset
Réf. fabricant : IC21-PRPF30
Visit bottom bracket CAMPAGNOLO PRO-TECH bottom bracket is designed specifically for the tough conditions of off-road and gravel riding.This bottom bracket benefits from ProTech™...
Read more
Regular price
34,99 €
Regular price
Sale price
34,99 €
Unit price
per
Couldn't load pickup availability
Description
Visit bottom bracket CAMPAGNOLO PRO-TECH bottom bracket is designed specifically for the tough conditions of off-road and gravel riding.
This bottom bracket benefits from ProTech™ technology: a patented outer seal that protects the ball bearings from the ingress of water, mud and sand, and a sealed central ring made of glass-fiber-reinforced polyamide to prevent contamination from the inside.
The new bowls assemble to the oversized stainless steel outer bearings mounted on the two Ultra-Torque™ half-axes securely attached to the cranks. Thanks to the ProTech™ sealing system, performance is always optimal, whatever the conditions and the routes.
This bottom bracket benefits from ProTech™ technology: a patented outer seal that protects the ball bearings from the ingress of water, mud and sand, and a sealed central ring made of glass-fiber-reinforced polyamide to prevent contamination from the inside.
The new bowls assemble to the oversized stainless steel outer bearings mounted on the two Ultra-Torque™ half-axes securely attached to the cranks. Thanks to the ProTech™ sealing system, performance is always optimal, whatever the conditions and the routes.
Compatibility chart
| A - Diameter (mm) | B - Width (mm) | Assembly | Standard |
| 34,8 | 68 | screw-on | BSC / BSA |
| 34,8 | 73 | screw-in | BSC / BSA |
| 34,8 | 83 | screw-in | BSC / BSA |
| 34,8 | 100 | screw-in | BSC / BSA |
| 27 | 95,5 | insert | BB 96 (Trek) |
| 41 | 92 | insert | PF 92 |
| 42 | 68 | insert | BB 30 |
| 42 | 73 | insert | BB 30 |
| 46 | 68 | insert | PF 30 |
| 46 | 73 | insert | PF 30 |
 |
|||
Ref: 7967910396070
Points forts
Designed specifically for tough conditions;
ProTech technology protects against the elements;
Durable and long-lasting.
Caractéristiques
Axis diameter : 25 mm
Shaft type : Through shaft
Housing type : PF30
