CANECREEK

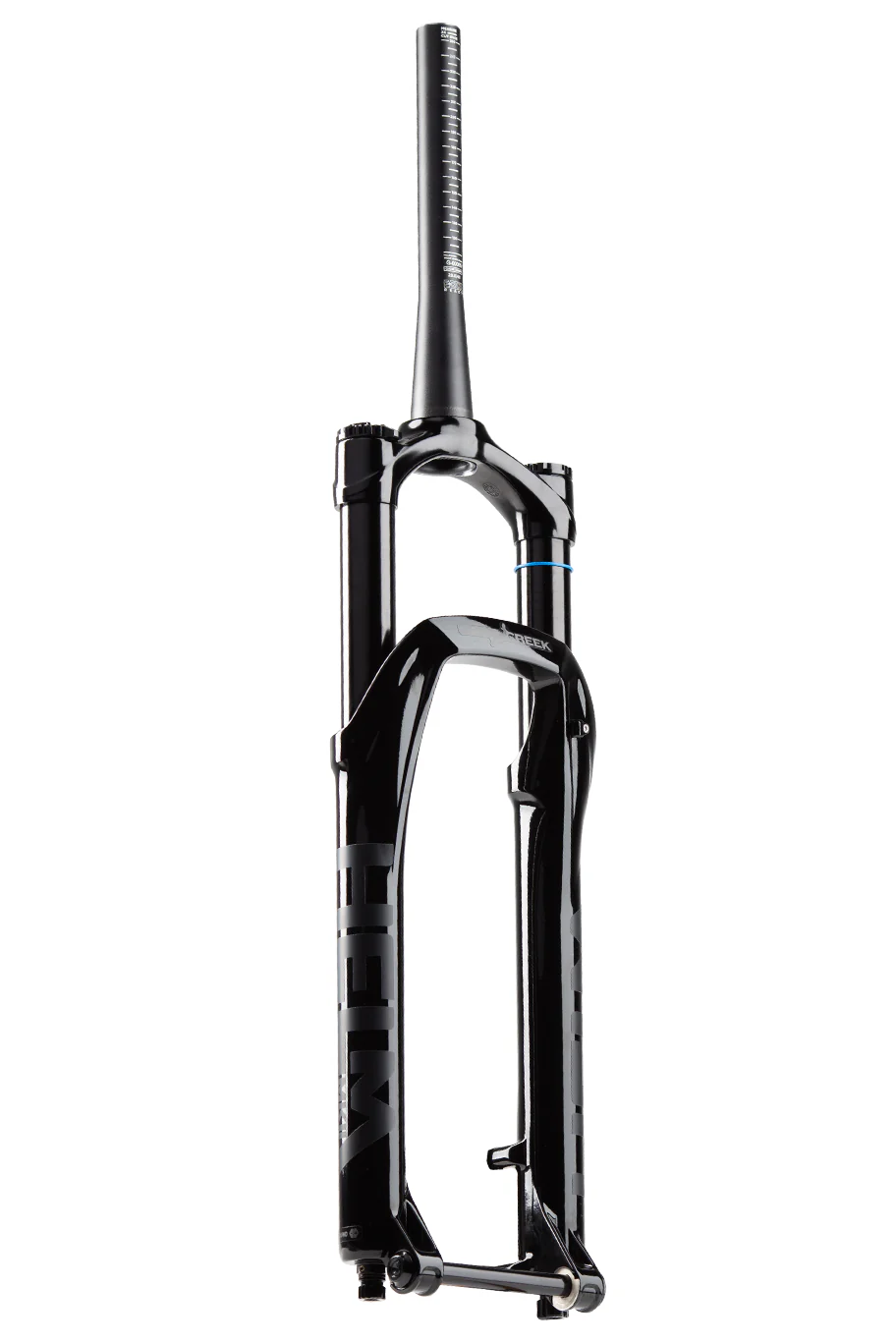

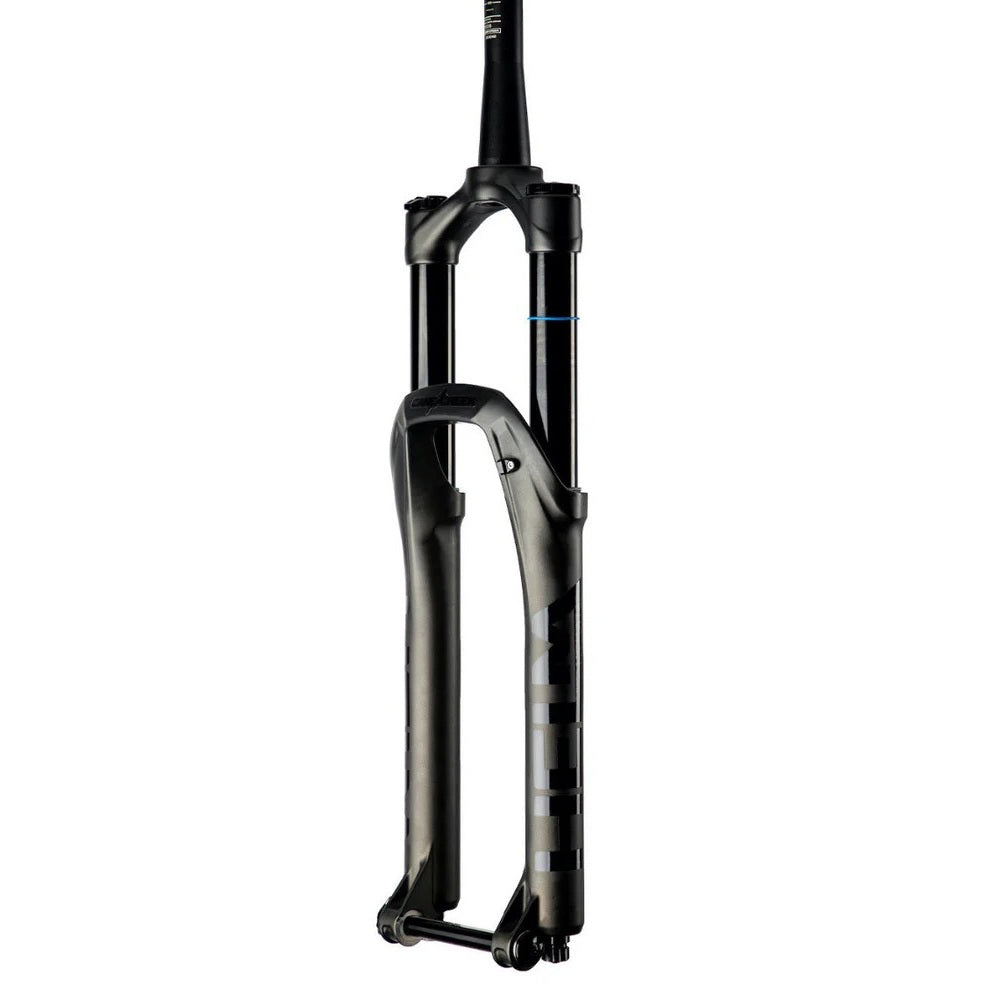

CANE CREEK HELM MKII AIR 29"/27.5+ Tapered Fork Axle 15x110 mm Boost Black

Famous for its headset and shock absorbers, CANE CREEK confirms its place in the suspension market MTB with its Helm MKII forkfork, designed for... Read more

Recommanded price: 1.399,00 €

Regular price 1.199,90 €
Regular price Sale price 1.199,90 €
View full details

Description

Famous for its headset and shock absorbers, CANE CREEK confirms its place in the suspension market MTB with its Helm MKII forkfork, designed for All Mountain andEnduro ! This fork features a 130 mm traveladjustable with shims.

This MKII evolution incorporates a new cartridge for increased support and control, with a new compression and intermediate valve, and improved support thanks to a new 2.5 Motorex oil. The air spring has also been improved in terms of friction, traction, air volume and to facilitate travel changes.

In addition to easily adjustable travel, this fork features a shock absorber adjustable for high/low-speed compression and low-speed rebound. As for the air spring, whose positive and negative chambers are independent, its air volume can be adjusted without tools to no less than 8 positions!

Equipped with 35 mm plungers, this CANE CREEK fork features the brand's patented D-Loc axle, whose unique design optimally manages the rotational forces to which fork components are subjected. It also features low-friction SKF seals for superior sensitivity.

Ref: 9259156537693

Points forts

Evolution of cartridge and air spring for superior sensitivity, control and support

SKF low-friction seals

Numerous adjustment options

Adjustable travel with supplied shims

Adjustable air volume

Patented D-Loc Boost axle.

Informations techniques

Practice: All Mountain
T: Simple
Wheel sizes: 29"/27.5+
Front wheel axle: 15x110 mm (Boost)
Locking: None
Color: Black
Travel: 130 mm
Variable travel: Yes, with shim supplied
Offset: 44 mm
Max. disc diameter: 200 mm
Mini Disc Diameter: 180 mm
Pivot diameter: Tapered 1.5"-1"1/8
Plunger diameter: 35 mm
Brake mounting: Postmount
Fork height: 543 mm
Pivot length: 265 mm (can be recut)
Pivot material: Aluminum
Plungers: Aluminum
Sleeves: Magnesium
Adjustable air volume: Yes

Adjustable travel with shims supplied 8 positions
SKF dust and oil seal
Positive and negative chambers independently adjustable
D-Loc axis in Boost format

Low Speed Compression setting: 17 positions
High Speed Compression setting: 10 positions
Low-speed rebound/relaxation adjustment: 10 positions
High-speed rebound/relaxation adjustment: No
Preload setting : Yes
Spring : Air

Tire compatibility: up to 2.5" section in 29" and 2.8" in 27.5+.

Manufacturer's weight: 2080g
Manufacturer reference :
BAG0682

Informations prix

Recommended retail price February 2024
