• 11-12V ROTOR Q-RINGS 110 mm Outdoor Turntable
1 1
ROTOR

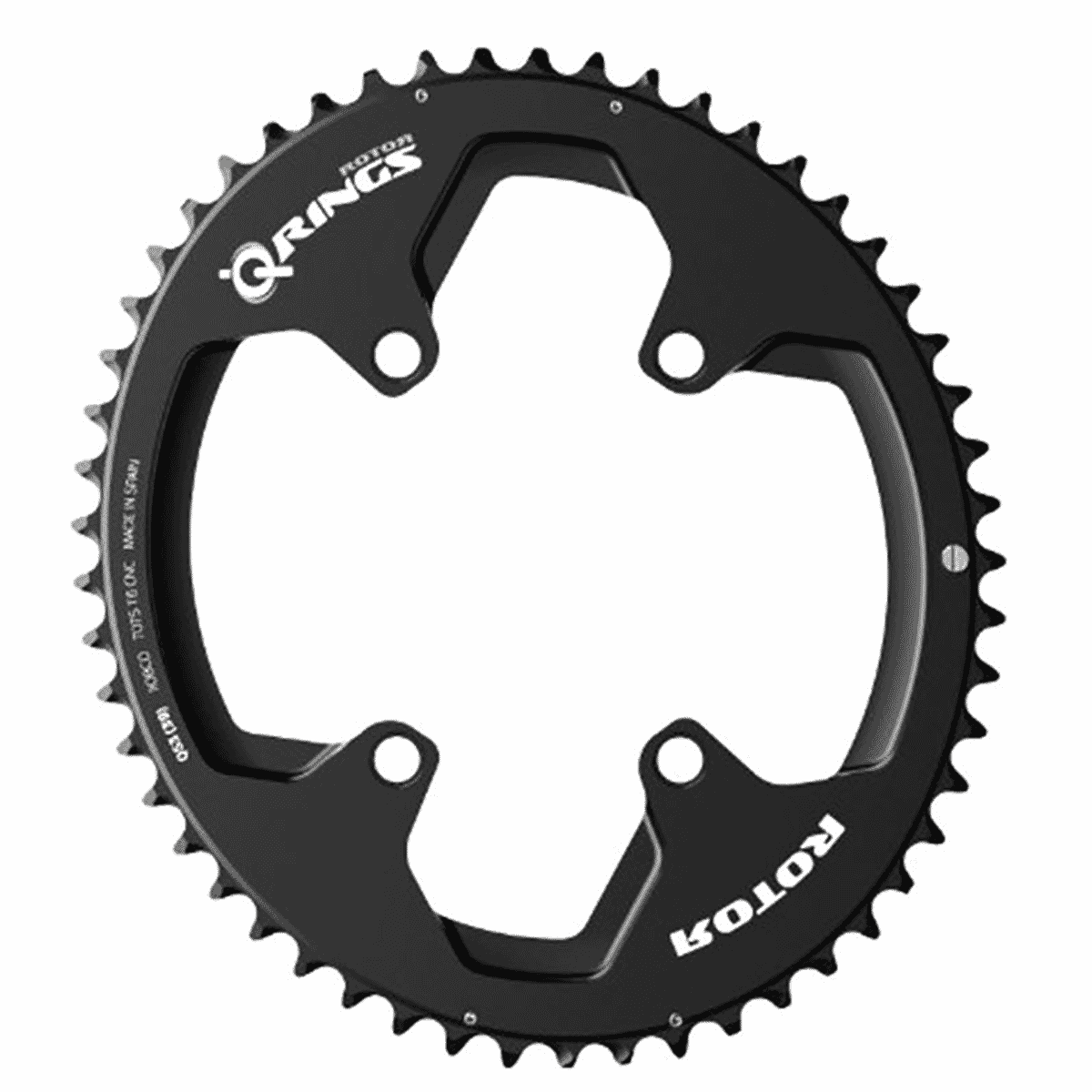

Outdoor Oval 11/12V ROTOR Q-RINGS 110mm

The Chainring outside 11-12 Speed ROTOR Q-RINGS 110 mm is a high-performance component designed for transmission systems 11 and 12 speeds. Its unique oval... Read more
99,99 €
99,99 €
View full details

Description

The Chainring outside 11-12 Speed ROTOR Q-RINGS 110 mm is a high-performance component designed for transmission systems 11 and 12 speeds. Its unique oval shapecharacteristic of Q-RINGSis designed to optimize pedaling efficiency by adjusting torque distribution over the different phases of the pedaling cycle. This design improves power output and reduces muscle fatigue. Compatible with various crankset assemblies, this Chainring is ideal for those seeking to improve their performance and pedaling experience.

Ref: 7967906005158

Points forts

Optimized performance thanks to Q-Rings oval shape

Perfect compatibility with recent Shimano Dura-Ace, Ultegra and 105 series

Informations techniques

Compatibility Brand :
Rotor 2INpower, ALDHU, ALDHU Carbon, ALDHU24, INpower, INspider, VEGAST, VEGAST24
Shimano Dura-Ace R9000, Dura-Ace R9100, Dura-Ace 9200, Ultegra R6800, Ultegra R8000, Ultegra 8100, 105 R5800, 105 R7000
Cog(s): 52 (to be coupled with 36) - 50 (to be coupled with 34)
Mounting: BCD 110x4 (110 mm / 4 screws)
Crankset type: Double
Type of Chainring External
Speeds: 11 / 12
Ovality: 12.5
Chain line: 43.9 mm (standard axis) / 46.4 mm (offset axis)
Material: 100% CNC-machined 7075-T6 aluminum alloy
Manufacturer's weight: 155.5 g (50/34) = 123.5 g (50) + 32 g (34)

Cranks, axle, bolts and nuts for Chainring, bolts and Power Meter NOT included.

In some cases, for full compatibility between Shimano® Dura-Ace® FC-R9200-P, FC-R9200 or Ultegra® FC-R8100 cranks, Shimano® 2x12v groupsets and Shimano® FC-R8100 cranksets, the Shimano® Dura-Ace® FC-R9200-P, FC-R9200 or Ultegra® FC-R8100 cranksets may not be compatible. Chainrings ROTOR, it may be necessary to install a 0.5 mm washer on the right-hand side of the axle. The 0.5 mm washer is supplied with the Chainrings exterior.
;

Informations prix

*Recommended retail price February 2024

Overall rating: 5.0 / 5 from 2 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Tray identical to the one

"Identical tray to the one I had and I'm very satisfied with it".

— Eric J. (5/5)

Very good trays nickel passage

"Very good chainrings nickel passage in ultegra di2 as well as in 105 di2. Too bad there are no screw covers for the 105 di2."

— philippe R. (5/5)
