• Roue Arrière DT SWISS A 1800 SPLINE 30 DISC
1 1
DT SWISS

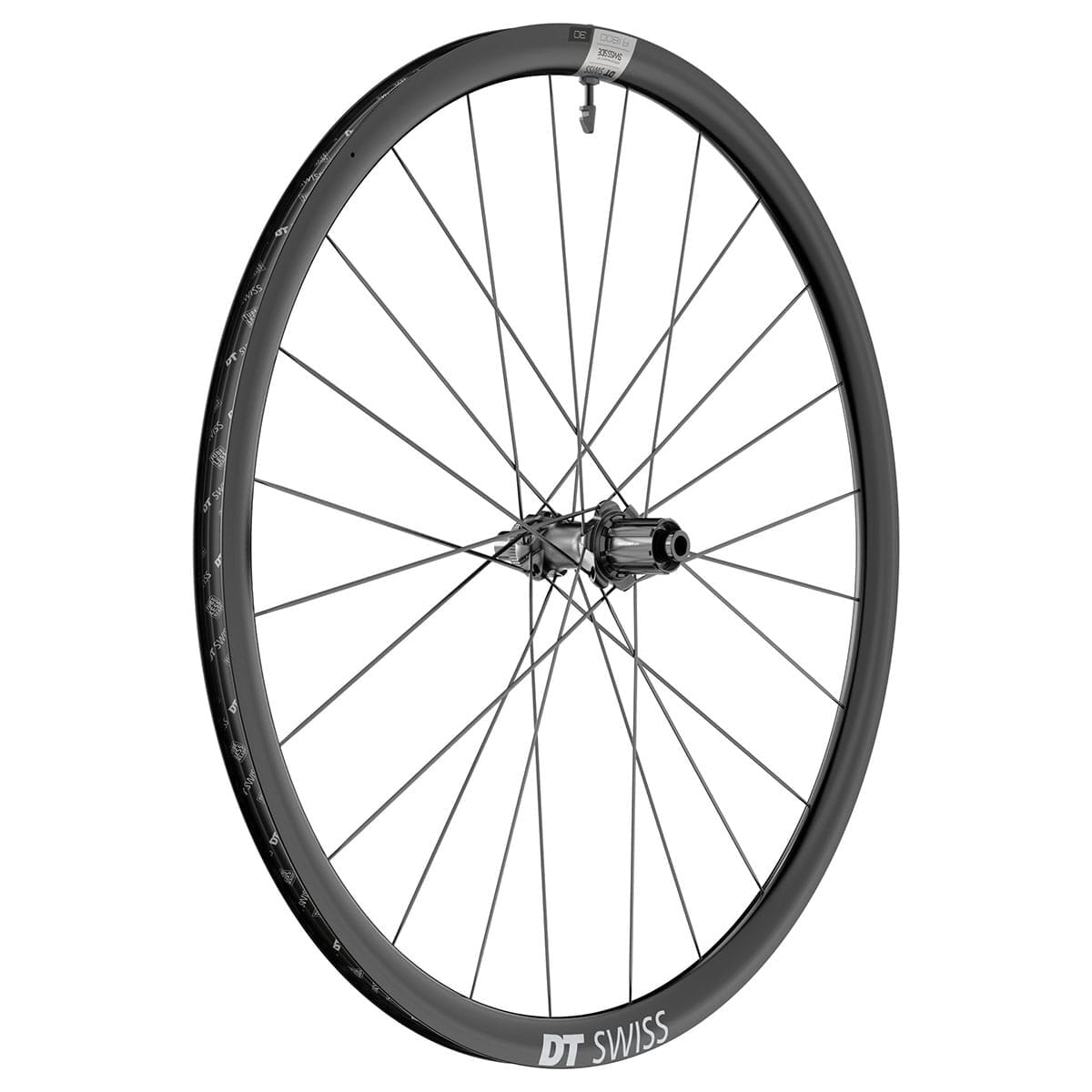

DT SWISS A 1800 SPLINE 30 DISC Tubeless Ready Rear Wheel (Center Lock)

The DT SWISS A 1800 SPLINE 30 DISC Rear Wheel is designed to offer the perfect balance between aerodynamics, reliability and performance. Thanks to... Read more

Recommanded price: 249,90 €

213,90 €
213,90 €
View full details

Description

The DT SWISS A 1800 SPLINE 30 DISC Rear Wheel is designed to offer the perfect balance between aerodynamics, reliability and performance.

Thanks to Aero+technology, it reduces drag while improving handling, ideal for fast, efficient riding. Sound DT Swiss 370 hubhub ensures optimum power transfer, while the Ratchet freewheel body system freewheel body system guarantees precise, instantaneous engagement.

With its streamlined rim, concealed nipples and aerodynamic spokes, this wheel maximizes your performance and lets you push your limits on any terrain.

Manufacturer's manual + Rim/tire & pressure compatibility chart

SPLINE Models Manual

Tubeless Installation Manual

Ref: 7967884542118

Informations techniques

┘GENERAL
Category : Road
Manufacturer Weight : 964 g
Max. load Weight : 110 kg
ASTM classification: 1
Recommended for E-Bikes: No
Part Number : W0A1800NIDMSA20790

┘JANTE
Material : Aluminium
Tire interface: Hooked/Crochet tubeless TC
Wheel diameter: 622mm / 29" / 700c
Rim height: 30mm
Internal width: 20mm
External width: 24mm

┘MOYEUX
Axle system: 12mm Thru axle
Axle center distance: 142mm
Disc mounting: Center Lock
Freewheel body: Shimano HG
Freewheel: Ratchet LN 18
Hub type: 370

┘ NIPPLES AND NUTS
Number: 24
Left spokes: DT aero comp® t-head
Right-hand spokes: DT aero comp® t-head
Racking type: Two-cross (1:1)
Nipples : DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
► AERO RANGE: DT Swiss's Aero range maximizes aerodynamics with streamlined rims and innovative spokes, offering high performance and exceptional stability, ideal for reaching optimal speeds ;
► SPLINE: DT Swiss's SPLINE concept combines robust hubs, optimized straight spokes and Ratchet technology for efficient power transfer. It ensures reliability, responsiveness and ease of maintenance for versatile performance ;
► AERO+: DT Swiss's Aero+ technology optimizes aerodynamics and stability by reducing drag and improving handling. It perfectly balances air resistance, pedaling efficiency and crosswind control ;
► RATCHET: DT Swiss's Ratchet freewheel body technology ensures fast, precise engagement thanks to its high-precision toothed ring system. It guarantees efficient power transmission, high reliability and minimal maintenance ;
► CRAFT KNOW-HOW: Handcrafted, guaranteed to benefit from all DT Swiss know-how;

┘INCLUSIVE
Rim base: 23mm tubeless roll
Valve: Valve TL alu black 26-35 mm / Valve protection sticker

┘CONVERSION REFERENCES
► Adapters for Shimano HG / QR: HWGXXX0006383S ;
► XDR kit / QR: HWYABM00S5716S ;
► Kit XDR / 12x142 : HWYABX00S7711S ;
► Adapters for XDR / QR: HWGXXX00S5483S;
► Microspline kit / 12x142: HWYABM00S1962S ;
► Adapters for Microspline / QR: HWGXXX00S5623S ;
► Campagnolo N3W kit / 12x142: HWYABM00S0692S ;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S ;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S ;

Informations prix

Recommended retail price February 2024
