DT SWISS

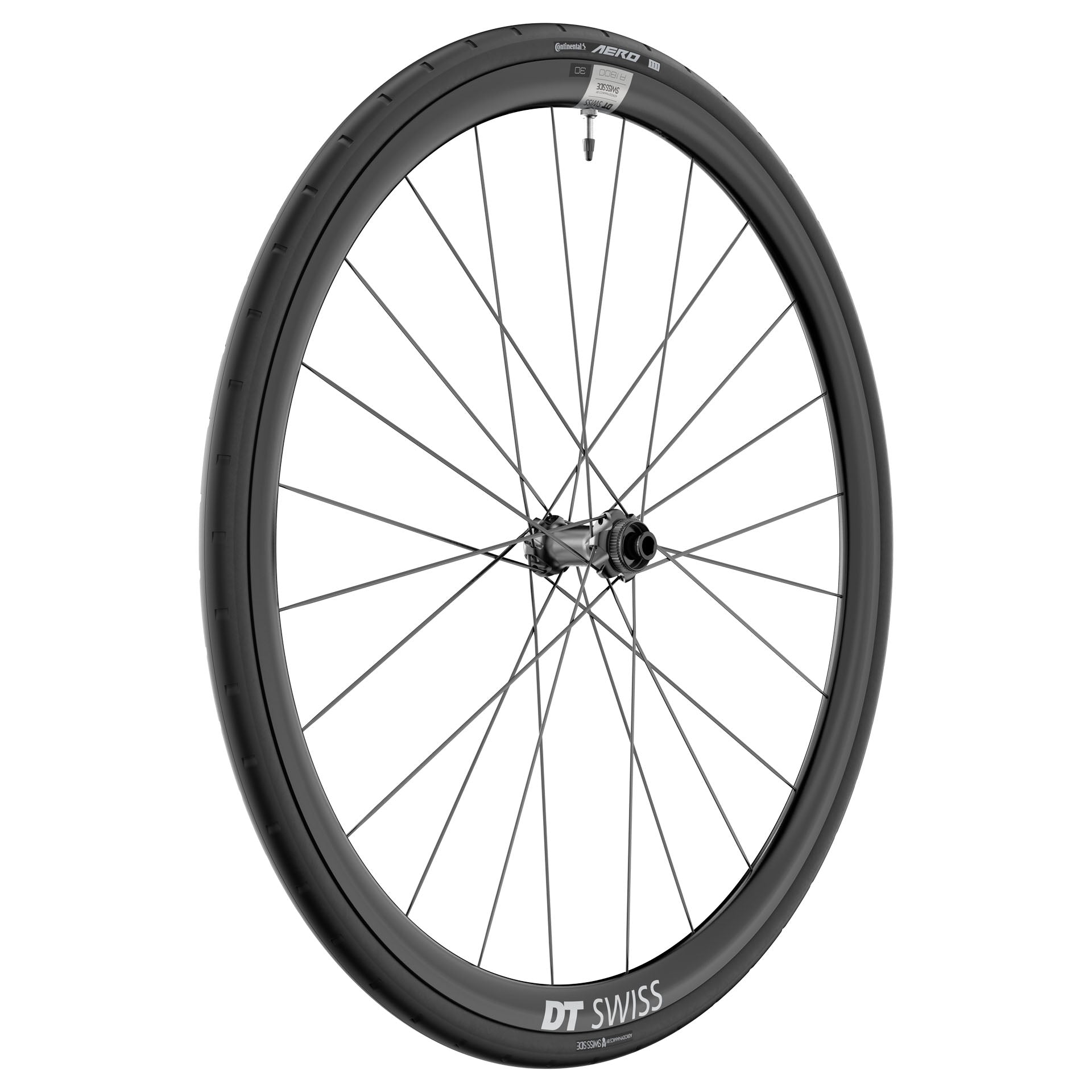

DT SWISS A 1800 SPLINE 30 WTS DISC Tubeless Ready (Center Lock) Front Wheel

Designed to make aerodynamic performance accessible to the widest possible audience, the DT SWISS A 1800 SPLINE 30 front wheel combines speed, stability and... Read more
Regular price 209,90 €
Regular price Sale price 209,90 €
View full details

Description

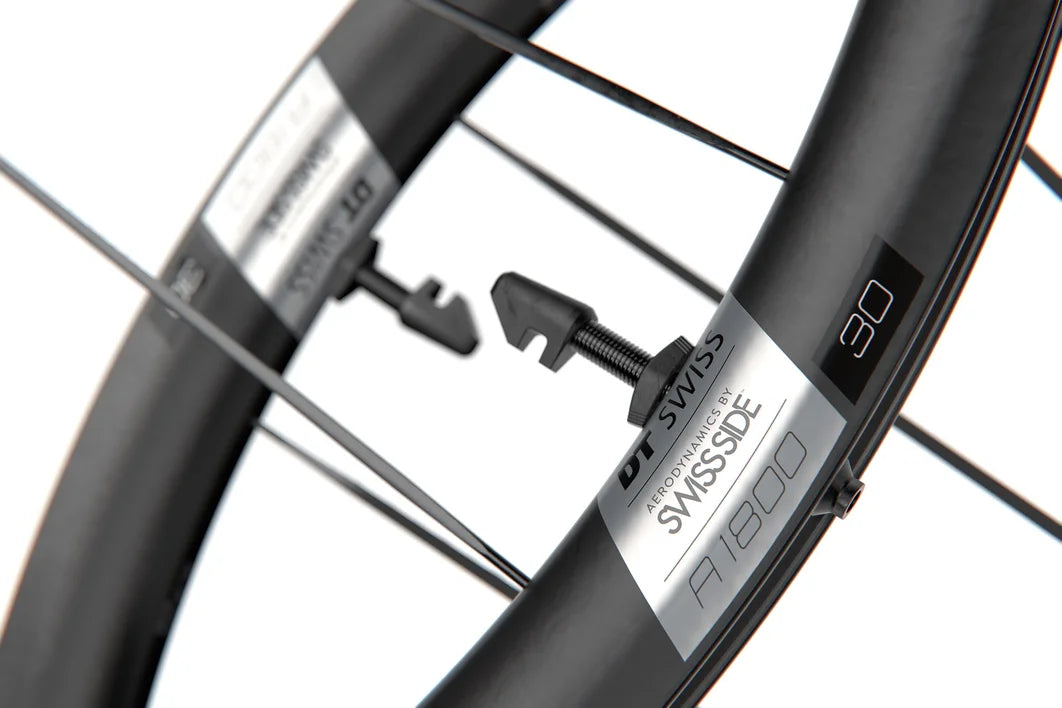

Designed to make aerodynamic performance accessible to the widest possible audience, the DT SWISS A 1800 SPLINE 30 front wheel combines speed, stability and reliability. Built around an aerodynamically optimised aluminium rim, it features a 30 mm profile designed to reduce drag while maintaining predictable handling in all riding conditions. The hidden nipples also contribute to airflow optimisation and provide a particularly clean finish.

The wheel is equipped with DT Aero Comp Wide Straightpull spokes, whose specific shape further improves aerodynamic efficiency. This design also promotes excellent lateral stiffness, delivering precision and confidence during changes of direction or accelerations. The 20 mm internal width ensures perfect compatibility with modern road tyres while optimising their profile and efficiency.

Compatible with Tubeless Ready setups, this front wheel offers an excellent balance between performance, robustness and ease of use. Its architecture, derived from the AERO+ concept developed by DT Swiss, improves aerodynamic efficiency without compromising handling. An ideal solution for cyclists seeking a fast, reliable and accessible wheel for both training and sportive rides.

This WTS (Wheel Tire System) version pairs the wheel with a 26 mm DT Swiss AERO 111 tyre at the front, specially developed to improve airflow management around the wheel. This setup allows the full potential of the AERO+ concept to be exploited, enhancing stability in crosswinds while reducing drag for an efficiency gain at high speed.

Manufacturer Manual + Rim/Tyre Compatibility & Pressure Chart

SPLINE Models Manual

Tubeless Installation Manual

Ref: 16023268688252

Informations techniques

┘GENERAL
Category: Road
Manufacturer Weight: 835 g
Manufacturer Weight with tyre: 1210 g
Max Load: 110 kg
ASTM Classification: 1
E-Bikes Recommended: No
Tyre included: CONTINENTAL AERO 111 26-622
Inner tube included: CONTINENTAL BUTYL TUBE SV
Manufacturer Reference: W0A1800AIDXSA27105

┘RIM
Material: Aluminium
Tyre interface: Hooked tubeless TC
Wheel diameter: 622mm / 29" / 700c
Rim height: 30mm
Internal width: 20mm
External width: 24mm

┘HUBS
Axle system: 12mm Thru axle
Spacing: 100mm
Disc attachment: Center Lock
Hub type: 370

┘SPOKES AND NIPPLES
Left spokes: DT aero comp® t-head
Right spokes: DT aero comp® t-head
Spoke pattern: Two-cross (1:1)
Nipples: DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
► AERO RANGE: The DT Swiss Aero range maximises aerodynamics with profiled rims and innovative spokes, delivering high performance and exceptional stability, ideal for achieving optimal speeds;
► SPLINE: DT Swiss's SPLINE concept combines robust hubs, optimised straight-pull spokes and Ratchet technology for efficient power transfer. It ensures reliability, responsiveness and ease of maintenance for versatile performance;
► AERO+: DT Swiss's Aero+ technology optimises aerodynamics and stability by reducing drag and improving handling. It perfectly balances air resistance, pedalling efficiency and crosswind control;
► ARTISANAL CRAFTSMANSHIP: Hand-built, guaranteed to benefit from all of DT Swiss's expertise;

┘INCLUDED
Rim tape: 23mm tubeless roll
Valve: Black alu TL valve 26-35 mm / Valve protection sticker

┘CONVERSION REFERENCES
► Adapters for QR: HWGXXX00S3801S;
► Adapters for DT Swiss Thru Bolt System: HWGXXX00S3803S;
► Adapters for TA15 (15x100mm): HWGXXX0004785S;

Informations prix

*Recommended retail price from supplier in June 2026
