DT SWISS

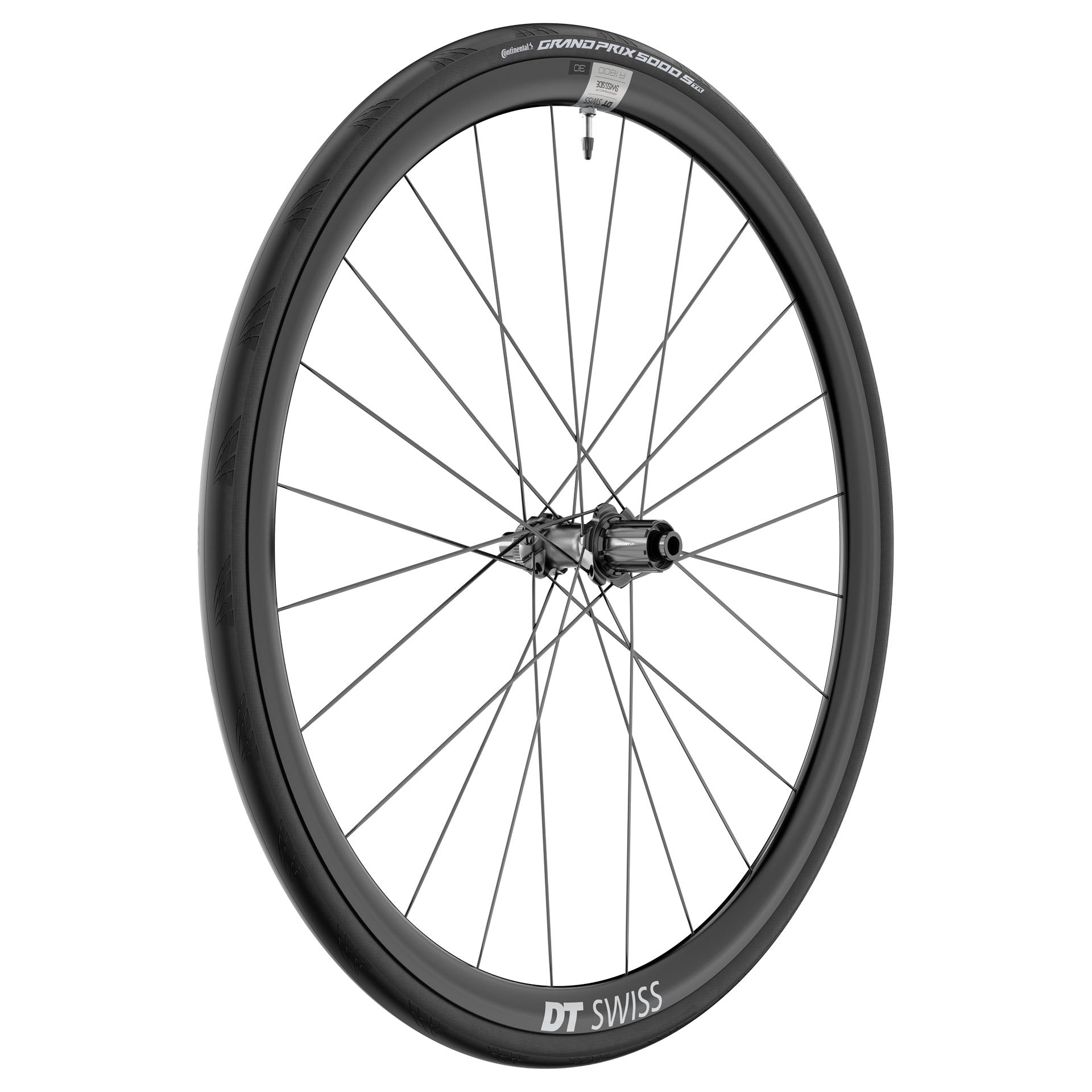

DT SWISS A 1800 SPLINE 30 WTS DISC Tubeless Ready Rear Wheel (Center Lock)

The DT SWISS A 1800 SPLINE 30 rear wheel has been designed to deliver maximum efficiency and reliability in a strongly aerodynamically focused package.... Read more
Regular price 309,90 €
Regular price Sale price 309,90 €
View full details

Description

The DT SWISS A 1800 SPLINE 30 rear wheel has been designed to deliver maximum efficiency and reliability in a strongly aerodynamically focused package. Its 30 mm aluminium rim features a wind-tunnel-developed profile to reduce air resistance and improve the overall efficiency of the bike. Combined with hidden nipples and components specifically selected for their aerodynamic efficiency, it helps gain speed while maintaining excellent versatility.

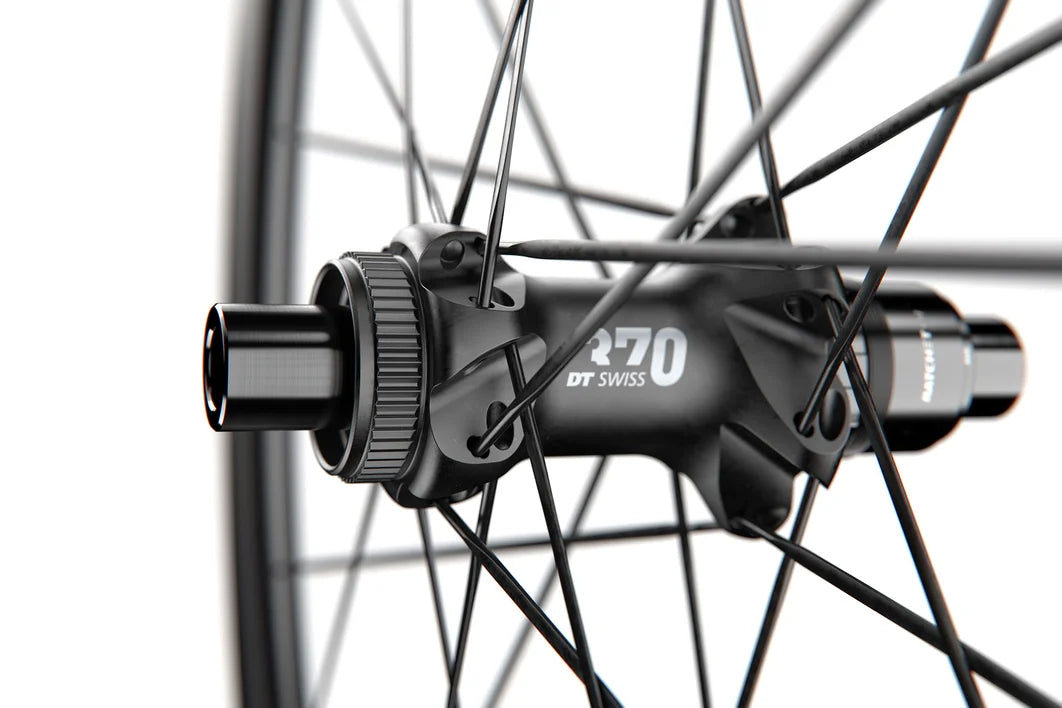

The heart of the wheel rests on the robust DT Swiss 370 hub, now equipped with the Ratchet LN 18 system. This technology ensures simultaneous engagement of the freehub mechanism teeth, guaranteeing reliable and durable power transfer during accelerations. The Ratchet LN design is renowned for its longevity and its ability to withstand intensive use, both in training and amateur competition.

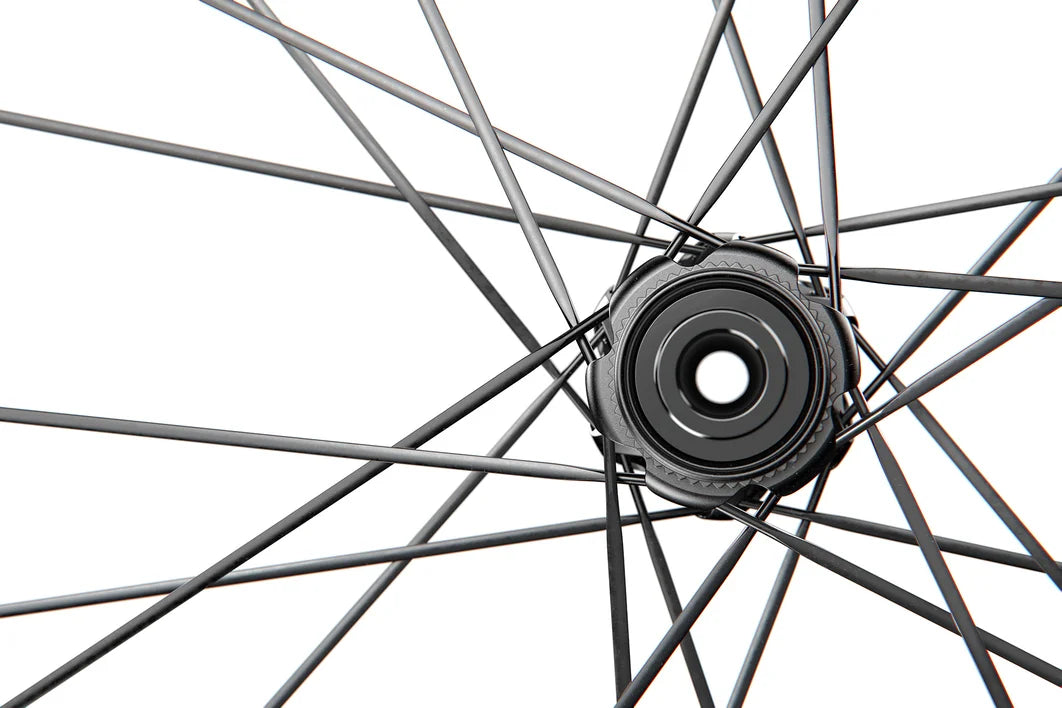

The DT Aero Comp Wide Straightpull spokes complete the package by bringing rigidity, precision and aerodynamic performance. Compatible with Tubeless Ready technology, the A 1800 SPLINE 30 rear wheel is a high-performance solution for cyclists wishing to enter the world of DT Swiss aerodynamic wheels with excellent value for money.

In its WTS (Wheel Tire System) version, the rear wheel is paired with a Continental GP 5000 S TR 28 mm tyre, a recognised reference for its excellent balance of efficiency, grip and rolling resistance.

Manufacturer Manual + Rim/Tyre Compatibility & Pressure Chart

SPLINE Models Manual

Tubeless Fitting Manual

Ref: 16023268458876

Informations techniques

┘GENERAL
Category: Road
Manufacturer Weight: 964 g alone
Manufacturer Weight with tyre: 1346 g
Max. Load: 110 kg
ASTM Classification: 1
E-Bikes Recommended: No
Tyre included: CONTINENTAL GP5000 STR 28-622
Inner tube included: CONTINENTAL BUTYL TUBE SV
Manufacturer Reference in Sram XDR: W0A1800NID1SA27107

┘RIM
Material: Aluminium
Tyre interface: Hooked tubeless TC
Wheel diameter: 622mm / 29" / 700c
Rim height: 30mm
Internal width: 20mm
External width: 24mm

┘HUBS
Axle system: 12mm Thru axle
Spacing: 142mm
Disc mount: Center Lock
Freehub body: Shimano HG
Freehub: Ratchet LN 18
Hub type: 370

┘SPOKES AND NIPPLES
Number: 24
Left spokes: DT aero comp® t-head
Right spokes: DT aero comp® t-head
Lacing type: Two-cross (1:1)
Nipples: DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
► AERO RANGE: The DT Swiss Aero range maximises aerodynamics with profiled rims and innovative spokes, delivering high performance and exceptional stability, ideal for achieving optimal speeds;
► SPLINE: DT Swiss's SPLINE concept combines robust hubs, optimised straight-pull spokes and Ratchet technology for efficient power transfer. It ensures reliability, responsiveness and ease of maintenance for versatile performance;
► AERO+: DT Swiss's Aero+ technology optimises aerodynamics and stability by reducing drag and improving handling. It perfectly balances air resistance, pedalling efficiency and crosswind control;

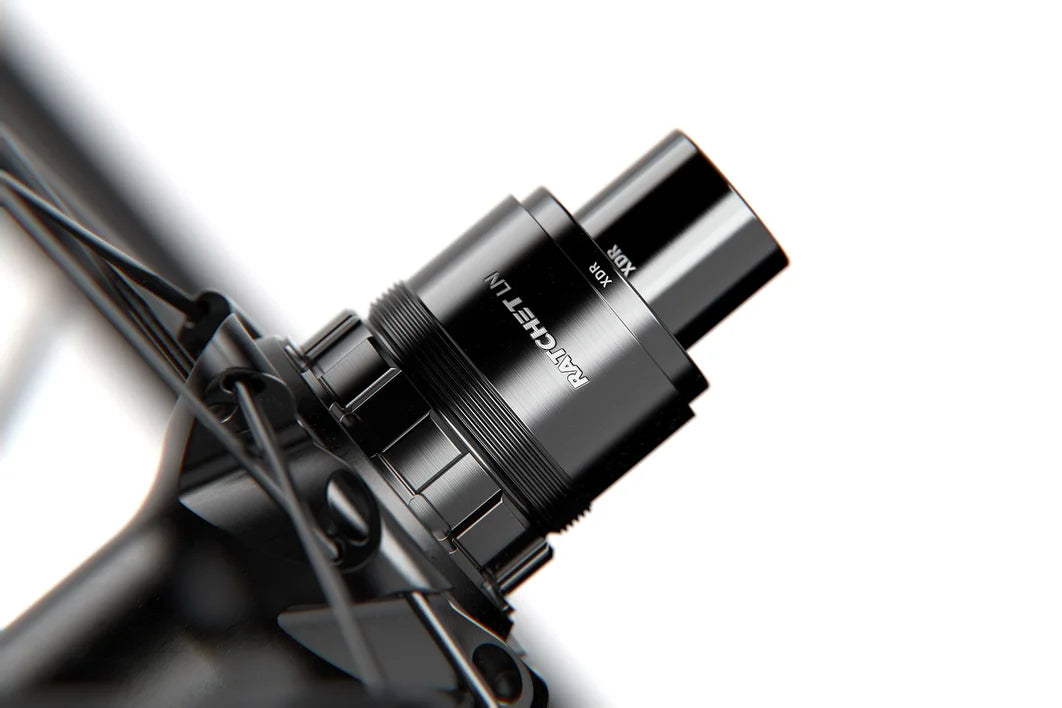

► RATCHET: DT Swiss's Ratchet freehub body technology ensures fast and precise engagement thanks to its high-precision toothed ring system. It guarantees efficient power transmission, high reliability and minimal maintenance;
► ARTISANAL EXPERTISE: Hand-built, guaranteed to benefit from all of DT Swiss's craftsmanship;

┘INCLUDED
Rim tape: Tubeless roll 23mm
Valve: Black alu TL valve 26-35 mm / Valve protection sticker

┘CONVERSION REFERENCES
► Adapters for Shimano HG / QR: HWGXXX0006383S;
► XDR / QR Kit: HWYABM00S5716S;
► XDR / 12x142 Kit: HWYABX00S7711S;
► Adapters for XDR / QR: HWGXXX00S5483S;
► Microspline / 12x142 Kit: HWYABM00S1962S;
► Adapters for Microspline / QR: HWGXXX00S5623S;
► Campagnolo N3W / 12x142 Kit: HWYABM00S0692S;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S;
