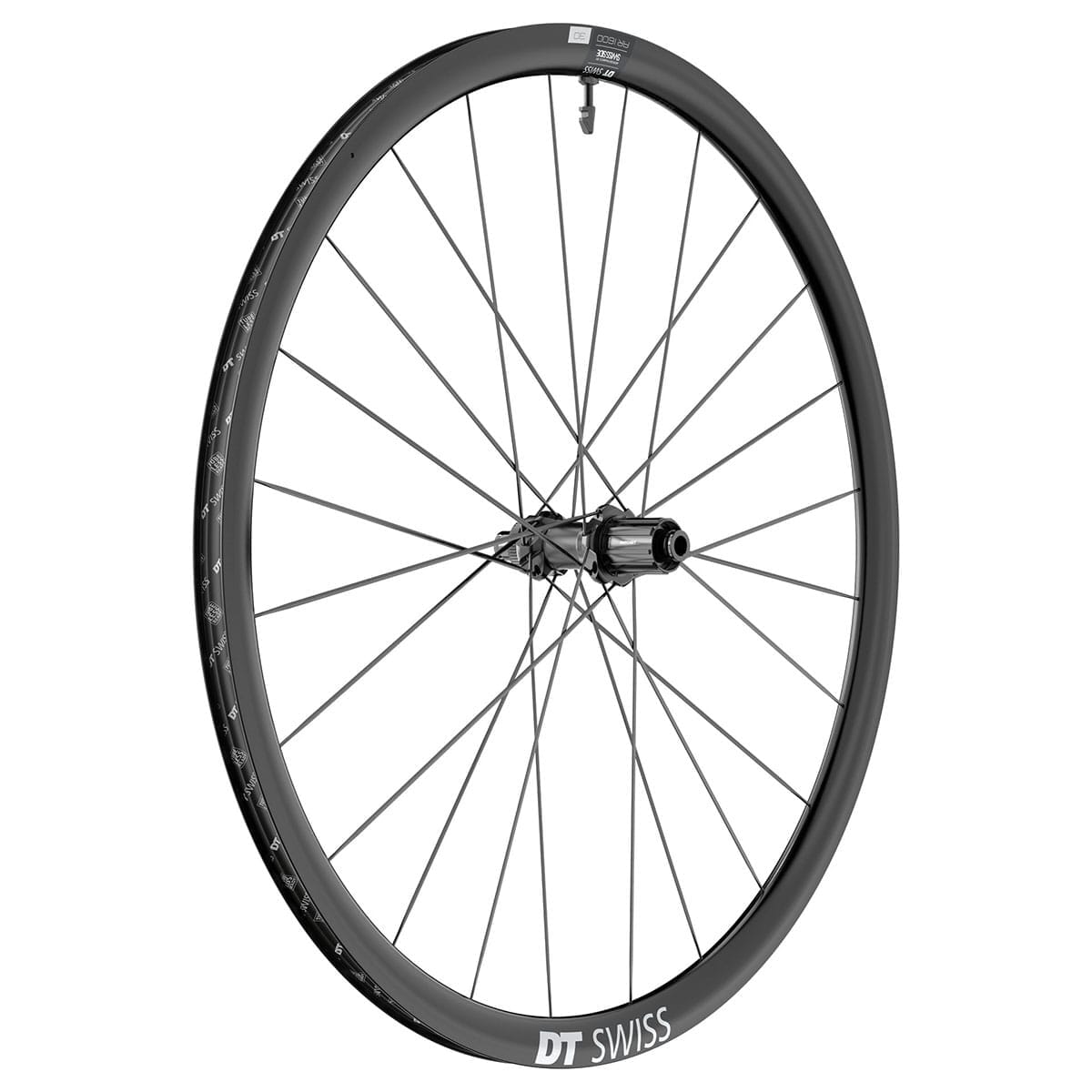

DT SWISS AR 1600 SPLINE 30 DISC Tubeless Ready Rear Wheel (Center Lock)

The Rear Wheel DT SWISS AR 1600 SPLINE 30 DISC is designed to offer an exceptional speed experience, inspired by the high-end carbon wheel... Read more

Recommanded price: 347,90 €

Regular price 298,90 €
Regular price Sale price 298,90 €
View full details

Description

The Rear Wheel DT SWISS AR 1600 SPLINE 30 DISC is designed to offer an exceptional speed experience, inspired by the high-end carbon wheel technologies used by professionals.

Its design optimizes aerodynamics through the use of aero spokes and concealed nipples. The 350 hubhub, featuring the Ratchet freewheel body systemfreewheel body system, ensures instant power transfer and exceptional responsiveness with every pedal stroke.

Thanks to Aero+technology, it reduces drag while improving handling, ideal for fast, efficient riding.

The AR 1600 SPLINE 30 DISC is the ideal choice for those looking to push their limits.

Ref: 7967884378278

Informations techniques

┘GENERAL
Category : Road
Manufacturer Weight: 924 g
Max. load Weight : 110 kg
ASTM classification: 1
Recommended for E-Bikes: No
Part Number : WAR1600NIDISA20784

┘JANTE
Material : Carbon
Tire interface: Hooked/Crochet tubeless TC
Wheel diameter: 622mm / 29" / 700c
Rim height: 30mm
Internal width: 20mm
External width: 24mm

┘MOYEUX
Axle system: 12mm Thru axle
Axle center distance: 142mm
Disc mounting: Center Lock
Freewheel body: Shimano HG
Freewheel: Ratchet System 36 SL
Hub type: 350

┘ NIPPLES AND NUTS
Left spokes: DT aero comp® t-head
Straight spokes: DT aero comp® t-head
Racking type: Two-cross (1:1)
Nipples : DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
► AERO RANGE: DT Swiss's Aero range maximizes aerodynamics with streamlined rims and innovative spokes, offering high performance and exceptional stability, ideal for reaching optimal speeds ;
► SPLINE: DT Swiss's SPLINE concept combines robust hubs, optimized straight spokes and Ratchet technology for efficient power transfer. It ensures reliability, responsiveness and ease of maintenance for versatile performance ;
► AERO+: DT Swiss's Aero+ technology optimizes aerodynamics and stability by reducing drag and improving handling. It perfectly balances air resistance, pedaling efficiency and crosswind control ;
► RATCHET: DT Swiss's Ratchet freewheel body technology ensures fast, precise engagement thanks to its high-precision toothed ring system. It guarantees efficient power transmission, high reliability and minimal maintenance ;
► CRAFT KNOW-HOW: Handcrafted, guaranteed to benefit from all DT Swiss know-how;

┘INCLUSIVE
Rim base: 23mm tubeless roll
Valve: Valve TL alu black 26-35 mm / Valve protection sticker

┘CONVERSION REFERENCES
► Adapters for Shimano HG / QR: HWGXXX0006383S ;
► XDR kit / QR: HWYABX00S8883S ;
► Kit XDR / 12x142 : HWYABX00S7711S ;
► Adapters for XDR / QR: HWGXXX00S5483S ;
► Microspline kit / 12x142: HWYABL00S1961S ;
► Adapters for Microspline / QR: HWGXXX00S5623S ;
► Campagnolo N3W kit / 12x142: HWYABL00S2992S ;
► Campagnolo Kit / QR: HWYABX00S1296S ;
► Kit Campagnolo / 12x142 : HWYABX00S7154S ;
► Adapters for Campagnolo / QR: HWGXXX00S2766S ;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S ;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S ;
