DT SWISS

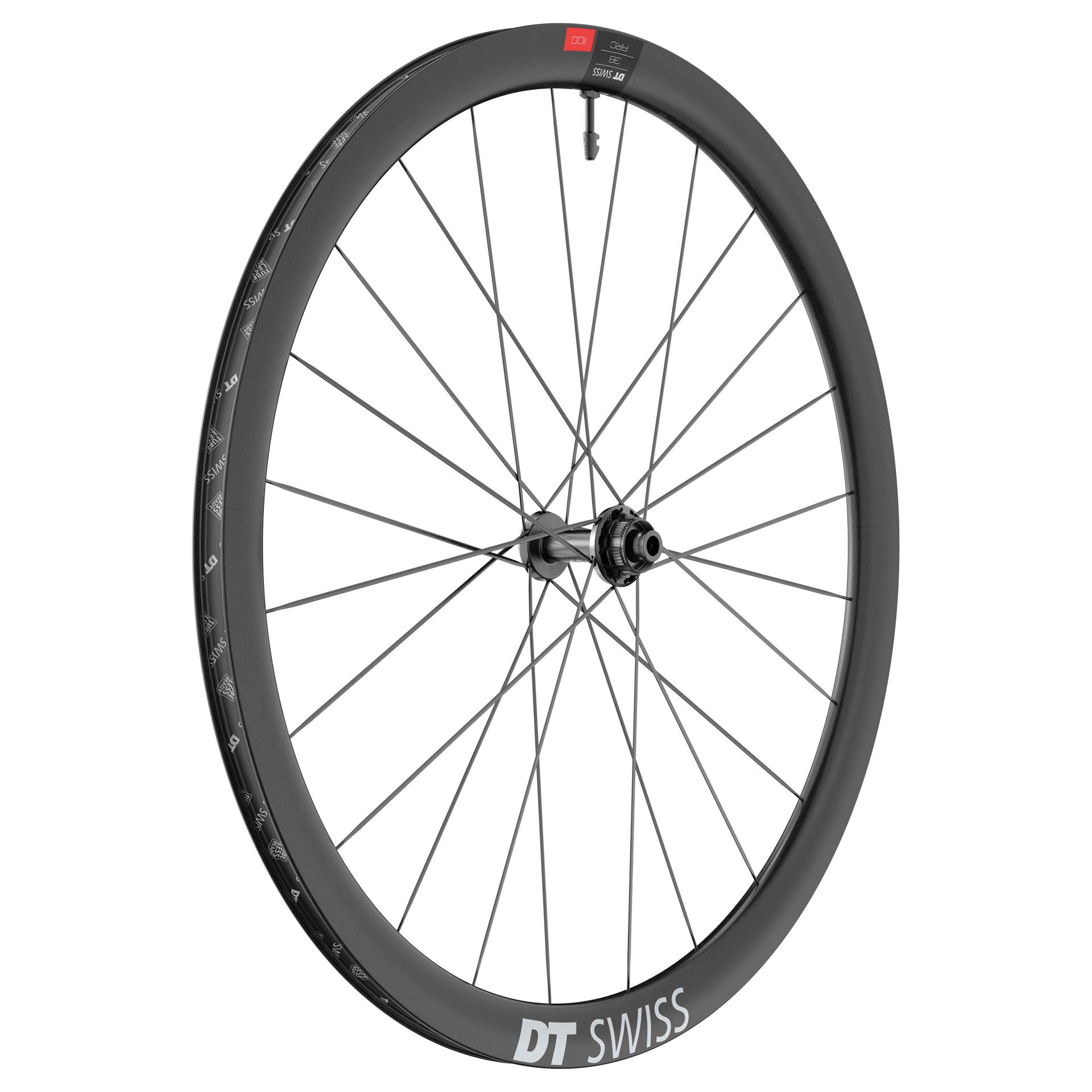

DT SWISS ARC 1100 DICUT 38 DISC Tubeless Ready Front Wheel (Center Lock)

The DT SWISS ARC 1100 DICUT DB 38 Front Wheel embodies the pursuit of performance in modern road racing. Designed to offer an optimal... Read more
Regular price 1.049,90 €
Regular price Sale price 1.049,90 €
View full details

Description

The DT SWISS ARC 1100 DICUT DB 38 Front Wheel embodies the pursuit of performance in modern road racing. Designed to offer an optimal balance between aerodynamics and lightweight, it features a 38 mm rim depth conceived for fast and rolling terrain. This configuration allows excellent stability to be maintained while promoting sharp accelerations and sustained speed over long distances.

The carbon rim adopts an optimised structure based on the AERO+ concept, aimed at reducing drag while improving behaviour in crosswinds. With a 20 mm internal width and a refined external profile, it is designed to accommodate high-performance 700c tyres. This geometry also promotes efficiency and comfort, while maintaining high stiffness for precise handling.

The build is based on premium DT Swiss components, including 180 DICUT hubs equipped with low-friction SINC Ceramic bearings. The DT aerolite II spokes provide an excellent balance between lateral stiffness and aerodynamic penetration. The whole assembly guarantees efficient power transfer and great responsiveness when accelerating.

Designed for competition, this front wheel is ideal for cyclists looking for a high-performance solution on all types of terrain. Its design prioritises speed, precise handling and reliability, while remaining suited to the demands of modern racing and long fast rides.

Manufacturer Manual + Rim/Tyre Compatibility & Pressure Chart

DICUT Models Manual

Tubeless Fitting Manual

Ref: 16023268262268

Informations techniques

┘GENERAL
Category: Road
Front Weight: 587 g tyre included
Max Load: 110 kg
ASTM Classification: 1
Recommended E-Bikes: No
Front Manufacturer Reference: WARC110AIDXCA22333

┘RIM
Material: Carbon
Tyre Interface: Hooked tubeless TC
Wheel Diameter: 622mm / 29" / 700c
Rim Height: 38mm
Internal Width: 20mm
External Width: 26mm

┘HUB
Axle System: 12mm Thru axle
Front Spacing: 100mm
Disc Mount: Center Lock
Hub Type: 180
Ceramic bearings

┘SPOKES AND NIPPLES
Front Spokes: 20 x2-cross
Spokes DT aerolite® II t-head
Spoke Pattern: Two-cross (1:1)
Nipples: DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
► AERO RANGE: The DT Swiss Aero range maximises aerodynamics with profiled rims and innovative spokes, delivering high performance and exceptional stability, ideal for achieving optimal speeds;
► DICUT: The DT Swiss DICUT concept combines high-performance hubs, optimised spokes and advanced aerodynamics. Designed for speed and efficiency, it maximises lateral stiffness and power transfer on road and track;
► SINC CERAMIC: DT Swiss SINC Ceramic technology uses high-performance ceramic bearings to reduce friction, improve rotational smoothness and increase durability, offering enhanced efficiency and optimal power transmission;
► AERO+: DT Swiss Aero+ technology optimises aerodynamics and stability by reducing drag and improving handling. It perfectly balances air resistance, pedalling efficiency and crosswind control;
► ARTISAN CRAFTSMANSHIP: Hand-built, guaranteed to benefit from all of DT Swiss's expertise;

┘INCLUDED
Rim tape: 23mm tubeless roll
Valve: Black alu TL valve 36-48 mm / Valve protection sticker
Wheel bag

┘CONVERSION REFERENCES
• Front Wheel
► QR Adapters: HWGXXX0000051S.

Informations prix

*Recommended retail price from supplier in June 2026
