DT SWISS

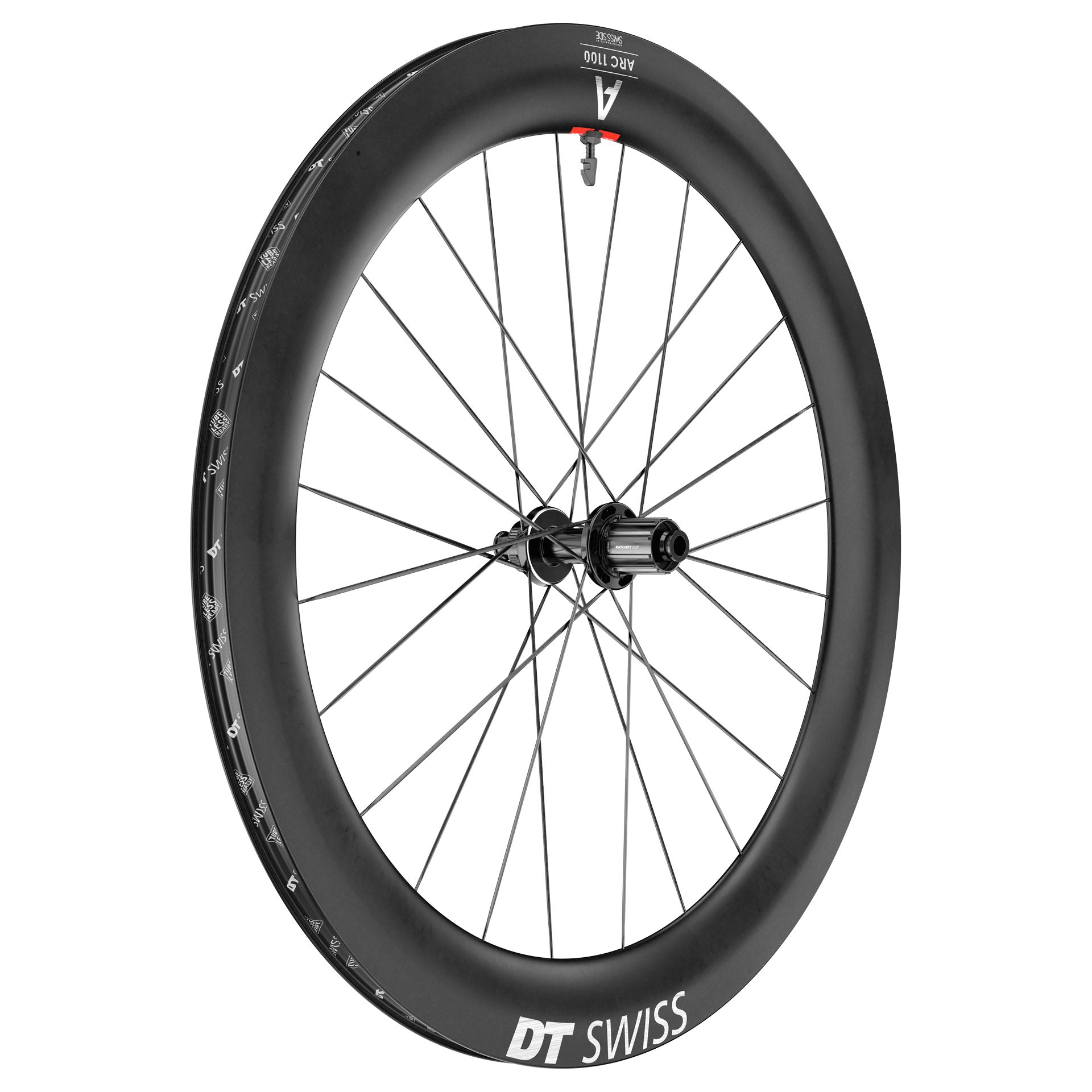

Rear Wheel DT SWISS ARC 1100 DICUT 65 DISC Tubeless Ready (Center Lock)

The DT SWISS ARC 1100 DICUT 65 rear wheel embodies the pinnacle of aerodynamics and performance for demanding cyclists. The result of a collaboration... Read more
Regular price 1.565,90 €
Regular price Sale price 1.565,90 €
View full details

Description

The DT SWISS ARC 1100 DICUT 65 rear wheel embodies the pinnacle of aerodynamics and performance for demanding cyclists.

The result of a collaboration with aerodynamics experts at SWISS SIDE, the wheel integrates the AERO+ rim profile, which reduces drag and steering torque. The result: optimal control even in windy conditions, and maximum propulsion efficiency.

The V-shape of the rim plays a key role in reducing frontal drag. It compensates for the increase in frontal area caused by the wider internal width, thereby improving overall aerodynamic performance. This design also ensures a low steering moment, providing a smooth handling feel even in crosswinds or at extreme yaw angles.

Furthermore, the 65 mm version is ideal for cyclists who want to take the lead in the sprint: the low aerodynamic drag of these wheels is ideal for all-out racing. They cut through the air at full speed in the final metres of the sprint to claim victory. These rims will shine on flat, fast roads. DT Swiss also offers variants at 38 mm, 55 mm and 85 mm to suit all riding styles, from hilly courses to flat time trials.

It is equipped with the new DT Swiss Aero spokes, a streamlined 180 DICUT hub, and SINC Ceramic bearings for unrivalled smoothness.

In summary, the ARC 1100 DICUT 65 wheels combine optimised width, advanced aerodynamic profile and impeccable stability. They represent a top-level choice for cyclists seeking performance, comfort and control in all conditions.

Manufacturer Manual + Rim/Tyre Compatibility Chart & Pressures

DICUT Models Manual

Tubeless Assembly Manual

Ref: 16023268163964

Informations techniques

┘GENERAL
Category: Road
Rear Weight: 813g
Max Load: 110 kg
ASTM Classification: 1
E-Bikes Recommended: No
Rear Manufacturer Reference: WARC110NIDJCA27374

┘RIM
Material: Carbon
Tyre Interface: Hooked/Crochet tubeless TC
Wheel Diameter: 622mm / 29" / 700c
Rim Height: 65mm
Internal Width: 22mm
External Width: 29mm

┘HUB
Hub Type: 180
Axle System: 12mm Thru axle
Rear Spacing: 142mm
Disc Mount: Center Lock
Freehub Body: Shimano HG Light 5 ASL S11
Freehub: Ratchet EXP 36
Ceramic bearings

┘SPOKES AND NIPPLES
Spokes: 24 x2-cross
DT aerolite® II t-head
Spoke Pattern: Two-cross (1:1)
Nipples: DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
► AERO RANGE: The DT Swiss Aero range maximises aerodynamics with profiled rims and innovative spokes, delivering high performance and exceptional stability, ideal for achieving optimal speeds;
► DICUT: The DT Swiss DICUT concept combines high-performance hubs, optimised spokes and advanced aerodynamics. Designed for speed and efficiency, it maximises lateral stiffness and power transfer on road and track;
► SINC CERAMIC: DT Swiss SINC Ceramic technology uses high-performance ceramic bearings to reduce friction, improve rotational smoothness and increase durability, offering efficiency gains and optimal power transmission;
► AERO+: DT Swiss Aero+ technology optimises aerodynamics and stability by reducing drag and improving handling. It perfectly balances air resistance, pedalling efficiency and crosswind control;
► RATCHET EXP: DT Swiss Ratchet EXP freehub body technology optimises hub engagement by integrating a single conical spring, reducing weight and increasing durability. It ensures efficient power transfer and simplified maintenance;
► ARTISAN CRAFTSMANSHIP: Hand-built, guaranteed to benefit from the full DT Swiss expertise;

┘INCLUDED
Rim tape: 25mm tubeless roll
Valve: Black alu TL valve 49-65 mm / Valve protection sticker
Sram XDR freehub body included
Wheel bag

┘CONVERSION REFERENCES
► Adapters for Shimano HG / QR: HWGXXX00S7446S;
► XDR / QR Kit: HWYCBL00S5402S;
► XDR / 12x142 Kit: HWYCBL00S5383S;
► Adapters for XDR / QR: HWGXXX00S2760S;
► Microspline / 12x142 Kit: HWYCBL00S1959S;
► Adapters for Microspline / QR: HWGXXX00S5623S;
► Campagnolo N3W / 12x142 Kit: HWYABL00S5705S;
► Campagnolo / QR Kit: HWYABL00S7073S;
► Campagnolo / 12x142 Kit: HWYABL00S7074S;
► Adapters for Campagnolo / QR: HWGXXX00S2766S;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S;

Informations prix

*Recommended retail price from supplier in June 2026
