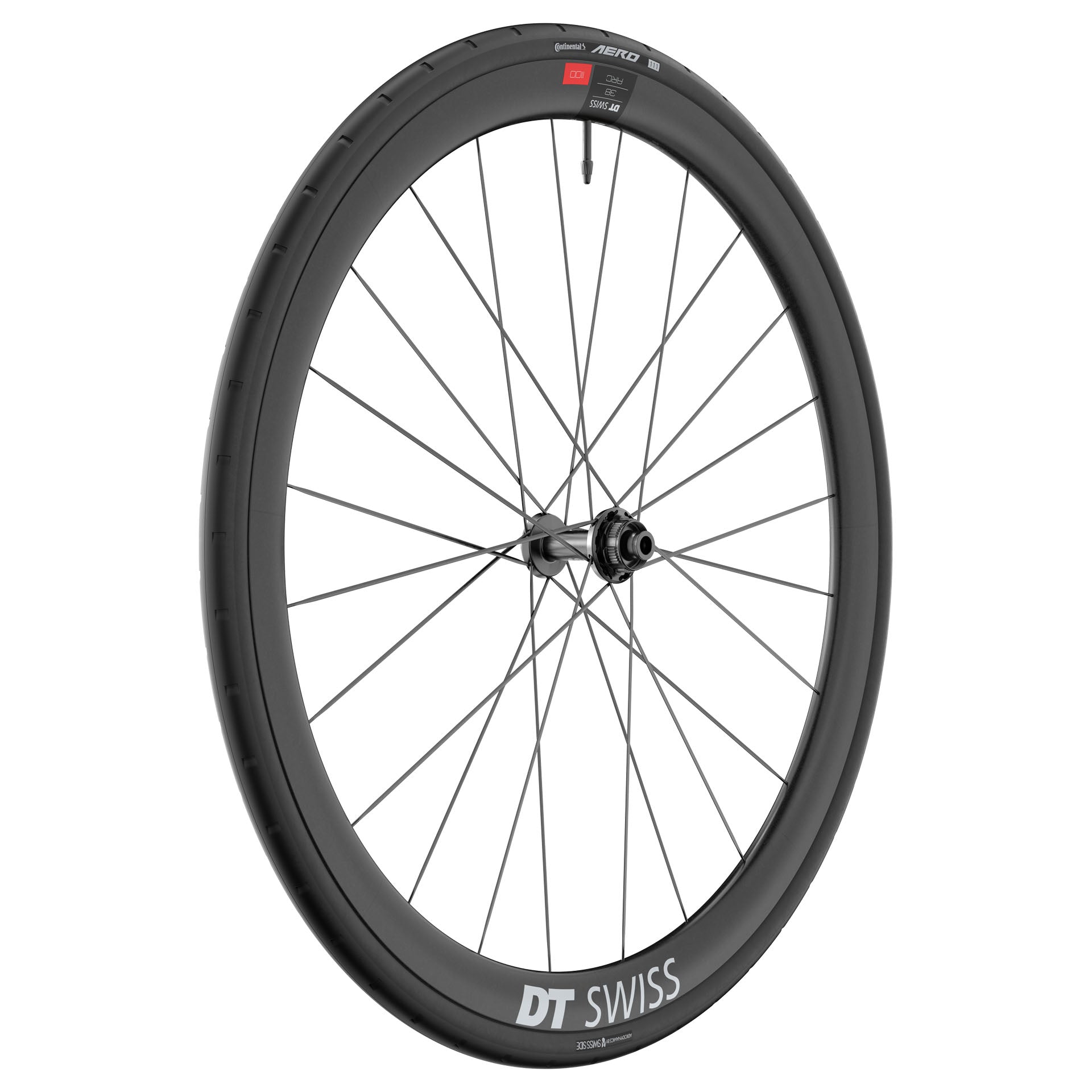

Front Wheel DT SWISS ARC 1100 DICUT WTS 38 Tubeless Ready (Center Lock)

The DT SWISS ARC 1100 DICUT DB 38 WTS Wheel in its front version features an integrated Wheel Tire System (WTS) designed to optimise... Read more
1.112,90 €
1.112,90 €
View full details

Description

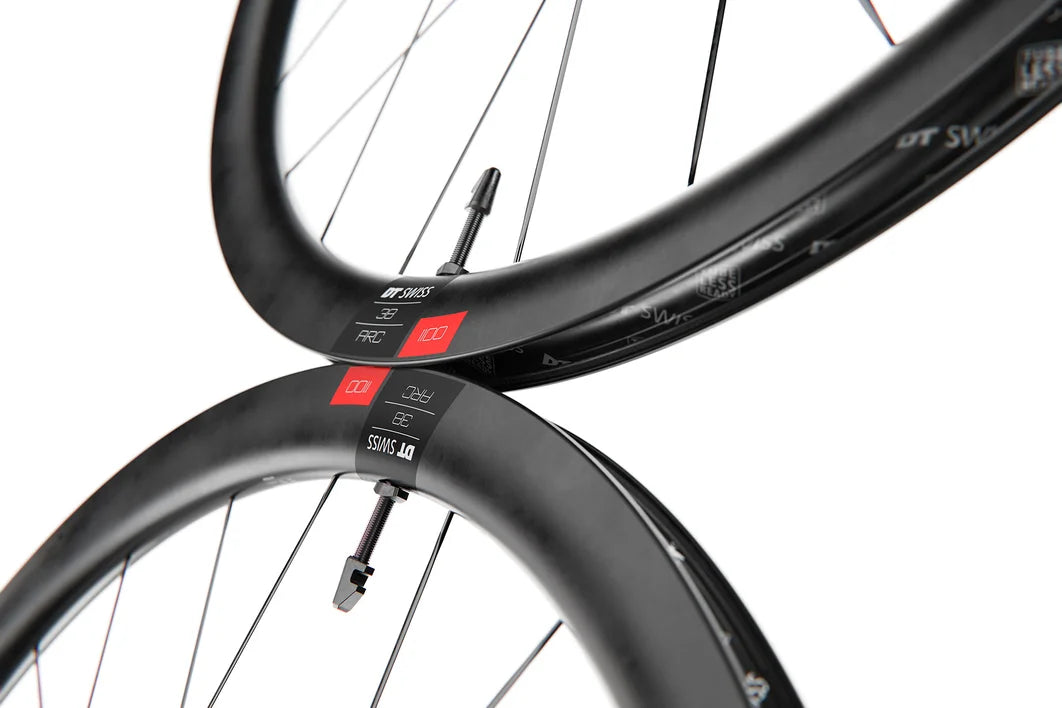

The DT SWISS ARC 1100 DICUT DB 38 WTS Wheel in its front version features an integrated Wheel Tire System (WTS) designed to optimise aerodynamic performance straight out of the box. It combines a 38 mm carbon rim with a configuration engineered to reduce drag and improve average speed.

Thanks to the AERO+ concept, the wheel/tyre assembly is developed to work in synergy, limiting turbulence and promoting better air penetration. The 20 mm internal width allows optimised fitting of modern tyres, ensuring comfort and efficiency over long distances.

This WTS version includes a specific setup with an AERO 111 front tyre, designed to improve aerodynamic performance at the front of the bike. The combination with premium DT Swiss components, such as the 180 DICUT hubs and SINC Ceramic bearings, guarantees smooth rolling and precise handling.

Designed for cyclists seeking a ride-ready solution, this WTS front wheel prioritises overall performance, ease of integration and aerodynamic efficiency. It is aimed at competitors who want to immediately exploit the full potential of the wheel-tyre system.

Manufacturer Manual + Rim/Tyre Compatibility Chart & Pressures

DICUT Models Manual

Tubeless Assembly Manual

Ref: 16023269343612

Informations techniques

┘GENERAL
Category: Road
Front Weight: 872 g tyre included
Max Load: 110 kg
ASTM Classification: 1
E-Bikes Recommended: No
Front Manufacturer Reference: WARC110AIDXCA27123

┘RIM
Material: Carbon
Tyre Interface: Hooked tubeless TC
Wheel Diameter: 622mm / 29" / 700c

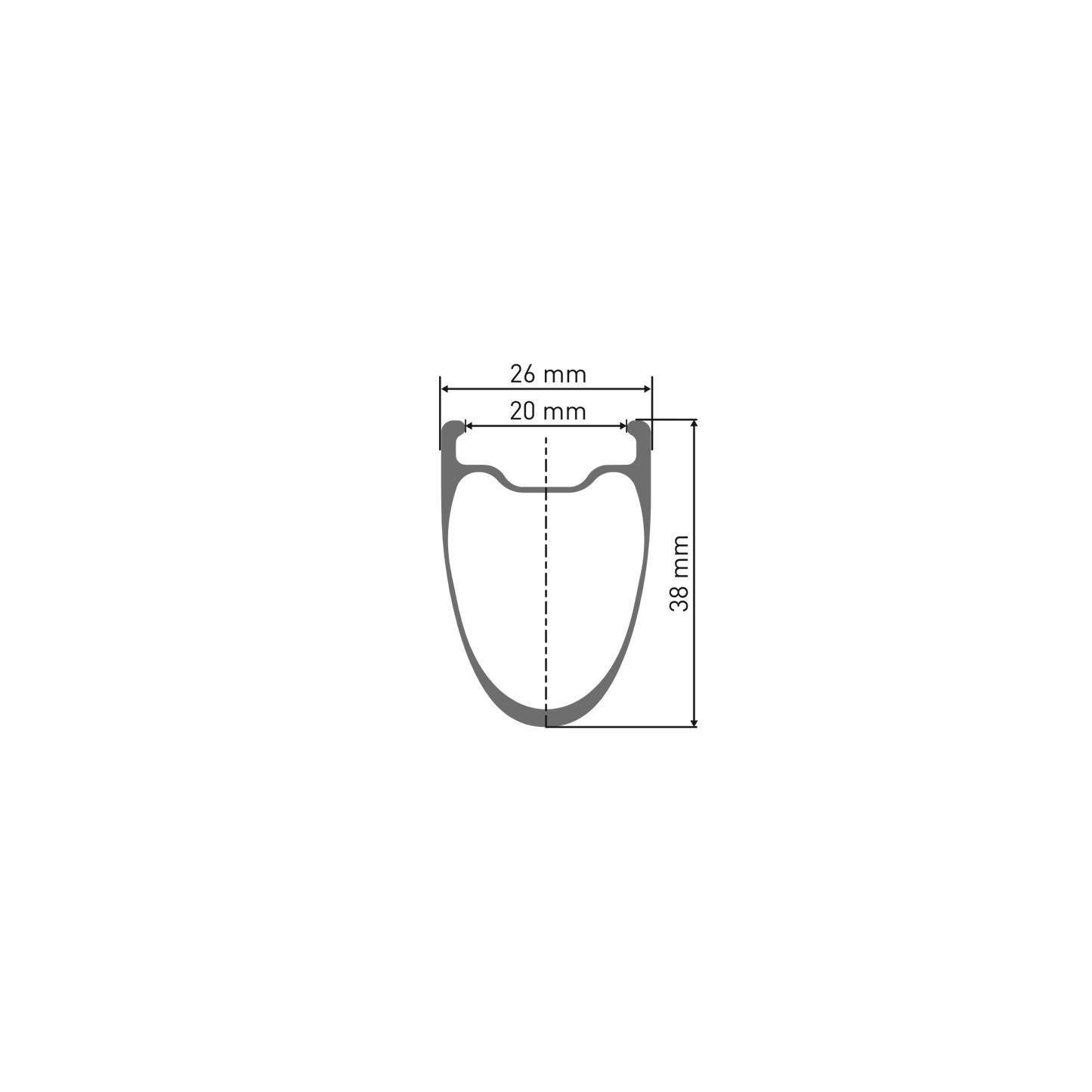

Rim Height: 38mm
Internal Width: 20mm
External Width: 26mm

Tyre included
CONTINENTAL AERO 111 26-622 (Design & Innovation Award edition 2025)
Inner tube included
CONTINENTAL TPU TUBE SV

┘HUB
Axle System: 12mm Thru axle
Front Spacing: 100mm
Disc Fixing: Center Lock
Hub Type: 180
Ceramic bearings


┘SPOKES AND NIPPLES
Front Spokes: 20 x2-cross

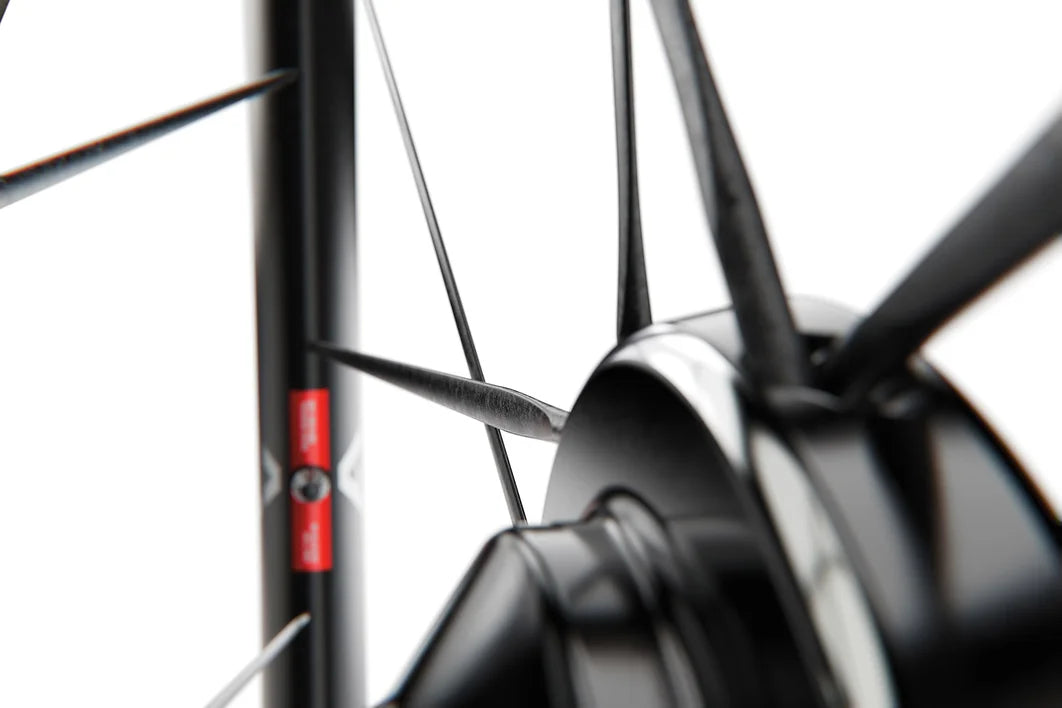

Spokes DT aerolite® II t-head
Spoke Pattern: Two-cross (1:1)
Nipples: DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
►WTS Technology: the wheel and tyre have been considered as a single unit: the Wheel Tire System. The AERO 111 model, specific to the front, is perfectly suited to the Aero rim and displays an unprecedented aerodynamic optimisation. The surface features 48 cavities evenly distributed across its entirety, known as vortex generators. These allow the air flow disturbances on the front wheel to be controlled, thereby effectively reducing the drag of the assembly
► AERO RANGE: The DT Swiss Aero range maximises aerodynamics with profiled rims and innovative spokes, delivering high performance and exceptional stability, ideal for achieving optimal speeds;
► DICUT: DT Swiss's DICUT concept combines high-performance hubs, optimised spokes and advanced aerodynamics. Designed for speed and efficiency, it maximises lateral stiffness and power transfer on road and track;
► SINC CERAMIC: DT Swiss's SINC Ceramic technology uses high-performance ceramic bearings to reduce friction, improve rotational smoothness and increase durability, thus offering an efficiency gain and optimal power transmission;
► AERO+: DT Swiss's Aero+ technology optimises aerodynamics and stability by reducing drag and improving handling. It perfectly balances air resistance, pedalling efficiency and crosswind control;
► ARTISANAL EXPERTISE: Hand-built, guaranteed to benefit from all of DT Swiss's craftsmanship;

┘INCLUDED
Rim tape: 23mm tubeless roll
Valve: Black alu TL valve 36-48 mm / Valve protection sticker
Wheel bag

┘CONVERSION REFERENCES
• Front Wheel
► QR Adapters: HWGXXX0000051S.
;

Informations prix

*Recommended retail price from supplier in June 2026
