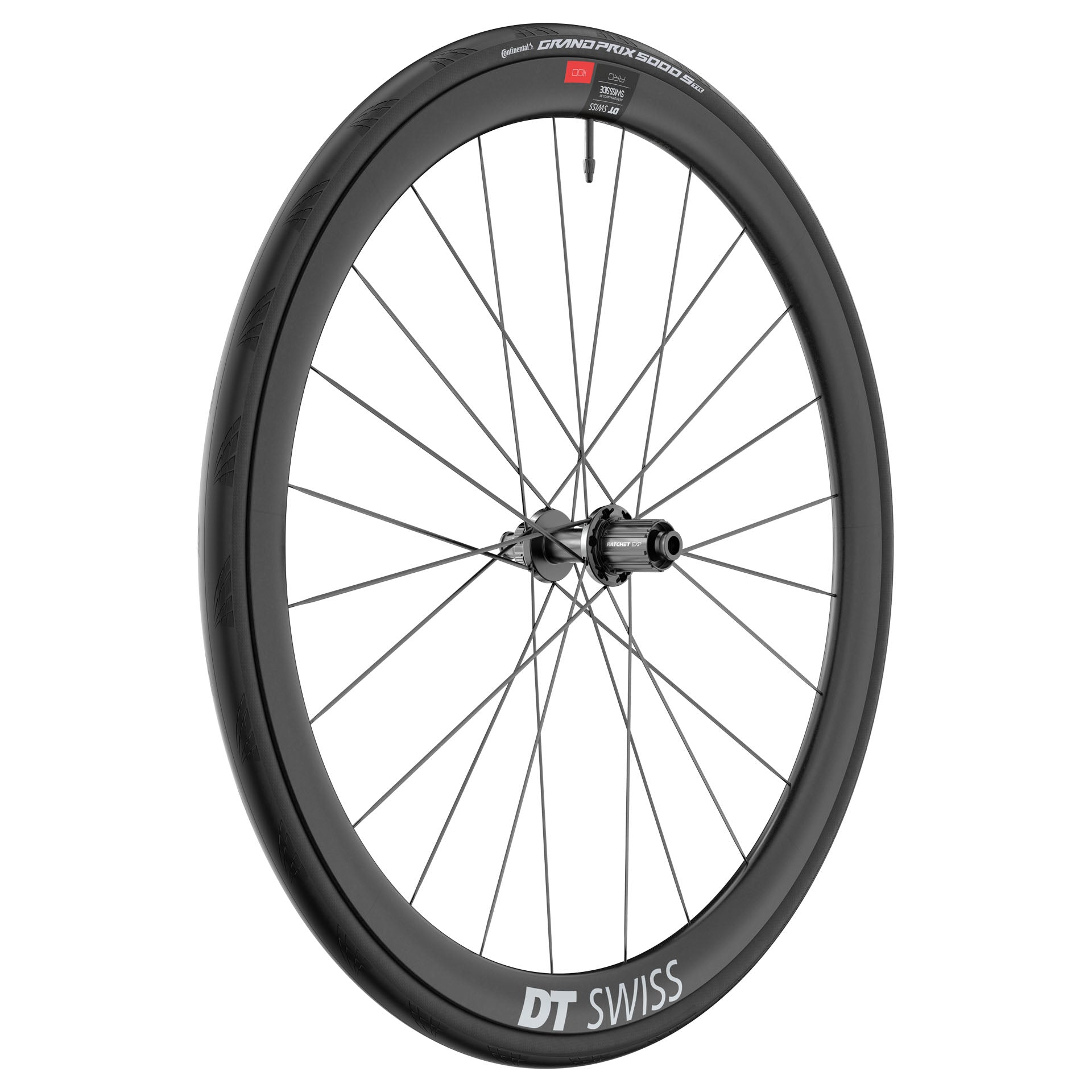

DT SWISS ARC 1100 DICUT WTS 38 Tubeless Ready (Center Lock) Rear Wheel

The DT SWISS ARC 1100 DICUT DB 38 WTS Rear Wheel combines aerodynamic performance with full wheel-tyre system optimisation. With its 38 mm carbon... Read more
1.536,90 €
1.536,90 €
View full details

Description

The DT SWISS ARC 1100 DICUT DB 38 WTS Rear Wheel combines aerodynamic performance with full wheel-tyre system optimisation. With its 38 mm carbon rim, it is designed to offer an excellent balance between speed, stiffness and stability in race conditions.

The integration of the AERO+ concept delivers a significant reduction in drag, while the specific design of the WTS system improves consistency between the wheel and the rear tyre. This synergy promotes superior efficiency over long distances and sustained efforts.

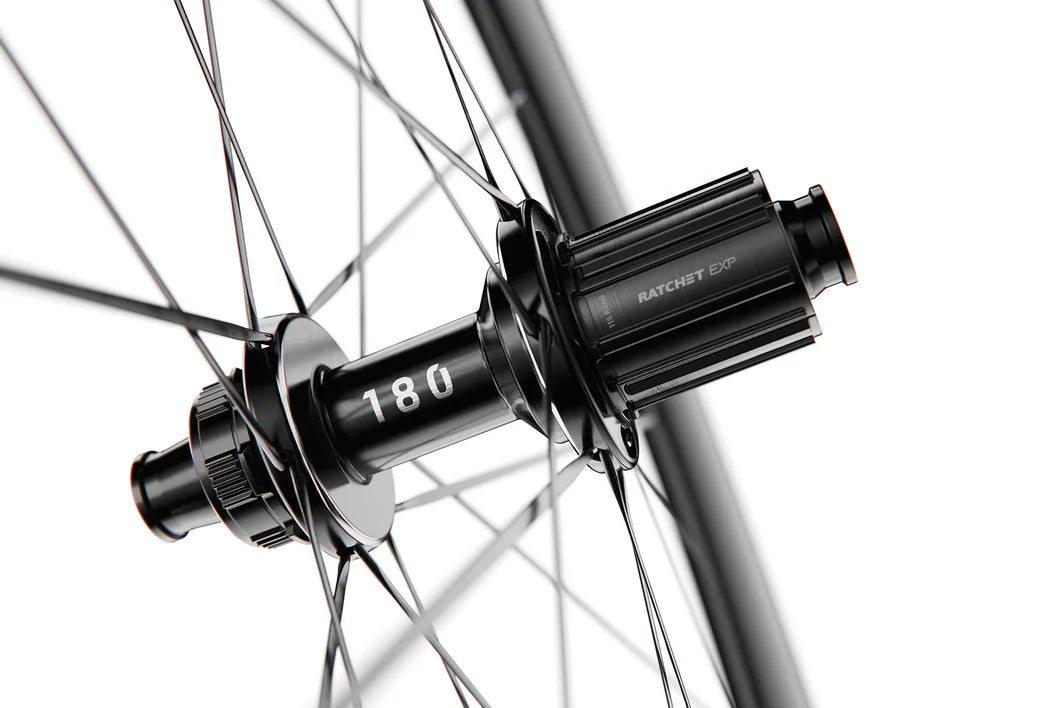

The rear setup integrates a Continental GP 5000 STR tyre, selected to complement the aerodynamic performance of the system. Combined with the 180 DICUT hub and SINC Ceramic bearings, it ensures efficient power transmission and excellent mechanical smoothness.

The wheel features Ratchet System EXP 36 technology. This patented freehub system with high-precision ratchet rings guarantees maximum stress resistance and reliability. Thanks to the "no tool" concept, it is extremely simple and quick to maintain.

This WTS rear wheel is aimed at demanding cyclists seeking a ready-to-use solution optimised for competition. It highlights integrated performance, reliability and aerodynamic efficiency, ideal for fast courses and modern road racing.

Manufacturer Manual + Rim/Tyre Compatibility & Pressure Chart

DICUT Models Manual

Tubeless Installation Manual

Ref: 16023268524412

Informations techniques

┘GENERAL
Category: Road
Rear Weight: 1027 g tyre included
Max. Load: 110 kg
ASTM Classification: 1
E-Bikes Recommended: No
Manufacturer Reference: WARC110NIDJCA27124

┘RIM
Material: Carbon
Tyre Interface: Hooked/Hooked tubeless TC
Wheel Diameter: 622mm / 29" / 700c
Rim Height: 38mm
Internal Width: 20mm
External Width: 26mm

Tyre included
CONTINENTAL GP5000 STR 28-622
Inner tube included
CONTINENTAL TPU TUBE SV

┘HUB
Hub Type: 180
Axle System: 12mm Thru axle
Rear Spacing: 142mm
Disc Attachment: Center Lock
Freehub Body: Shimano HG Light 5 ASL S11
Freehub: Ratchet EXP 36
Ceramic bearings

┘SPOKES AND NIPPLES
Spokes: 24 x2-cross
DT aerolite® II t-head and DT aero comp® II t-head
Spoke Pattern: Two-cross (1:1)
Nipples: DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
►WTS Technology: the wheel and tyre have been considered as a single unit: the Wheel Tire System. The AERO 111 model, specific to the front, is perfectly adapted to the Aero rim and displays unprecedented aerodynamic optimisation. The surface features 48 cavities evenly distributed across its entirety, known as vortex generators. These allow the air flow disturbances over the front wheel to be controlled, thereby effectively reducing the drag of the assembly.
► AERO RANGE: The DT Swiss Aero range maximises aerodynamics with profiled rims and innovative spokes, offering high performance and exceptional stability, ideal for achieving optimal speeds;
► DICUT: The DT Swiss DICUT concept combines high-performance hubs, optimised spokes and advanced aerodynamics. Designed for speed and efficiency, it maximises lateral stiffness and power transfer on road and track;
► SINC CERAMIC: DT Swiss SINC Ceramic technology uses high-performance ceramic bearings to reduce friction, improve rotational smoothness and increase durability, thus providing an efficiency gain and optimal power transmission;
► AERO+: DT Swiss Aero+ technology optimises aerodynamics and stability by reducing drag and improving handling. It perfectly balances air resistance, pedalling efficiency and crosswind control;
► RATCHET EXP: DT Swiss Ratchet EXP freehub body technology optimises hub engagement by integrating a single conical spring, reducing weight and increasing durability. It ensures efficient power transfer and simplified maintenance.;
► ARTISANAL CRAFTSMANSHIP: Hand-built, guaranteed to benefit from the full DT Swiss expertise;

┘INCLUDED
Rim tape: 23mm tubeless roll
Valve: Black alu TL valve 36-48 mm / Valve protection sticker
Sram XDR freehub body.
Wheel bag

┘CONVERSION REFERENCES
► Adapters for Shimano HG / QR: HWGXXX00S7446S;
► XDR / QR Kit: HWYCBL00S5402S;
► XDR / 12x142 Kit: HWYCBL00S5383S;
► Adapters for XDR / QR: HWGXXX00S2760S;
► Microspline / 12x142 Kit: HWYCBL00S1959S;
► Adapters for Microspline / QR: HWGXXX00S5623S;
► Campagnolo N3W / 12x142 Kit: HWYABL00S5705S;
► Campagnolo / QR Kit: HWYABL00S7073S;
► Campagnolo / 12x142 Kit: HWYABL00S7074S;
► Adapters for Campagnolo / QR: HWGXXX00S2766S;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S;
;

Informations prix

*Recommended retail price from supplier in June 2026
