DT SWISS

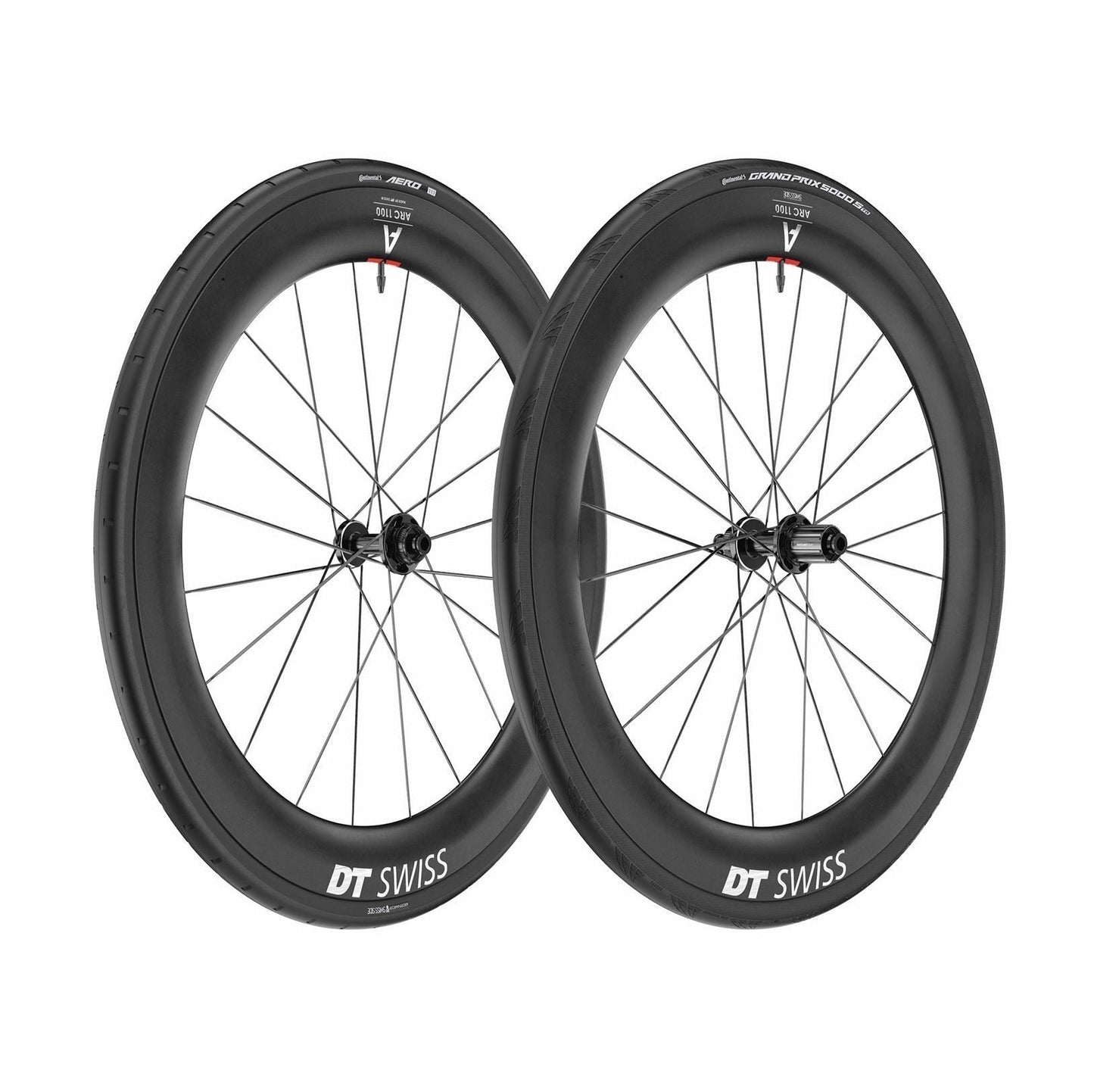

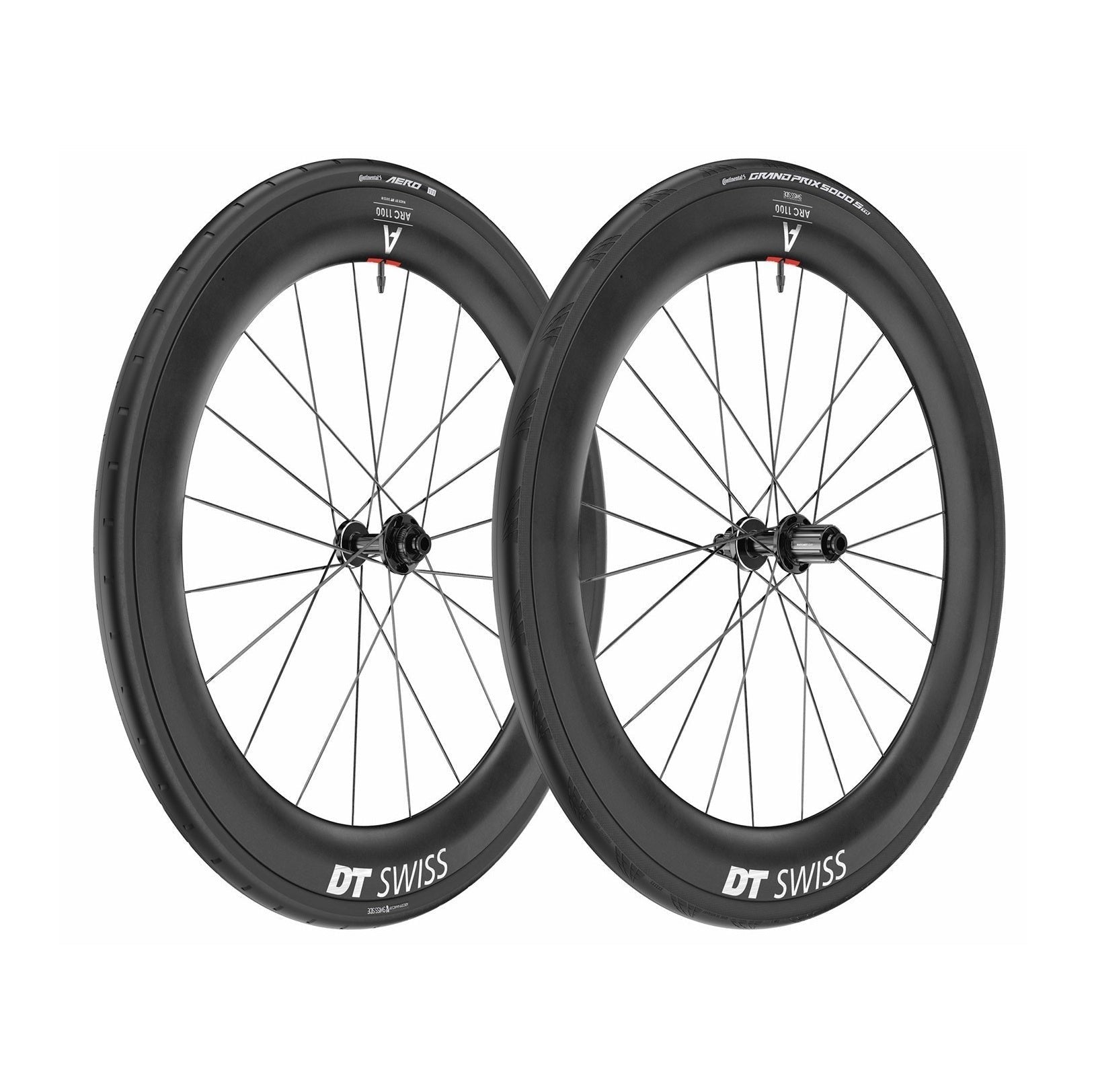

DT SWISS ARC 1100 DICUT WTS 55 Tubeless Ready Wheels (Center Lock)

The DT SWISS ARC 1100 DICUT WTS 55 wheelset embodies the ultimate in aerodynamics and performance for demanding cyclists. With a rim height of... Read more
Regular price 2.649,90 €
Regular price 2.799,80 € Sale price 2.649,90 €
-10%
View full details

Description

The DT SWISS ARC 1100 DICUT WTS 55 wheelset embodies the ultimate in aerodynamics and performance for demanding cyclists. With a rim height of 55 mm and an internal width of 22 mm, they are perfectly compatible with the 29 mm AERO 111 clincher tire, optimizing air resistance while ensuring remarkable stability at high speed.

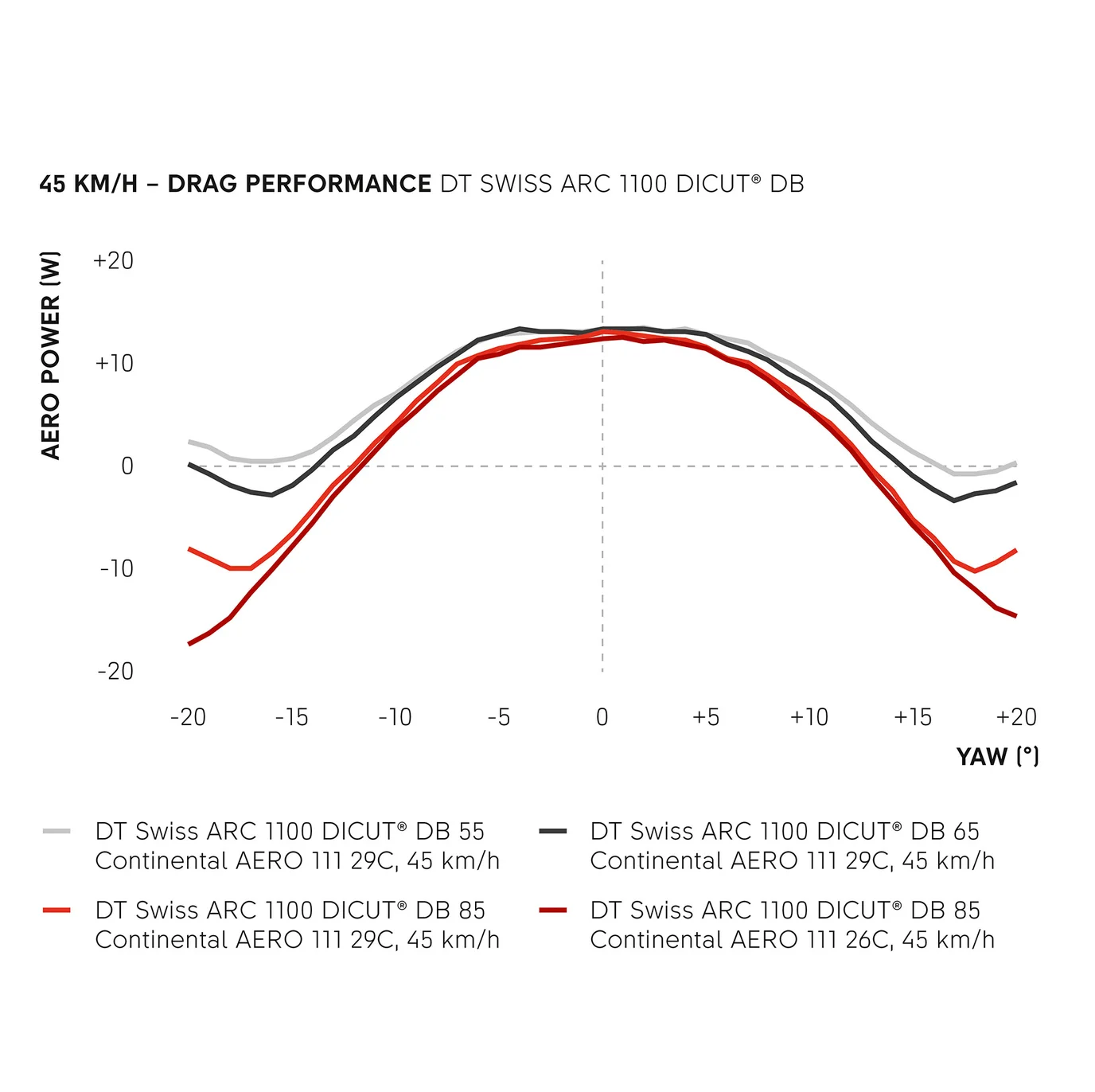

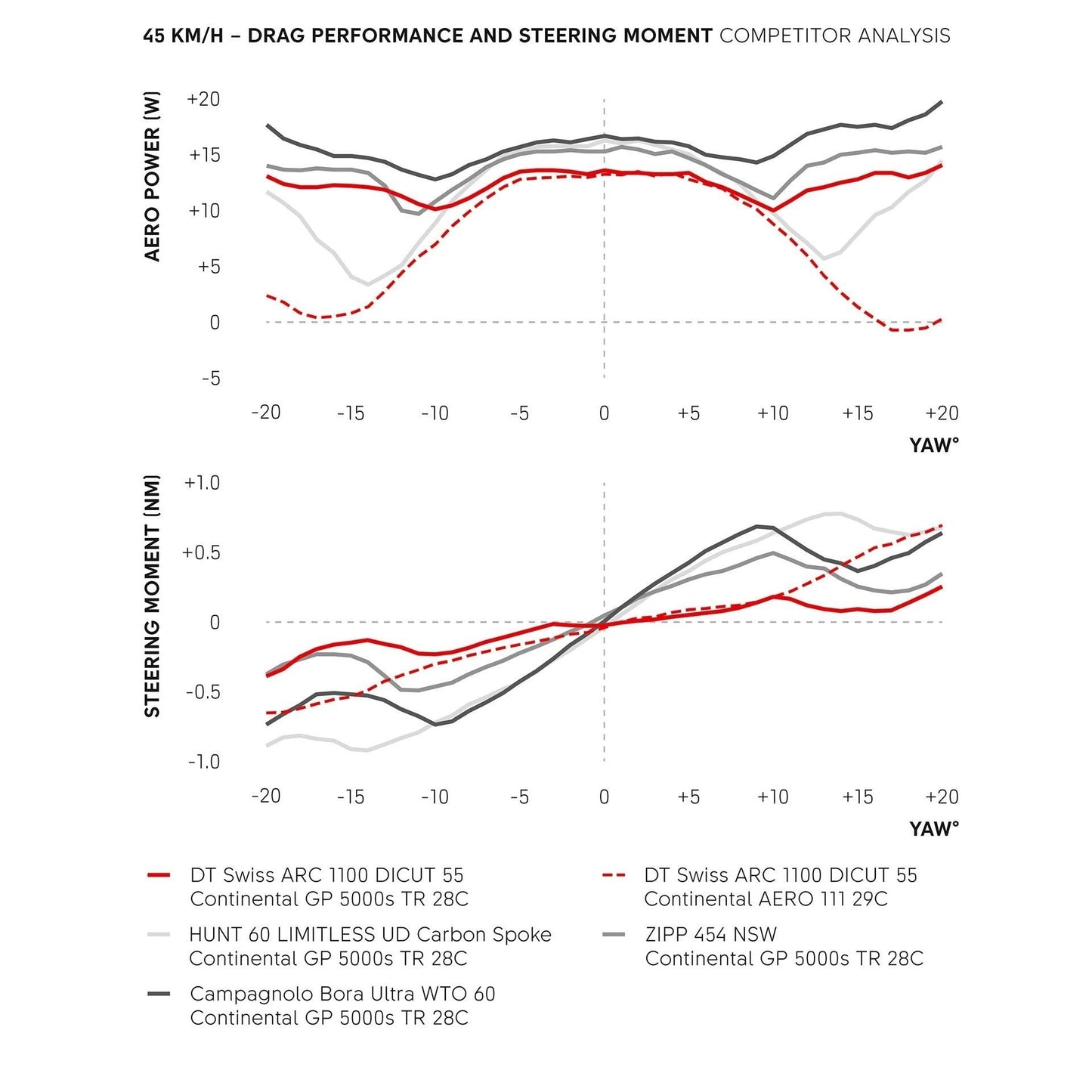

The result of collaboration with SWISS SIDE's aerodynamics experts, the wheel features the AERO+ rim profile, which reduces drag and steering torque. The result: optimum control even in windy conditions, and maximum propulsion efficiency.

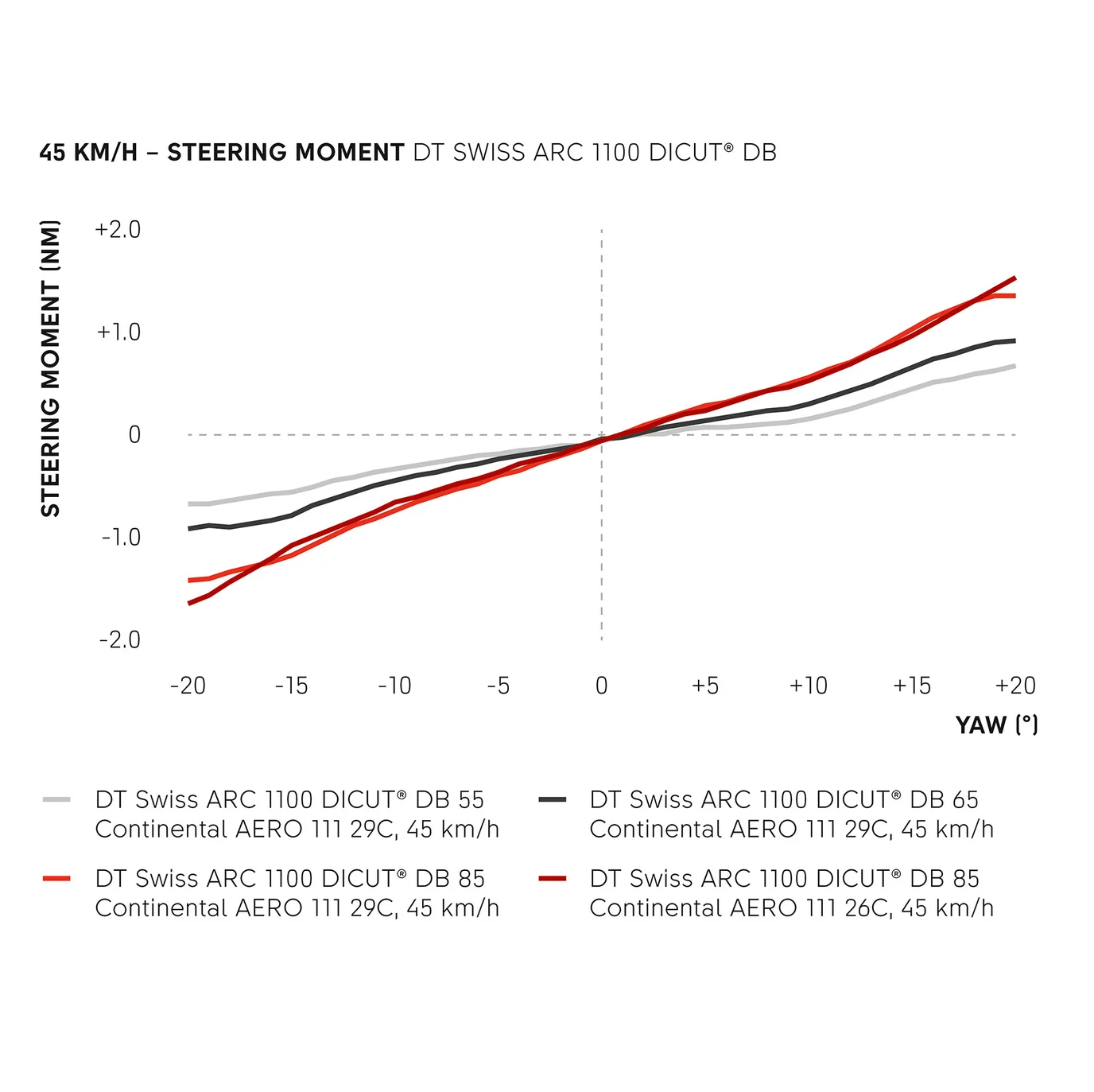

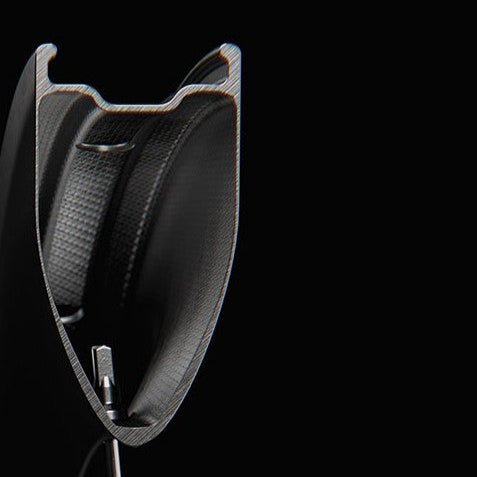

The V-shaped rim plays a key role in reducing frontal drag. It compensates for the increase in frontal surface area due to the wider internal width, improving overall aerodynamic performance. This design also ensures low steering moment, providing a smooth riding feel, even in crosswinds or extreme yaw angles.

Available in Tubeless Ready (Center Lock) version, the ARC 1100 Dicut is offered in an aerodynamically optimized WTS (Wheel-Tire System) configuration. It comes fitted with a 30 mm Continental GP 5000 STR rear tire and a 29 mm AERO 111 front tire. By choosing the perfectly integrated AERO 111 tire, aerodynamic drag is reduced, while offering predictable, stable handling - an invaluable asset during sprints or fast descents. The "sailing effect", a phenomenon where the wind becomes an advantage, is mastered here to improve speed without compromising handling.

In addition, the 55 mm version is ideal for all-round cyclists looking for speed on different types of terrain while retaining good climbing ability. DT Swiss also offers 38 mm, 65 mm and 85 mm variants to suit all riding styles, from hilly courses to flat time trials.

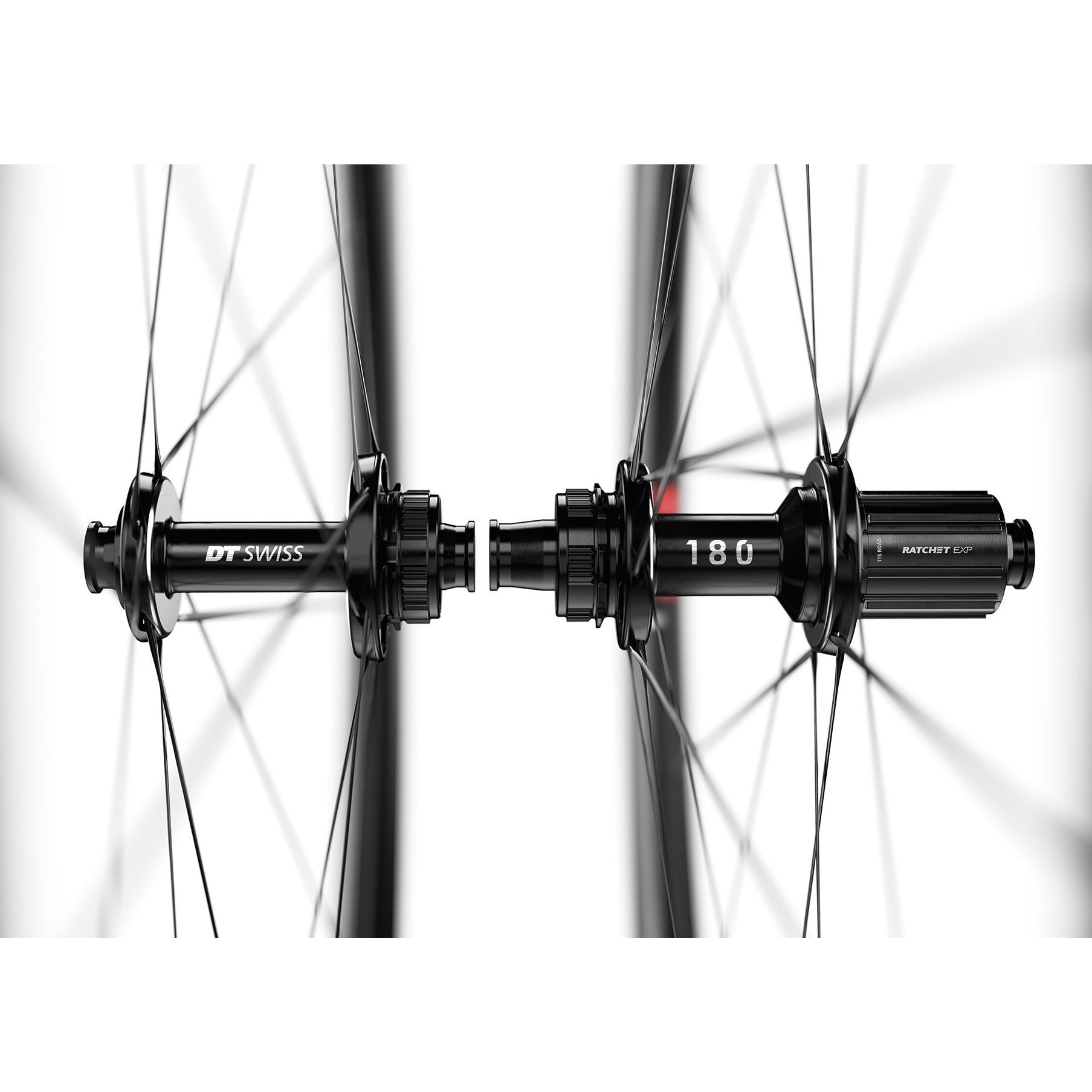

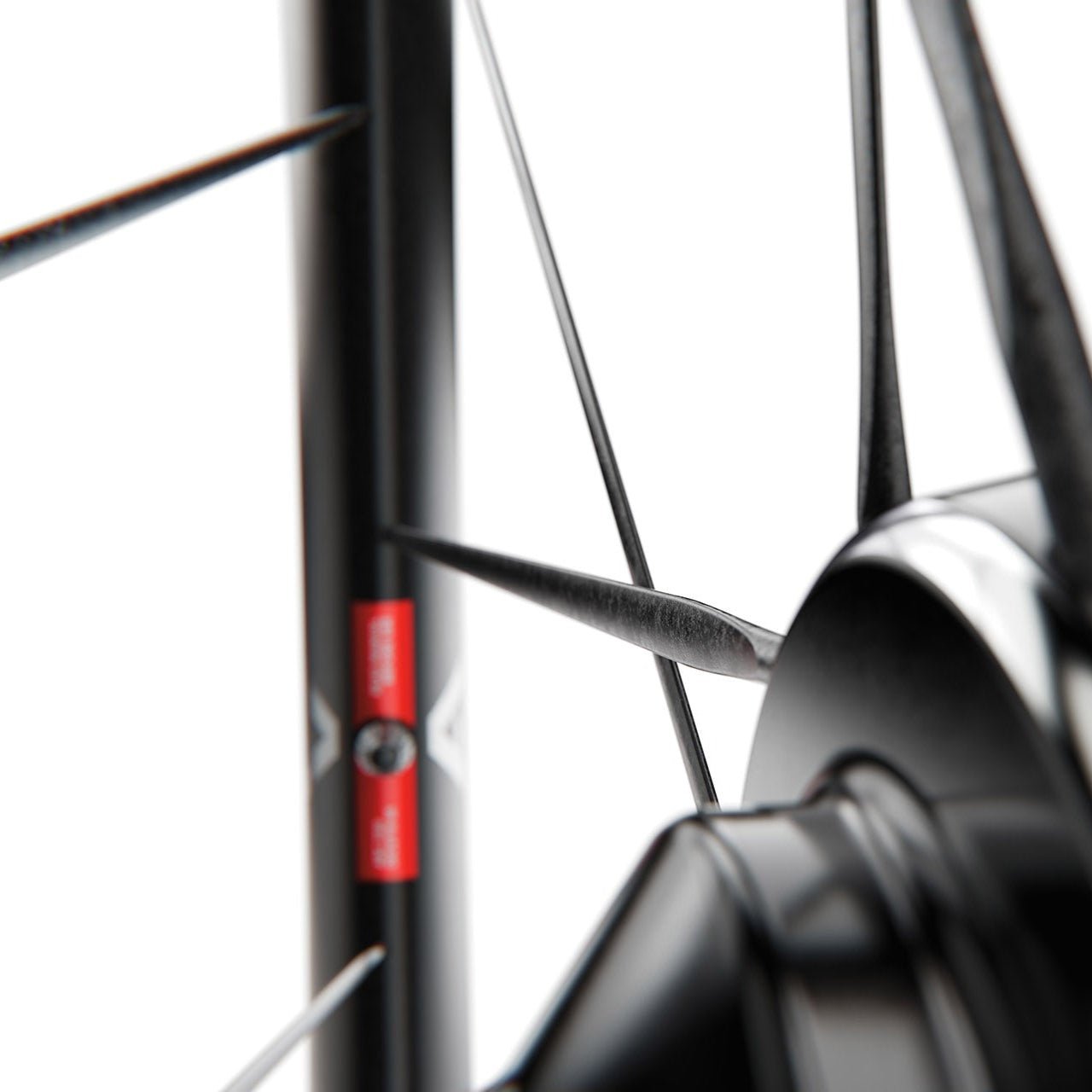

It's equipped with the new DT Swiss Aero spokes, a streamlined 180 DICUT hub, and SINC Ceramic bearings for unrivalled smoothness.

In short, ARC 1100 DICUT WTS 55 wheels combine optimized width, advanced aerodynamic profile and impeccable stability. They represent a top choice for cyclists seeking performance, comfort and control in all conditions.

Manufacturer's Manual + Rim/Tire & Pressure Compatibility Chart

Manual DICUT Models

Tubeless Mounting Manual

Ref: 15688771043708

Informations techniques

┘GENERAL
Category: Road
Rear weight: 1118 g including tire
Front weight: 1001 g including tire
Max. load 110 kg
ASTM classification: 1
Recommended E-Bikes: No

┘JANTE
Material: Carbon
Tire interface: Hooked/Crochet tubeless TC
Wheel diameter: 622mm / 29" / 700c
Rim height: 55mm
Internal width: 20mm
External width: 28mm

Tires included
CONTINENTAL GP5000 STR 30-622
CONTINENTAL AERO 111 29-622 (Design & Innovation Award edition 2025)
Inner tube included
CONTINENTAL TPU TUBE SV

┘MOYEU
Hub type: 180
Axle system: 12mm Thru axle
Rear center distance: 142mm
Front center distance: 100mm
Disc mounting: Center Lock
Freewheel body: Shimano HG Light 5 ASL S11
Freewheel: Ratchet EXP 36
Ceramic bearings

┘ NIPPLES AND NUTS
Rear spokes: 24 x2-cross
Front spokes: 20 x2-cross
DT aerolite® II t-head
Shelving type: Two-cross (1:1)
Nuts : DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES

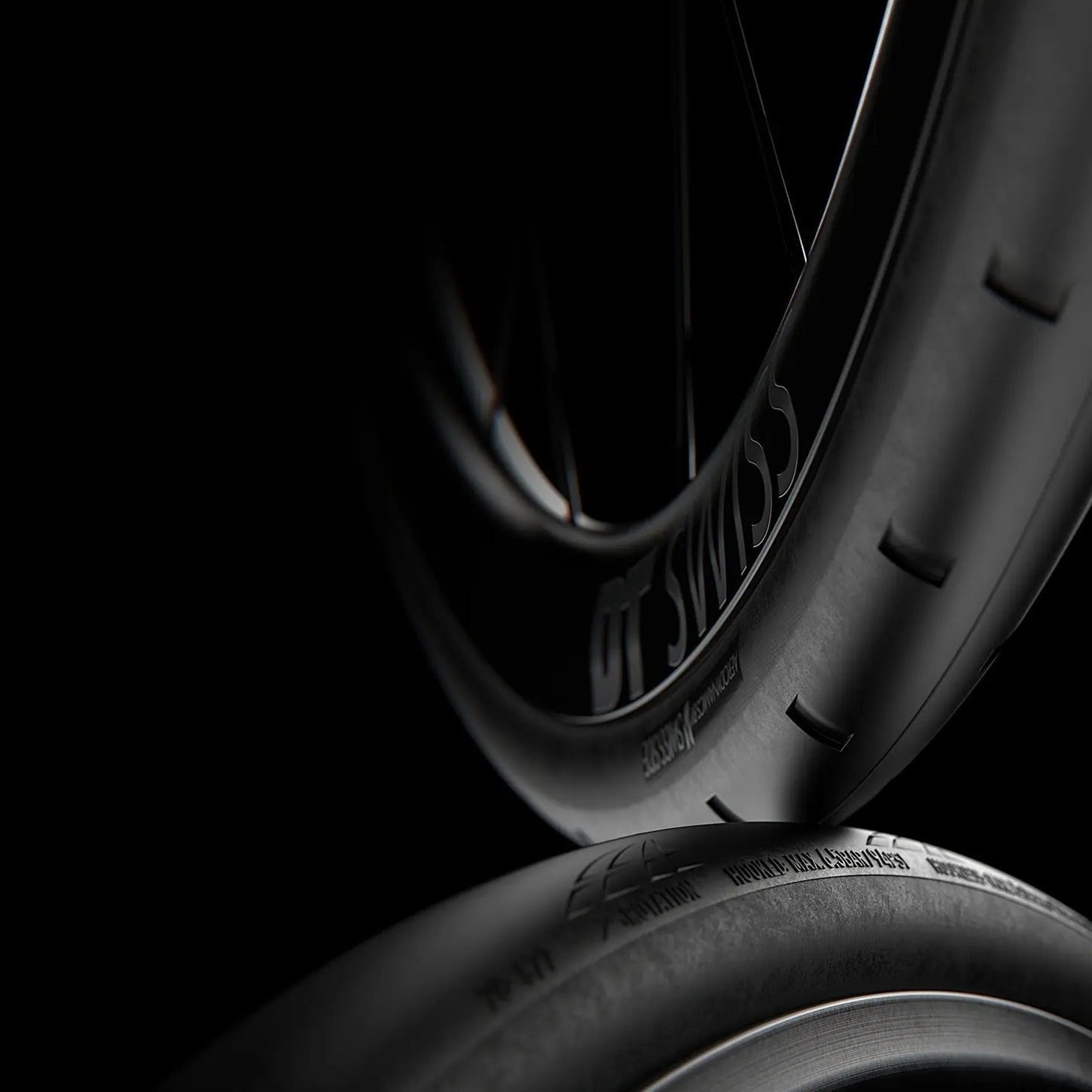

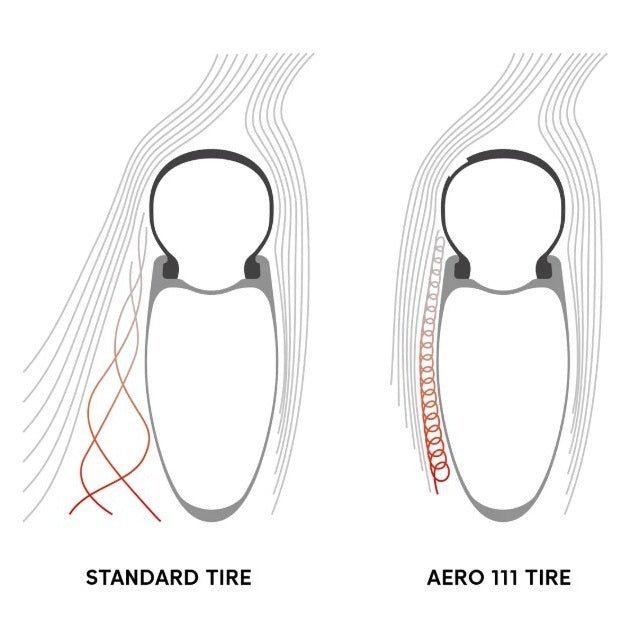

►WTS technology: wheel and tire have been considered as a single unit: the Wheel Tire System. The front-specific AERO 111 is perfectly matched to the Aero rim, displaying unprecedented aerodynamic optimization. The surface comprises 48 cavities evenly distributed throughout, known as vortex generators. These help control airflow disturbances on the front wheel, effectively reducing overall drag.
► AERO RANGE: DT Swiss's Aero range maximizes aerodynamics with streamlined rims and innovative spokes, offering high performance and exceptional stability, ideal for reaching optimal speeds ;
► DICUT: DT Swiss's DICUT concept combines high-performance hubs, optimized spokes and advanced aerodynamics. Designed for speed and efficiency, it maximizes lateral stiffness and power transfer on road and track ;

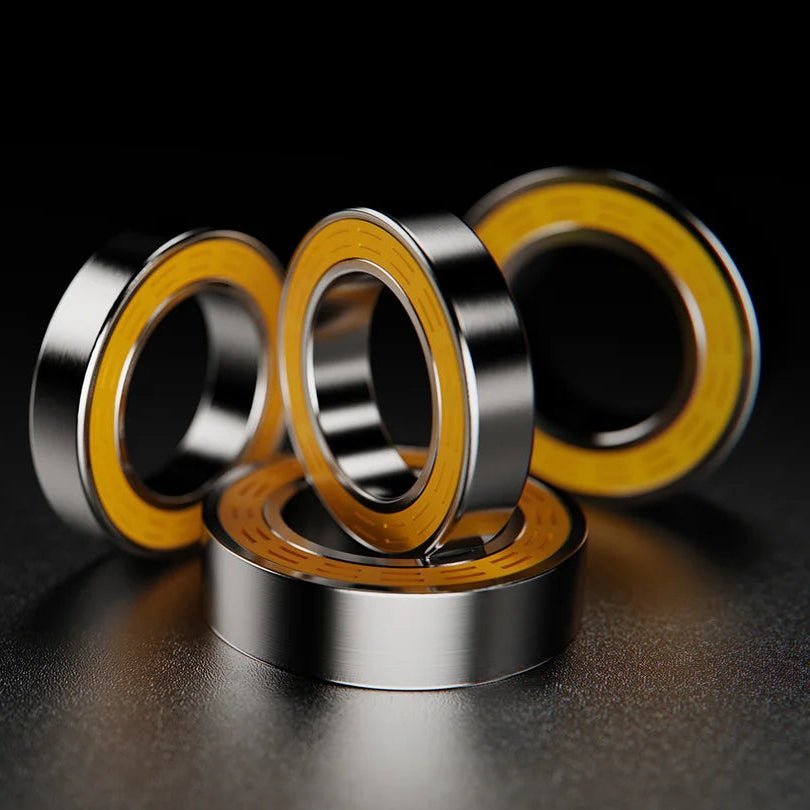

► SINC CERAMIC: DT Swiss's SINC Ceramic technology uses high-performance ceramic bearings to reduce friction, improve rotational smoothness and increase durability, offering increased efficiency and optimal power transmission ;
► AERO+: DT Swiss's Aero+ technology optimizes aerodynamics and stability by reducing drag and improving handling. It perfectly balances air resistance, pedaling efficiency and crosswind control ;

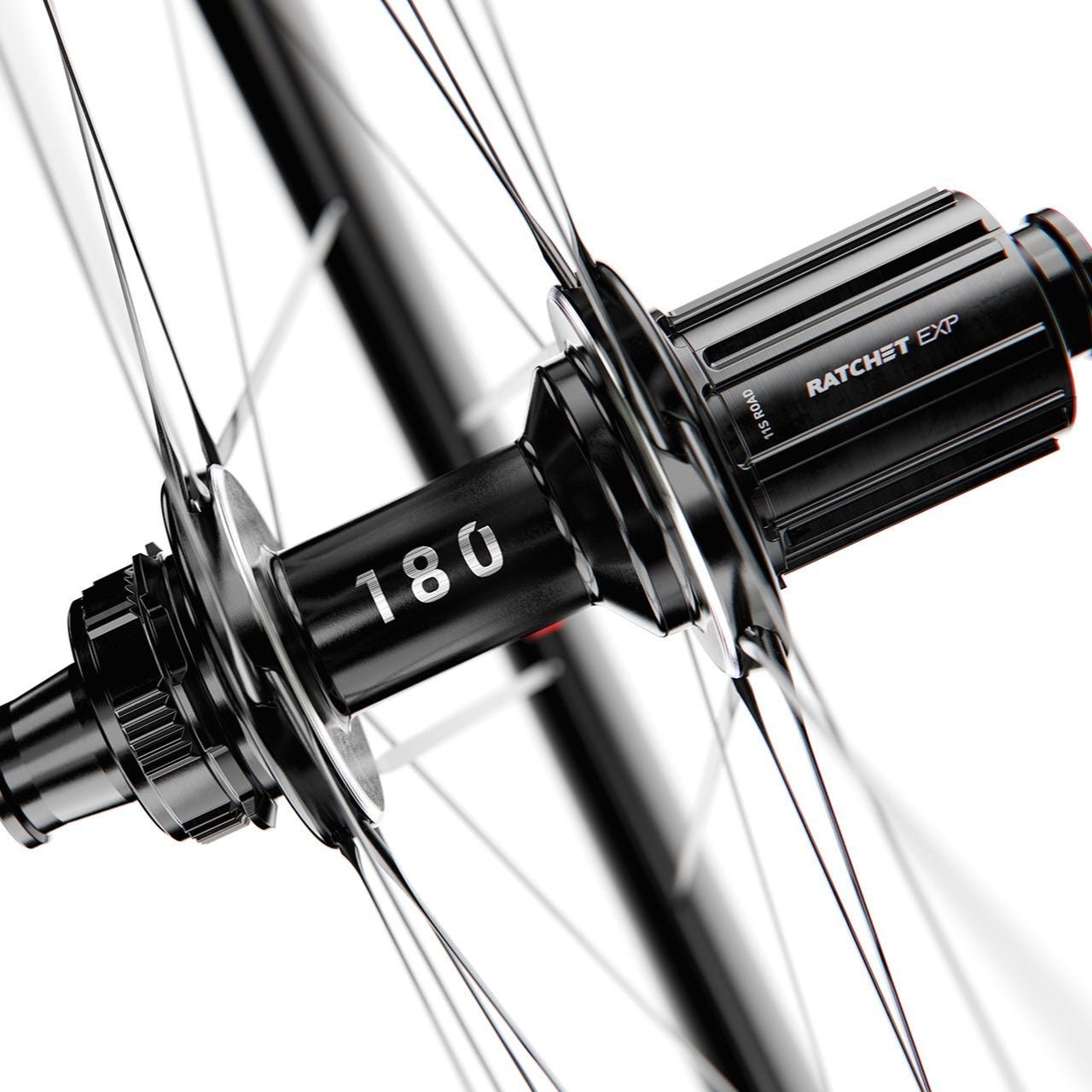

► RATCHET EXP:DT Swiss's Ratchet EXP freewheel body technology optimizes hub engagement by integrating a single tapered spring, reducing weight and increasing durability. It ensures efficient power transfer and simplified maintenance. ;
► CRAFT KNOW-HOW: Handcrafted, guaranteed to benefit from all the DT Swiss know-how ;

┘INCLUSIVE
Rim tape : 25mm tubeless roll

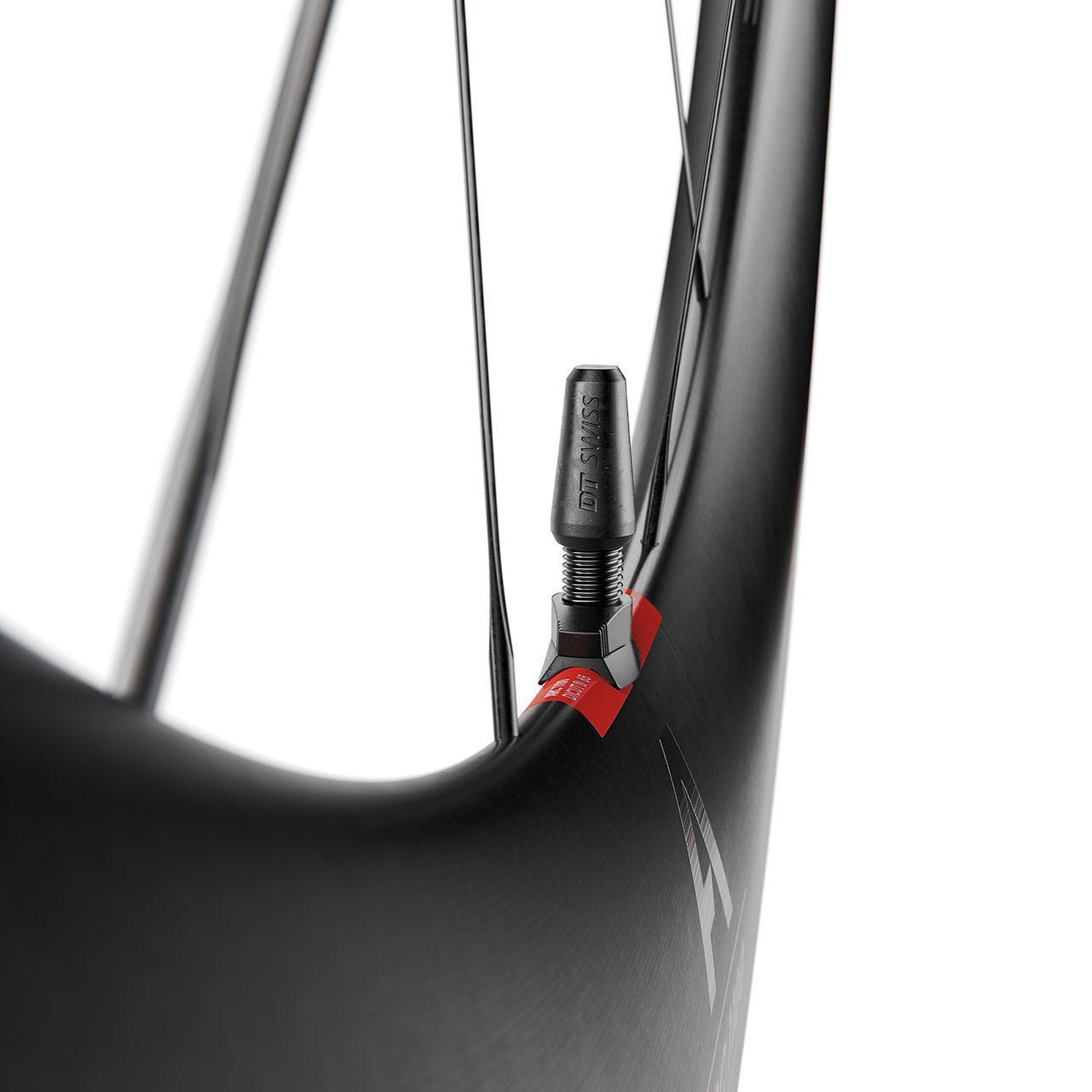

Valves: TL alu black 49-65 mm / Valve protection sticker
Sram XDR freewheel body.
Wheel covers

┘CONVERSION REFERENCES
- Rear wheel
► Adapters for Shimano HG / QR: HWGXXX00S7446S ;
► XDR / QR Kit: HWYCBL00S5402S ;
► Kit XDR / 12x142 : HWYCBL00S5383S ;
► Adapters for XDR / QR: HWGXXX00S2760S ;
► Microspline kit / 12x142 : HWYCBL00S1959S ;
► Adapters for Microspline / QR: HWGXXX00S5623S ;
► Kit Campagnolo N3W / 12x142 : HWYABL00S5705S ;
► Campagnolo Kit / QR: HWYABL00S7073S ;
► Kit Campagnolo / 12x142 : HWYABL00S7074S ;
► Adapters for Campagnolo / QR: HWGXXX00S2766S ;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S ;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S ;
- Front wheel
► Adapters for QR: HWGXXX0000051S.
