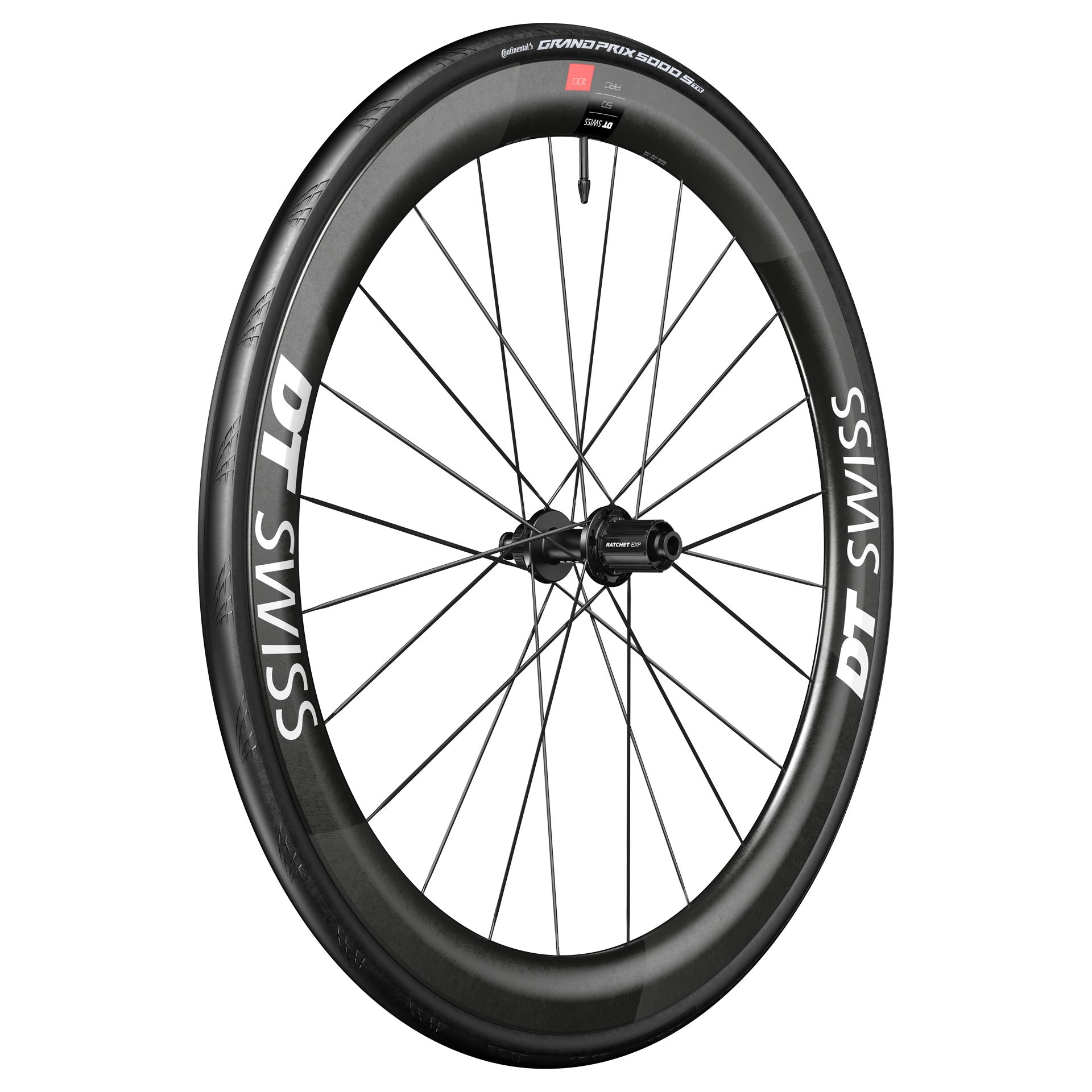

DT SWISS ARC 1100 DICUT WTS SPO 50 DISC Tubeless Ready Rear Wheel (Center Lock)

Visit rear wheel DT SWISS ARC 1100 DICUT 50 DISC is designed for cyclists in search of road performance. The result of collaboration with... Read more
1.536,90 €
1.536,90 €
View full details

Description

Visit rear wheel DT SWISS ARC 1100 DICUT 50 DISC is designed for cyclists in search of road performance. The result of collaboration with the aerodynamics experts at SWISS SIDEaerodynamics experts, this wheel features the AERO+ RIM PROFILErim profile, which reduces drag and steering torque. The result: optimum control even in windy conditions, and maximum propulsion efficiency.

ARC 1100 DICUT 50 wheels SPO (Sponsoring) is a limited edition identical to that used by professional racers. The exclusive double white stickers will give you the look of a pro and help you stand out from the crowd.

With its 50 mm heightit adapts perfectly to both hilly and flat roads, and offers precise handling in tight bends. It is equipped with the new DT Swiss Aero spokesspokes 180 DICUT hub hub and SINC Ceramic bearings bearings for unequalled smoothness.

Available in Tubeless Ready (Center Lock)version, the ARC 1100 Dicut is also available in a WTS (Wheel-Tire System)configuration, optimized for aerodynamics. It comes fitted with a 28 mm Continental GP 5000 STR rear tire.

Light, fast and stable, the ARC 1100 DICUT 50 DISC is ideal for demanding cyclists who want to dominate their terrain, whatever the weather.

Manufacturer's Manual + Rim/Tire Compatibility & Pressure Chart

Manual DICUT Models

Tubeless Mounting Manual

Ref: 15211098669436

Informations techniques

┘GENERAL
Category : Road
Rear weight: 1113 g including tire
Max. load 110 kg
ASTM classification: 1
Recommended E-Bikes: No
Rear Part Number : WARC110NIDJCA27970

┘JANTE
Material : Carbon
Tire interface: Hooked/Crochet tubeless TC
Wheel diameter: 622mm / 29" / 700c

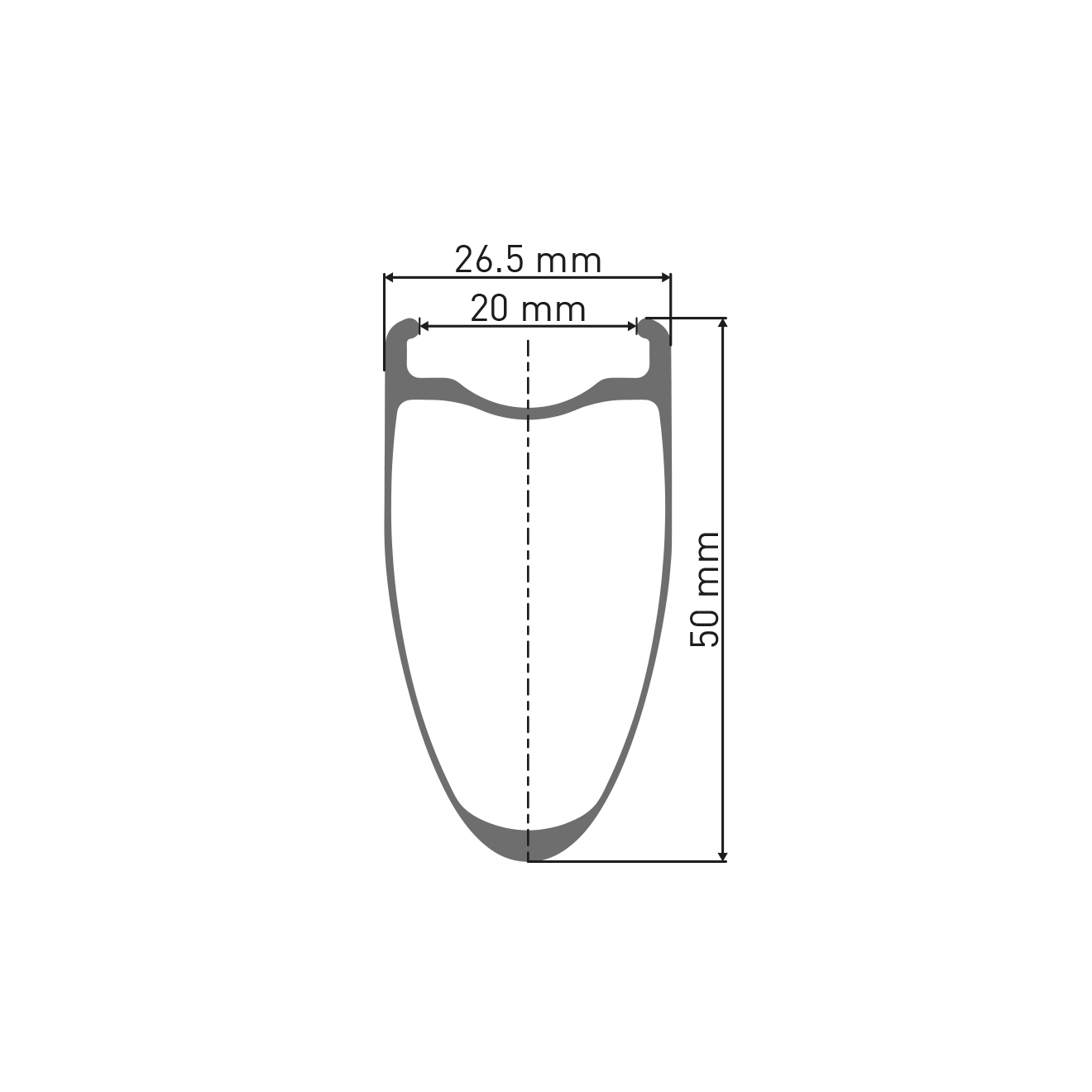

Rim height: 50mm
Internal width: 20mm
External width: 27mm

Tire included
CONTINENTAL GP5000 STR 28-622
Inner tube included
CONTINENTAL TPU TUBE SV

┘MOYEU
Axle system: 12mm Thru axle
Rear axle center distance: 142mm
Disc mounting: Center Lock
Freewheel body: Shimano HG
Freewheel: Ratchet EXP 36

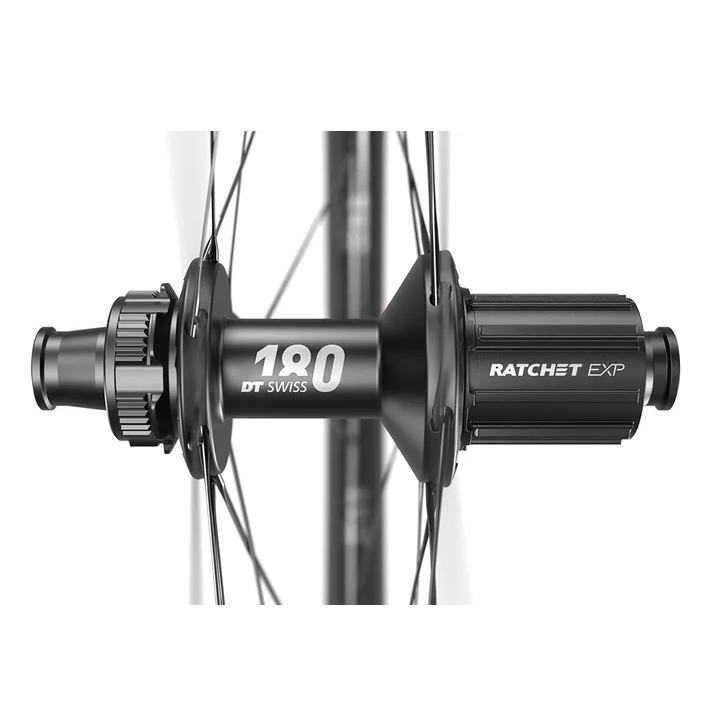

Hub type: 180

┘ NIPPLES AND NUTS
Rear spokes :
- Left: DT aerolite® II t-head
- Right: DT aero comp® II t-head
Racking type: Two-cross (1:1)
Nuts : DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
►WTS technology: wheel and tire have been considered as a single unit: the Wheel Tire System.
► AERO RANGE: DT Swiss's Aero range maximizes aerodynamics with streamlined rims and innovative spokes, offering high performance and exceptional stability, ideal for reaching optimum speeds ;
► DICUT: DT Swiss's DICUT concept combines high-performance hubs, optimized spokes and advanced aerodynamics. Designed for speed and efficiency, it maximizes lateral stiffness and power transfer on Road and Track ;
► SINC CERAMIC: DT Swiss's SINC Ceramic technology uses high-performance ceramic bearings to reduce friction, improve rotational smoothness and increase durability, offering increased efficiency and optimal power transmission;
► AERO+: DT Swiss's Aero+ technology optimizes aerodynamics and stability by reducing drag and improving handling. It perfectly balances air resistance, pedaling efficiency and crosswind control ;

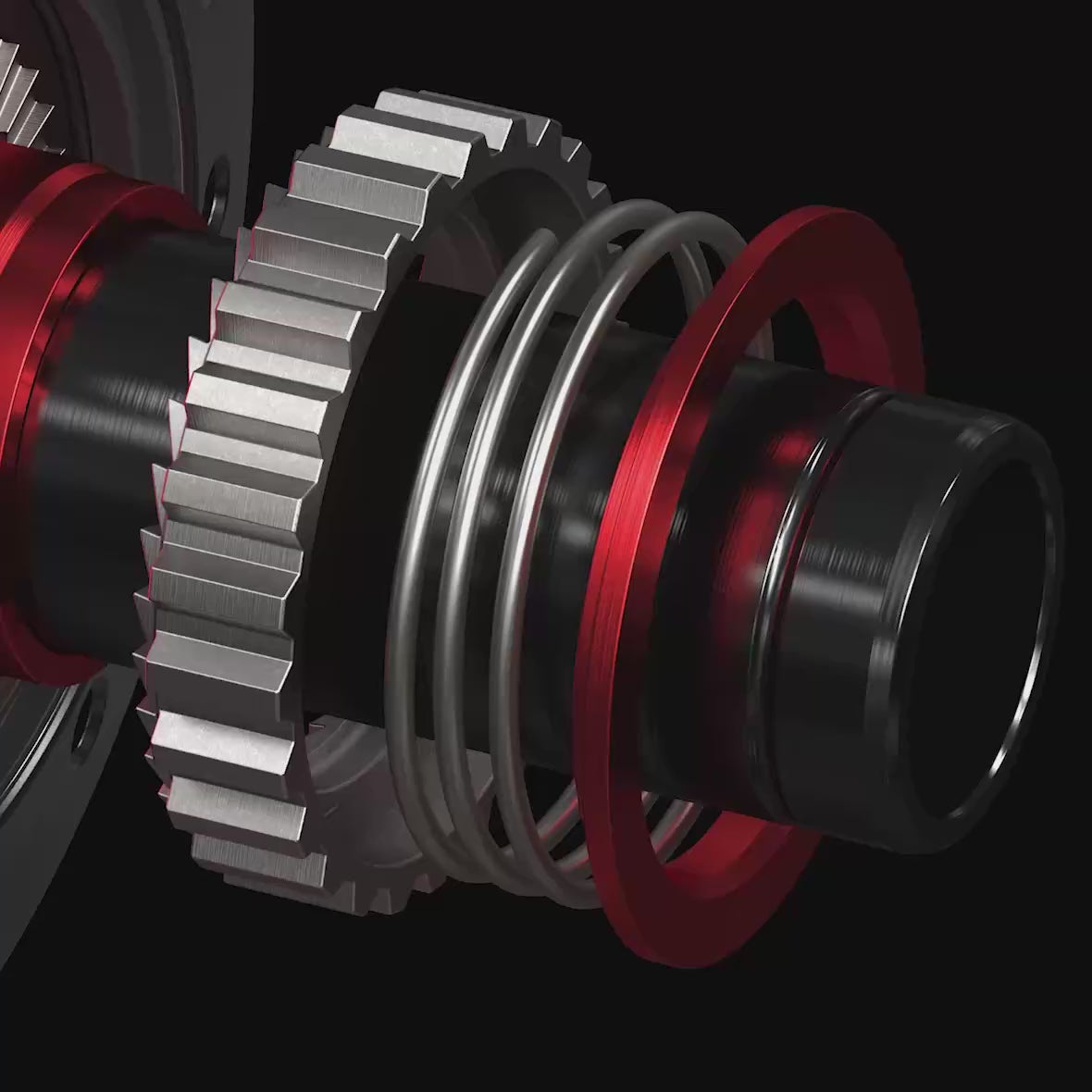

► RATCHET EXP:DT Swiss's Ratchet EXP freewheel body technology optimizes hub engagement by integrating a single tapered spring, reducing weight and increasing durability. It ensures efficient power transfer and simplified maintenance. ;
► CRAFT KNOW-HOW: Handcrafted, guaranteed to benefit from all DT Swiss know-how;

┘INCLUSIVE
Rim base: 23mm tubeless roll
Valve: Black TL alu valve 49-65 mm / Valve protection sticker
Freewheel body kit: SRAM XDR
Wheel cover

┘CONVERSION REFERENCES
- Rear wheel
► Adapters for Shimano HG / QR: HWGXXX00S7446S ;
► XDR kit / QR: HWYCBL00S5402S ;
► Kit XDR / 12x142 : HWYCBL00S5383S ;
► Adapters for XDR / QR: HWGXXX00S2760S ;
► Microspline kit / 12x142 : HWYCBL00S1959S ;
► Adapters for Microspline / QR: HWGXXX00S5623S ;
► Campagnolo N3W kit / 12x142: HWYABL00S5705S ;
► Campagnolo kit / QR: HWYABL00S7073S ;
► Kit Campagnolo / 12x142 : HWYABL00S7074S ;
► Adapters for Campagnolo / QR: HWGXXX00S2766S ;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S ;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S ;
;

Informations prix

Supplier suggested retail price in April 2025
