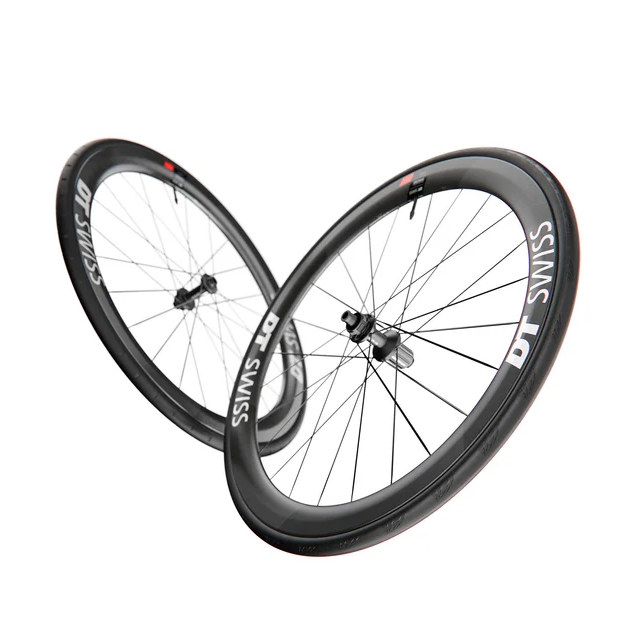

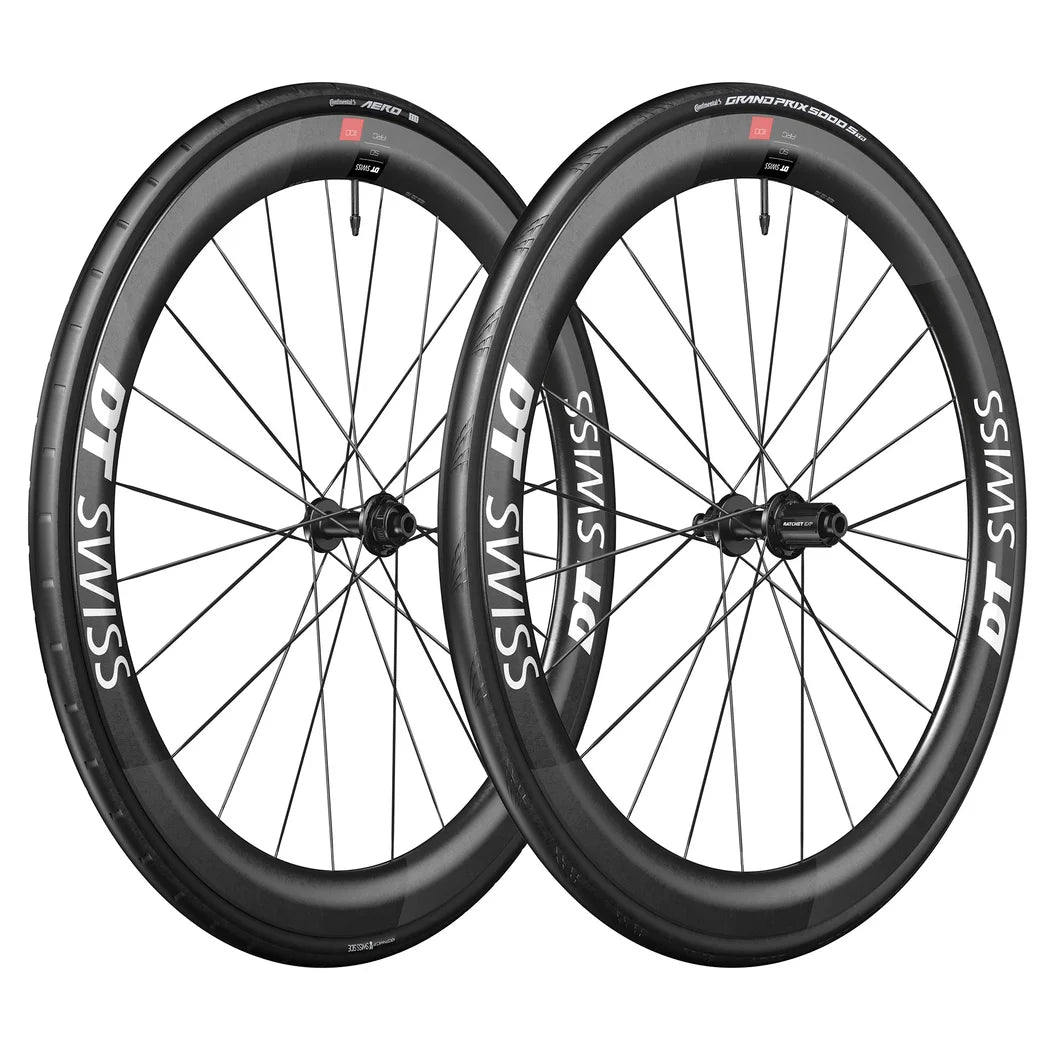

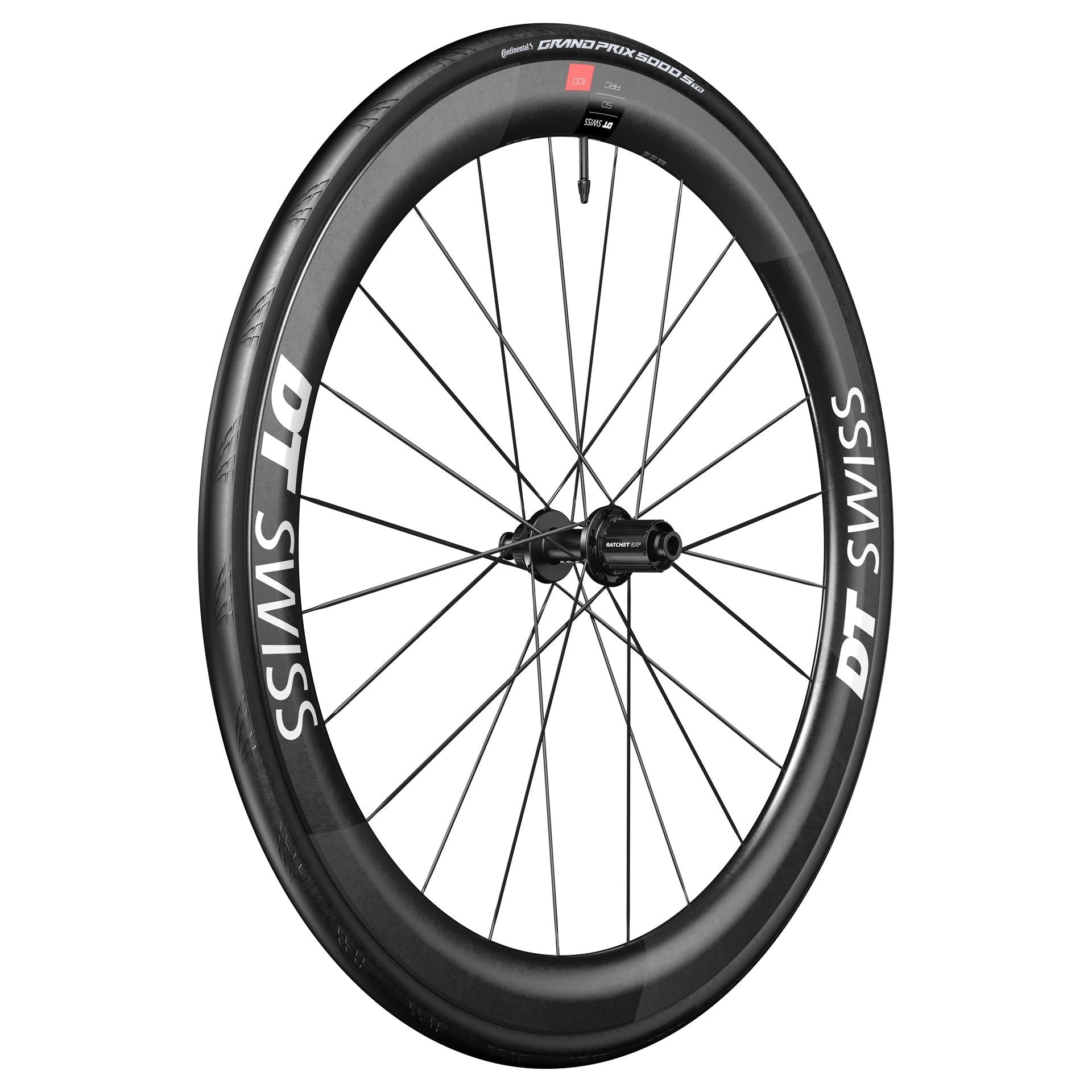

DT SWISS ARC 1100 DICUT WTS SPO 50 DISC Tubeless Ready Wheels (Center Lock)

Visit pair of wheels DT SWISS ARC 1100 DICUT 50 DISC is designed for cyclists in search of road performance. The result of collaboration... Read more
Regular price 2.299,90 €
Regular price 2.649,80 € Sale price 2.299,90 €
-10%
View full details

Description

Visit pair of wheels DT SWISS ARC 1100 DICUT 50 DISC is designed for cyclists in search of road performance. The result of collaboration with the aerodynamics experts at SWISS SIDEaerodynamics experts, this wheelset incorporates the rim profile AERO+ RIM PROFILE.rim profile, which reduces drag and steering torque. The result: optimum control even in windy conditions, and maximum propulsion efficiency.

ARC 1100 DICUT 50 wheels SPO (Sponsoring) are a limited edition identical to those used by professional racers. The exclusive double white stickers will give you the look of a pro and help you stand out from the crowd.

With its 50 mm heightit adapts perfectly to both hilly and flat roads, and offers precise handling in tight bends. It is equipped with the new DT Swiss Aero spokesspokes 180 DICUT hub hub and SINC Ceramic bearings bearings for unequalled smoothness.

Available in Tubeless Ready (Center Lock)version, the ARC 1100 Dicut is also available in a WTS (Wheel-Tire System)configuration, optimized for aerodynamics. It comes fitted with a 26-mm AERO 111 front tire and a 28-mm Continental GP 5000 STR rear tire.

Light, fast and stable, the ARC 1100 DICUT 50 DISC is ideal for demanding cyclists who want to dominate their terrain, whatever the weather.

Manufacturer's Manual + Rim/Tire Compatibility & Pressure Chart

Manual DICUT Models

Tubeless Mounting Manual

Ref: 15211129176444

Informations techniques

┘GENERAL
Category : Road
Weight Pair: 2072 g including tires
Front weight : 959 g incl. tires
Rear weight : 1113 g incl. tires
Max. load 110 kg
ASTM classification: 1
Recommended E-Bikes: No
Part Number Front / Rear : WARC110AIDXCA27969 / WARC110NIDJCA27970

┘JANTE
Material : Carbon
Tire interface: Hooked/Crochet tubeless TC
Wheel diameter: 622mm / 29" / 700c

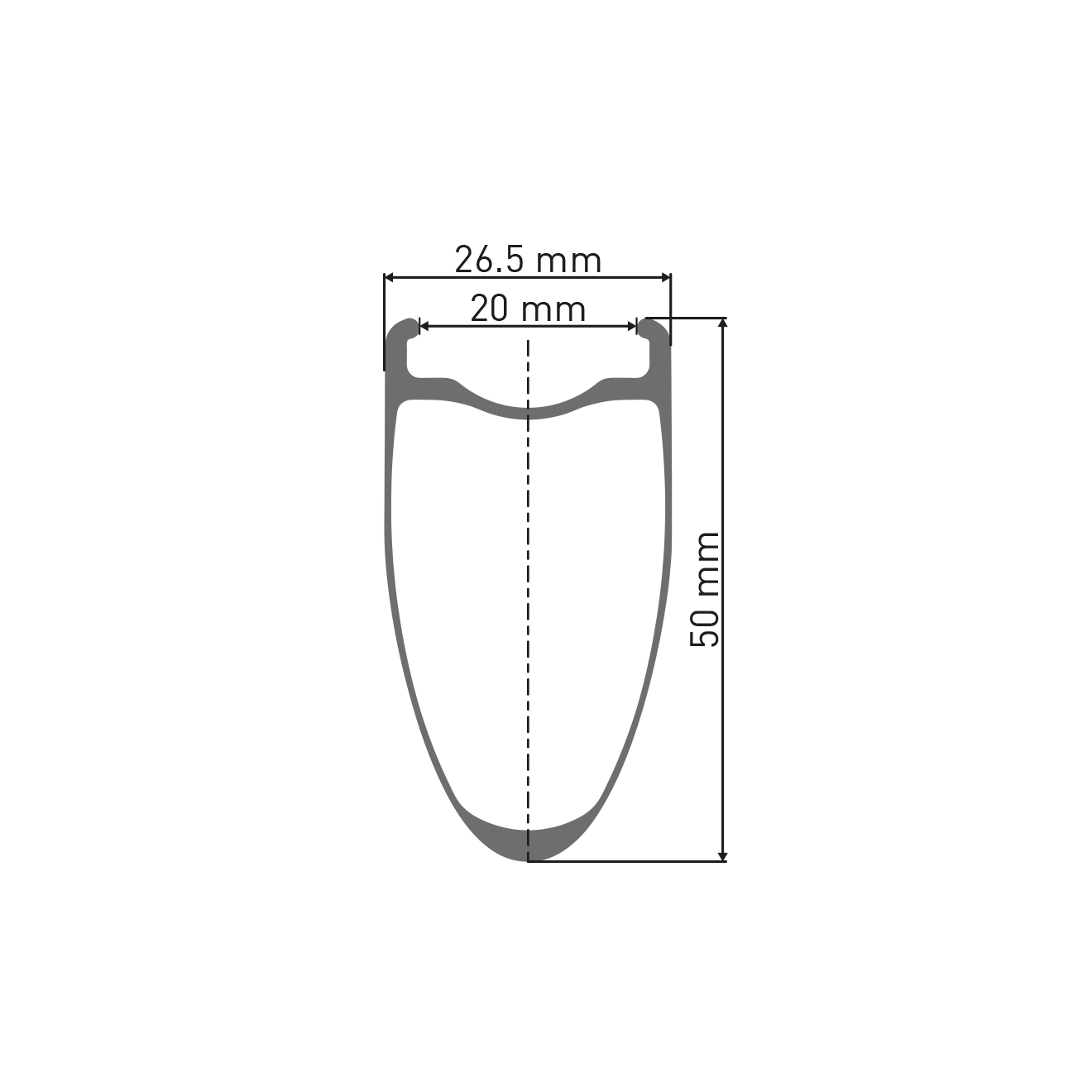

Rim height: 50mm
Internal width: 20mm
External width: 27mm
White Pro stickers

Tires included

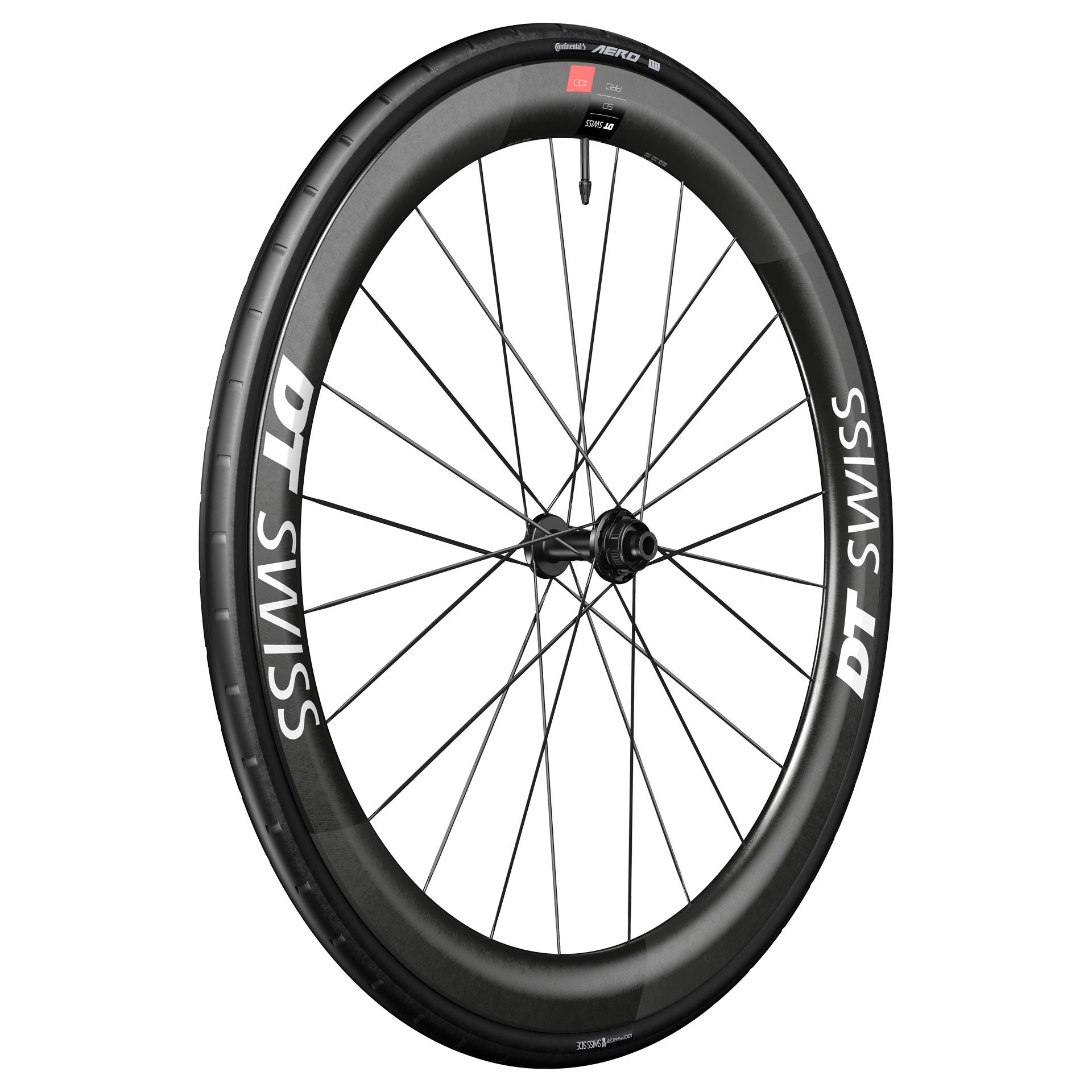

CONTINENTAL AERO 111 26-622 (Design & Innovation Award edition 2025)
CONTINENTAL GP5000 STR 28-622
Inner tubes included
CONTINENTAL TPU TUBE SV

┘MOYEUX
Axle system: 12mm Thru axle
Front axle center distance: 100mm
Rear axle center distance: 142mm
Disc mounting: Center Lock
Freewheel body: Shimano HG
Freewheel: Ratchet EXP 36

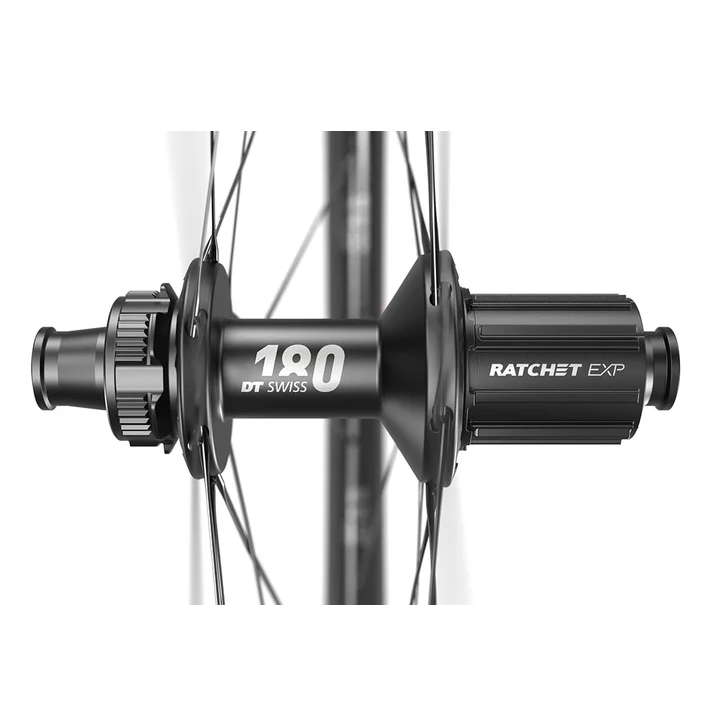

Hub type: 180

┘ NIPPLES AND NUTS
Front spokes :
- Left: DT aerolite® II t-head
- Right: DT aerolite® II t-head
Rear spokes :
- Left: DT aerolite® II t-head
- Right: DT aero comp® II t-head
Racking type: Two-cross (1:1)
Nuts : DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES

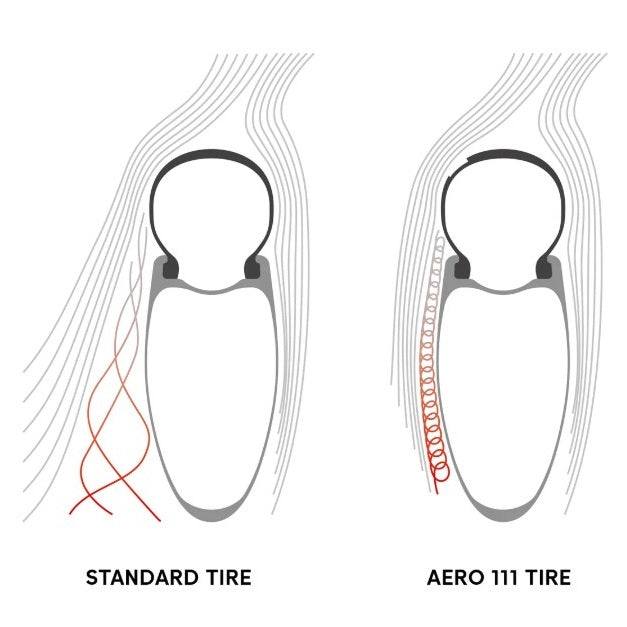

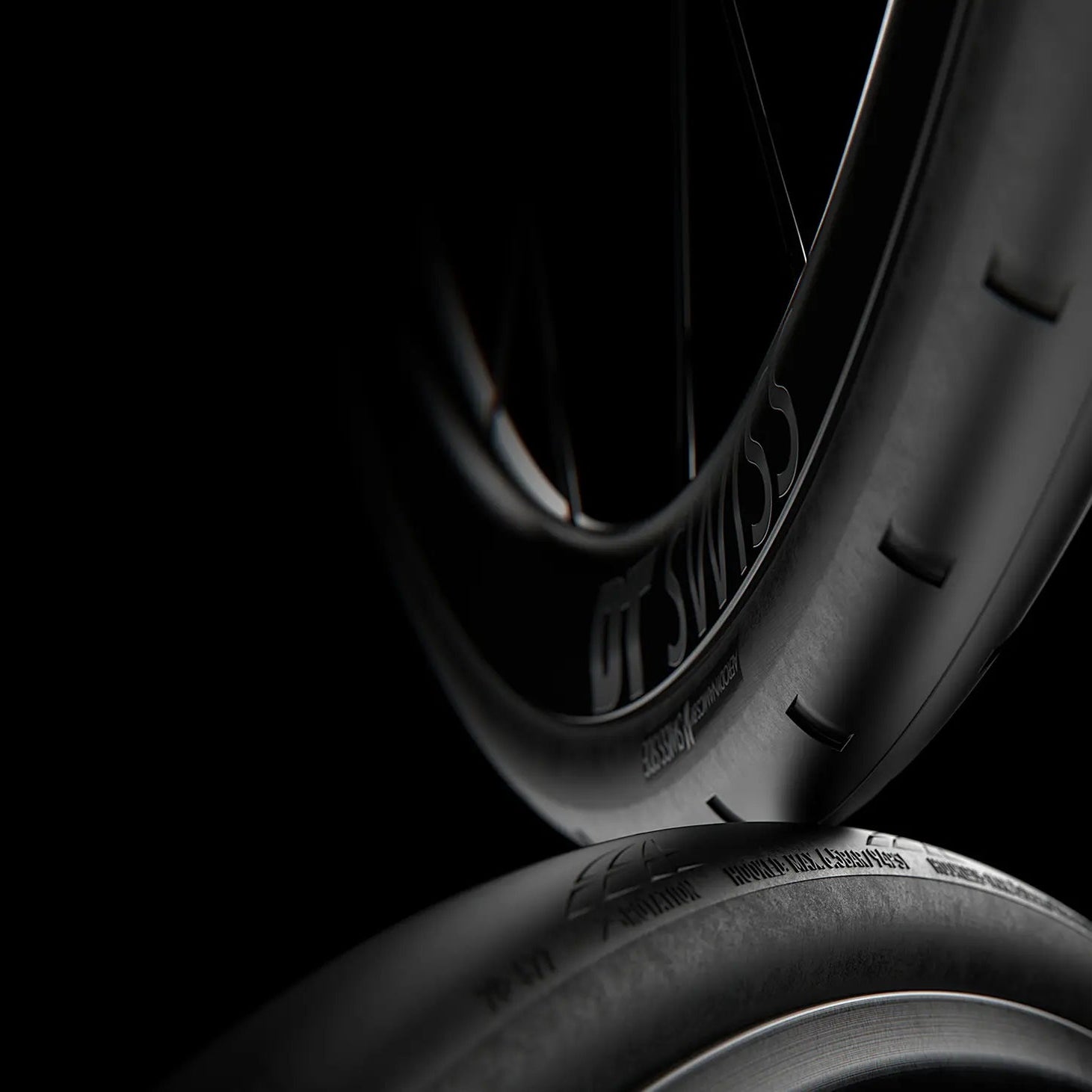

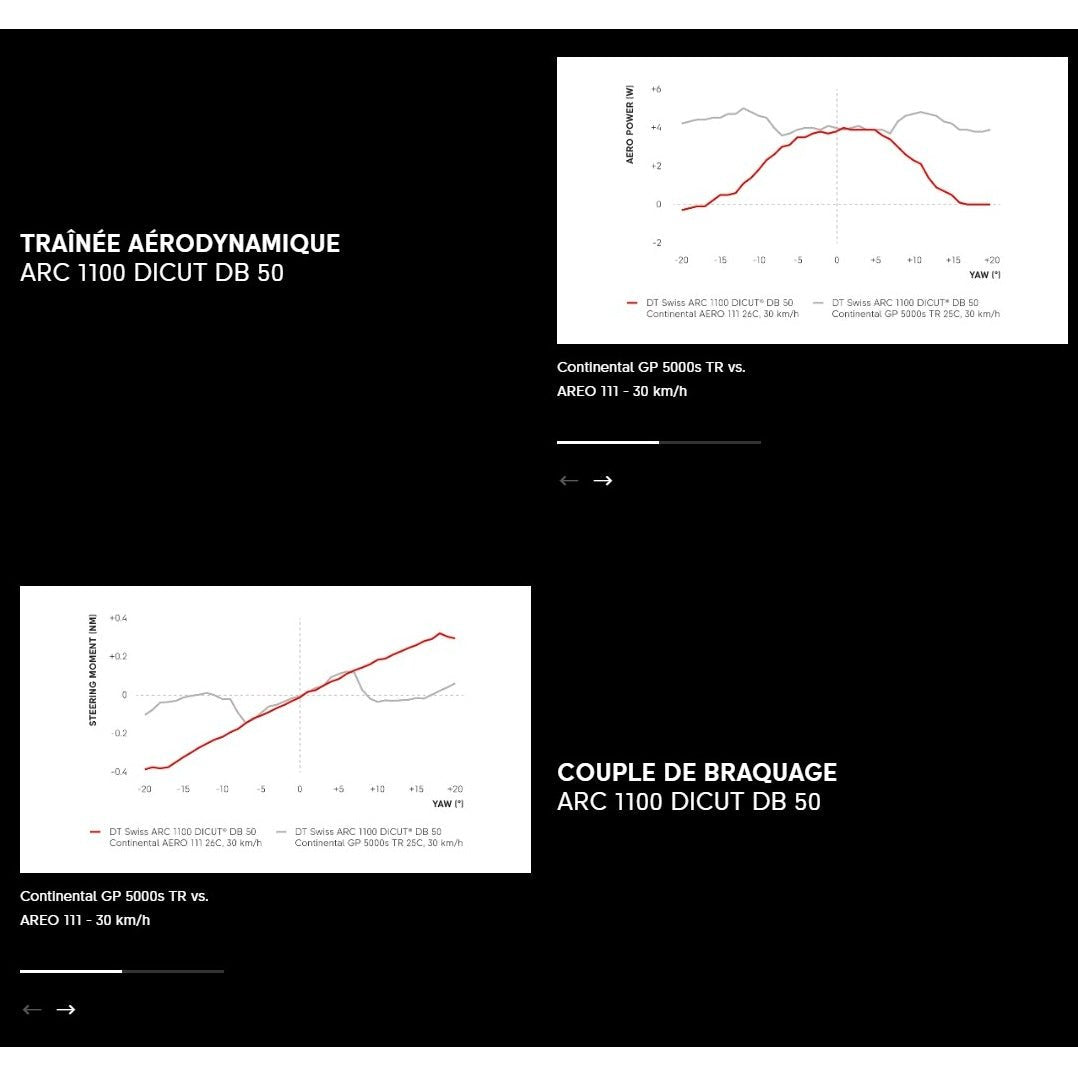

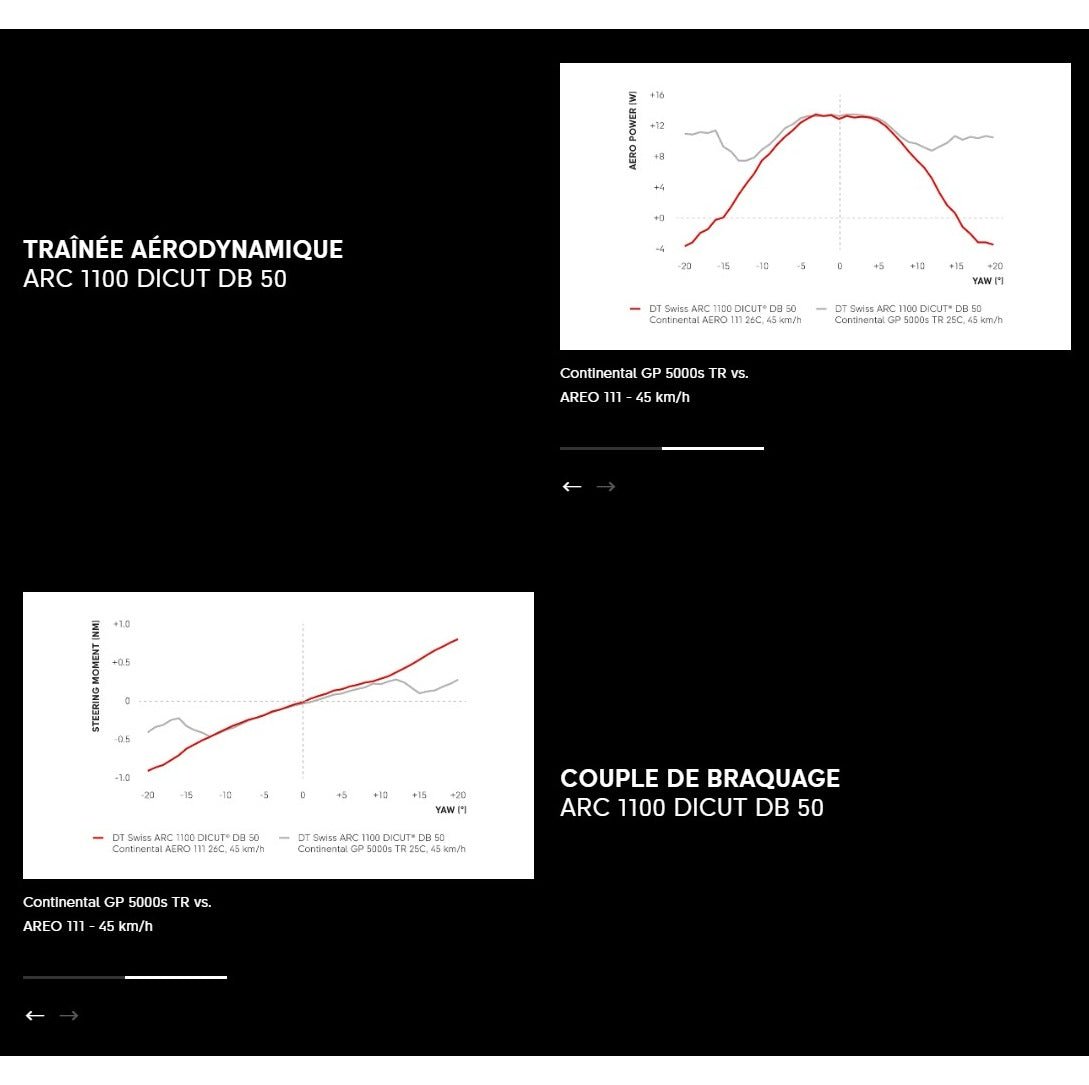

►WTS technology: wheel and tire have been considered as a single unit: the Wheel Tire System. The front-specific AERO 111 is perfectly matched to the Aero rim, displaying unprecedented aerodynamic optimization. The surface comprises 48 cavities evenly distributed throughout, known as vortex generators. These help control airflow disturbances on the front wheel, effectively reducing overall drag.
► AERO RANGE: DT Swiss's Aero range maximizes aerodynamics with streamlined rims and innovative spokes, offering high performance and exceptional stability, ideal for reaching optimum speeds ;
► DICUT: DT Swiss's DICUT concept combines high-performance hubs, optimized spokes and advanced aerodynamics. Designed for speed and efficiency, it maximizes lateral stiffness and power transfer on Road and Track ;

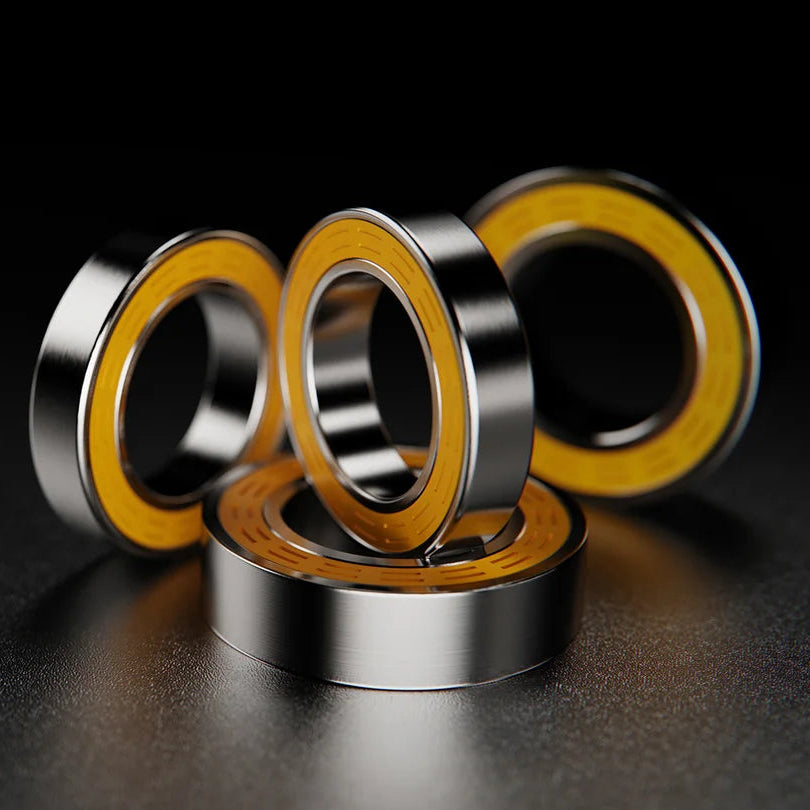

► SINC CERAMIC: DT Swiss's SINC Ceramic technology uses high-performance ceramic bearings to reduce friction, improve rotational smoothness and increase durability, offering increased efficiency and optimal power transmission;
► AERO+: DT Swiss's Aero+ technology optimizes aerodynamics and stability by reducing drag and improving handling. It perfectly balances air resistance, pedaling efficiency and crosswind control ;
► RATCHET EXP:DT Swiss's Ratchet EXP freewheel body technology optimizes hub engagement by integrating a single tapered spring, reducing weight and increasing durability. It ensures efficient power transfer and simplified maintenance. ;
► CRAFT KNOW-HOW: Handcrafted, guaranteed to benefit from all DT Swiss know-how;

┘INCLUSIVE
Rim base: 23mm tubeless roll
Valve: Black TL alu valve 49-65 mm / Valve protection sticker
Freewheel body kit: SRAM XDR
Wheel cover

┘CONVERSION REFERENCES
- Front wheel
► Adapters for QR: HWGXXX0000051S ;
- Rear wheel
► Adapters for Shimano HG / QR: HWGXXX00S7446S ;
► XDR kit / QR: HWYCBL00S5402S ;
► Kit XDR / 12x142 : HWYCBL00S5383S ;
► Adapters for XDR / QR: HWGXXX00S2760S ;
► Microspline kit / 12x142: HWYCBL00S1959S ;
► Adapters for Microspline / QR: HWGXXX00S5623S ;
► Campagnolo N3W kit / 12x142: HWYABL00S5705S ;
► Campagnolo kit / QR: HWYABL00S7073S ;
► Kit Campagnolo / 12x142 : HWYABL00S7074S ;
► Adapters for Campagnolo / QR: HWGXXX00S2766S ;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S ;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S ;

Informations prix

Supplier suggested retail price in April 2025
