DT SWISS

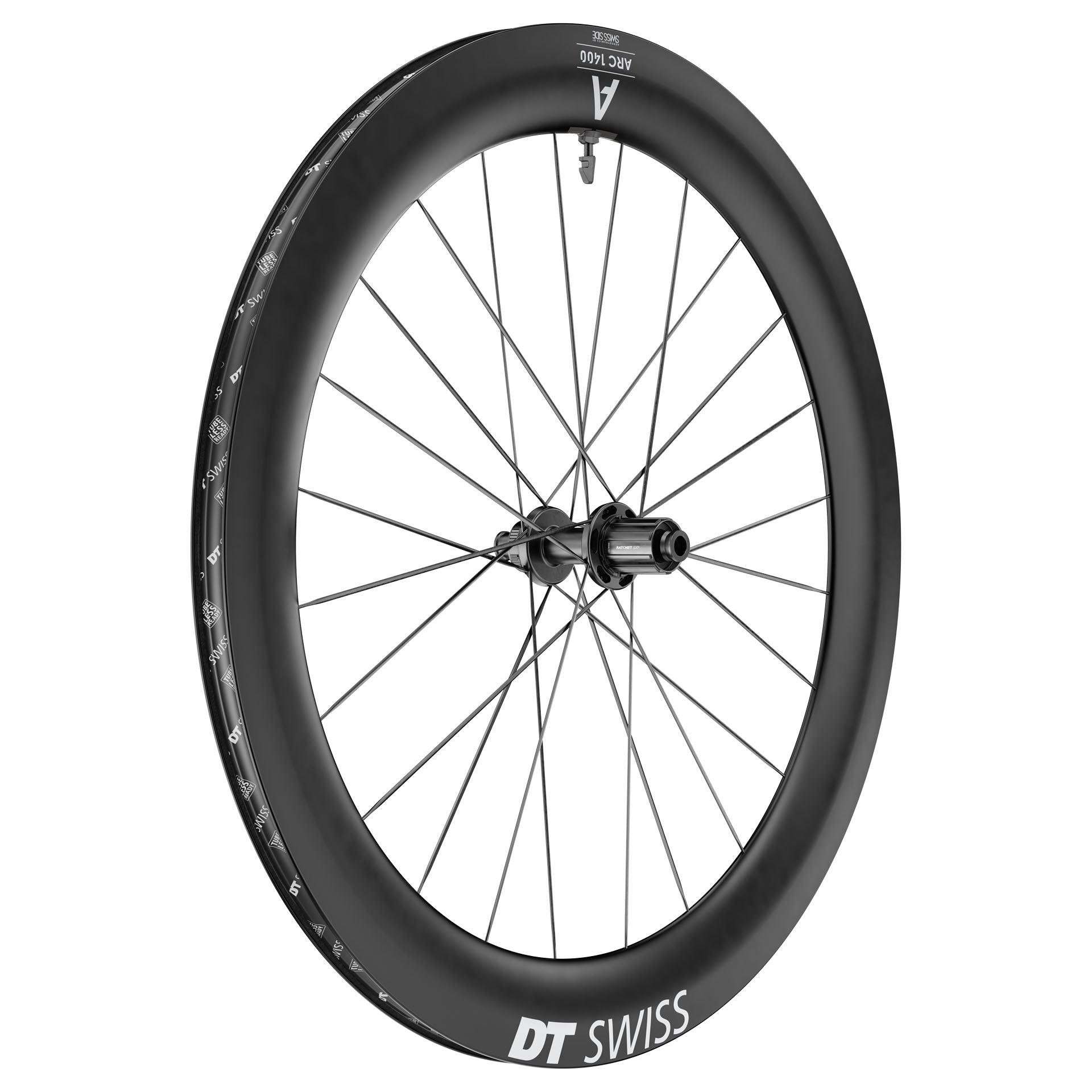

DT SWISS ARC 1400 DICUT 65 Tubeless Ready Rear Wheel (Center Lock)

Réf. fabricant : WARC140NIDICA27493
Designed for demanding cyclists in pursuit of performance, the rear wheel DT SWISS ARC 1400 DICUT 65 is from the third generation of the... Read more
Regular price 1.246,90 €
Regular price Sale price 1.246,90 €
View full details

Description

Designed for demanding cyclists in pursuit of performance, the rear wheel DT SWISS ARC 1400 DICUT 65 is from the third generation of the ARC range. It incorporates the latest aerodynamic advances with a 65 mm rim profile optimised for wide tyres, without compromising speed or stability.

Take the lead on your most coveted KOM: the low aerodynamic drag of these wheels is ideal for all-out racing. They cut through the air at full speed in the final metres of the sprint to claim victory. These rims will shine on flat, fast roads.

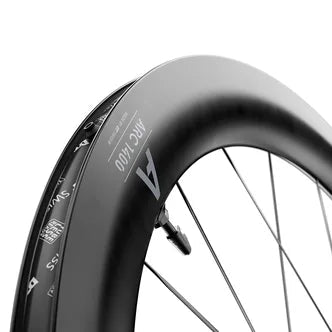

The new V-shaped rim allows for an increased internal width, which improves comfort and grip, while maximising aerodynamics. Paired with the DT 240 DICUT hubs with the Ratchet EXP system, these wheels ensure direct power transmission and unbeatable reliability. The DT aerocomp II flat spokes further enhance the stiffness and responsiveness of the whole.

Whether it's to lead the peloton or push your limits on climbs, the ARC 1400 DICUT 65 offers an ideal combination of low weight, manoeuvrability and aerodynamic performance. It excels in situations where every watt counts.

Embrace cutting-edge DT Swiss technology and gain a decisive advantage in your next races.

Manufacturer Manual + Rim/Tyre Compatibility & Pressure Chart

DICUT Models Manual

Tubeless Fitting Manual

Ref: 15385874727292

Informations techniques

┘GENERAL
Category: Road
Rear Weight: 971 g
Max Load: 110 kg
ASTM Classification: 1
Recommended E-Bikes: No
Manufacturer Reference: WARC140NIDICA27390

┘RIM
Material: Carbon
Tyre Interface: Hooked tubeless TC
Wheel Diameter: 622mm / 29" / 700c
Rim Height: 65mm
Internal Width: 22mm
External Width: 29mm

┘HUB
Axle System: 12mm Thru axle
Rear Spacing: 142mm
Disc Attachment: Center Lock
Freehub Body: Shimano HG
Freehub: Ratchet EXP 36
Hub Type: 240

┘SPOKES AND NIPPLES
Rear Spokes:
• Left: DT aero comp® II t-head
• Right: DT aero comp® II t-head
Lacing Type: Two-cross (1:1)
Nipples: DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
► AERO RANGE: The DT Swiss Aero range maximises aerodynamics with profiled rims and innovative spokes, delivering high performance and exceptional stability, ideal for reaching optimal speeds;
► DICUT: The DT Swiss DICUT concept combines high-performance hubs, optimised spokes and advanced aerodynamics. Designed for speed and efficiency, it maximises lateral stiffness and power transfer on road and track;
► AERO+: DT Swiss Aero+ technology optimises aerodynamics and stability by reducing drag and improving handling. It perfectly balances air resistance, pedalling efficiency and crosswind control;
► RATCHET EXP: DT Swiss Ratchet EXP freehub body technology optimises hub engagement by integrating a single conical spring, reducing weight and increasing durability. It ensures efficient power transfer and simplified maintenance;
► ARTISANAL CRAFTSMANSHIP: Hand-built, guaranteed to benefit from the full expertise of DT Swiss;

┘INCLUDED
Rim tape: 25mm tubeless strip
Black aluminium TL valve 49-65 mm / Valve protection sticker
SRAM XDR freehub body

┘CONVERSION REFERENCES
• Rear Wheel
► Adapters for Shimano HG / QR: HWGXXX00S7446S;
► XDR / QR Kit: HWYABL00S5382S;
► XDR / 12x142 Kit: HWYABL00S5401S;
► Adapters for XDR / QR: HWGXXX00S2760S;
► Microspline / 12x142 Kit: HWYABL00S1960S;
► Adapters for Microspline / QR: HWGXXX00S5623S;
► Campagnolo N3W / 12x142 Kit: HWYABL00S2993S;
► Campagnolo / QR Kit: HWYABL00S7073S;
► Campagnolo / 12x142 Kit: HWYABL00S7074S;
► Adapters for Campagnolo / QR: HWGXXX00S2766S;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S;

Informations prix

*Supplier recommended retail price in June 2025
