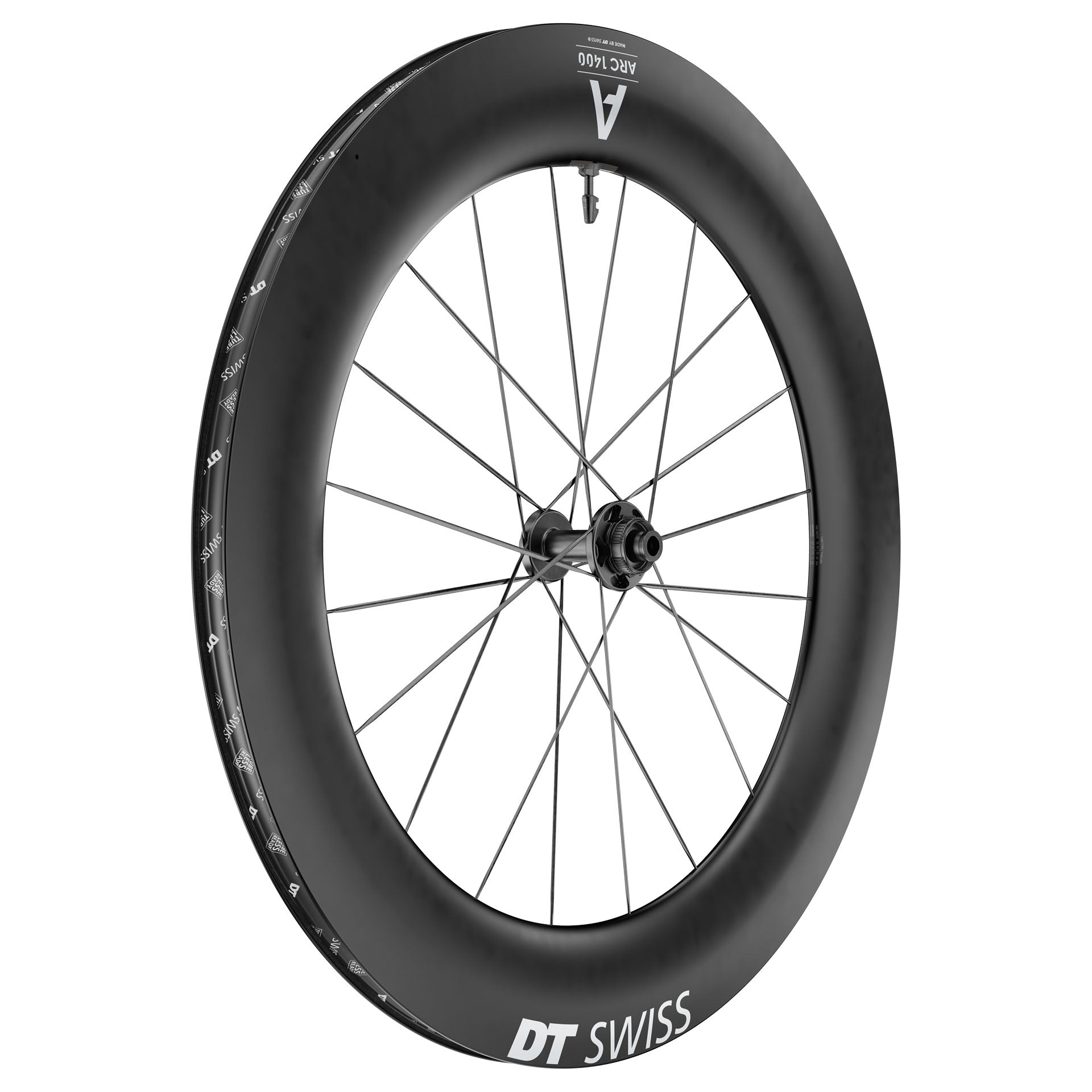

DT SWISS ARC 1400 DICUT 85 Tubeless Ready Front Wheel (Center Lock)

Réf. fabricant : WARC140AIDXCA27384
Designed for demanding cyclists in search of performance, theDT SWISS ARC 1400 DICUT 85 front wheel is the third generation of the ARC range.... Read more
Regular price 902,90 €
Regular price Sale price 902,90 €
View full details

Description

Designed for demanding cyclists in search of performance, theDT SWISS ARC 1400 DICUT 85 front wheel is the third generation of the ARC range. It incorporates the latest aerodynamic advances with an 85 mm rim profile optimized for wide tires, without compromising speed or stability.

Take the lead in cycling: when a fast setup is needed to reach top speed in your next triathlon or time trial. These wheels, ideally suited to 28 and 25 mm tires, find their best ally in the AERO 111 tire to deliver the best aerodynamic performance.

The rim's new V-shape provides increased internal width, improving comfort and grip while maximizing aerodynamics. Combined with DT 240 DICUT hubs, thesewheels ensure direct power transmission and rock-solid reliability. DT aerocomp II flat spokes further enhance rigidity and responsiveness.

Whether you're taking the lead, riding in the peloton or pushing your limits on the climbs, the ARC 1400 DICUT 85 offers the ideal combination of low weight, maneuverability and aerodynamic performance. It excels in situations where every watt counts.

Embrace DT Swiss' cutting-edge technology and equip yourself with a decisive advantage in your next race.

Manufacturer's Manual + Rim/Tire & Pressure Compatibility Chart

Manual DICUT Models

Tubeless Mounting Manual

Ref: 15385883705724

Informations techniques

┘GENERAL
Category: Road
Front weight: 835 g
Max. load 110 kg
ASTM classification: 1
Recommended E-Bikes: No
Part Number : WARC140AIDXCA27384

┘JANTE
Material: Carbon
Tire interface: Hooked/Crochet tubeless TC
Wheel diameter: 622mm / 29" / 700c
Rim height: 85mm
Internal width: 22mm
External width: 32mm

┘MOYEU
Axle system: 12mm Thru axle
Front center distance: 100mm
Disc mounting: Center Lock
Freewheel body: Shimano HG
Freewheel: Ratchet EXP 36
Hub type: 240

┘ NIPPLES AND NUTS
Forward spokes :
- Left: DT aero comp® II t-head
- Rights : DT aero comp® II t-head
Shelving type: Two-cross (1:1)
Nuts : DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
► AERO RANGE: DT Swiss's Aero range maximizes aerodynamics with streamlined rims and innovative spokes, offering high performance and exceptional stability, ideal for reaching optimal speeds ;
► DICUT: DT Swiss's DICUT concept combines high-performance hubs, optimized spokes and advanced aerodynamics. Designed for speed and efficiency, it maximizes lateral stiffness and power transfer on road and track ;
► AERO+: DT Swiss's Aero+ technology optimizes aerodynamics and stability by reducing drag and improving handling. It perfectly balances air resistance, pedaling efficiency and crosswind control ;
► CRAFT KNOW-HOW: Handcrafted, guaranteed to benefit from all the DT Swiss know-how ;

┘INCLUSIVE
Rim tape : 25mm tubeless roll
Valve TL alu black 81-85 mm / Valve protection sticker
SRAM XDR freewheel body

┘CONVERSION REFERENCES
- Front wheel
► Adapters for QR: HWGXXX0000051S ;
