DT SWISS

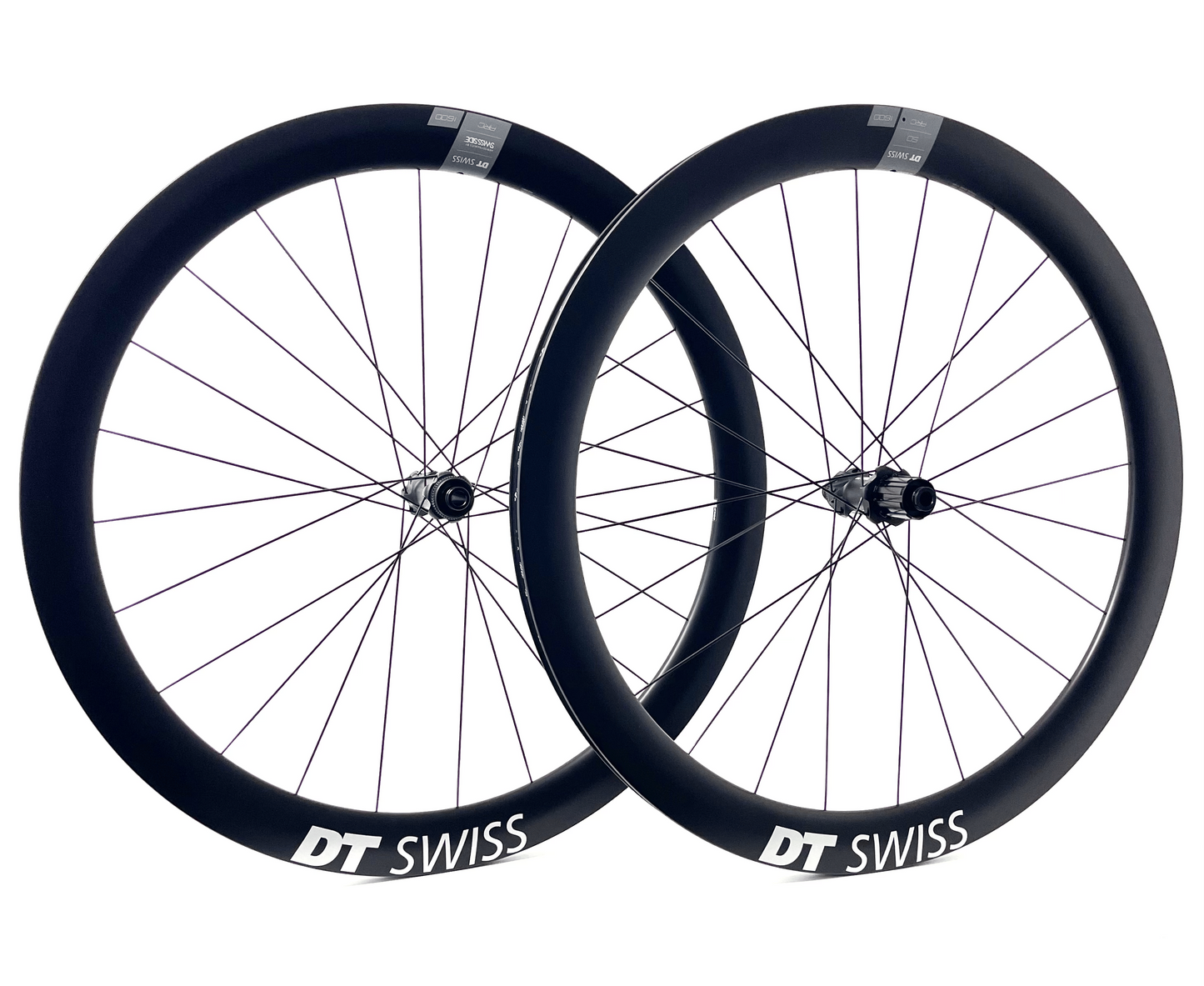

DT SWISS ARC 1600 SPLINE 50mm Tubeless Ready Front Wheel (Centerlock)

The DT SWISS ARC 1600 SPLINE 50 DISC front wheel is designed for optimal aerodynamics thanks to collaboration with SWISS SIDE, a specialist in... Read more
629,90 €
629,90 €
View full details

Description

The DT SWISS ARC 1600 SPLINE 50 DISC front wheel is designed for optimal aerodynamics thanks to collaboration with SWISS SIDE, a specialist in the field.

Its AERO+ rim profile reduces drag and steering torque for perfect stability and control, even in crosswinds. This design maximises the sail effect for more efficient propulsion.

Equipped with the 350 hub, the wheel ensures optimal power transmission. The reinforced spokes provide perfect stiffness while maintaining excellent smoothness, even on technical and hilly roads. You thus enjoy a supple and dynamic ride, whatever the conditions.

Offering a perfect balance between performance and manoeuvrability, these wheels are ideal for cyclists seeking speed and control in all conditions.

Please note: Photo is non-contractual. Rear wheel not included.

Manufacturer's Manual + Rim/Tyre Compatibility & Pressures Chart

SPLINE Models Manual

Tubeless Fitting Manual

Ref: 15049563210108

Informations techniques

┘GENERAL
Category: Road
Max Load: 110 kg
ASTM Classification: 1
Recommended for E-Bikes: No

┘RIM
Material: Carbon
Tyre Interface: Hooked/Hooked tubeless TC
Wheel Diameter: 622mm / 29" / 700c
Rim Height: 50mm
Internal Width: 20mm
External Width: 27mm

┘HUB
Axle System: 12mm Thru axle
Front Spacing: 100mm
Disc Attachment: Center Lock
Hub Type: 350

┘SPOKES AND NIPPLES
Left Spokes: DT aero comp® t-head
Right Spokes: DT aero comp® t-head
Lacing Type: Two-cross (1:1)
Nipples: DT ProLock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
► SPLINE: The DT Swiss SPLINE concept combines robust hubs, optimised straight spokes and Ratchet technology for efficient power transfer. It ensures reliability, responsiveness and ease of maintenance for versatile performance;
► ARTISAN CRAFTSMANSHIP: Hand-built, guaranteed to benefit from all of DT Swiss's know-how;

┘INCLUDED
Rim Tape: 23mm tubeless roll
Valve: Black alu TL valve 49-65 mm / Valve protection sticker
;

Informations prix

*Supplier recommended retail price in February 2025
