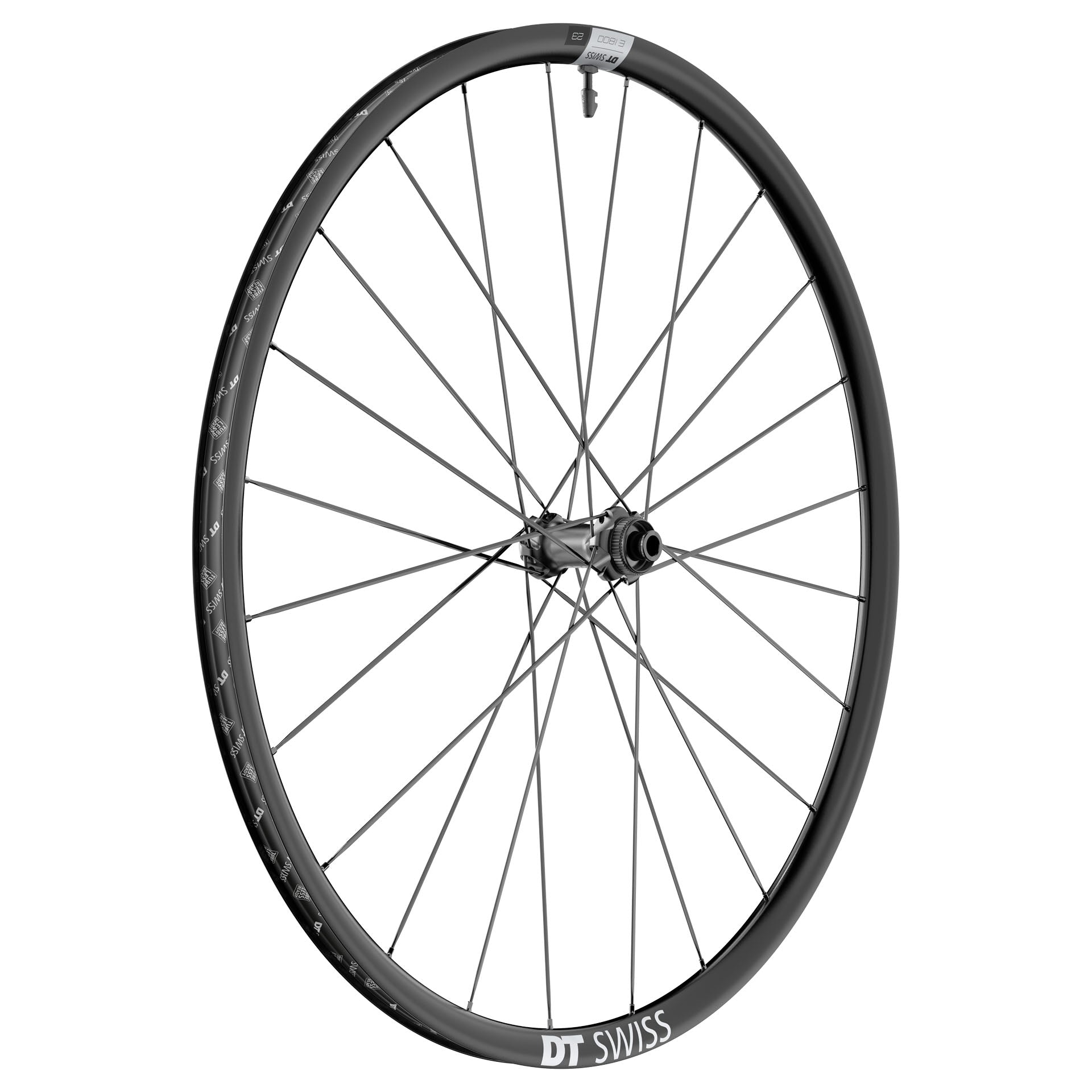

DT SWISS E 1800 SPLINE 23 DISC Front Wheel Tubeless Ready (Center Lock) 2024

Réf. fabricant : W0E1800AIDXSA21215
The DT SWISS E 1800 SPLINE 23 DISC Front Wheel, from the Endurance range, unleashes the full potential of your bike, whether for commuting,... Read more
169,90 €
169,90 €
View full details

Description

The DT SWISS E 1800 SPLINE 23 DISC Front Wheel, from the Endurance range, unleashes the full potential of your bike, whether for commuting, weekend sporting rides or long rides on unknown terrain.

Thanks to Aero+ technology, this wheel optimises aerodynamics and stability, reducing air resistance for better efficiency. Its rim with a 20 mm internal width allows the fitting of wide tyres, offering maximum comfort and grip.

It is fitted with ultra-resistant flat-section spokes and high-precision 370 hubs, ensuring great smoothness and optimal power transfer.

Its ultra-precise assembly guarantees high-performance behaviour on all terrain types, making this wheel a reliable and versatile choice for demanding cyclists.

Manufacturer Manual + Rim/Tyre Compatibility & Pressure Chart

SPLINE Models Manual

Tubeless Assembly Manual

Ref: 15049570877820

Informations techniques

┘GENERAL
Category: Road
Manufacturer Weight: 829 g
Max. Load: 120 kg
ASTM Classification: 2
E-Bikes Recommended: Yes (max. 32Km/h or max. 250W)
Manufacturer Reference: W0E1800AIDXSA21215

┘RIM
Material: Aluminium
Tyre Interface: Hooked tubeless TC
Wheel Diameter: 622mm / 29" / 700c
Rim Height: 30mm
Internal Width: 22mm
External Width: 26mm

┘HUBS
Axle System: 12mm Thru axle
Spacing: 100mm
Disc Mounting: Center Lock
Hub Type: 370

┘SPOKES AND NIPPLES
Left Spokes: DT new aero® II straightpull
Right Spokes: DT aero comp® wide straightpull
Spoke Pattern: Two-cross (1:1)
Nipples: DT ProLock Squorx ProHead alu

┘ASSEMBLY & TECHNOLOGIES
► ENDURANCE RANGE: The DT Swiss Endurance range is designed to offer robustness, comfort and reliability over long distances. Ideal for cyclists seeking performance and durability on all types of terrain;
► SPLINE: DT Swiss's SPLINE concept combines robust hubs, optimised straight-pull spokes and Ratchet technology for efficient power transfer. It ensures reliability, responsiveness and ease of maintenance for versatile performance;
► AERO+: DT Swiss's Aero+ technology optimises aerodynamics and stability by reducing drag and improving handling. It perfectly balances air resistance, pedalling efficiency and crosswind control;
► ARTISAN KNOW-HOW: Hand-built, guaranteed to benefit from the full DT Swiss expertise;

┘INCLUDED
Rim Tape: 25mm tubeless strip
Valve: Road tubeless valve 18-25mm
;

Informations prix

*Supplier recommended retail price in February 2025
