DT SWISS

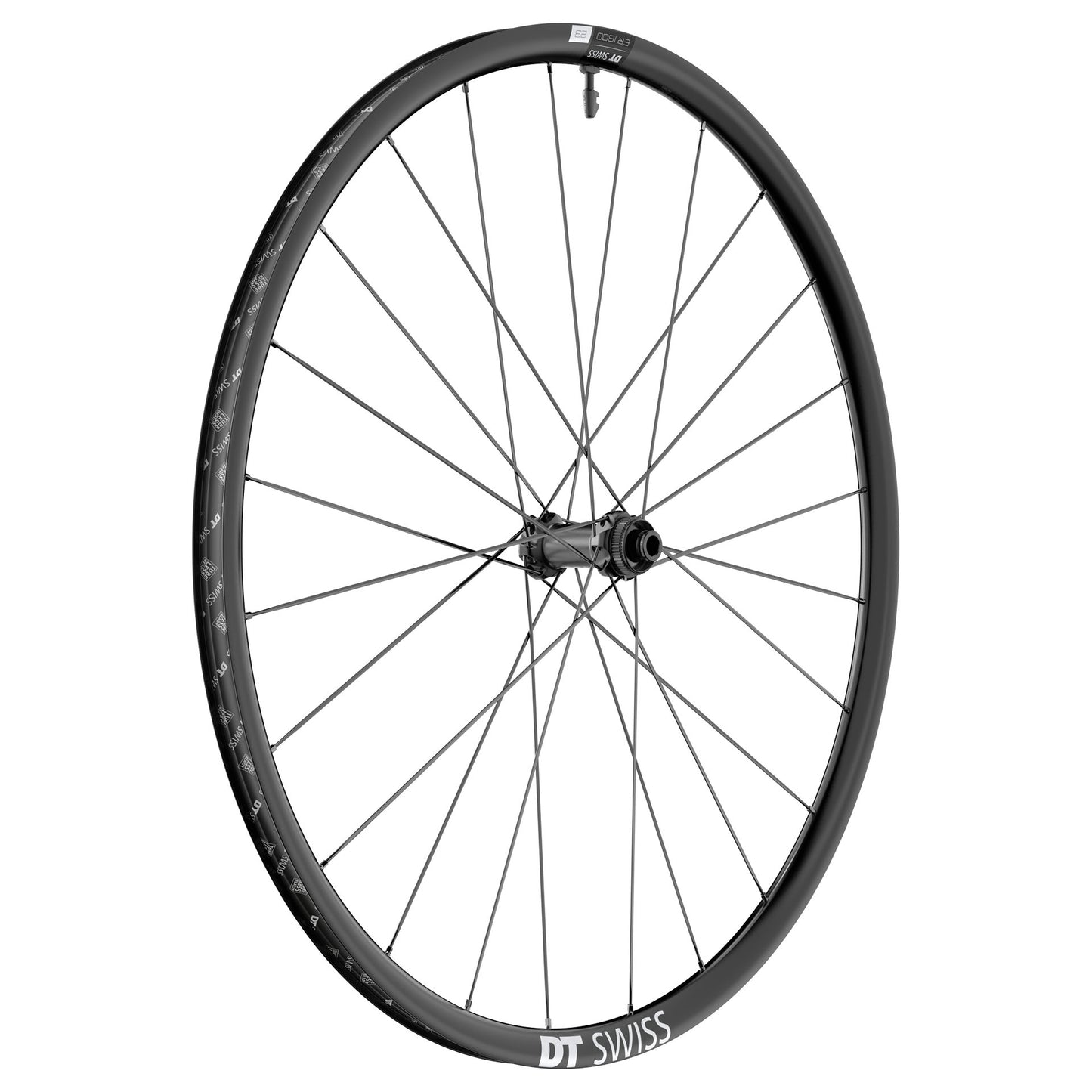

DT SWISS ER 1600 SPLINE 23 Tubeless Ready Front Wheel (Center Lock)

The front wheel DT SWISS ER 1600 SPLINE 23 is designed for cyclists looking for long, stress-free rides. Thanks to its 22 mm rim... Read more
Regular price 159,90 €
Regular price Sale price 159,90 €
View full details

Description

The front wheel DT SWISS ER 1600 SPLINE 23 is designed for cyclists looking for long, stress-free rides. Thanks to its 22 mm rim and compatibility with wider tires, it offers optimum comfort and enhanced grip. This ideal combination allows you to absorb road irregularities and prolong your outings without feeling tired.

Equipped with 350,hub, the wheel ensures optimum power transmission. The reinforced spokes provide perfect rigidity while maintaining excellent fluidity, even on technical and hilly roads. So you can enjoy a smooth, dynamic ride, whatever the conditions.

With the DT Swiss ER 1600 SPLINE 23Climb hills with ease and let yourself be carried away by a fluid, high-performance riding experience. A must-have choice for cyclists seeking endurance and performance.

Manufacturer's Manual + Rim/Tire & Pressure Compatibility Chart

SPLINE Models Manual

Tubeless Installation Manual

Ref: 15041515618684

Informations techniques

┘GENERAL
Category : Road
Weight Manufacturer : Rear: 876g, Front: 788g
Max. load 120 kg
ASTM classification: 2
Recommended for E-Bikes: Yes (max. 32Km/h or max. 250W)
Part Number : WER1600AIDXSA21177

┘JANTE
Material : Aluminium
Tire interface: Hooked/Crochet tubeless TC
Wheel diameter: 622mm / 29" / 700c
Rim height: 23mm
Internal width: 22mm
External width: 26mm

┘MOYEU
Axle system: 12mm Thru axle
Center distance: 100mm
Disc mounting: Center Lock
Hub type: 350

┘ NIPPLES AND NUTS
Left spokes: DT aero comp® wide straightp
Straight spokes: DT aero comp® wide straightp
Racking type: Two-cross (1:1)
Nipples : DT ProLock Squorx ProHead alu

┘ASSEMBLY & TECHNOLOGIES
► SPLINE: DT Swiss's SPLINE concept combines robust hubs, optimized straight spokes and Ratchet technology for efficient power transfer. It ensures reliability, responsiveness and ease of maintenance for versatile performance ;
► ARTISANAL KNOW-HOW: Handcrafted, guaranteed to benefit from all DT Swiss know-how;

┘INCLUSIVE
Rim base: 25mm tubeless roll
Valve: Black aluminum TL valve 18-25mm

┘CONVERSION REFERENCES
Front wheel:
► Adapters for QR: HWGXXX00S3801S ;
► Adapters for DT Swiss Thru Bolt System: HWGXXX00S3803S ;
► Adapters for TA15 (15x100mm): HWGXXX0004785S ;
