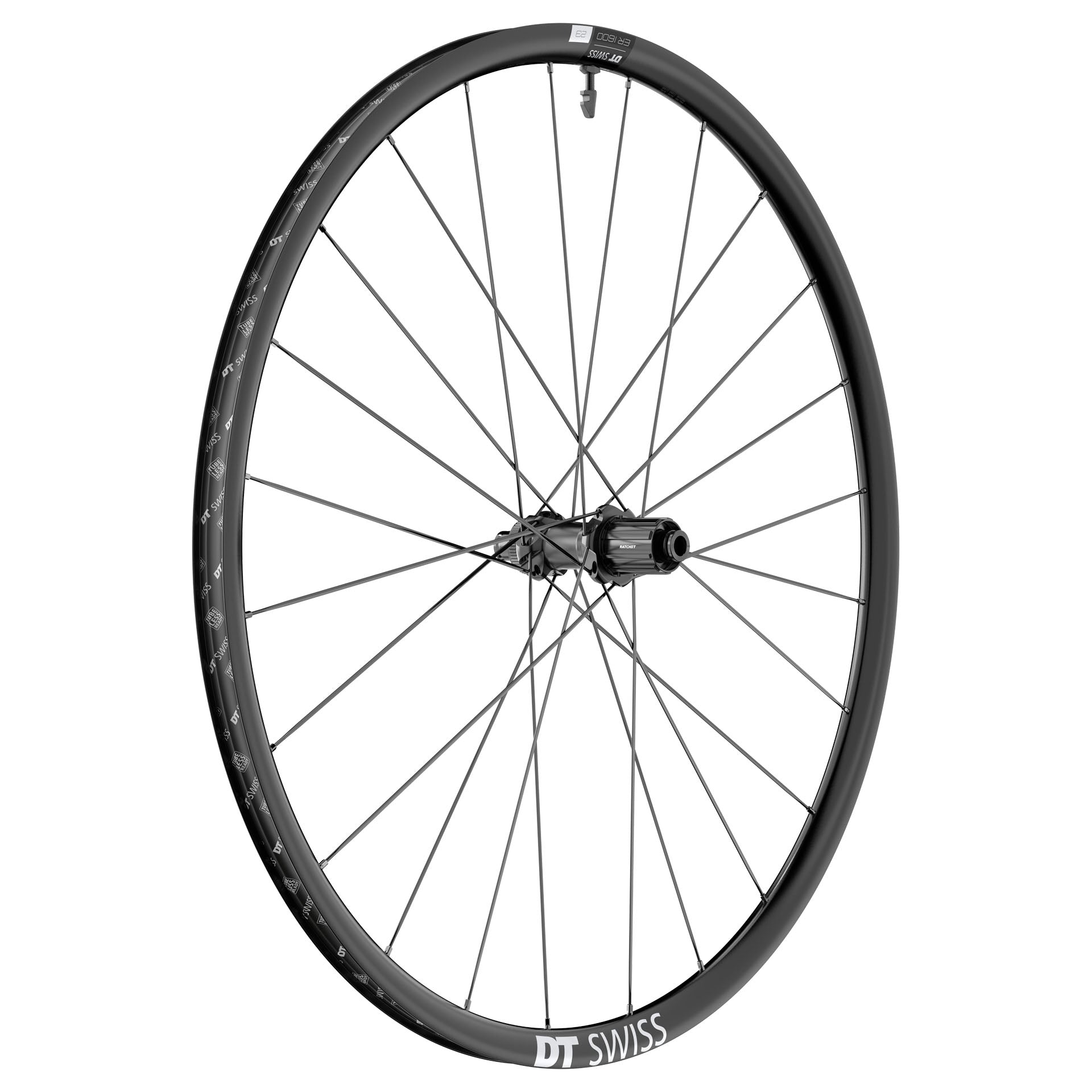

DT SWISS ER 1600 SPLINE 23 Tubeless Ready Rear Wheel (Center Lock)

The rear wheel DT SWISS ER 1600 SPLINE 23 is designed for cyclists who love long, unrestricted rides. Thanks to the 22 mm rim... Read more
319,90 €
319,90 €
View full details

Description

The rear wheel DT SWISS ER 1600 SPLINE 23 is designed for cyclists who love long, unrestricted rides. Thanks to the 22 mm rim and its compatibility with wider tyres, it offers optimal comfort and increased grip. This ideal combination absorbs road irregularities and extends your rides without fatigue.

Fitted with the 350 Ratchet System SL 36-tooth hub, the wheel guarantees fast and efficient engagement, ensuring optimal power transfer. The reinforced spokes provide perfect stiffness while maintaining excellent fluidity, even on technical and hilly roads. You thus enjoy a smooth and dynamic ride, whatever the conditions.

With the DT Swiss ER 1600 SPLINE 23, climb hills with effortless ease and enjoy a smooth and high-performing riding experience. An essential choice for cyclists seeking endurance and performance.

Manufacturer Manual + Rim/Tyre Compatibility & Pressure Chart

SPLINE Models Manual

Tubeless Assembly Manual

Ref: 15041515749756

Informations techniques

┘GENERAL
Category: Road
Manufacturer Weight: Rear: 876g
Max Load: 120 kg
ASTM Classification: 2
Recommended for E-Bikes: Yes (max. 32km/h or max. 250W)
Manufacturer Reference: WER1600NID1SA21179

┘RIM
Material: Aluminium
Tyre Interface: Hooked tubeless TC
Wheel Diameter: 622mm / 29" / 700c
Rim Height: 23mm
Internal Width: 22mm
External Width: 26mm

┘HUB
Axle System: 12mm Thru axle
Spacing: 142mm
Disc Mount: Center Lock
Freehub Body: Sram XDR
Freehub: Ratchet System 36 SL
Hub Type: 350

┘SPOKES AND NIPPLES
Left Spokes: DT aero comp® wide straightp
Right Spokes: DT aero comp® wide straightp
Lacing Type: Two-cross (1:1)
Nipples: DT ProLock Squorx ProHead alu

┘ASSEMBLY & TECHNOLOGIES
► SPLINE: The DT Swiss SPLINE concept combines robust hubs, optimised straight-pull spokes and Ratchet technology for efficient power transfer. It ensures reliability, responsiveness and ease of maintenance for versatile performance;
► ARTISANAL CRAFTSMANSHIP: Hand-built, guaranteed to benefit from all of DT Swiss's expertise;

┘INCLUDED
Rim Tape: 25mm tubeless roll
Valve: Black alu TL valve 18-25mm

┘CONVERSION REFERENCES
Rear wheel:
► Adapters for Shimano HG / QR: HWGXXX0006383S;
► XDR / QR Kit: HWYABM00S5716S;
► XDR / 12x142 Kit: HWYABX00S7711S;
► Adapters for XDR / QR: HWGXXX00S5483S;
► Microspline / 12x142 Kit: HWYABM00S1962S;
► Adapters for Microspline / QR: HWGXXX00S5623S;
► Campagnolo N3W / 12x142 Kit: HWYABM00S0692S;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S;
;

Informations prix

*Supplier recommended retail price in February 2025
