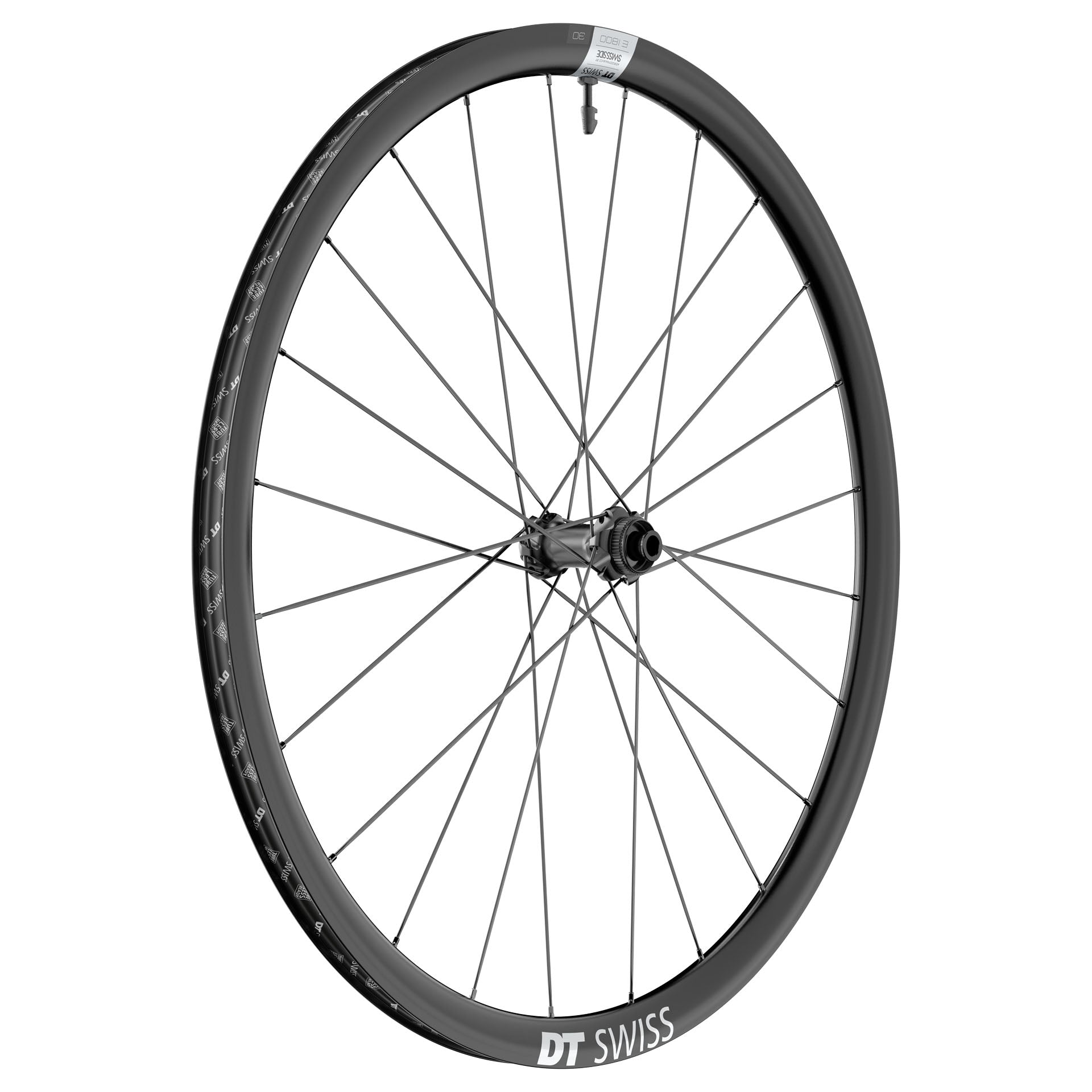

DT SWISS ER 1600 SPLINE 30 Tubeless Ready Front Wheel (Center Lock)

Réf. fabricant : WER1600AIDXSA21171
The front wheel DT SWISS ER 1600 SPLINE 30 is designed for cyclists who love long, carefree rides. Thanks to the 22 mm rim... Read more
229,90 €
229,90 €
View full details

Description

The front wheel DT SWISS ER 1600 SPLINE 30 is designed for cyclists who love long, carefree rides. Thanks to the 22 mm rim and compatibility with wider tyres, it offers optimal comfort and increased grip. This ideal combination absorbs road irregularities and extends your rides without fatigue.

Fitted with the 350 hub, the wheel ensures optimal power transfer. The reinforced spokes provide perfect rigidity while maintaining excellent smoothness, even on technical and hilly roads. You benefit from a supple and dynamic ride, whatever the conditions.

Its aerodynamically optimised design allows you to face the wind without slowing down. An essential choice for cyclists seeking endurance and performance.

Manufacturer Manual + Rim/Tyre Compatibility & Pressure Chart

SPLINE Models Manual

Tubeless Mounting Manual

Ref: 15049563242876

Informations techniques

┘GENERAL
Category: Road
Manufacturer Weight: Front: 873g
Max Load: 130 kg
ASTM Classification: 2
Recommended E-Bikes: Yes (max. 32km/h or max. 250W)
Manufacturer Reference: WER1600AIDXSA21171

┘RIM
Material: Aluminium
Tyre Interface: Hooked tubeless TC
Wheel Diameter: 622mm / 29" / 700c
Rim Height: 30mm
Internal Width: 22mm
External Width: 26mm

┘HUB
Axle System: 12mm Thru axle
Spacing: 100mm
Disc Mounting: Center Lock
Hub Type: 350

┘SPOKES AND NIPPLES
Left Spokes: DT aero comp® II straightpull
Right Spokes: DT aero comp® II straightpull
Lacing Pattern: Two-cross (1:1)
Nipples: DT ProLock Squorx ProHead alu

┘ASSEMBLY & TECHNOLOGIES
► SPLINE: The DT Swiss SPLINE concept combines robust hubs, optimised straight-pull spokes and Ratchet technology for efficient power transfer. It ensures reliability, responsiveness and ease of maintenance for versatile performance;
► ARTISAN CRAFTSMANSHIP: Hand-built, guaranteed to benefit from all of DT Swiss's expertise;

┘INCLUDED
Rim tape: 25mm tubeless roll
Valve: Black alu TL valve 26-35mm

┘CONVERSION REFERENCES
Front wheel:
► Adapters for QR: HWGXXX00S3801S;
► Adapters for DT Swiss Thru Bolt System: HWGXXX00S3803S;
► Adapters for TA15 (15x100mm): HWGXXX0004785S;
;

Informations prix

*Supplier recommended retail price in February 2025
