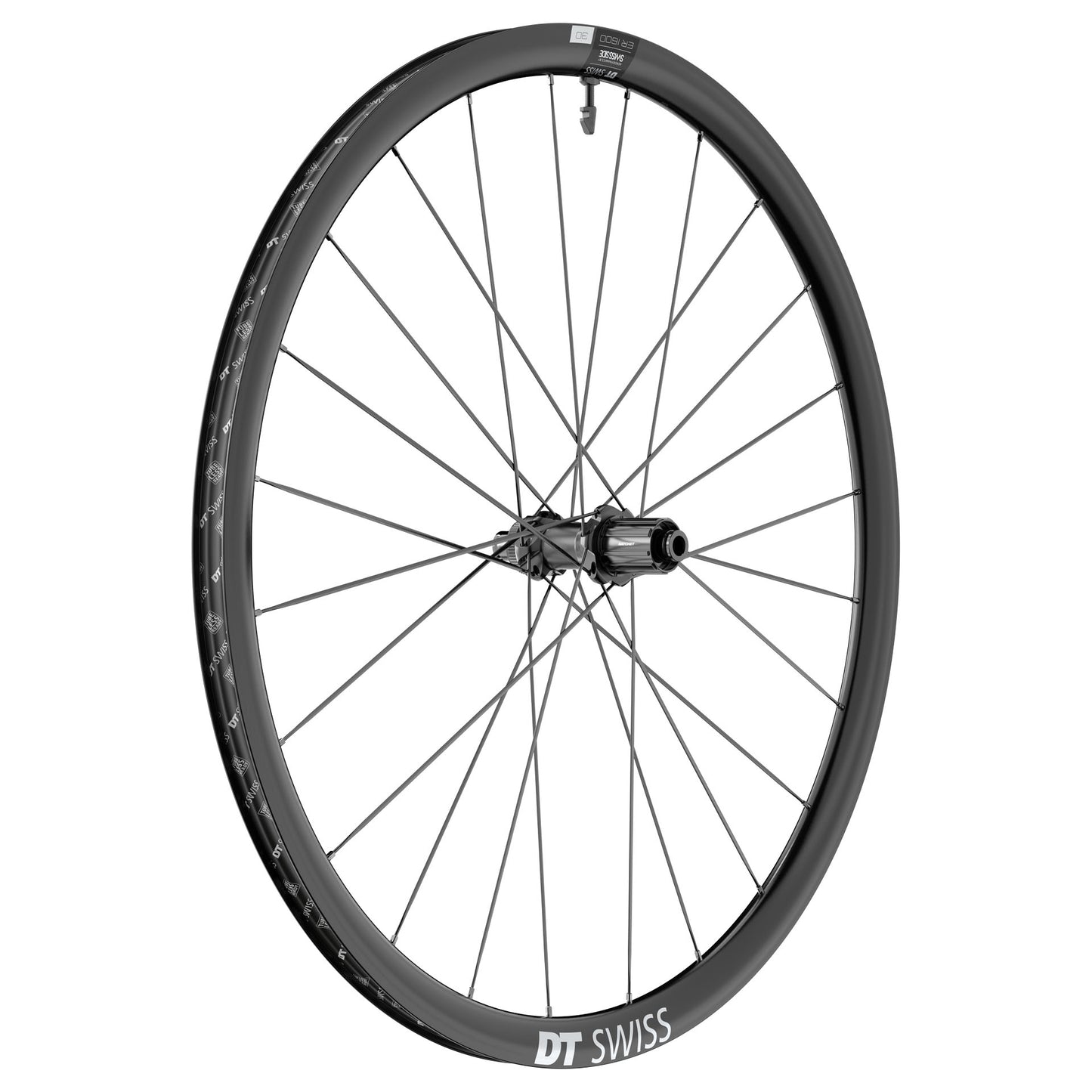

DT SWISS ER 1600 SPLINE 30 Rear Wheel Tubeless Ready (Centre Lock)

The rear wheel DT SWISS ER 1600 SPLINE 30 is designed for cyclists eager for long, carefree rides. Thanks to the 22 mm rim... Read more
329,90 €
329,90 €
View full details

Description

The rear wheel DT SWISS ER 1600 SPLINE 30 is designed for cyclists eager for long, carefree rides. Thanks to the 22 mm rim and its compatibility with wider tyres, it offers optimal comfort and increased grip. This ideal combination absorbs road irregularities and extends your rides without fatigue.

Equipped with the 350 Ratchet System SL 36-tooth hub, the wheel ensures quick and efficient engagement, providing optimal power transfer. The reinforced spokes deliver perfect rigidity while maintaining excellent fluidity, even on technical and hilly roads. You enjoy a smooth and dynamic ride, whatever the conditions.

Its aerodynamically optimised design allows you to face the wind without slowing down. An essential choice for cyclists seeking endurance and performance.

Manufacturer's Manual + Rim/Tyre Compatibility & Pressures Chart

SPLINE Models Manual

Tubeless Fitting Manual

Ref: 15049563636092

Informations techniques

┘GENERAL
Category: Road
Manufacturer Weight: Rear: 958g
Max Load: 130 kg
ASTM Classification: 2
Recommended for E-Bikes: Yes (max. 32km/h or max. 250W)
Manufacturer Reference: WER1600NIDISA21172

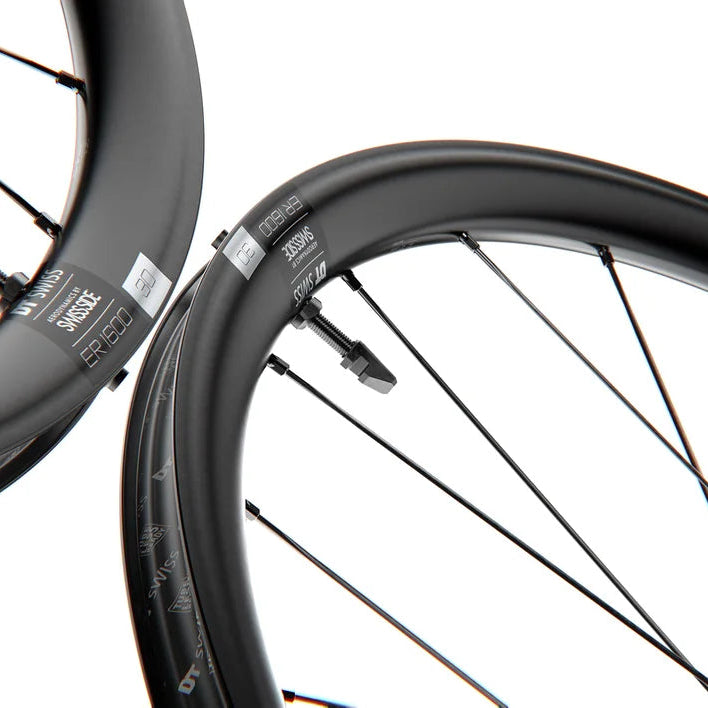

┘RIM
Material: Aluminium
Tyre Interface: Hooked tubeless TC
Wheel Diameter: 622mm / 29" / 700c
Rim Height: 30mm
Internal Width: 22mm
External Width: 26mm

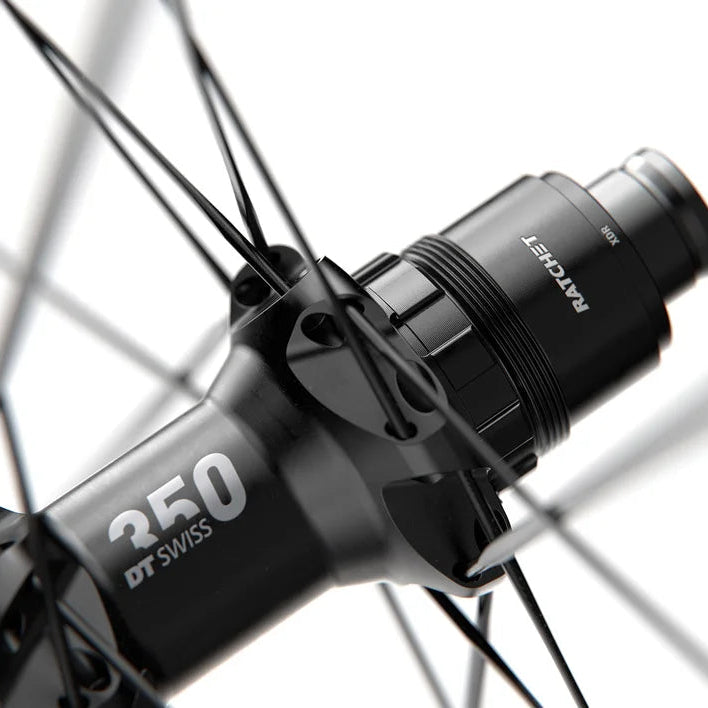

┘HUB
Axle System: 12mm Thru axle
Spacing: 142mm
Disc Mount: Center Lock
Freehub Body: Shimano HG

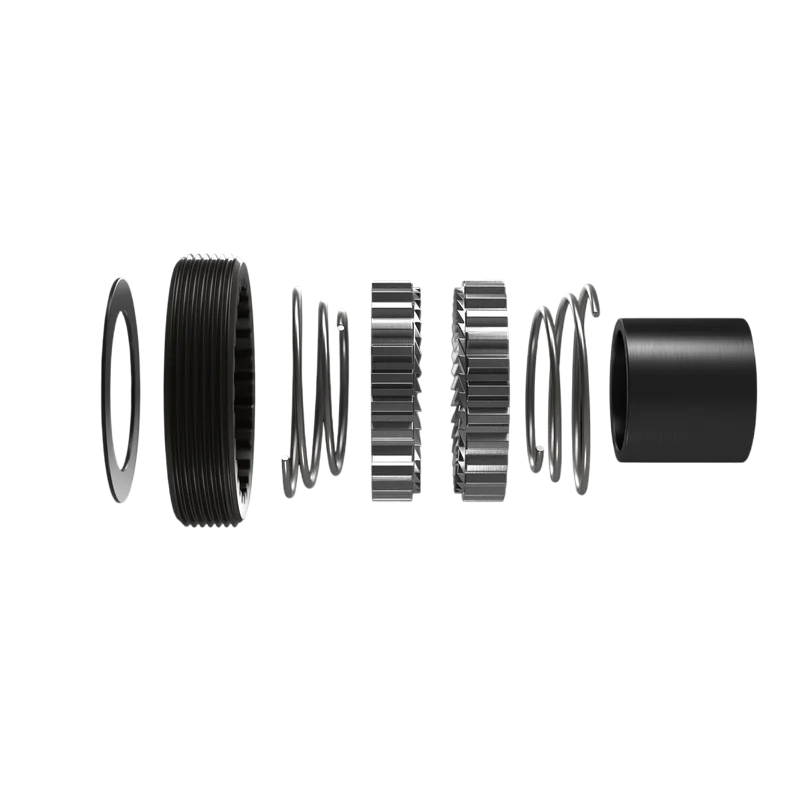

Freehub: Ratchet System 36 SL
Hub Type: 350

┘SPOKES AND NIPPLES
Left spokes: DT aero comp® II straightpull
Right spokes: DT aero comp® II straightpull
Lacing type: Two-cross (1:1)
Nipples: DT ProLock Squorx ProHead alu

┘ASSEMBLY & TECHNOLOGIES
► SPLINE: The SPLINE concept by DT Swiss combines robust hubs, optimised straight-pull spokes and Ratchet technology for efficient power transfer. It ensures reliability, responsiveness and ease of maintenance for versatile performance;
► ARTISAN CRAFTSMANSHIP: Hand-built, guaranteed to benefit from all of DT Swiss's expertise;

┘INCLUDED
Rim tape: 25mm tubeless roll
Valve: Black alu TL valve 26-35mm

┘CONVERSION REFERENCES
Rear wheel:
► Adapters for Shimano HG / QR: HWGXXX0006383S;
► XDR / QR kit: HWYABM00S5716S;
► XDR / 12x142 kit: HWYABX00S7711S;
► Adapters for XDR / QR: HWGXXX00S5483S;
► Microspline / 12x142 kit: HWYABM00S1962S;
► Adapters for Microspline / QR: HWGXXX00S5623S;
► Campagnolo N3W / 12x142 kit: HWYABM00S0692S;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S;
;

Informations prix

*Recommended retail price from supplier in June 2026
