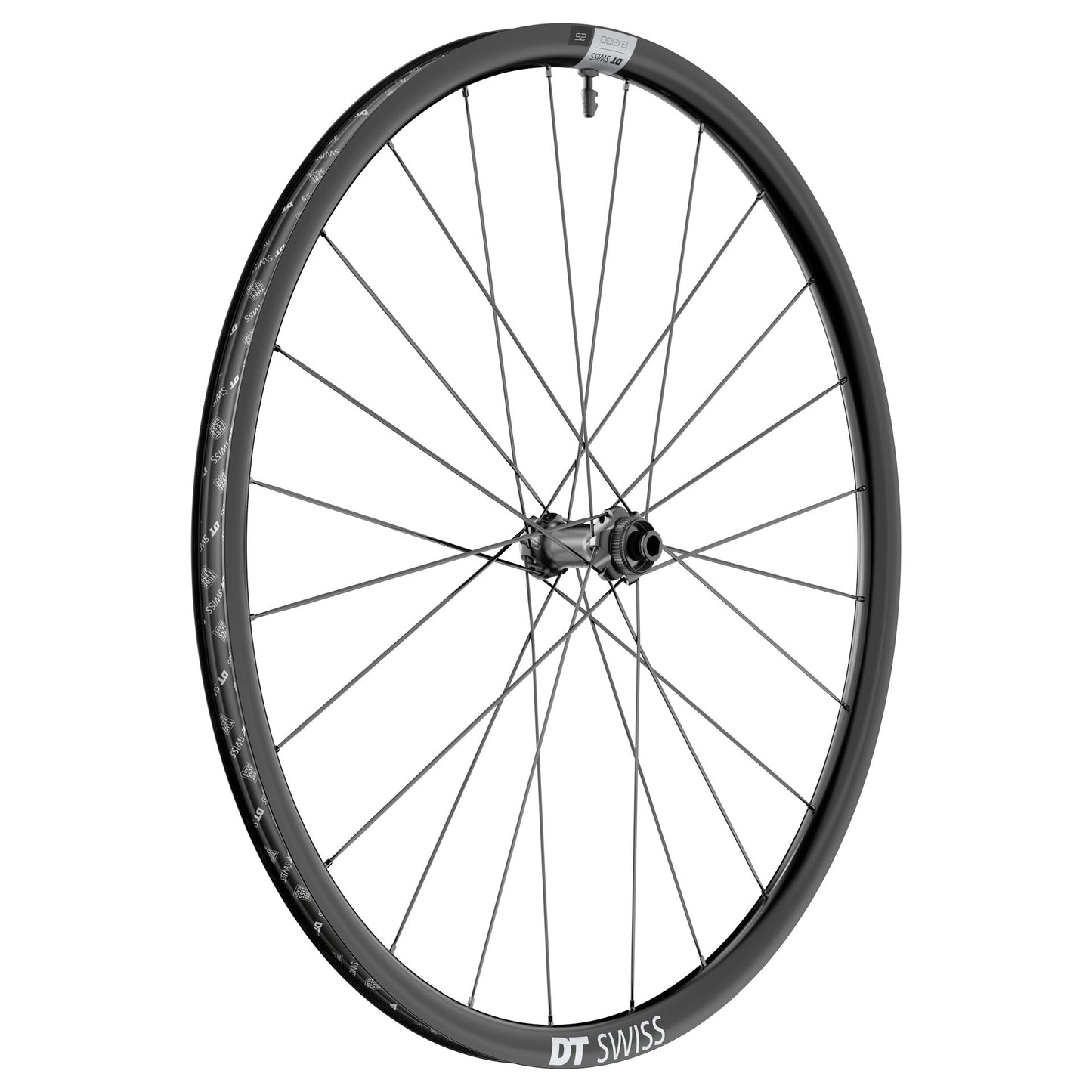

DT SWISS G 1800 SPLINE 25 DISC Tubeless Ready Front Wheel (Centerlock)

The Front Wheel DT SWISS G 1800 SPLINE 25 DISC is ideal for exploring new horizons off-road. Designed with care, it combines robustness and... Read more

Recommanded price: 179,90 €

179,90 €
179,90 €
View full details

Description

The Front Wheel DT SWISS G 1800 SPLINE 25 DISC is ideal for exploring new horizons off-road. Designed with care, it combines robustness and reliability to accompany your adventures. Gravel.

Its wide aluminum rim ensures comfort and versatility, offering excellent compatibility with high-volume tires. The 370 hubhub guarantees precise engagement and efficient power transmission, even on the most demanding terrain. Reinforced spokes ensure optimum rigidity and increased shock resistance.

Thanks to its durable design, this wheel allows you to tackle every outing without strain. Whether it's a multi-day ride or a quick off-road excursion, this wheel will accompany you with reliability and performance. Pack your panniers, leave the asphalt behind and set off on new adventures with confidence.

Manufacturer's Manual + Rim/Tire & Pressure Compatibility Chart

SPLINE Models Manual

Tubeless Installation Manual

Ref: 14993963647356

Informations techniques

┘GENERAL
Category : Gravel
Manufacturer Weight: 864 g
Max. load Load : 130 kg
ASTM classification: 2
Recommended for E-Bikes: Yes (max. 32Km/h or max. 250W)
Part Number : W0G1800AIDXSA21293

┘JANTE
Material : Aluminium
Tire interface: Hooked/Crochet tubeless TC
Wheel diameter: 622mm / 29" / 700c
Rim height: 25mm
Internal width: 24mm
External width: 28mm

┘MOYEUX
Axle system: 12mm Thru axle
Center distance: 100mm
Disc mounting: Center Lock
Hub type: 370

┘ NIPPLES AND NUTS
Left spokes: DT aero comp® wide straightp
Straight spokes: DT aero comp® wide straightp
Racking type: Two-cross (1:1)
Nipples : DT ProLock Squorx ProHead alu

┘ASSEMBLY & TECHNOLOGIES
► GRAVEL RANGE: DT Swiss's G range is specially designed for gravel, combining robustness, lightness and comfort. With rims optimized for wide tires and tubeless compatibility, it guarantees grip and performance on varied terrain ;
► SPLINE: DT Swiss's SPLINE concept combines robust hubs, optimized straight spokes and Ratchet technology for efficient power transfer. It ensures reliability, responsiveness and ease of maintenance for versatile performance ;
► CRAFT KNOW-HOW: Handcrafted, guaranteed to benefit from all DT Swiss know-how;

┘INCLUSIVE
Rim base: 27mm tubeless roll
Valve: Black aluminum TL valve 18-25mm

┘CONVERSION REFERENCES
► Adapters for QR: HWGXXX00S3801S ;
► Adapters for DT Swiss Thru Bolt System: HWGXXX00S3803S ;
► Adapters for TA15 (15x100mm): HWGXXX0004785S ;

Informations prix

Supplier suggested retail price in February 2025
