DT SWISS

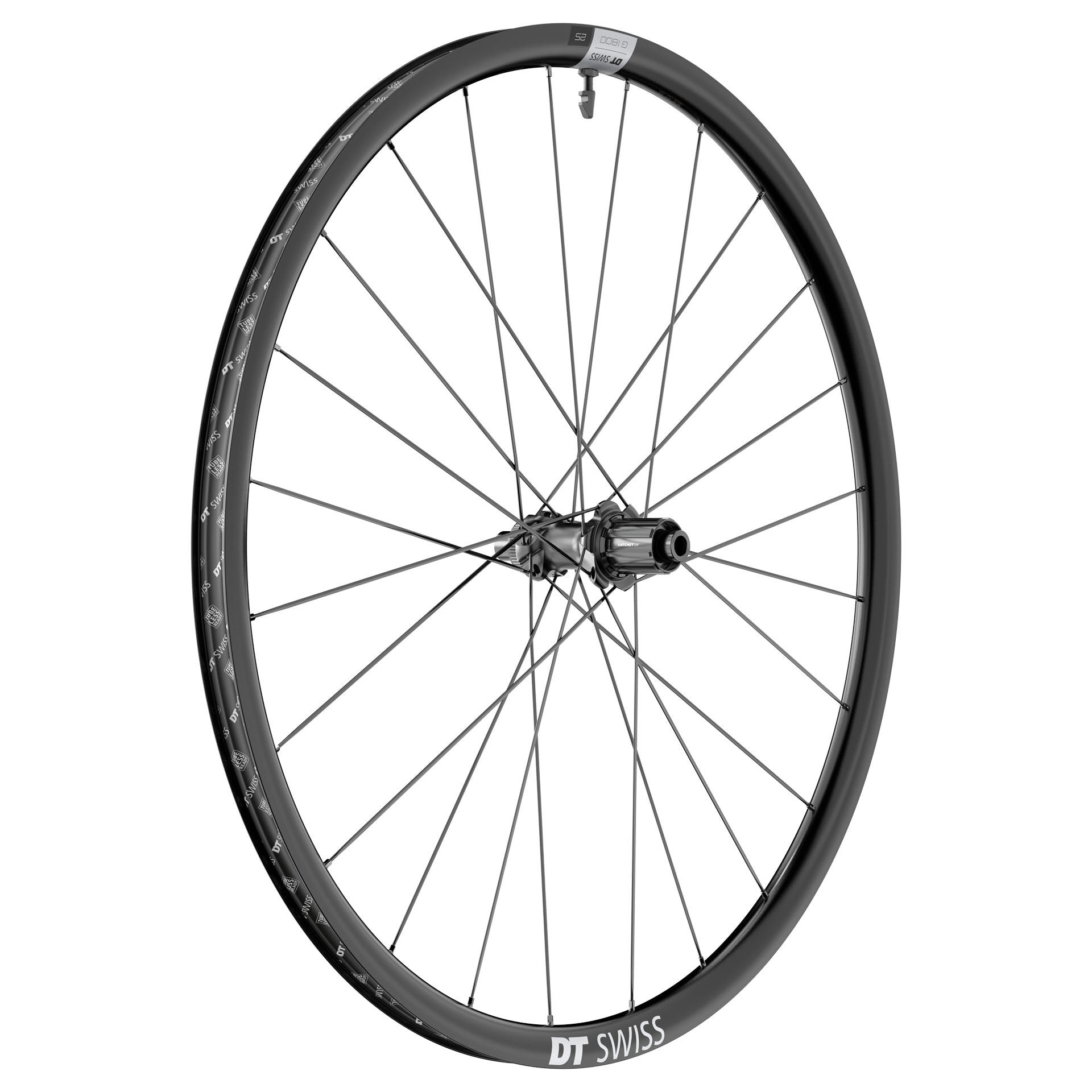

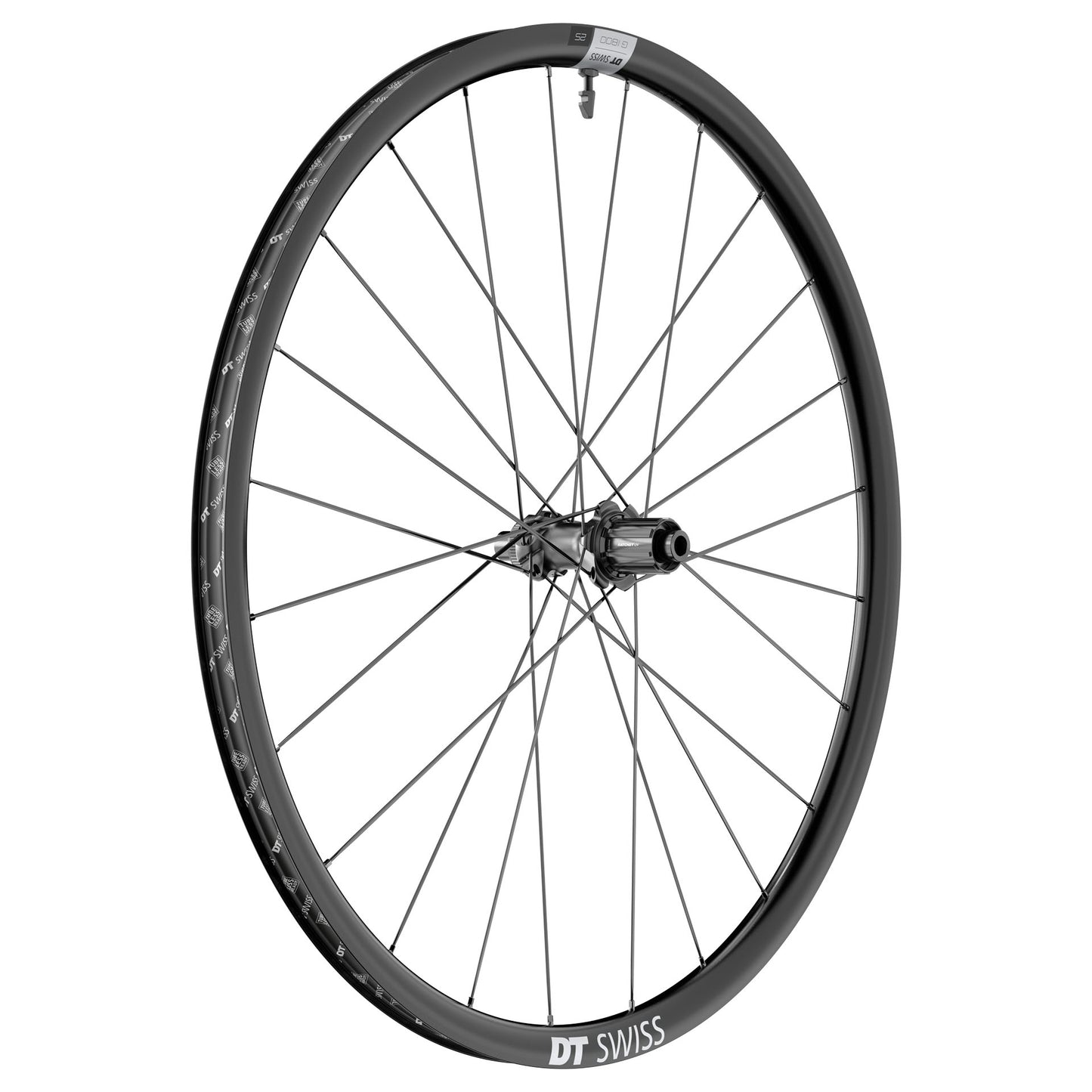

DT SWISS G 1800 SPLINE 25 DISC Rear Wheel Tubeless Ready (Centerlock)

The DT SWISS G 1800 SPLINE 25 DISC Rear Wheel is ideal for exploring new off-road horizons. Carefully designed, it combines robustness and reliability... Read more
249,90 €
249,90 €
View full details

Description

The DT SWISS G 1800 SPLINE 25 DISC Rear Wheel is ideal for exploring new off-road horizons. Carefully designed, it combines robustness and reliability to accompany your Gravel adventures.

Its wide aluminium rim ensures comfort and versatility, offering excellent compatibility with high-volume tyres. The 370 hub, combined with the Ratchet System freehub body technology, guarantees precise engagement and efficient power transfer, even on the most demanding terrain. The reinforced spokes ensure optimum stiffness and increased impact resistance.

Thanks to its durable construction, this wheel lets you approach every ride without constraint. Whether for a multi-day tour or a quick off-road outing, it will accompany you with reliability and performance. Pack your bags, leave the tarmac behind and head off with confidence towards new adventures.

Manufacturer Manual + Rim/Tyre Compatibility Chart & Pressures

SPLINE Models Manual

Tubeless Fitting Manual

Ref: 14993963680124

Informations techniques

┘GENERAL
Category: Gravel
Manufacturer Weight: 994 g
Max. Load: 130 kg
ASTM Classification: 2
E-Bikes Recommended: Yes (max. 32km/h or max. 250W)
Manufacturer Reference: W0G1800NIDMSA21294

┘RIM
Material: Aluminium
Tyre Interface: Hooked tubeless TC
Wheel Diameter: 622mm / 29" / 700c
Rim Height: 25mm
Internal Width: 24mm
External Width: 28mm

┘HUBS
Axle System: 12mm Thru axle
Spacing: 142mm
Disc Mount: Center Lock
Freehub Body: Shimano HG
Freehub: Ratchet System LN 18
Hub Type: 370

┘SPOKES AND NIPPLES
Left spokes: DT aero comp® wide straightp
Right spokes: DT aero comp® wide straightp
Lacing type: Two-cross (1:1)
Nipples: DT ProLock Squorx ProHead alu

┘ASSEMBLY & TECHNOLOGIES
► GRAVEL RANGE: The DT Swiss G range is specially designed for gravel, combining robustness, lightness and comfort. With rims optimised for wide tyres and tubeless compatibility, it guarantees grip and performance on varied terrain;
► SPLINE: DT Swiss's SPLINE concept combines robust hubs, optimised straight spokes and Ratchet technology for efficient power transfer. It ensures reliability, responsiveness and ease of maintenance for versatile performance;
► RATCHET: DT Swiss's Ratchet freehub body technology ensures fast and precise engagement thanks to its high-precision ratchet ring system. It guarantees efficient power transmission, high reliability and minimal maintenance;
► ARTISAN EXPERTISE: Hand-built, guaranteed to benefit from all of DT Swiss's expertise;

┘INCLUDED
Rim tape: Tubeless roll 27mm
Valve: Black alu TL valve 18-25mm

┘CONVERSION REFERENCES
► Adapters for Shimano HG / QR: HWGXXX0006383S;
► XDR / QR Kit: HWYABM00S5716S;
► XDR / 12x142 Kit: HWYABX00S7711S;
► Adapters for XDR / QR: HWGXXX00S5483S;
► Microspline / 12x142 Kit: HWYABM00S1962S;
► Adapters for Microspline / QR: HWGXXX00S5623S;
► Campagnolo N3W / 12x142 Kit: HWYABM00S0692S;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S;
;

Informations prix

*Recommended retail price from supplier in June 2026
