DT SWISS

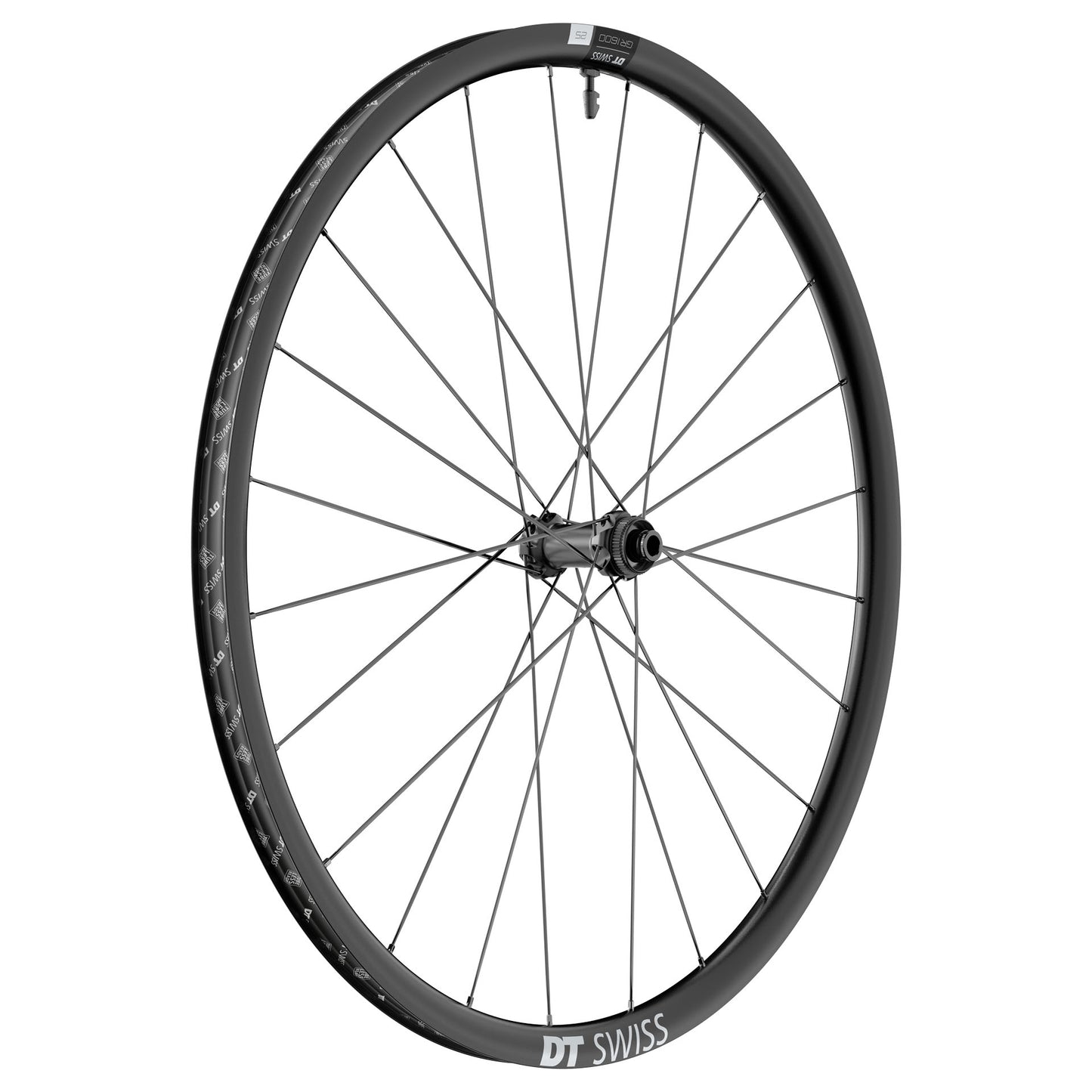

DT SWISS GR 1600 SPLINE 25 DISC Tubeless Ready Front Wheel (Centerlock)

The Front Wheel DT SWISS GR 1600 SPLINE 25 DISC is designed to explore new horizons and push back the limits of the sport.... Read more

Recommanded price: 251,90 €

215,90 €
215,90 €
View full details

Description

The Front Wheel DT SWISS GR 1600 SPLINE 25 DISC is designed to explore new horizons and push back the limits of the sport. Gravel.

Whether for a bikepacking adventure or a fast outing on the trails, it offers an ideal combination of performance and reliability. Its top-of-the-range aluminum rim is lightweight and robust, guaranteeing excellent resistance to demanding terrain.

With its 350 hubs SPLINE hubs and high-quality components, this wheel ensures excellent responsiveness and precise handling, whatever the conditions.

Designed to be compatible with tubelesstubeless tires, it further enhances comfort and grip by reducing the risk of punctures. Ideal for cyclists eager for new experiences.

Manufacturer's Manual + Rim/Tire & Pressure Compatibility Chart

SPLINE Models Manual

Tubeless Installation Manual

Ref: 7967884017830

Informations techniques

┘GENERAL
Category : Gravel
Manufacturer Weight: 830 g
Max. load 130 kg
ASTM classification: 2
Recommended for E-Bikes: Yes (max. 32Km/h or max. 250W)
Part Number : WGR1600AIDXSA21280

┘JANTE
Material : Aluminium
Tire interface: Hooked/Crochet tubeless TC
Wheel diameter: 622mm / 29" / 700c
Rim height: 25mm
Internal width: 24mm
External width: 28mm

┘MOYEUX
Axle system: 12mm Thru axle
Center distance: 100mm
Disc mounting: Center Lock
Hub type: 350

┘ NIPPLES AND NUTS
Left spokes: DT aero comp® wide straightp
Straight spokes: DT aero comp® wide straightp
Racking type: Two-cross (1:1)
Nipples : DT ProLock Squorx ProHead alu

┘ASSEMBLY & TECHNOLOGIES
► GRAVEL RANGE: DT Swiss's G range is specially designed for gravel, combining robustness, lightness and comfort. With rims optimized for wide tires and tubeless compatibility, it guarantees grip and performance on varied terrain ;
► SPLINE: DT Swiss's SPLINE concept combines robust hubs, optimized straight spokes and Ratchet technology for efficient power transfer. It ensures reliability, responsiveness and ease of maintenance for versatile performance ;
► RATCHET: DT Swiss's Ratchet freewheel body technology ensures fast, precise engagement thanks to its high-precision toothed ring system. It guarantees efficient power transmission, high reliability and minimal maintenance ;
► CRAFT KNOW-HOW: Handcrafted, guaranteed to benefit from all DT Swiss know-how;

┘INCLUSIVE
Rim base: 27mm tubeless roll
Valve: Black aluminum TL valve 18-25mm
┘CONVERSION REFERENCES
► Adapters for QR: HWGXXX00S3801S ;
► Adapters for DT Swiss Thru Bolt System: HWGXXX00S3803S ;
► Adapters for TA15 (15x100mm): HWGXXX0004785S ;

Informations prix

Recommended retail price February 2024
