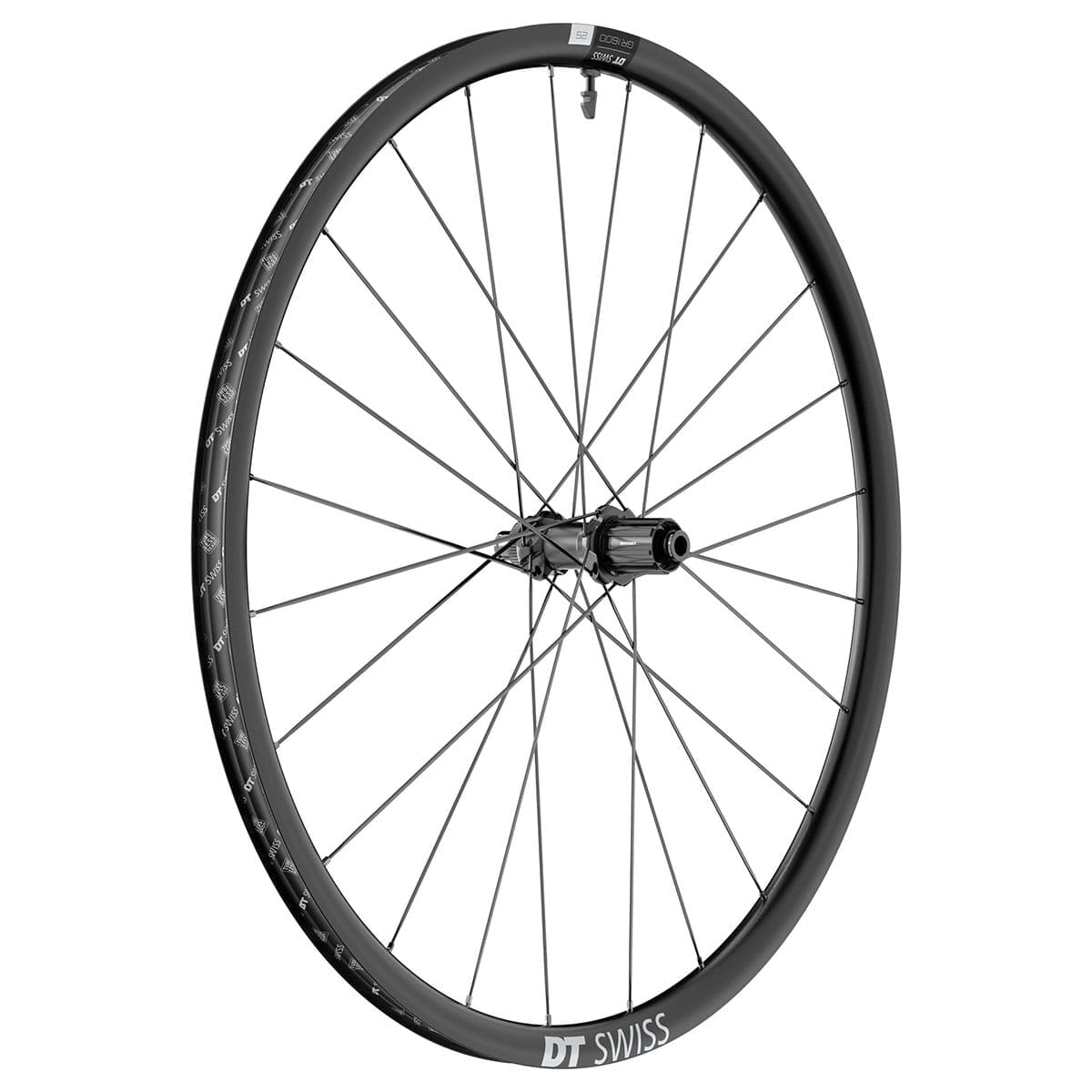

DT SWISS GR 1600 SPLINE 25 DISC Tubeless Ready Rear Wheel (Centre Lock)

The DT SWISS GR 1600 SPLINE 25 DISC Rear Wheel is designed to explore new horizons and push the limits of Gravel.  Whether for... Read more
299,90 €
299,90 €
View full details

Description

The DT SWISS GR 1600 SPLINE 25 DISC Rear Wheel is designed to explore new horizons and push the limits of Gravel.

Whether for a bikepacking adventure or a quick ride on the trails, it offers an ideal combination of performance and reliability. Its lightweight yet robust premium aluminium rim guarantees excellent resistance on demanding terrain.

The 350 hub, renowned for its durability, is paired with the Ratchet freehub system, offering quick and efficient engagement for optimal power transfer. With its SPLINE hub and high-quality components, this wheel delivers excellent responsiveness and precise handling, whatever the conditions.

Designed to be compatible with tubeless tyres, it further improves comfort and grip by reducing the risk of punctures. Ideal for cyclists eager for new experiences.

Manufacturer Manual + Rim/Tyre Compatibility & Pressures Chart

SPLINE Models Manual

Tubeless Fitting Manual

Ref: 7967883952294

Informations techniques

┘GENERAL
Category: Gravel
Manufacturer Weight: 927 g
Max. Load: 130 kg
ASTM Classification: 2
E-Bikes Recommended: Yes (max. 32km/h or max. 250W)
Manufacturer Reference: WGR1600NIDISA21281

┘RIM
Material: Aluminium
Tyre Interface: Hooked tubeless TC
Wheel Diameter: 622mm / 29" / 700c
Rim Height: 25mm
Internal Width: 24mm
External Width: 28mm

┘HUBS
Axle System: 12mm Thru axle
Spacing: 142mm
Disc Mount: Center Lock
Freehub Body: Shimano HG
Freehub: Ratchet System 36 SL
Hub Type: 350

┘SPOKES AND NIPPLES
Left spokes: DT aero comp® wide straightp
Right spokes: DT aero comp® wide straightp
Spoke pattern: Two-cross (1:1)
Nipples: DT ProLock Squorx ProHead alu

┘ASSEMBLY & TECHNOLOGIES
► GRAVEL RANGE: The DT Swiss G range is specially designed for gravel riding, combining robustness, lightness and comfort. With rims optimised for wide tyres and tubeless compatibility, it guarantees grip and performance on varied terrain;
► SPLINE: The DT Swiss SPLINE concept combines robust hubs, optimised straight spokes and Ratchet technology for efficient power transfer. It ensures reliability, responsiveness and ease of maintenance for versatile performance;
► RATCHET: DT Swiss Ratchet freehub body technology ensures fast and precise engagement thanks to its high-precision toothed ring system. It guarantees efficient power transmission, high reliability and minimal maintenance;
► ARTISAN CRAFTSMANSHIP: Hand-built, guaranteed to benefit from all of DT Swiss's expertise;

┘INCLUDED
Rim tape: 27mm tubeless roll
Valve: Black alu TL valve 18-25mm

┘CONVERSION REFERENCES
► Adapters for Shimano HG / QR: HWGXXX0006383S;
► XDR / QR Kit: HWYABX00S8883S;
► XDR / 12x142 Kit: HWYABX00S7711S;
► Adapters for XDR / QR: HWGXXX00S5483S;
► Microspline / 12x142 Kit: HWYABL00S1961S;
► Adapters for Microspline / QR: HWGXXX00S5623S;
► Campagnolo N3W / 12x142 Kit: HWYABL00S2992S;
► Campagnolo / QR Kit: HWYABX00S1296S;
► Campagnolo / 12x142 Kit: HWYABX00S7154S;
► Adapters for Campagnolo / QR: HWGXXX00S2766S;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S;
;
