DT SWISS

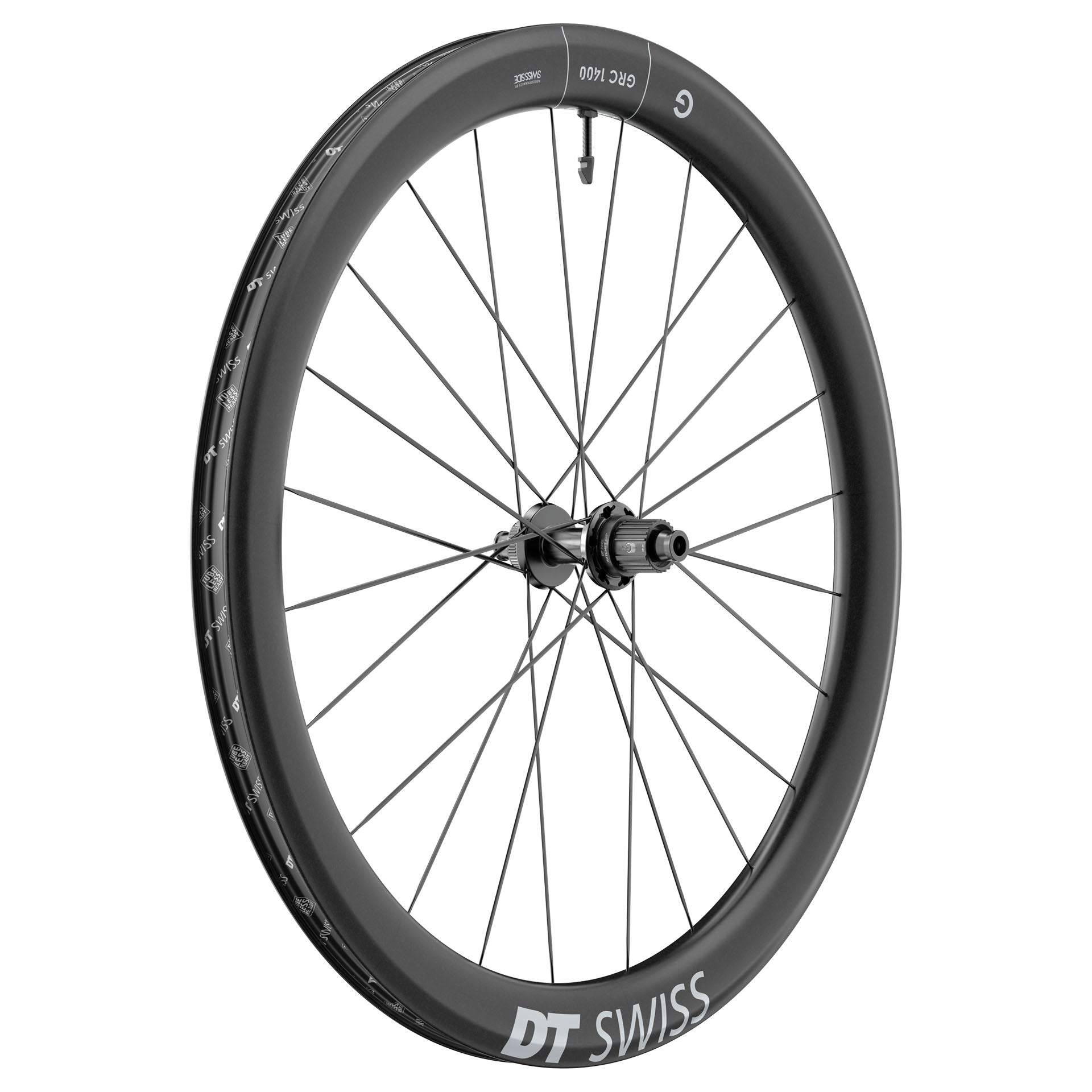

DT SWISS GRC 1400 DICUT 50 DISC Tubeless Ready Rear Wheel (Centerlock)

Réf. fabricant : WGRC140NIDICA21246
The rear wheel DT SWISS GRC 1400 DICUT 50 DISC is designed to push the limits of Gravel. With its robust, high-performance design, it... Read more
1.099,90 €
1.099,90 €
View full details

Description

The rear wheel DT SWISS GRC 1400 DICUT 50 DISC is designed to push the limits of Gravel.

With its robust, high-performance design, it absorbs vibrations and takes on obstacles with confidence. The aerodynamically optimized 50 mm version is ideal if you're after the KOM/QOM crown, or looking to get ahead of the competition in your preferred gravel segment.

Equipped with the 240 hub hub and the Ratchet EXP freewheel systemfreewheel system, it ensures optimum power transfer and high reliability. Its DT aero comp II spokes spokes enhance stiffness and durability for maximum performance on all types of terrain.

Its raw, unvarnished design, the result of an innovative manufacturing process, gives it a unique aesthetic and saves weight. Ready to tackle technical trails and fast tracks, it's with you every step of the way. Gravel challenge with fluidity and responsiveness.

Manufacturer's Manual + Rim/Tyre Compatibility & Pressure Chart

Manual DICUT Models

Tubeless Mounting Manual

Ref: 15049563603324

Informations techniques

┘GENERAL
Category : Gravel
Rear weight: 881 g
Max. load 130 kg
ASTM classification: 2
Recommended E-Bikes: Yes (max. 32Km/h or max. 250W)

┘JANTE
Material: Carbon
Tire interface: Hooked/Crochet tubeless TC
Wheel diameter: 622mm / 29" / 700c
Rim height: 50mm
Internal width: 24mm
External width: 36.5mm

┘MOYEU
Axle system: 12mm Thru axle
Rear axle center distance: 142mm
Disc mounting: Center Lock
Freewheel body: Shimano HG
Freewheel: Ratchet EXP 36
Hub type: 240

┘ NIPPLES AND NUTS
Rear spokes :
- Left: DT aero comp® II t-head
- Right: DT aero comp® II t-head
Racking type: Two-cross (1:1)
Nuts : DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
► GRAVEL RANGE: DT Swiss's G range is specially designed for gravel, combining robustness, lightness and comfort. With rims optimized for wide clinchers and tubeless compatibility, it guarantees grip and performance on varied terrain ;
► DICUT: DT Swiss's DICUT concept combines high-performance hubs, optimized spokes and advanced aerodynamics. Designed for speed and efficiency, it maximizes lateral stiffness and power transfer on Road and Track ;
► RATCHET EXP:DT Swiss's Ratchet EXP freewheel body technology optimizes hub engagement by integrating a single tapered spring, reducing weight and increasing durability. It ensures efficient power transfer and simplified maintenance. ;
► CRAFT KNOW-HOW: Handcrafted, guaranteed to benefit from all DT Swiss know-how;

┘INCLUSIVE
Rim base: 27mm tubeless roll
Black TL alu valve 49-65 mm / Valve protection sticker
SRAM XDR freewheel body

┘CONVERSION REFERENCES
- Rear wheel
► Adapters for Shimano HG / QR: HWGXXX00S7446S ;
► XDR kit / QR: HWYABL00S5382S ;
► Kit XDR / 12x142 : HWYABL00S5401S ;
► Adapters for XDR / QR: HWGXXX00S2760S ;
► Microspline kit / 12x142: HWYABL00S1960S ;
► Adapters for Microspline / QR: HWGXXX00S5623S ;
► Campagnolo N3W kit / 12x142: HWYABL00S2993S ;
► Campagnolo Kit / QR: HWYABL00S7073S ;
► Kit Campagnolo / 12x142 : HWYABL00S7074S ;
► Adapters for Campagnolo / QR: HWGXXX00S2766S ;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S ;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S ;

Informations prix

Supplier suggested retail price in February 2025
