DT SWISS P 1800 SPLINE 23 DISC Tubeless Ready Rear Wheel (Center Lock)

Developed for cyclists who want to make the most of every ride, the DT SWISS P 1800 SPLINE 23 rear wheel combines efficiency, comfort... Read more
Regular price 269,90 €
Regular price Sale price 269,90 €
View full details

Description

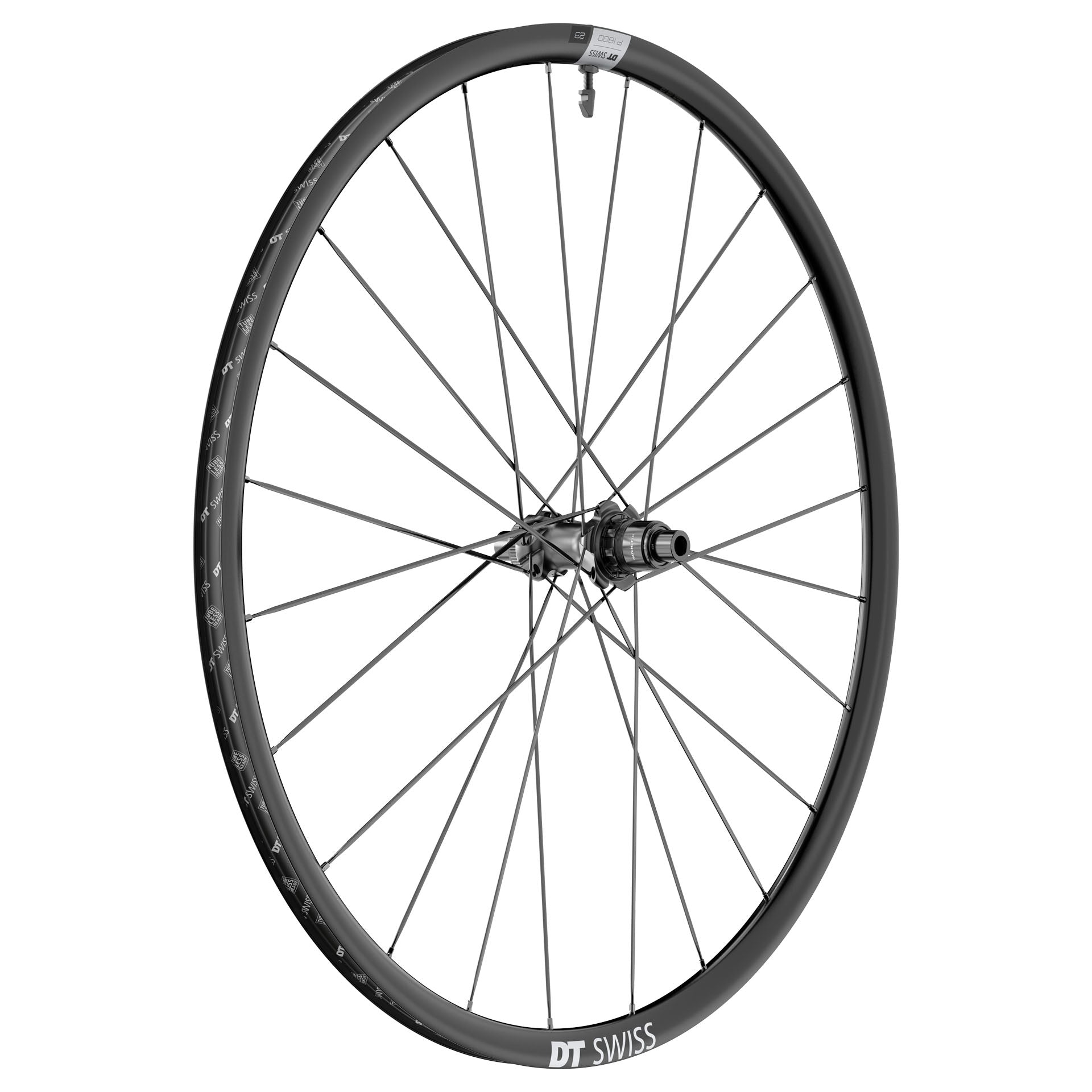

Developed for cyclists who want to make the most of every ride, the DT SWISS P 1800 SPLINE 23 rear wheel combines efficiency, comfort and reliability. Its aluminium rim with a 23 mm depth has been designed to suit both hilly routes and long days in the mountains. Hand-assembled with uniform spoke tension, it delivers stable and precise handling while maintaining an excellent level of comfort over long distances.

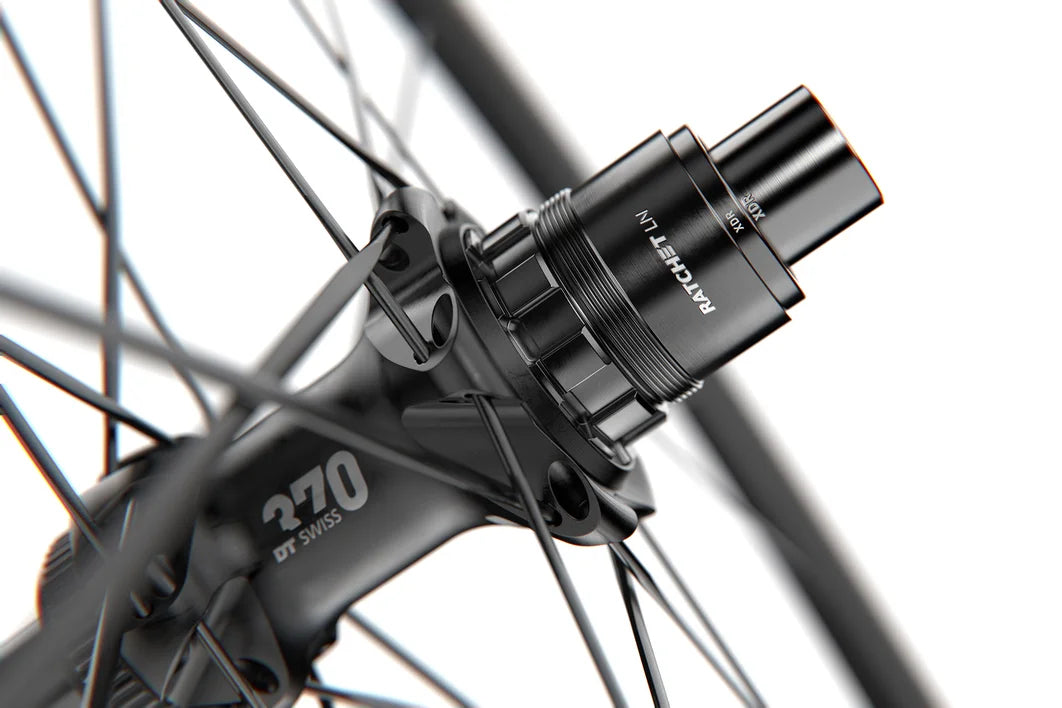

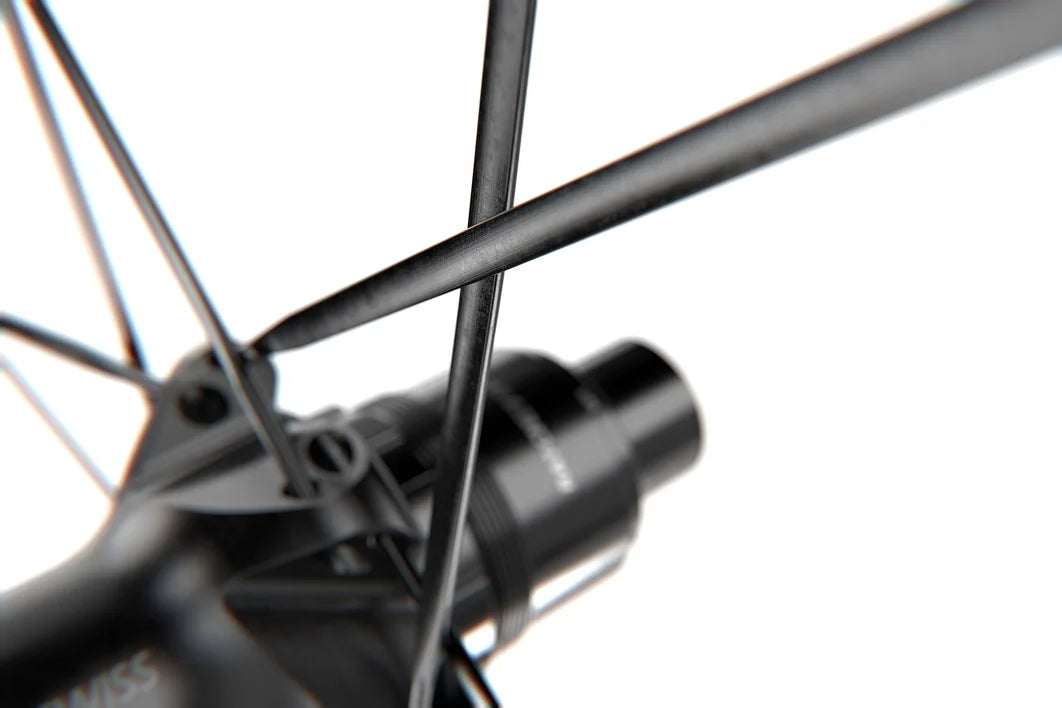

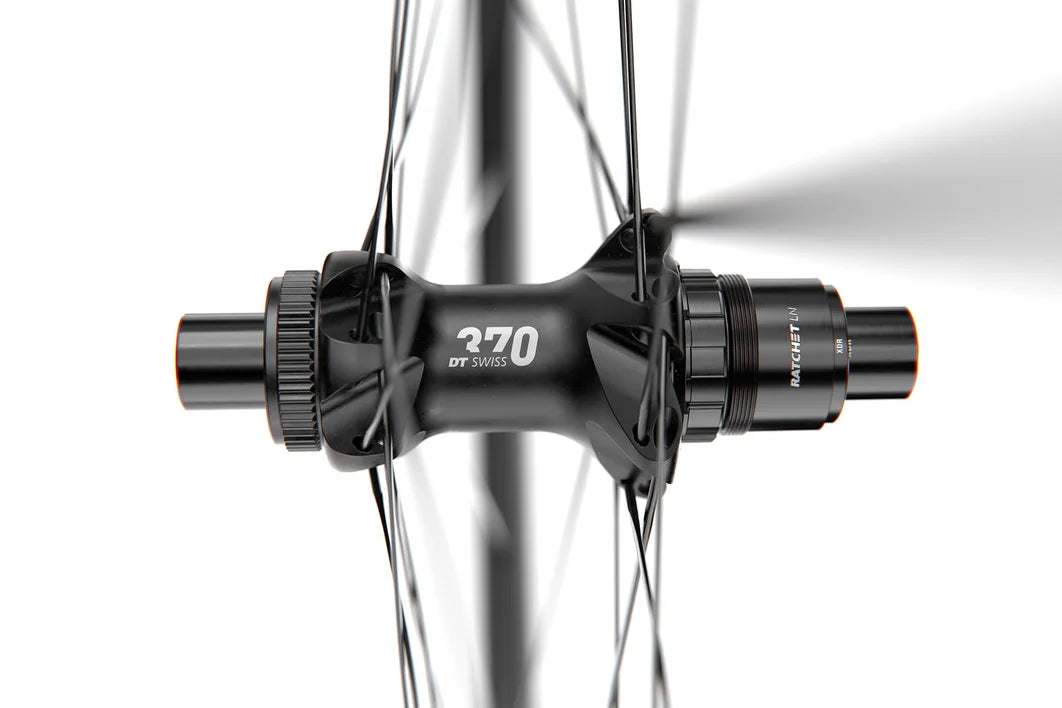

The DT Swiss 370 hub integrates Ratchet LN 18 technology, ensuring smooth and reliable power transfer even on the most demanding climbs. The build combines DT aero comp® wide Straightpull spokes on the left side and DT new aero® II Straightpull spokes on the right side, using a Two-cross (1:1) lacing pattern that optimises stiffness and power transfer efficiency.

Compatible with Tubeless Ready, this wheel benefits from the Hooked / Crotchet tubeless TC interface to improve comfort, traction and puncture resistance. Weighing a modest 896 g, it is an excellent option for modernising a rim-brake road bike while benefiting from the recognised quality of DT Swiss components.

Manufacturer Manual + Rim/Tyre Compatibility & Pressure Chart

SPLINE Models Manual

Tubeless Fitting Manual

Ref: 16023267934588

Informations techniques

┘GENERAL
Category: Road
Manufacturer Weight: 913 g in Shimano HG
Max Load: 120 kg
ASTM Classification: 1
E-Bikes Recommended: No
Manufacturer Reference in Shimano HG: W0P1800NIDMSA21345

┘RIM
Material: aluminium, sleeved joint
Tyre Interface: Hooked/Crochet tubeless TC
Wheel Diameter: 622mm / 29" / 700c
Rim Height: 23mm
Internal Width: 20mm
External Width: 24mm

┘HUBS
Model: 370
Axle System: 12mm Thru axle
Spacing: 142mm
Disc Mount: Center Lock
Freehub Body: Shimano HG or XDR
Freehub: Ratchet LN 18

┘SPOKES AND NIPPLES
Spokes: DT new aero® II Straightpull
Spoke Pattern: Two-cross (1:1)
Nipples: DT Pro Lock Squorx ProHead alu

┘ASSEMBLY & TECHNOLOGIES
► SPLINE: DT Swiss's SPLINE concept combines robust hubs, optimised straight spokes and Ratchet technology for efficient power transfer. It ensures reliability, responsiveness and ease of maintenance for versatile performance;
► RATCHET: DT Swiss's Ratchet freehub body technology ensures fast and precise engagement thanks to its high-precision ratchet ring system. It guarantees efficient power transmission, high reliability and minimal maintenance;
► ARTISAN CRAFTSMANSHIP: Hand-built, guaranteed to benefit from all of DT Swiss's expertise;

┘INCLUDED
Rim Tape: 23mm tubeless roll
Valve: Black alu TL valve 18-25 mm / Valve protection sticker
